Better Pipe Organ Database

Casavant Frères Opus 3881 (2010)

St. Barnabas on the Desert Episcopal Church: Church
6715 N. Mockingbird Lane
Scottsdale, AZ

Images

2019-06-10 - Choirloft, console and exposed pipes (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

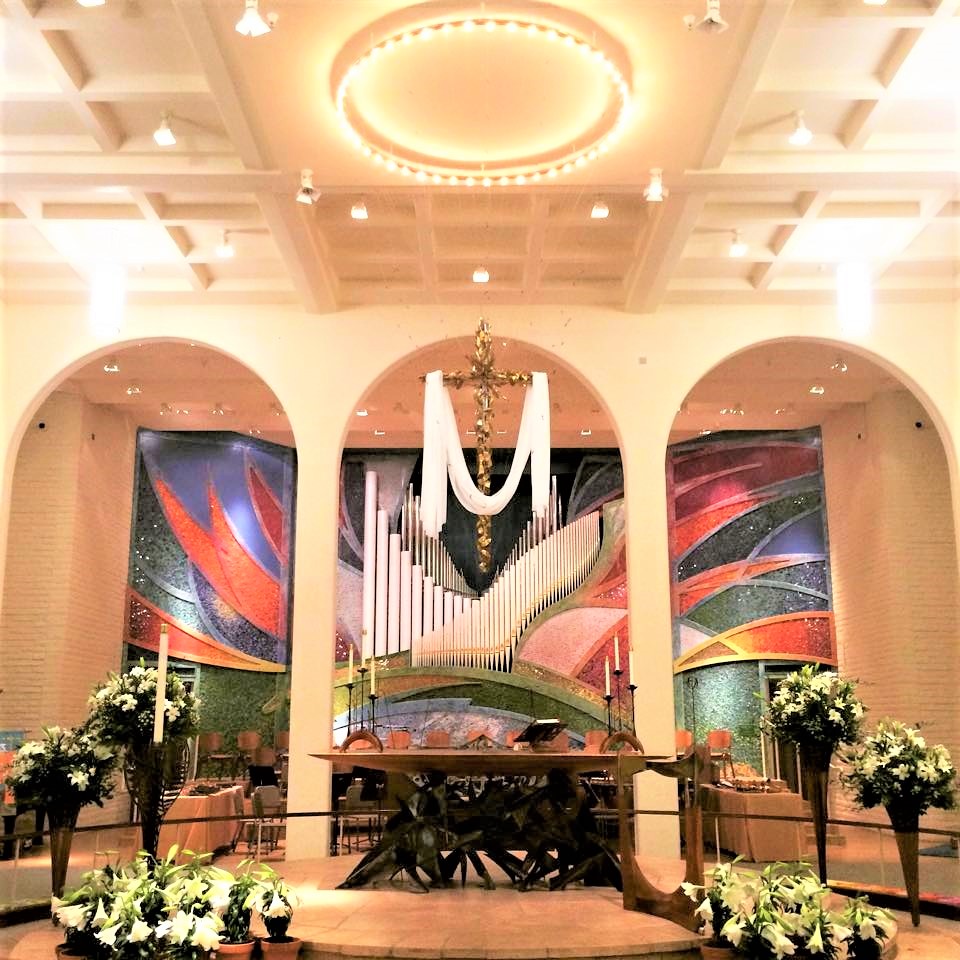

2019-04-19 - Chancel and exposed pipes (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
40 stops
49 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-10-06 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2011-02-14 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

Scottsdale, Arizona
Episcopal Parish of St. Barnabas on the Desert

Casavant Frères Ltée.   Opus 3881   2010    3 manuals, 40 stops, 51 ranks
_________________________________________________________________________

         GREAT ORGAN                          SWELL ORGAN
     16' Dbl Open Diapason  61            16' Bourdon            73
      8' Open Diapason      61             8' Diapason           61
      8' Violoncello        61             8' Cor de nuit (Bdn)  --
      8' Bourdon            61             8' Viola di gamba     61
      8' Harmonic Flute     61             8' Voix céleste (GG)  54
      4' Octave             61             4' Octave             61
      4' Open Flute         61             4' Traverse Flute     61
      2' Fifteenth          61             2' Octavin            61
    III  Cornet (from G2)  126        III-IV  Mixture           259
   IV-V  Mixture           293            16' Bassoon    F/L     61
      8' Trumpet            61             8' Harmonic Trumpet   61
         Tremulant                         8' Oboe               61
         Great Unison Off                  4' Harmonic Clarion   61
         Chimes                               Tremulant
                                              Swell 16'
         CHOIR ORGAN                          Swell Unison Off
      8' Salicional         61                Swell 4'
      8' Chimney Flute      61             8' Tuba              61
      8' Unda Maris (TC)    49
      4' Principal          61                PEDAL ORGAN
      4' Spindle Flute      61            32' Subbass            --
  2 2/3' Nasard             61            16' Contrabass         32 a
      2' Flute              61            16' Dbl Open Diapason  GT
  1 3/5' Tierce             61            16' Subbass            44
  1 1/3' Larigot            61            16' Bourdon            SW
    III  Chorus Mixture    183        10 2/3' Quinte (fr. SB)    --
      8' Clarinet           61             8' Octavebass         32
         Tremulant                         8' Bourdon (fr. SB)   --
         Choir Unison Off                  4' Octave             32
         Choir 4'                         16' Trombone           44
      8' Tuba               SW            16' Bassoon            SW
                                           8' Trumpet (fr. Tbn)  --
      a  open wood


[Received from Steven E. Lawson  2016-10-08]
