Our Lady of Fatima Catholic Church: Sanctuary
3307 West Dravus Street
Seattle, WA
Images
2023-09-30 - Keydesk: right toestuds (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)

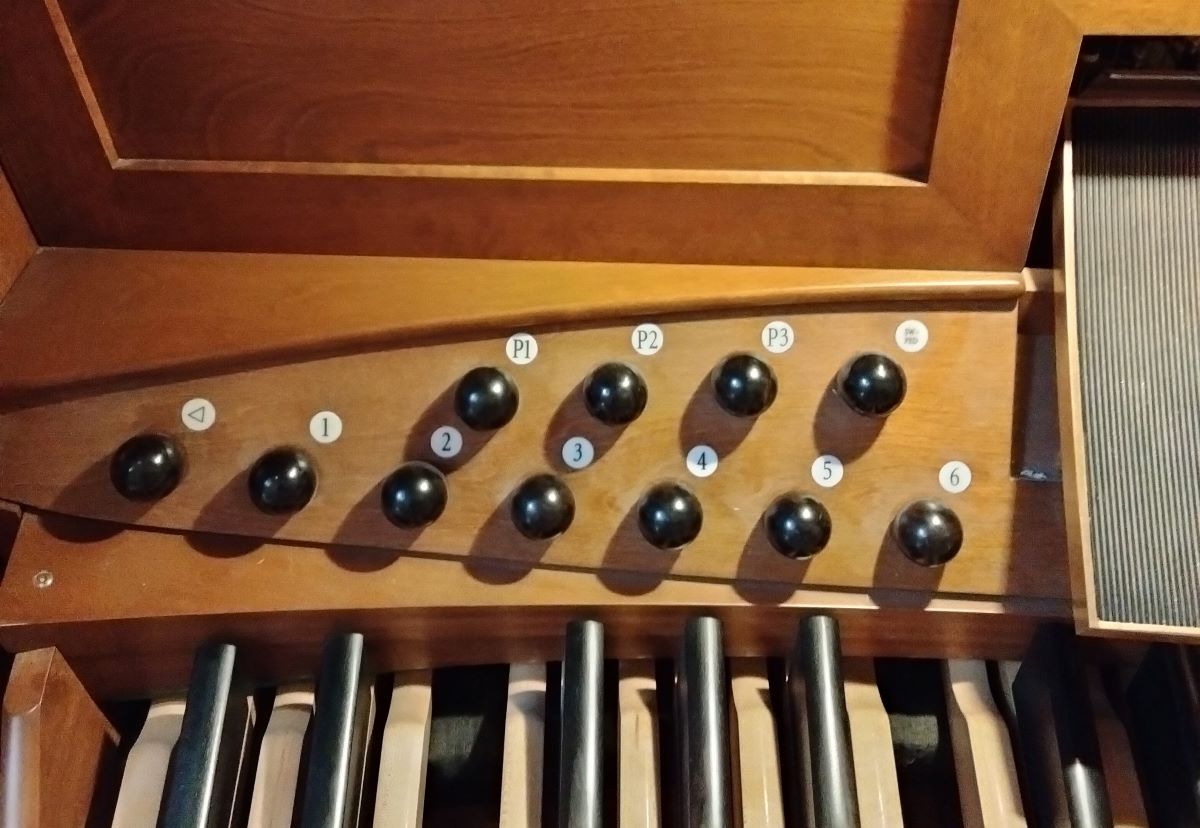

2023-09-30 - Keydesk: left toe studs (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)

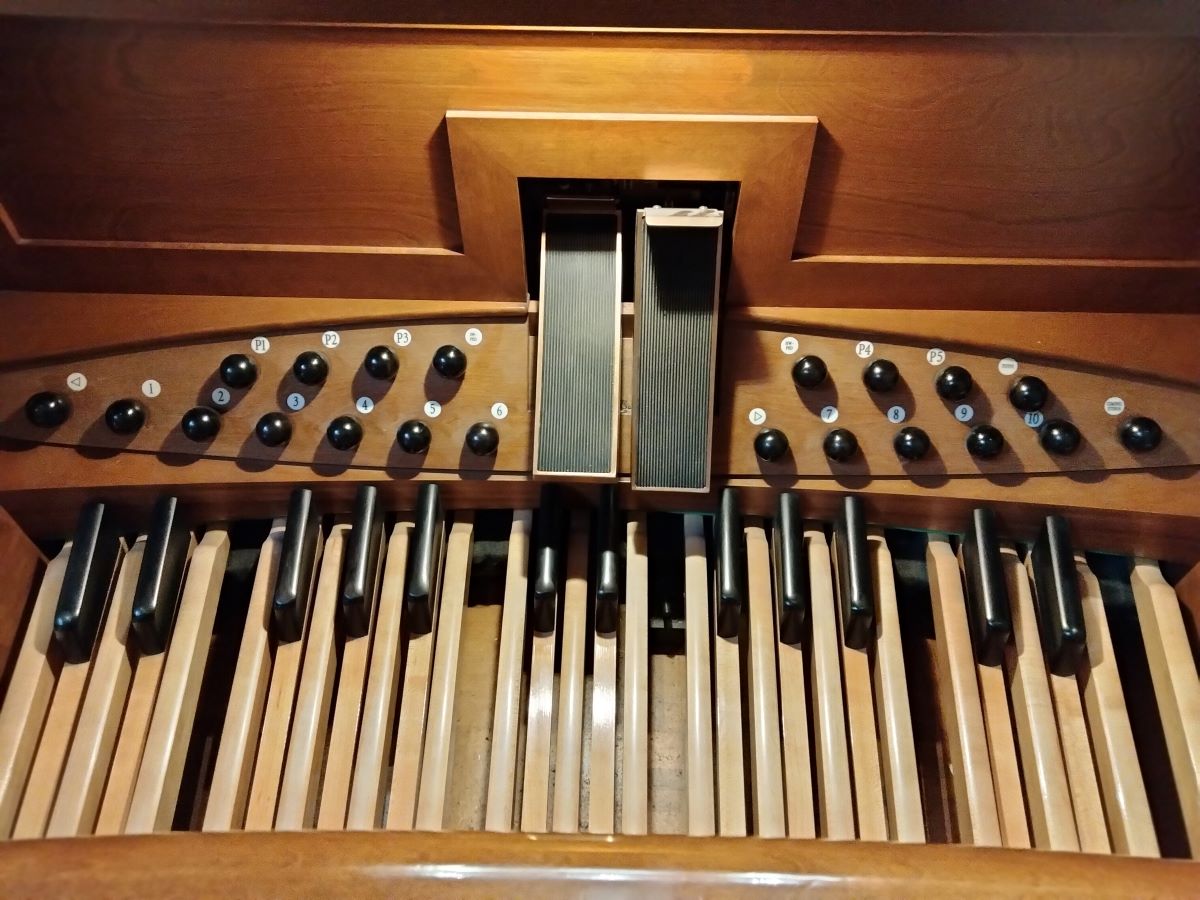

2023-09-30 - Keydesk: pedalboard, toe studs, and expression (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)

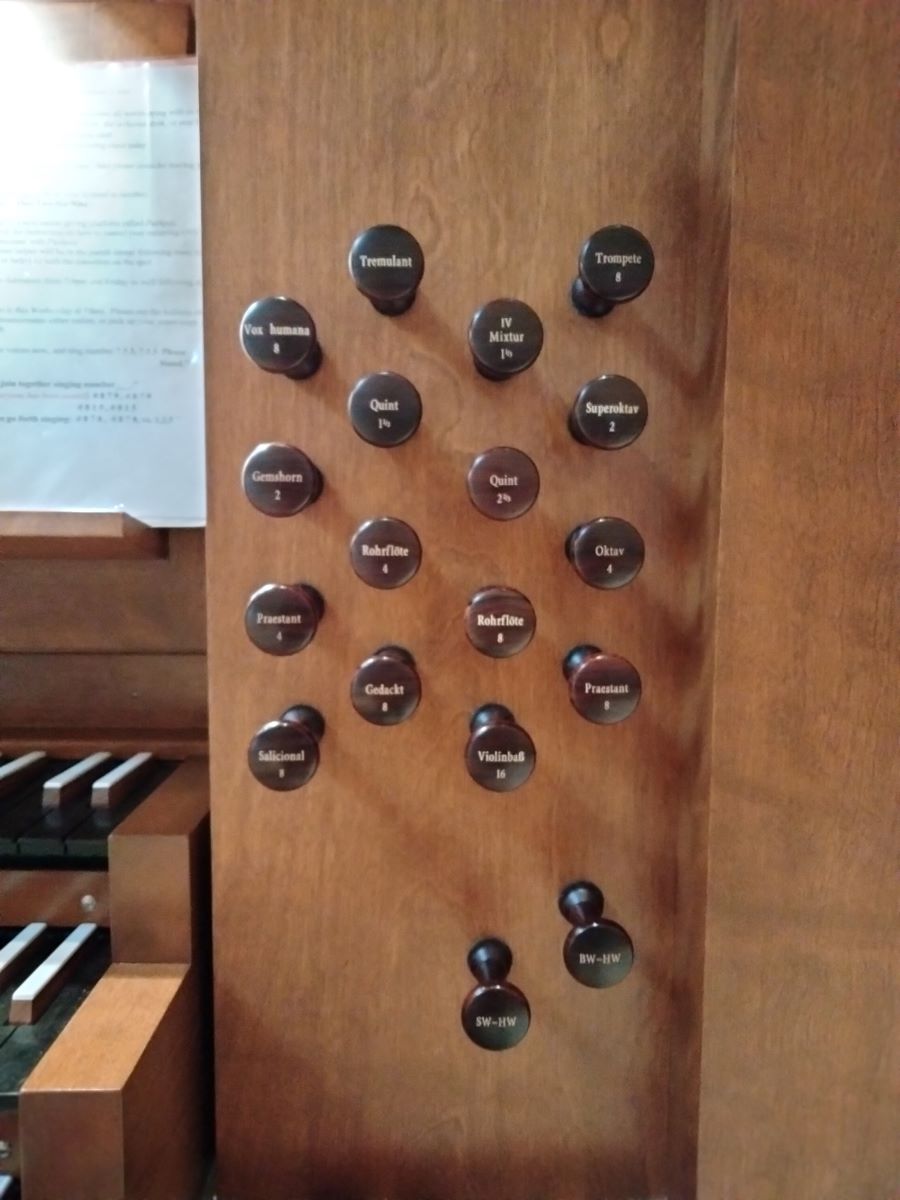

2023-09-30 - Keydesk: left stopjamb (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)

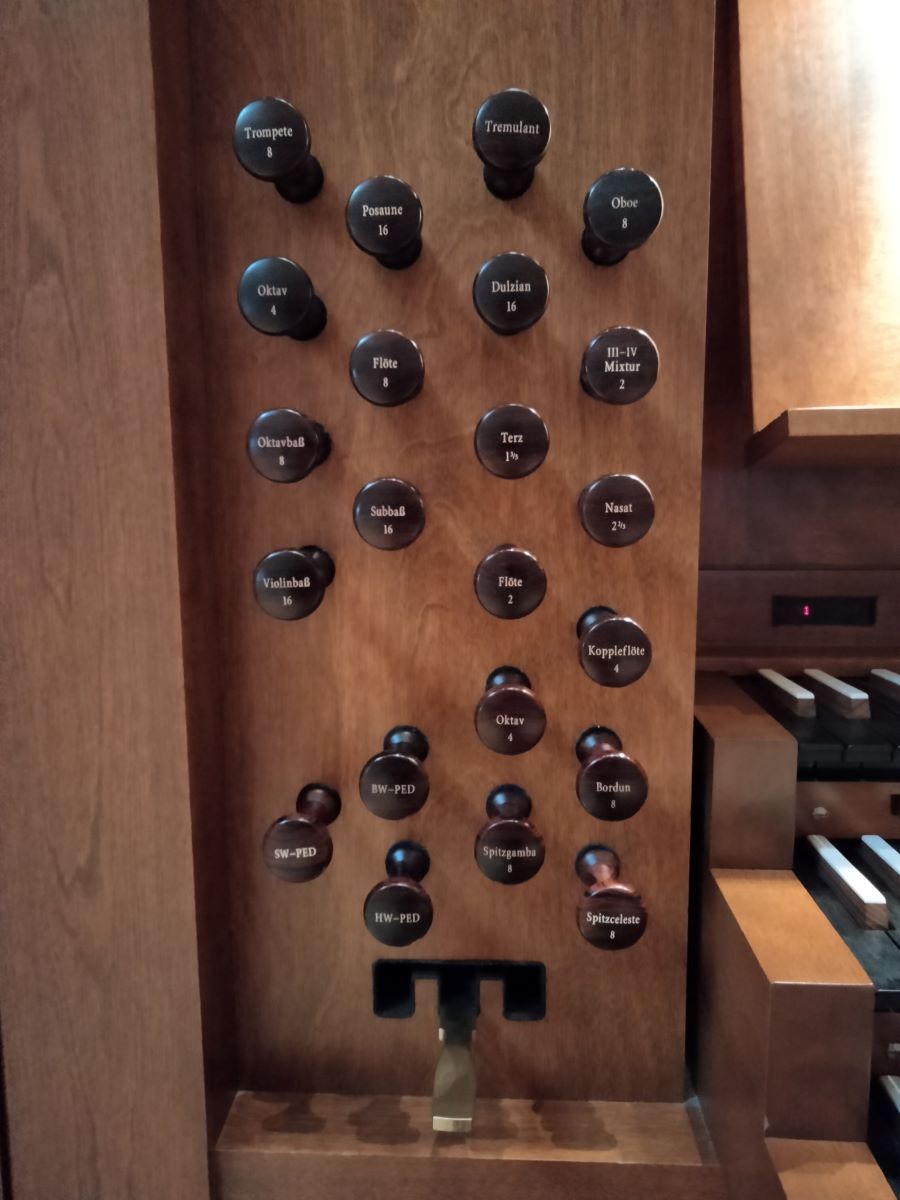

2023-09-30 - Keydesk: right stopjamb (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)

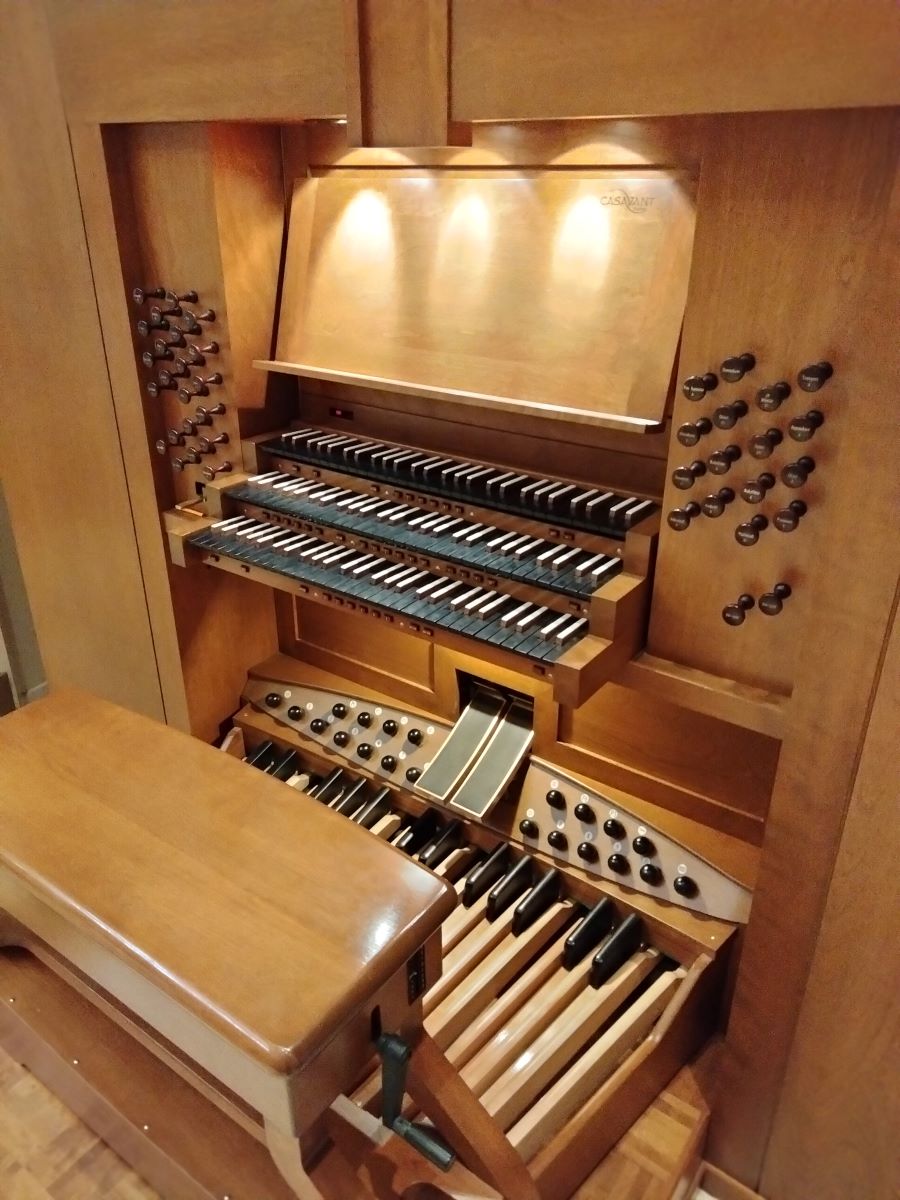

2023-02-05 - Keydesk (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)

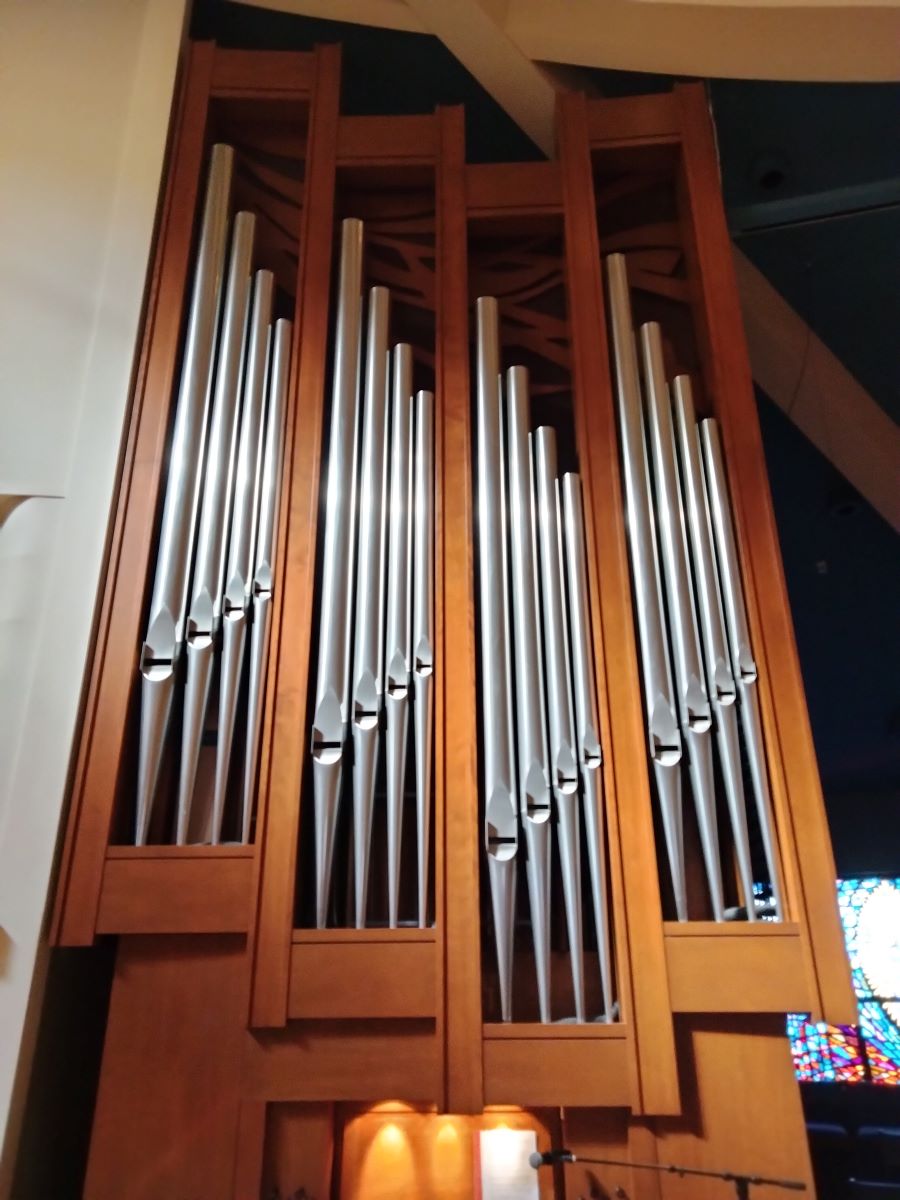

2023-09-16 - Facade (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)

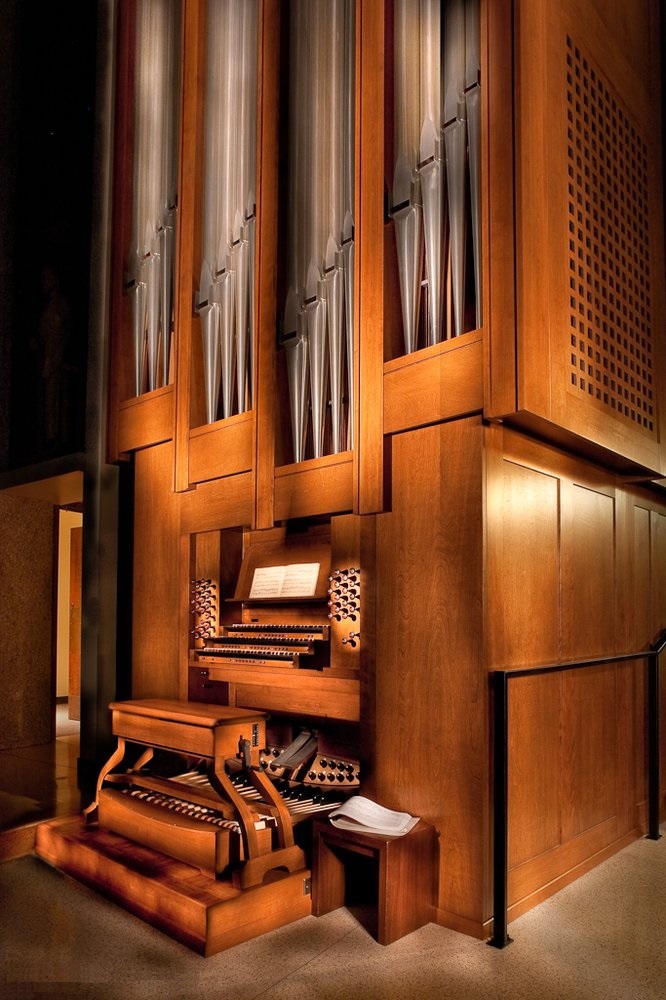

2017-12-27 - Organ case and keydesk (Photograph by Philip R. on Yelp, submitted by Jim Stettner/Jim Stettner)

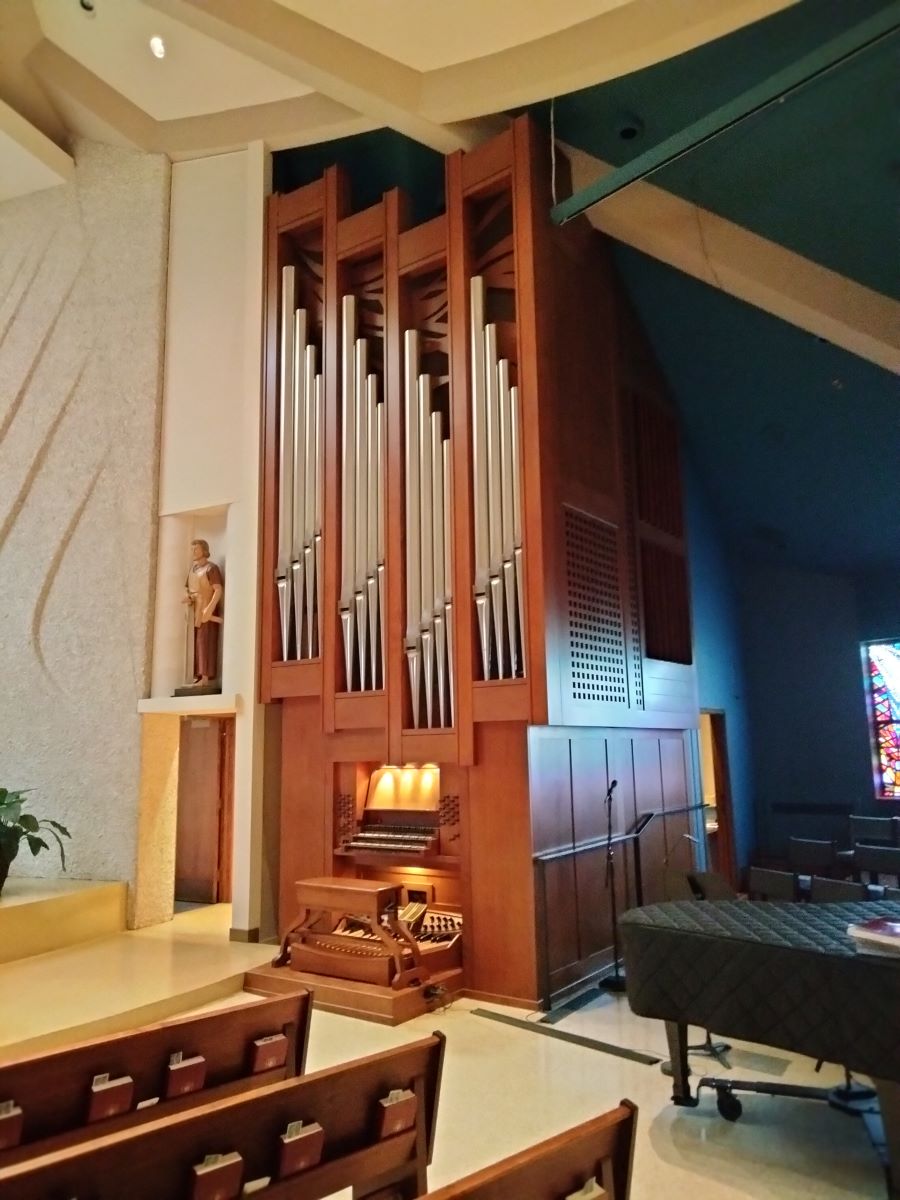

2023-02-02 - Organ case and keydesk (Photograph by Kyle Kirschenman, submitted by Jim Stettner/Jim Stettner)
Date unknown - Church exterior (Photograph from an archival source: RoadsideArchitecture.com, submitted by Jim Stettner/Jim Stettner)
Consoles
Main
- Organ type: Traditional Without Cover
- Console position: Keydesk Attached
- 3 manuals
- 30 stops
- 33 registers
- 4 divisions
- Key action Type: Mechanical (Details Unknown)
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
- Manual compass: 58 notes
- Pedal compass: 30 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Computerized/Digital
- Has sequencer
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2009-10-06 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager
2011-02-14 - Updated through online information from Jeff Scofield. -- The Brustwerk has a 59-note chest, in order to provide the extra note when the division is used in its transposition position. -Database Manager
2011-11-12 - Updated through online information from T. Daniel Hancock. -Database Manager
Stoplist
Source: Stoplist copied from the factory specifications / Updated from keydesk photos Date not recorded
Seattle, Washington,
Our Lady of Fatima RC Parish
Casavant, Op. 3888, 2011 - 3/36
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
_________________________________________
HAUPTWERK (II)
16' Violinbaß 58
8' Praestant 58
8' Rohrflöte 58
4' Octav 58
2 2/3' Quinte 58
2' Superoctav 58
IV Mixtur 1⅓ 232
8' Trompete 58
SCHWELLWERK (III)
8' Bordun 58
8' Spitzgamba 58
8' Spitzceleste (tc) 46
4' Oktav 58
4' Koppelflöte 58
2 2/3' Nasat 58
2' Flöte 58
1 3/5' Terz 58
III-IV Mixtur 2 215
16' Dulzian 58
8' Oboe 58
Tremulant
BRUSTWERK (Expressive - I)*
8' Gedackt 59
8' Salicional 47 (1-13 Gedackt)
4' Praestant 59
4' Rohrflöte 59
2' Gemshorn 59
1 1/3' Quint 59
8' Vox humana 59
Tremulant
* keyboard transposable a semi-tone lower
PEDAL
16' Violinbaß (HW) --
16' Subbaß 30
8' Oktavbaß 30
8' Flöte 12
4' Oktav 30
16' Posaune 30 **
8' Trompete 12 **
** wood resonators
COUPLERS
SW-PED
HW-PED
BW-PED
SW-HW
BW-HW
FINGER PISTONS
General 1 - 6
Schwellwerk 1 - 6
SW-PED (rev)
SW-HW (rev)
Hauptwerk 1 - 6
HW-PED (rev)
Brustwerk 1 - 6
BW-PED (rev)
BW-HW (rev)
Tutti (rev)
Set
Cancel
Several additional, unidentified pistons
TOE STUDS
General 1 - 6
Pedal 1 - 5
SW-PED (rev)
HW-PED (rev)
►
◄
Zimbelstern (rev)
Tutti (rev)
PEDAL MOVEMENTS
Brustwerk Expression (bal.)
Schwellwerk Expression (bal.)
[Received online from Jeff Scofield February 12, 2011]
[Corrected/Updated by James R. Stettner October 5, 2023]
