St. John Lutheran Church
460 Riley Street
Dundee, MI
Images

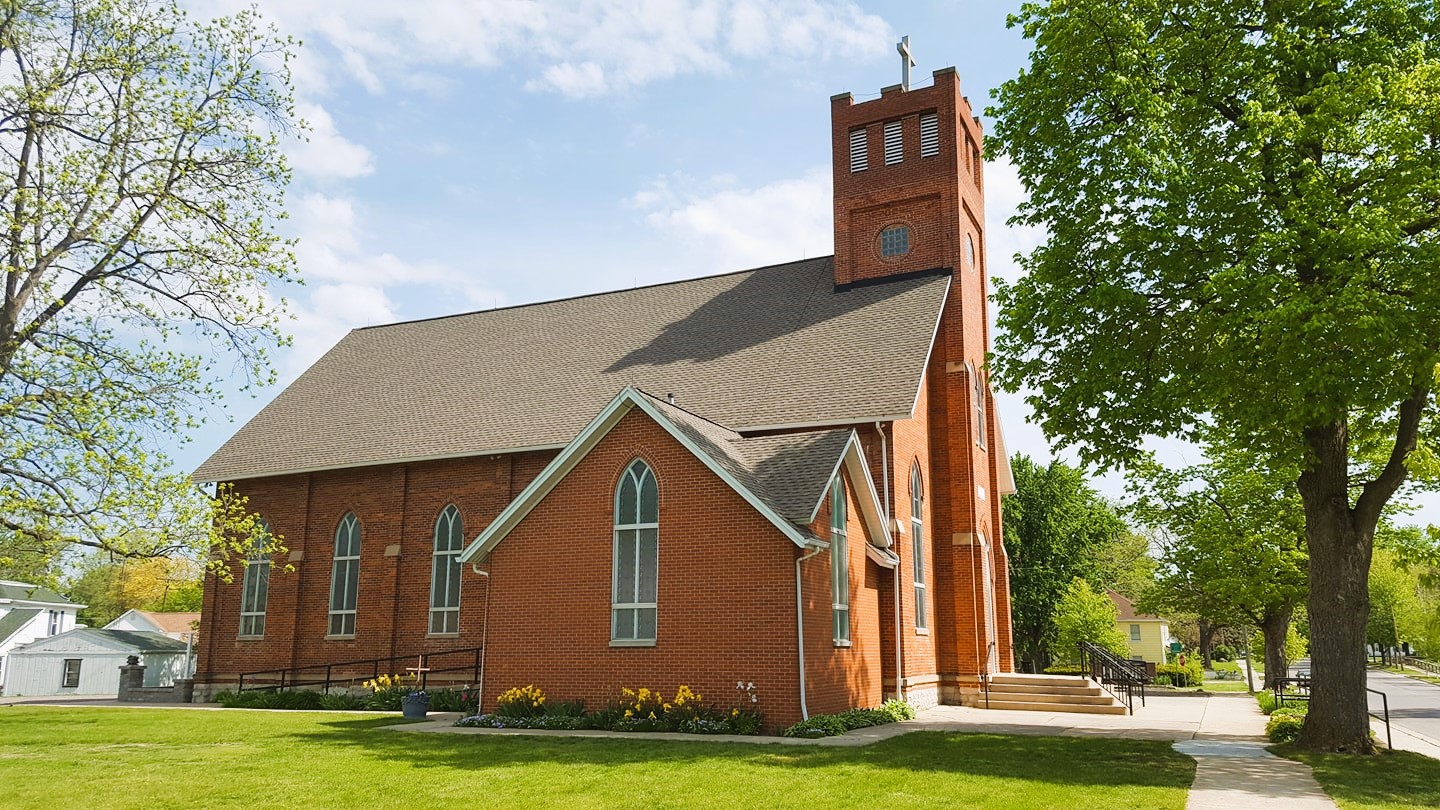

2021-06-09 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

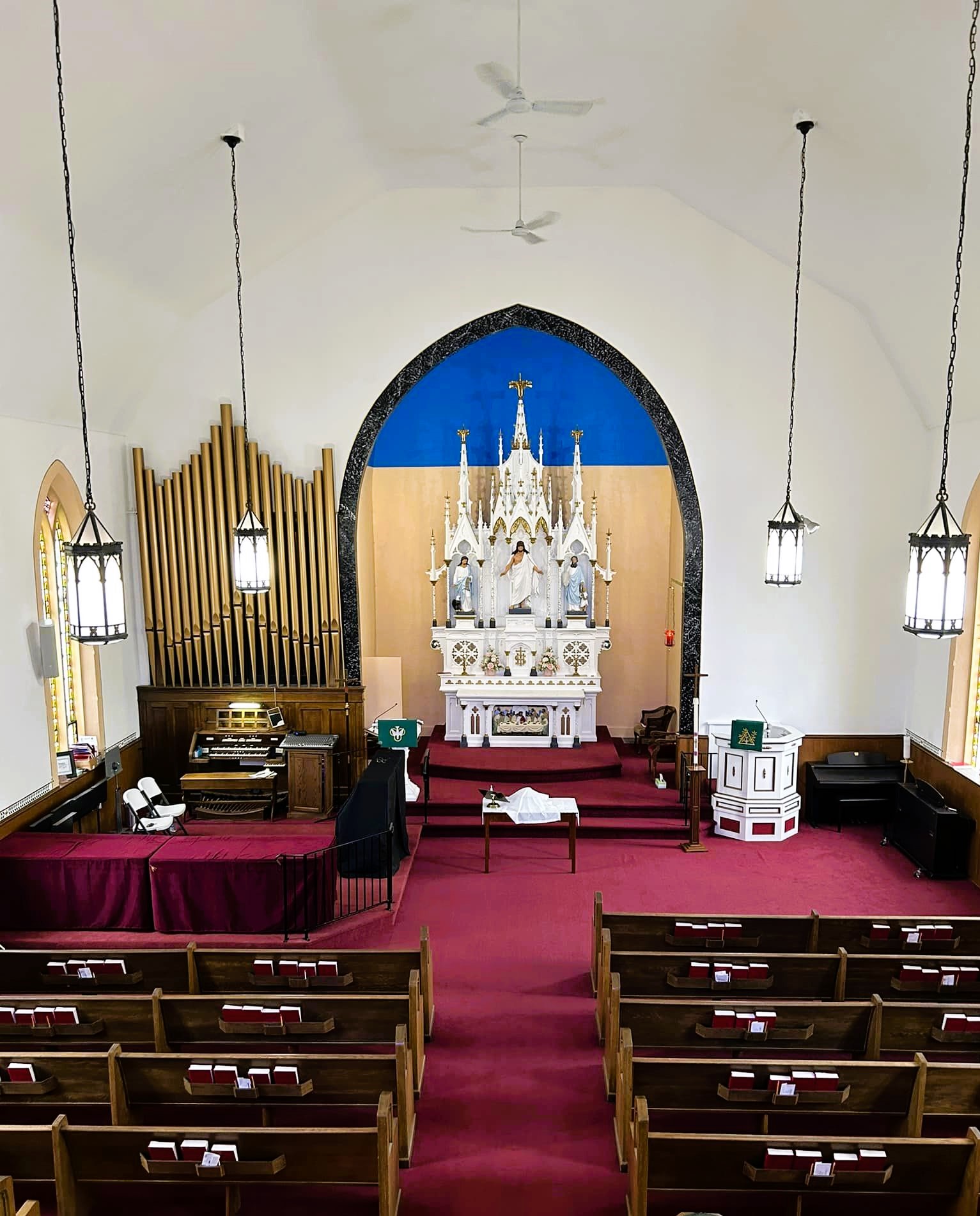

2022-09-27 - Church interior, organ and façade pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

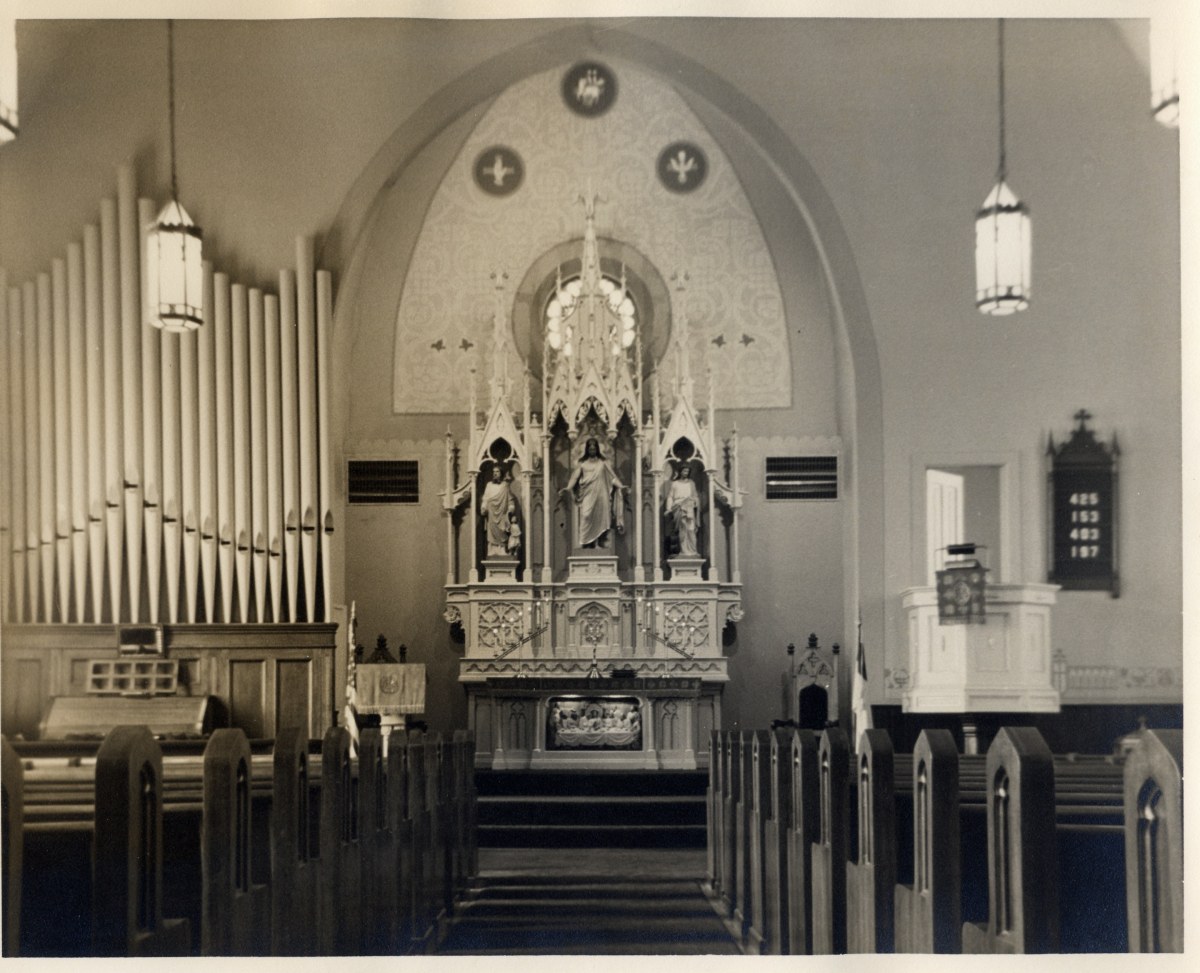

Unknown - Chancel and Fa?ade (Photograph from Church Archives/Database Manager)

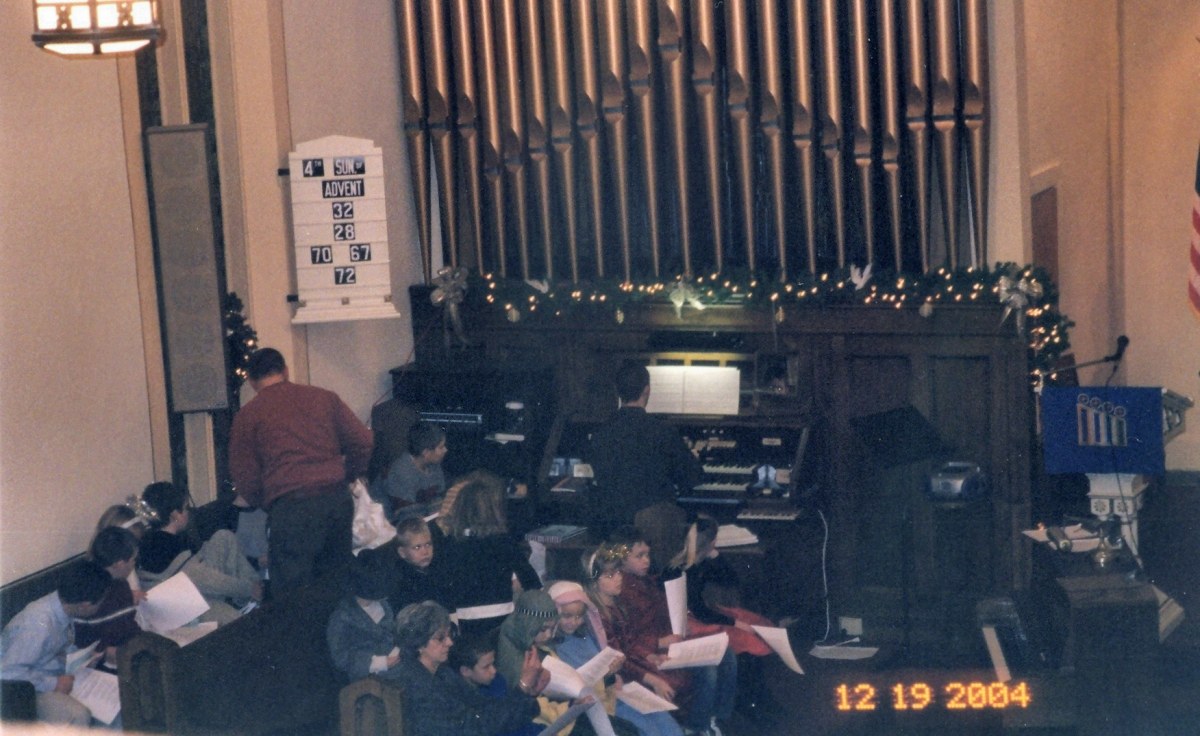

2004-12-19 - Fa?ade (Photograph by Bill Hanselman/Database Manager)

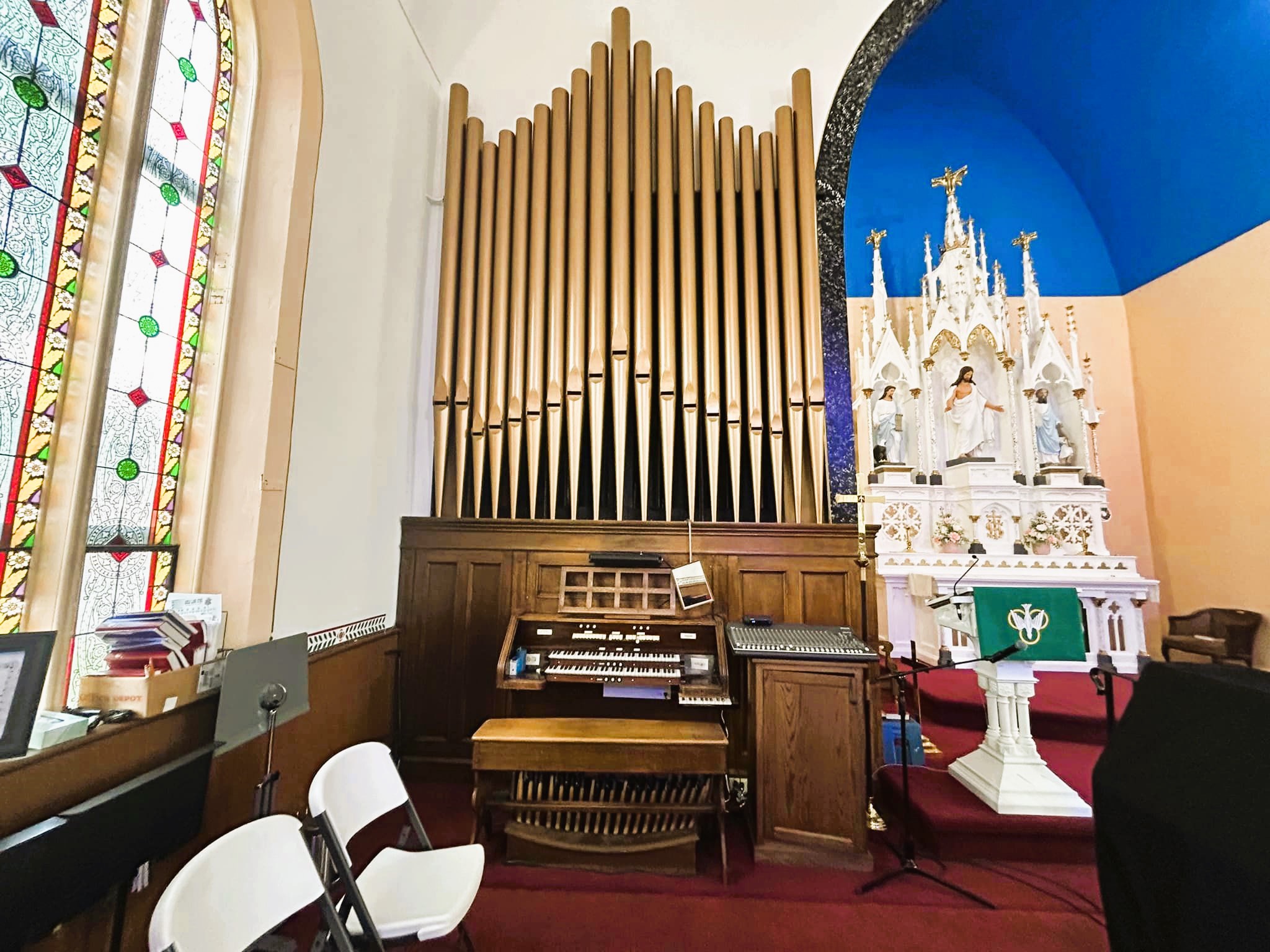

0024-06-18 - Organ case and console (Roman Lizak/Jeff Scofield)
2024-06-18 - Church exterior (Roman Lizak/Jeff Scofield)

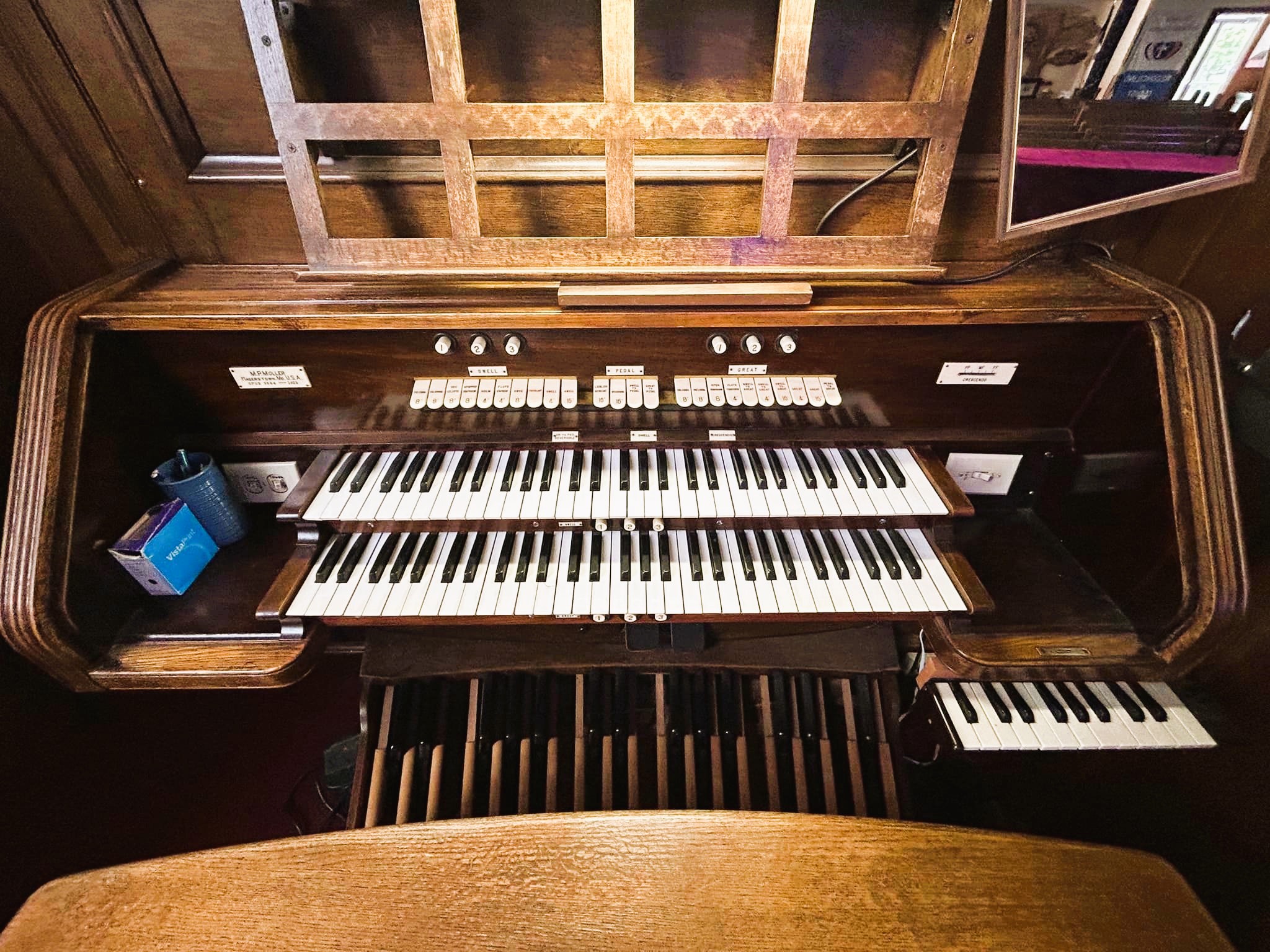

2024-06-18 - Console (Roman Lizak/Jeff Scofield)

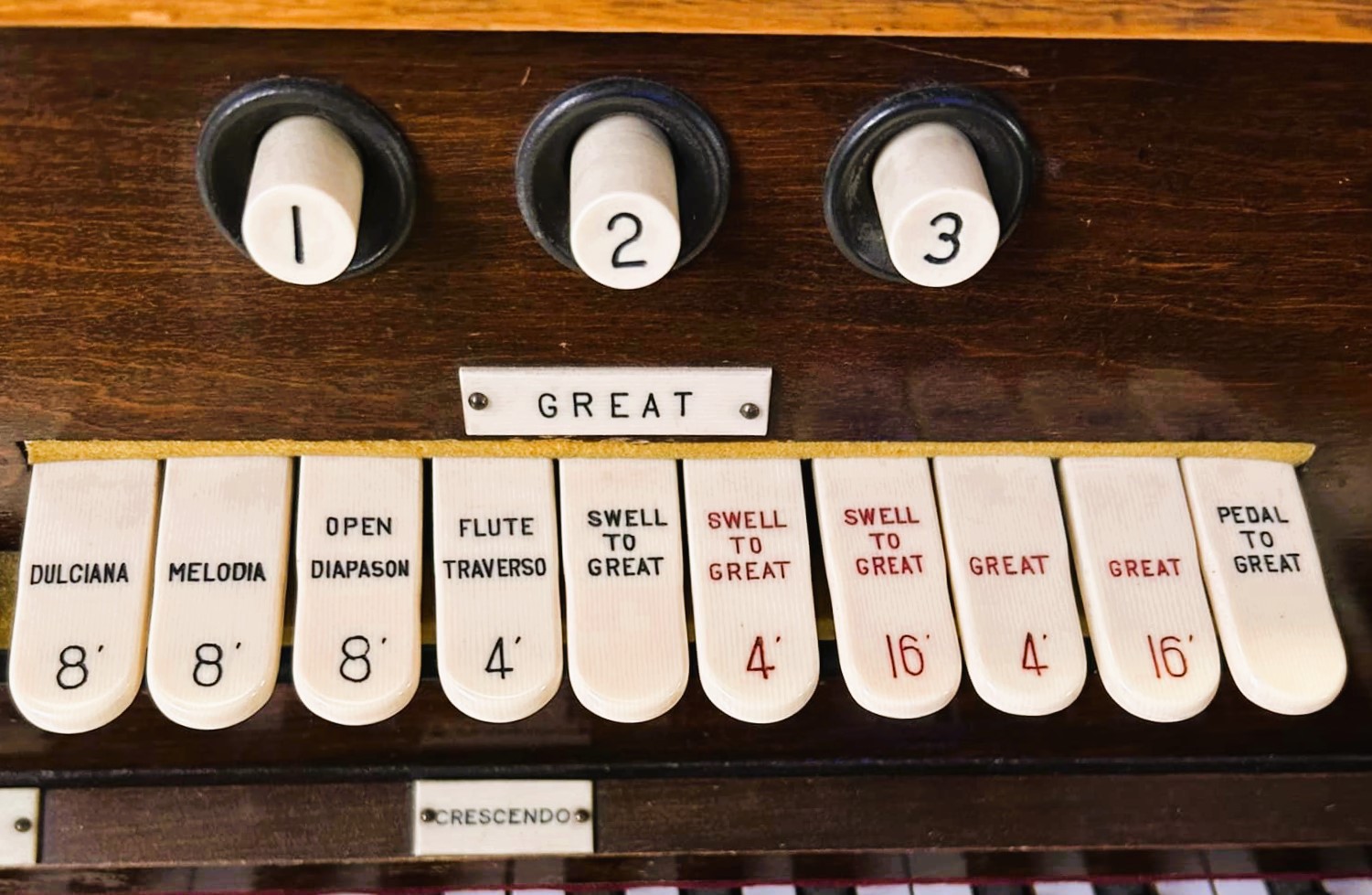

2024-06-18 - Great stops (Roman Lizak/Jeff Scofield)
2024-06-18 - Swell stops (Roman Lizak/Jeff Scofield)

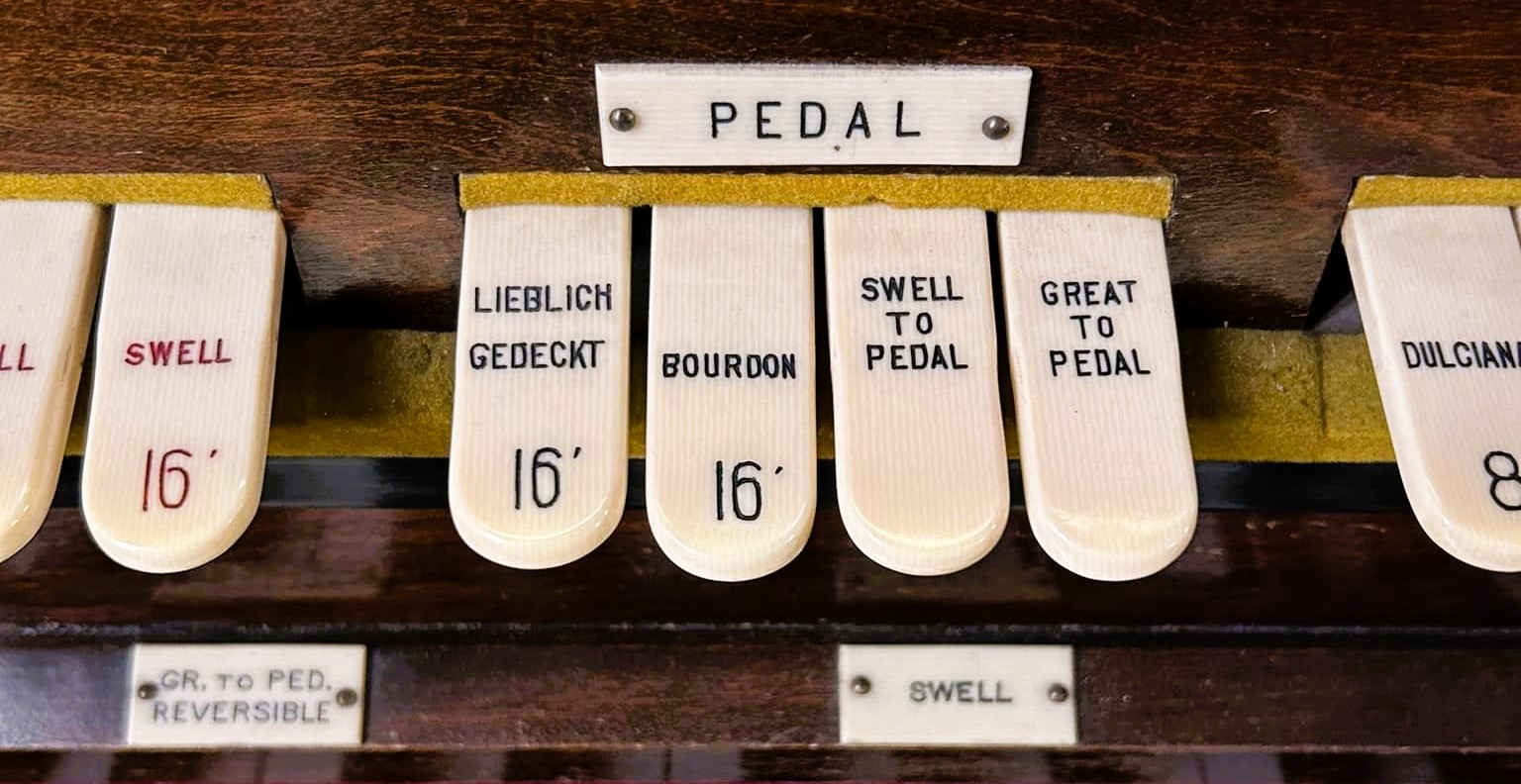

2024-06-18 - Pedal stops (Roman Lizak/Jeff Scofield)

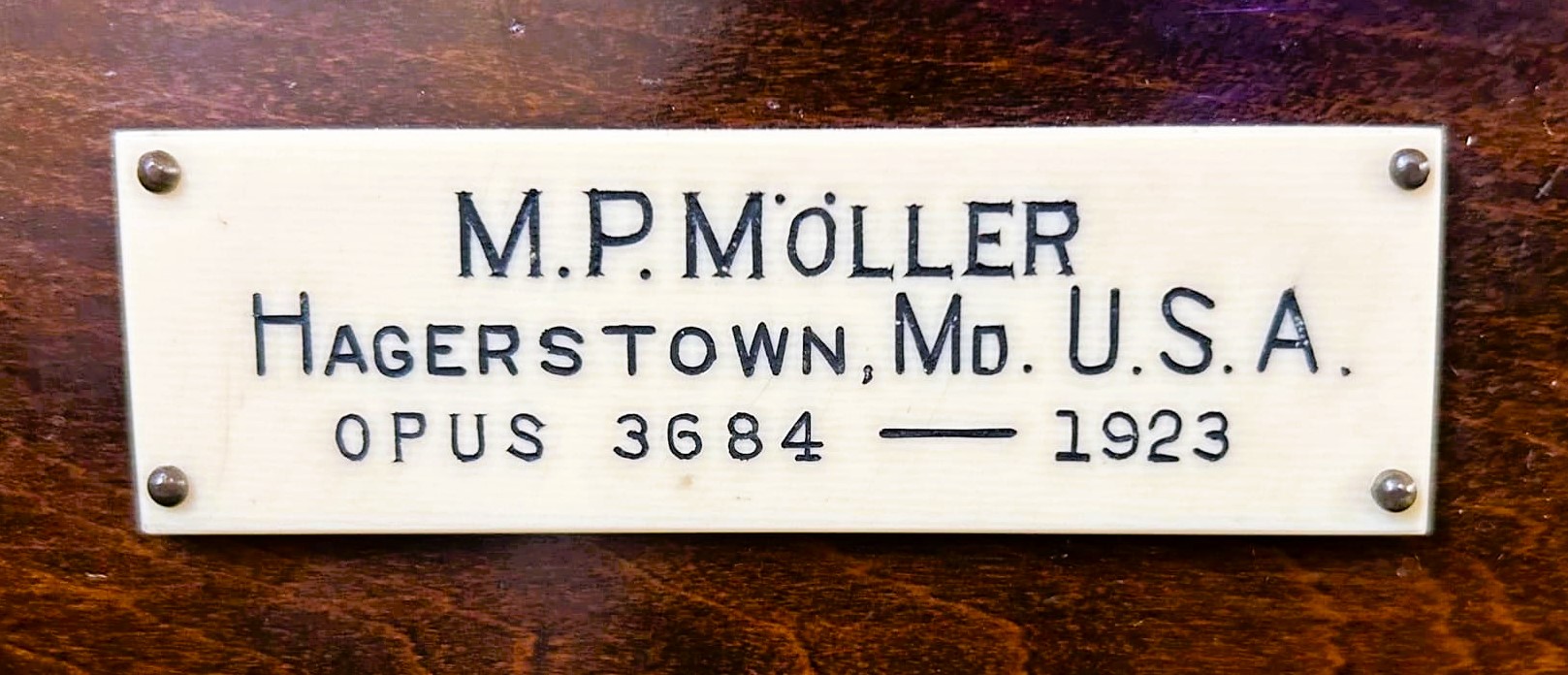

2024-06-18 - Builder nameplate (Roman Lizak/Jeff Scofield)

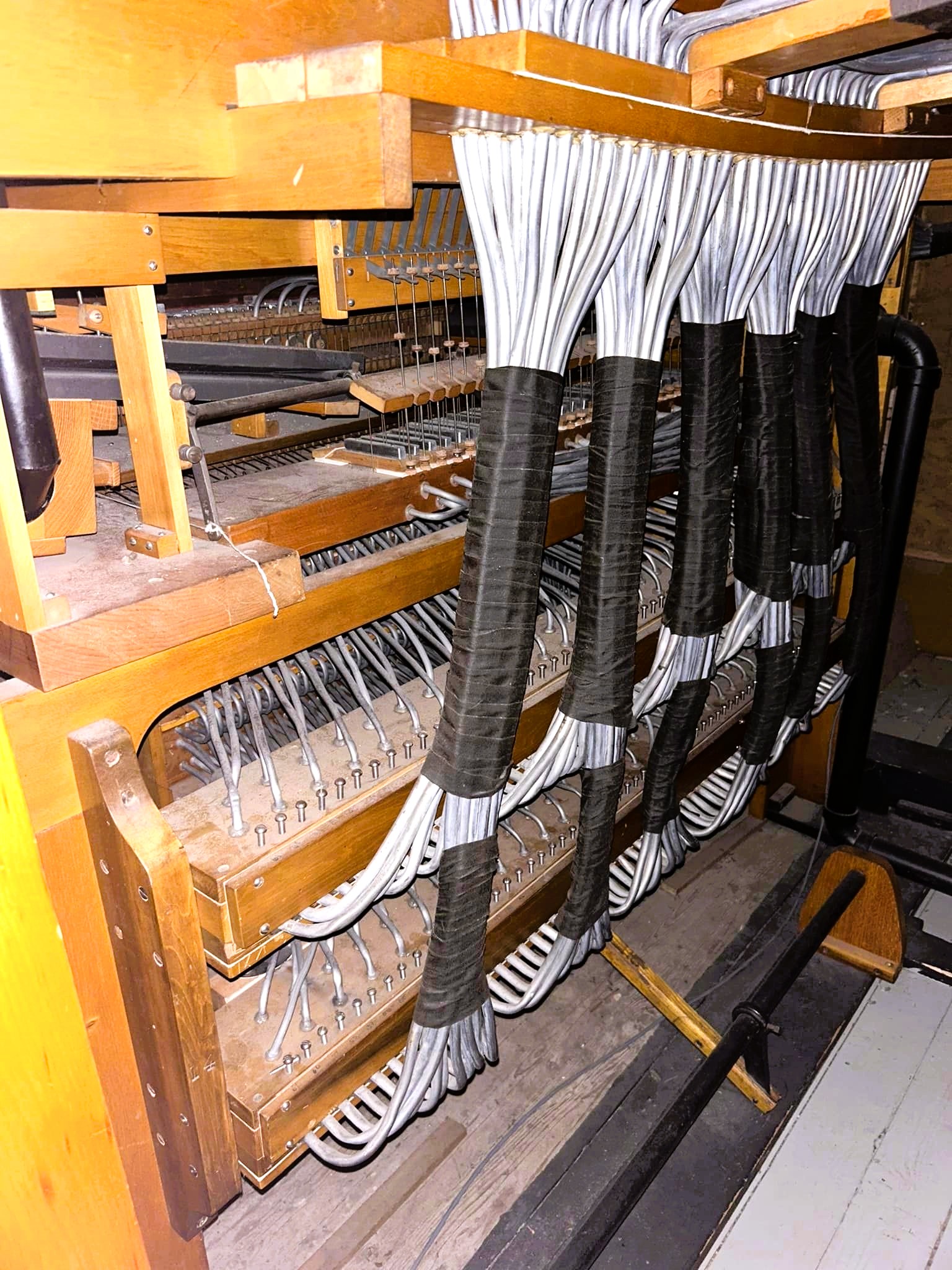

2024-06-18 - Tubular action behind console (Roman Lizak/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Keydesk Attached
- 2 manuals
- 11 stops
- 13 registers
- 3 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Stop Keys Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has coupler toe pistons
Notes
2009-10-28 - Identified through information in <i>List of More than 5200 Moller Pipe Organs</i> (Hagerstown, Maryland. M. P. Möller, 1928). -Database Manager
2012-06-03 - Updated through online information from William M. Hanselman. -Database Manager
2015-03-07 - Updated by Marijim Thoene, based on personal knowledge of the organ.
-- I need to clarify that the organ, a tubular pneumatic, has been restored and is in its original state. -Database Manager
Stoplist
Chimes on independent keyboard attached beneath the Gt. Range: tenor a F2.
Taken from Factory specifications and site visit on 6-18-2024 Source: Taken from Factory specifications 5-7-1923
Great Open Diapason 8 , Melodia 8, Flute Traverso 4, Dulciana 8
Swell Stopped Diapason 8 , Salicional 8, Vox Celeste 8 (Tenor C), Flute D'Amour 4, Violin 4, Oboe 8, Dulciana 8 (Duplex from Great)
Pedal Bourdon 16, Lieblich Gedeckt 16 (16' Bourdon on lower pressure)
Swell to Great 4, Great to Great 4, Great to Great 16, Swell to Great 8, Swell to Great 16, Swell to Swell 4, Swell to Swell 16, Swell to Pedal 8, Great to Pedal 8, Pedal to Great 8 (12 Notes)
