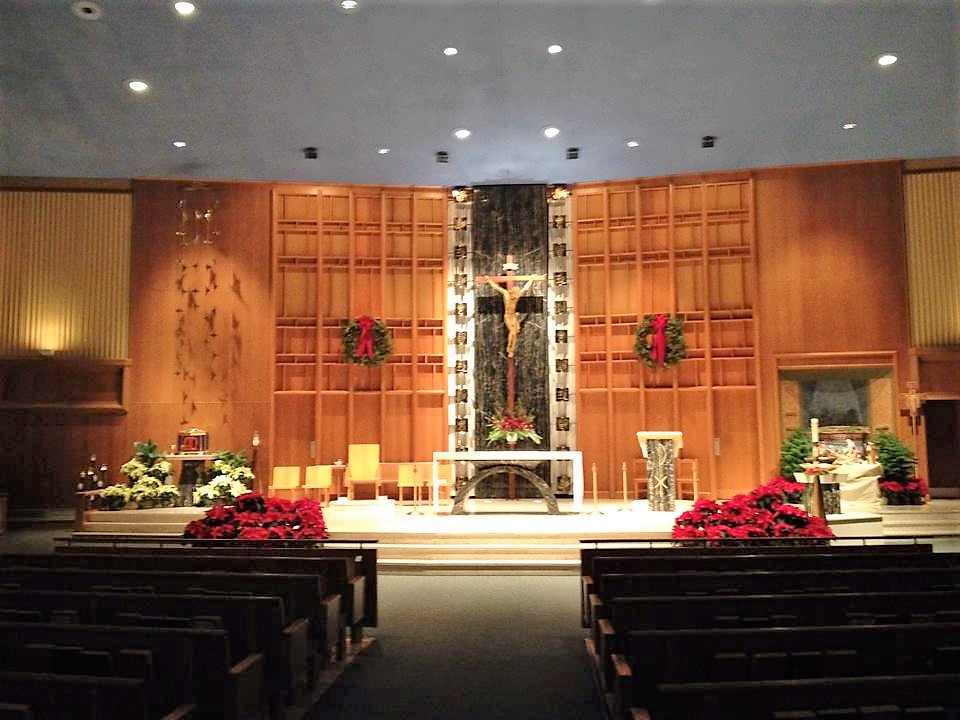

2013-12-24 - Church interior and organ chambers (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)
2009-11-23 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager
2010-10-31 - Updated through online information from Jeff Scofield. -- No enclosed divisions; the organ is installed in chambers above and behind the altar along the long axis of the large rectangular-shaped nave. -Database Manager
2021-02-01 - Merged with St. Anne's, Castle Shannon, on July 1, 2019, to become St. Paul of the Cross Parish, still maintaining separate facilities. -Jeff Scofield
2022-08-19 - At the time of the building of the church, the choir, Organ, and console were all located in a gallery hidden from sight behind the front wall where the crucifix is located. That space still exists. Console was eventually moved to floor level to the right of the altar and the music area was set up there. -Andrew Scanlon
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Mount Lebanon, Pennsylvania
St. Winifred's R. C. Church
Casavant Op. 2834 1965 3/39
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
_________________________________________
HAUPTWERK BRUSTWERK
8' Prinzipal 56 8' Holzgedackt 56
8' Rohrflöte 56 4' Koppelflöte 56
4' Oktav 56 2' Prinzipal 56
4' Waldflöte 56 1 1/3' Quint 56
2' Superoktav 56 1' Sifflöte 56
IV Mixtur 224 III Zimbel 168
8' Trompete 56 8' Krummhorn 56
POSITIV PEDAL
8' Gedackt 56 16' Prinzipal 32
4' Präestant 56 16' Subbass 32
2 2/3' Nasat 56 8' Prinzipal 32
2' Blockflöte 56 8' Rohrgedackt 32
1 3/5' Terz 56 4' Gemshorn 32
III Scharf 168 III Mixtur 96
8' Knopfregal 56 16' Posaune 3/4L 32
8' Trompete 32
4' Schalmei 32
[Received online from Jeff Scofield October 31, 2010]Regrettably, it is not possible to display the information about the sponsor of this pipeorgandatabase entry or if there is a sponsor. Please see About Sponsors on Pipe Organ Database.
