Mutchler Organ Co. (1964)

Grace Reformed Church: Sanctuary
3330 Burlingame Ave. SW
Wyoming, MI

Images

2009-11-23 - Chancel and chamber grille (Photograph by Chad Boorsma/Database Manager)

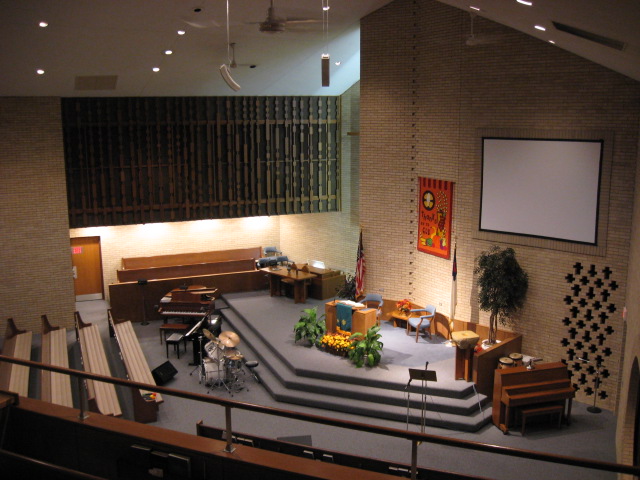

2009-11-23 - Sanctuary interior from gallery; alternate view (Photograph by Chad Boorsma/Database Manager)

2009-11-23 - Church exterior (Photograph by Chad Boorsma/Database Manager)

2009-11-23 - Console (Photograph by Chad Boorsma/Database Manager)

2009-11-23 - Sanctuary interior from gallery (Photograph by Chad Boorsma/Database Manager)

2009-11-23 - Church exterior (Photograph by Chad Boorsma/Database Manager)

2009-11-23 - Console (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
24 stops
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-11-27 - Identified through on-line information from Chad Boorsma. -- The Great division is located in the right chamber, and the Swell is located in the left chamber. This organ replaced a Möller organ that was used in the congregation's previous building. Two digital stops were added ca. 2005 by Donald Haan. -Database Manager

Stoplist

Stoplist taken from the console (November 24, 2009) Source: Source not recorded Date not recorded

Wyoming, Michigan
GRACE REFORMED CHURCH

Mutchler Organ Company    1964      16 ranks
_____________________________________________________________________

GREAT:                            SWELL:
    8’ Open Diapason 61              16’ Rohr Gedeckt 12
    8’ Bourdon 61                     8’ Salicional 61
    8’ Dulciana 61                    8’ Vox Celeste (tc) 49
    4’ Octave 61                      8’ Rohrflute 61
    2’ Super Octave 61                4’ Open Flute 61
  III  Mixture 183                    4’ Flute 12
       Chimes                     2 2/3’ Nazard
       Tremolo                        2’ Flautino 12
       Digital                        8’ Trumpet 61
                                      8’ Oboe 61
PEDAL:                                8’ Vox Humana 61
   16’ Bourdon 32                        Tremolo
   16’ Rohr Gedeckt SW                   Digital
    8’ Bass Flute 12
    8’ Gedeckt SW                 COUPLERS:
    4’ Rohrflute SW                  Great to Great 16, Unison, 4
    4’ Flute 12                      Swell to Swell 16, Unison, 4
                                     Swell to Great 16, 8, 4
COMBINATION ACTION:                  Great to Pedal 8, 4
    4 General Thumb Pistons          Swell to Pedal 8, 4
    4 Divisional Thumb Pistons

[Received on line from Chad Boorsma December 07, 2009.]
