M. P. Möller Opus A-9030 (1973)

Shadyside Presbyterian Church: Sanctuary
5121 Westminster Pl.
Pittsburgh, PA

Images

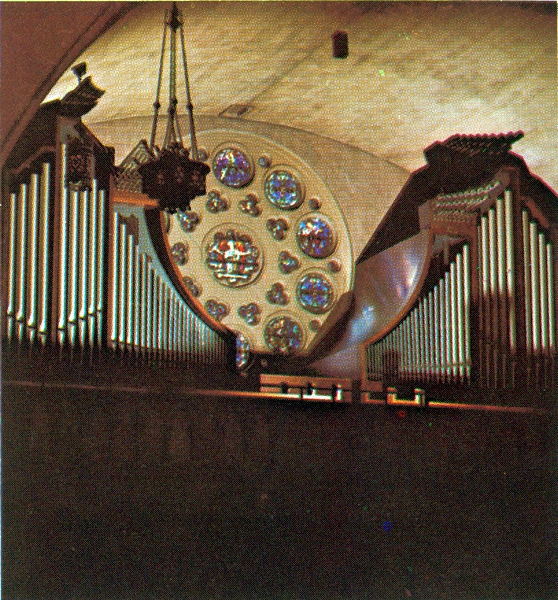

1973-06-30 - Organ case and console in rear gallery (Photograph from a 1981 Moller brochure in the collection of James R. Stettner/Database Manager)

Consoles

Main

2 manuals
29 stops
20 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2009-11-27 - Identified through on-line information from Jeff Scofield. -- This was the addition of a gallery organ to the existing chancel organ, Möller 4/67 Op. 9030 (1957); rebuilt by Reuter in 1995. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Pittsburgh, Pennsylvania
    Shadyside Presbyterian Church
    Gallery Organ

    Möller   Op. A-9030   1973   2/27

    GREAT               SWELL                        PEDAL
 8' Principal 61    16' Quintaten 68             16' Subbass 32
 8' Rohrflöte 61     8' Spitzgamba 68            16' Quintaten GT
 4' Octave 61        8' Gamba Celeste 49 tc       8' Principal 32
 4' Koppelflöte 61   8' Quintaten 12              8' Quintaten GT
 2' Blockflöte 61    4' Flötenprinzipal 68        4' Choralbass 32
II  Cornet 98 tc     2' Weitpoctave 61            4' Flötenoctave SW
IV  Mixture 244     IV  Scharfe 244               2' Nachthorn 32
    Tremulant       16' Bombarde 61 (1-18 L/2)   16' Bombarde SW
 8' Trompette-en-    8' Trompette 12              8' Trompette SW
    Chamade 61       8' Krummhorn 68              4' Clairon SW
   (7", 1-18 L/2)    4' Clarion 12
    Zimbelstern         Tremulant
                        Sub
                        Unison Off
                        Super

[Received on line from Jeff Scofield November 28, 2009.]

Documents

(1973-02-04) Factory specifications, OHS Archives via Jeff Scofield Stoplist and accessories -Jeff Scofield
