Schantz Organ Co. Opus 2258 (2006)

St. Peter's Evangelical Lutheran Church: Sanctuary
10 Delp Road
Lancaster, PA

Images

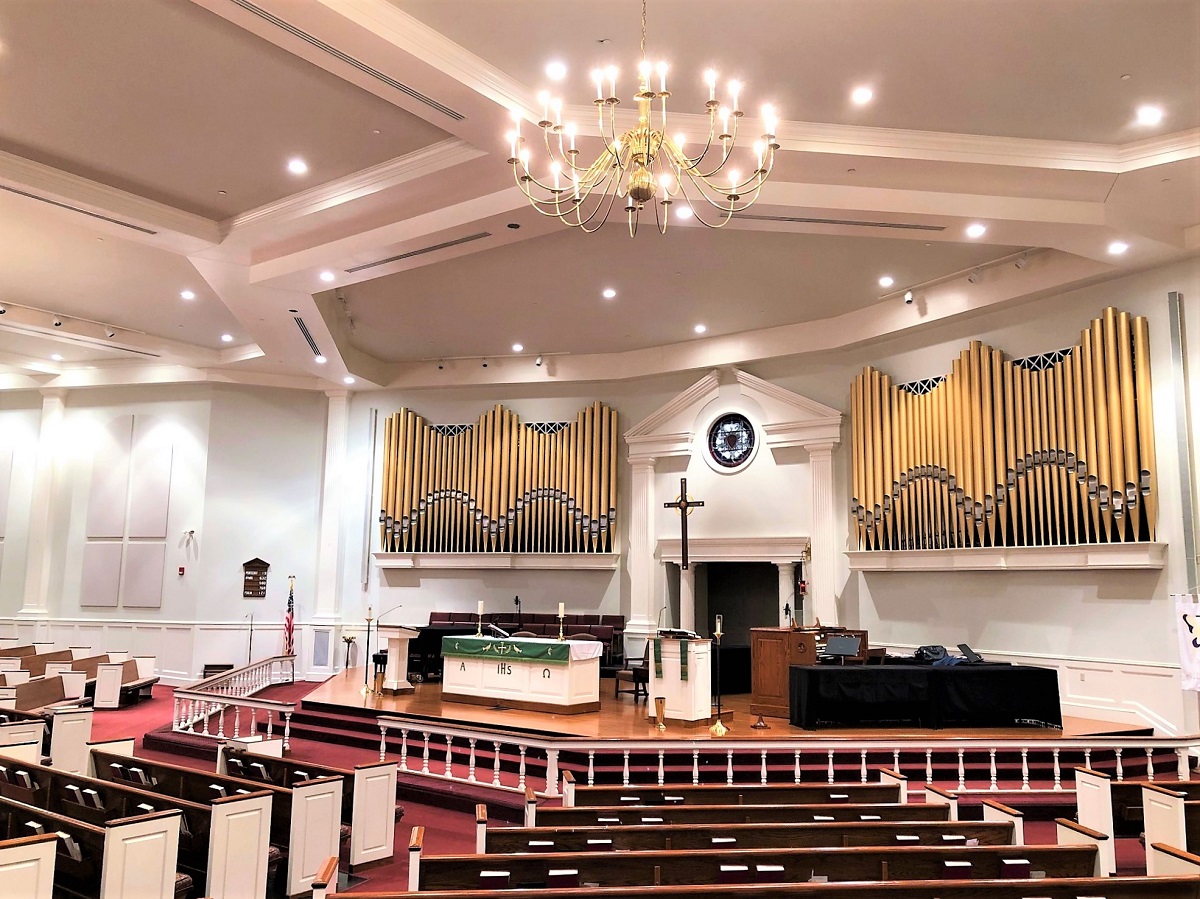

2019-10-16 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

2019-10-16 - Chancel and pipe facade (Photograph by Jeff Scofield/Database Manager)

2019-10-16 - Sanctuary interior angle (Photograph by Jeff Scofield/Database Manager)

2019-10-16 - Console (Photograph by Jeff Scofield/Database Manager)

2019-10-16 - Console and facade pipes (Photograph by Jeff Scofield/Database Manager)

2006-09-01 - Console and pipe facade (Photograph courtesy of the Schantz Organ Co./Database Manager)

2019-10-16 - Right Stopjamb (Photograph by Jeff Scofield/Database Manager)

2019-10-16 - Left Stopjamb (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
52 stops
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-12-13 - Identified through on-line information from Chad Boorsma. -Database Manager

2013-05-23 - Updated through online information from Scott Crowell. -- Located in the church's new sanctuary, added in 2006. Organ dedicated in September 2006 by Gordon Turk. (The "old" sanctuary contained a 1984 II/32 Gundling organ, which was listed for sale in the August 2005 American Organist magazine.) -Database Manager

2014-01-02 - Updated through online information from Connor Annable. -Database Manager

Stoplist

Stoplist from company specifications Source: Source not recorded Date not recorded

Lancaster, Pennsylvania
SAINT PETER'S EVANGELICAL LUTHERAN CHURCH

Schantz Organ Company     Opus 2258      43 ranks      2006
_______________________________________________________________________

GREAT:                         CHOIR:
   16' Violone 73                  8' Narrow Diapason 61
    8' Principal 61                8' Spire Flute 61
    8' Violone                     8' Flute Celeste [TC] 49
    8' Bourdon 61                  4' Principal 61
    8' Traversflöte 61             4' Hohlflöte 61
    4' Octave 61                   2' Record 61
    4' Koppelflöte 61          1 1/3' Larigot 61
    2' Super Octave 61           III  Cymbale 183
   IV  Mixture 244                 8' Krummhorn 61
    8' Trompette 61                8' Festival Trumpet 61
    8' Festival Trumpet [CH]          Tremulant
       Chimes [21 notes]
       Zimbelstern

SWELL:                         PEDAL:
   16' Rohrbourdon 73             32' Resultant [prepare for Digital]
    8' Geigen Principal 61        16' Principal 44
    8' Viole de Gambe 61          16' Violone [GT]
    8' Viole Celeste [GG] 54      16' Subbass 56
    8' Rohrflöte                  16' Rohrbourdon [SW]
    4' Principal 61                8' Octave
    4' Nachthorn 61                8' Violone [GT]
2 2/3' Nasard 61                   8' Subbass
    2' Blockflöte 61               8' Rohrflöte [SW]
1 3/5' Tierce 61                   4' Choralbass 32
   IV  Plein Jeu 244               4' Open Flute
   16' Basson 73                  16' Posaune 44
    8' Trompette 61               16' Basson [SW]
    8' Hautbois                    8' Posaune
    4' Clarion                     4' Hautbois [SW]
       Tremulant                   8' Festival Trumpet [CH]

[Received on line from Chad Boorsma December 17, 2009.]

Websites

The Schantz Organ Company [St. Peter's Lutheran page] - Photograph, link to stoplist (Check Internet Archive, archive.is)
