Schantz Organ Co. Opus 1025 (1970)

Trinity United Methodist Church
24 South Mulberry Street
Chillicothe, OH

Images

June 24, 2022 - Console (Photograph by Ethan Morris/Ethan Morris)

2016-04-10 - Console (Photograph by Jacob Vollmar/Database Manager)

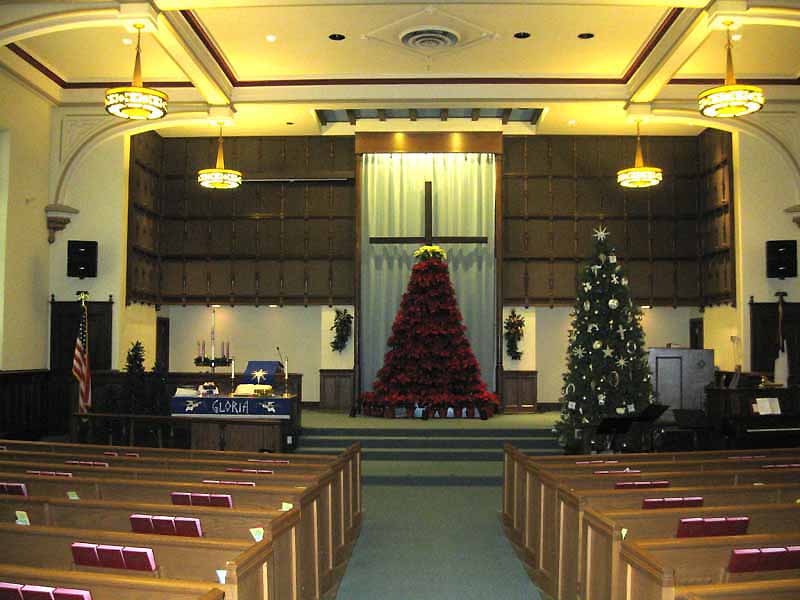

2009-12-20 - Chancel and organ grilles (Photograph by Jacob Vollmar/Database Manager)

2009-12-20 - Gallery Window (Photograph by Jacob Vollmar/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
26 stops
42 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2009-12-21 - Identified through online information from Jacob Vollmar. -- Replaced Möller Opus 715 (1905). -Database Manager

2010-01-25 - Updated through online information from Jacob Vollmar. -Database Manager

2011-06-14 - Updated through online information from Jeff Scofield. -Database Manager

2012-08-07 - Updated through online information from Angelique Gabrielle. -Database Manager

2016-01-01 - Updated through online information from Jacob Vollmar. -Database Manager

2016-04-30 - Updated through online information from Jacob Vollmar. <br>MIDI has been added. -Database Manager

Stoplist

Stoplist courtesy of Schantz Organ Co. and Jacob Vollmar Source: Source not recorded Date not recorded

Unsupported filetype pdf, view here.

Stoplist from builder's web site Source: Source not recorded Date not recorded

Chillicothe, Ohio
Trinity United Methodist Church

Schantz Organ Company   Opus 1025   1970     3 manuals, 26 stops, 33 ranks
__________________________________________________________________________

         GREAT ORGAN                         SWELL ORGAN
      8' Principal              61       16' Rohrbass              73
      8' Holzbordun             61        8' Rohrflöte (fr. 16')   --
      4' Octave                 61        8' Viola                 68
      2' Super Octave           61        8' Viola Celeste (TC)    56
         Fourniture IV         244        4' Prestant              61
      8' Festival Trumpet       61        4' Waldflöte             73
         Chimes                           2' Flöte (fr. Waldflöte) --
                                             Plein Jeu III        183
         CHOIR ORGAN                     16' Contra-Fagot (TC)     --
      8' Gedackt                61        8' Trompette             61
      8' Erzähler               68        8' Fagot                 61
      8' Erzähler Celeste (TC)  56        4' Rohrschalmei          61
      4' Koppelflöte            61           Tremulant
  2 2/3' Nasard                 73
      2' Octavin                61           PEDAL ORGAN
  1 3/5' Tierce (GG)            54       32' Resultant             --
  1 1/3' Larigot (fr. Nasard)   --       16' Principal             56
      8' Krummhorn              61       16' Bourdon               68
      8' Festival Trumpet (GT)  --       16' Rohrbass (SW)         --
                                          8' Octave (fr. 16')      --
                                          8' Bourdon (fr. 16')     --
                                          8' Rohrflöte (SW)        --
                                          4' Choralbass (Prin.)    --
                                          4' Bourdon (fr. 16')     --
                                          2' Bourdon (fr. 16')     --
                                             Mixture III           96
                                         16' Contre Trompette (SW) 12
                                          8' Trompette (SW)        --
                                          4' Rohrschalmei (SW)     --


[Received from Steven E. Lawson  2016-04-05]
