Better Pipe Organ Database

Schantz Organ Co. Opus 1637 (1981)

Holy Family Roman Catholic Church: Church
584 West Broad Street
Columbus, OH

Images

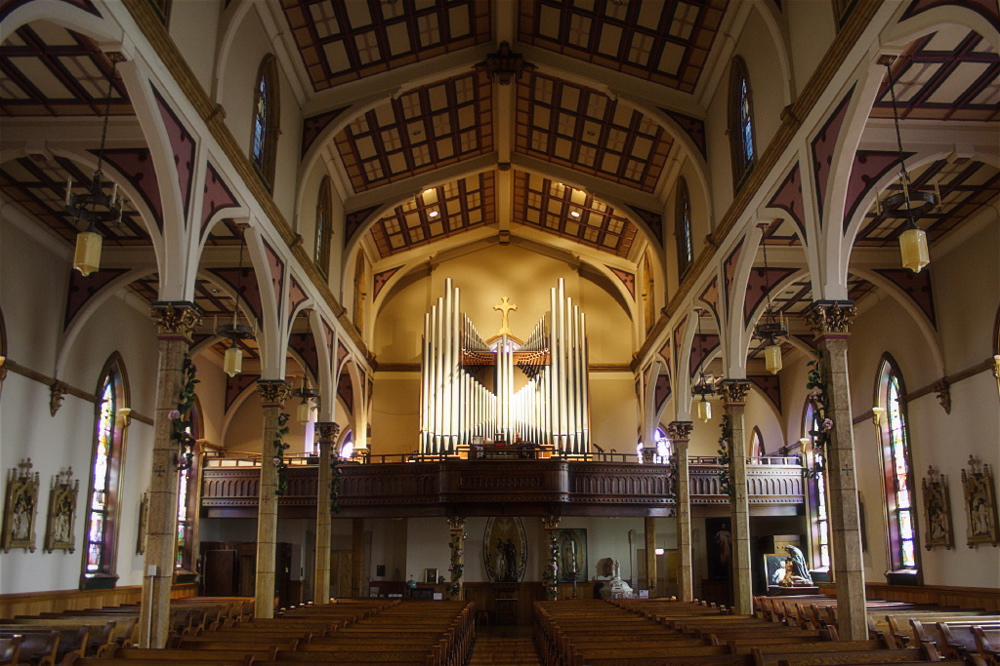

2010-10-12 - Nave, Gallery, and Pipe Facade (Photograph by Anthony Fabro/Database Manager)

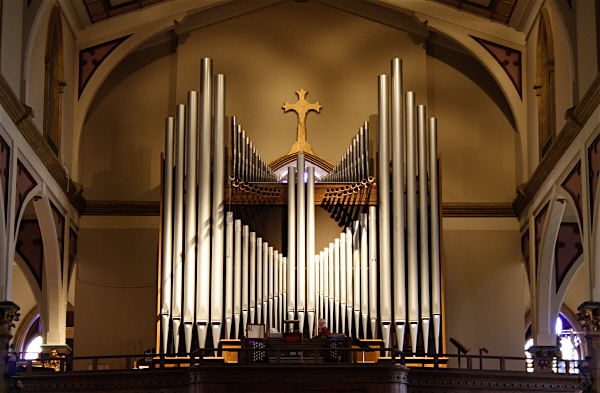

2010-10-12 - Pipe Facade (Photograph by Anthony Fabro/Database Manager)

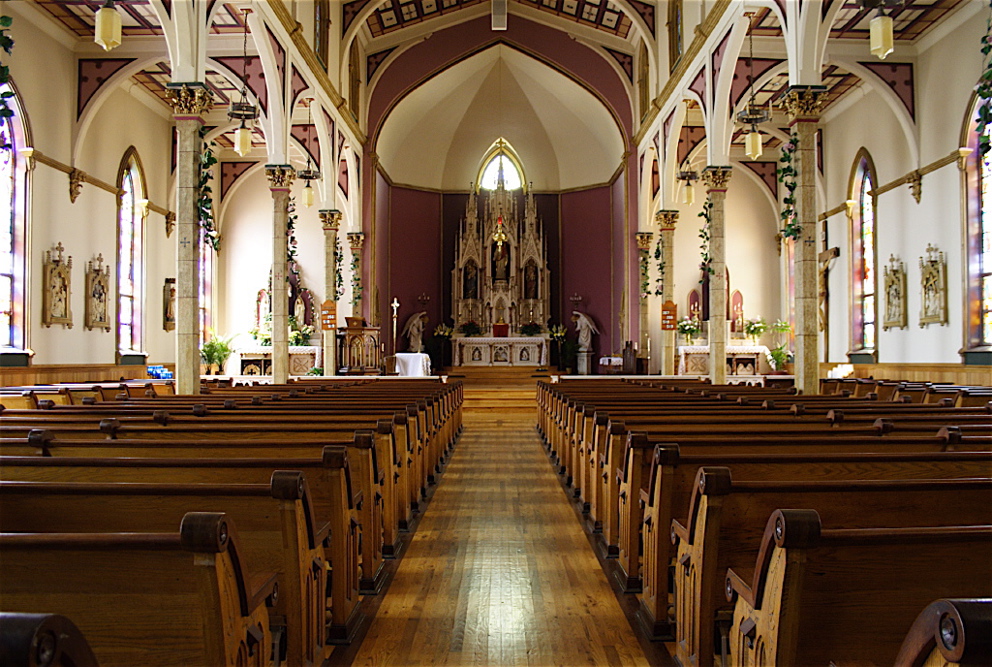

2010-10-12 - Church Interior and Altar (Photograph by Anthony Fabro/Database Manager)

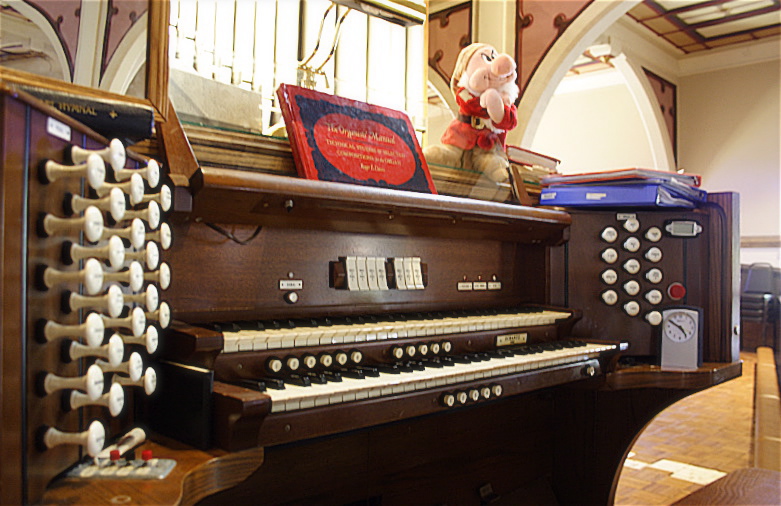

2010-10-12 - Console (Photograph by Anthony Fabro/Database Manager)

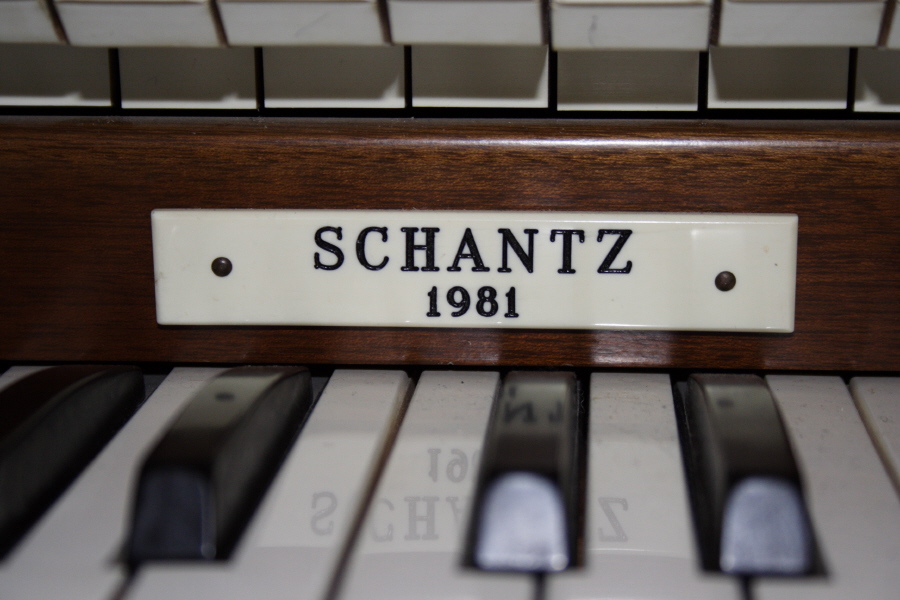

2010-10-12 - Builder's Nameplate (Photograph by Anthony Fabro/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
21 stops
31 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-01-03 - Identified through online information from John Igoe. -- There is a stoplist included with the notes to a YouTube video (http://www.youtube.com/watch?v=KmZdP-DZUgc), but it is filled with typographical errors. -Database Manager

2010-01-17 - Updated through online information from Matthew Nadalin. -Database Manager

2010-10-13 - Updated through online information from Anthony Fabro. -- Schantz job number 1637. The original specs indicate that the chimes were a prepared stop. It is unknown when the chimes were added to the organ. -Database Manager

Stoplist

From Console - January 3, 2009 Source: Source not recorded Date not recorded

Columbus, Ohio
Holy Family Roman Catholic Church

Schantz Organ Co.   Opus 1637    1981

GREAT                                         SWELL
 8' Principal  61                                  8' Rohrflöte 61
 8' Holz Gedackte 61                               8' Viole d'Gambe 61
 4' Octave 61                                      8' Viole Celeste 49 (TC)
 4' Koppelflöte 61                                 4' Spitz Principal 61
 2' Super Octave 61                                4' Hohlflöte 73
 IV Fourniture  (19.22.26.29) 244              2 2/3' Nazard 49 (TC)
 8' Trompete 73                                    2' Hohlflöte ext. 4'
 4' Klarine ext. 8'                            1 3/5' Tierce 37 (C2-C5)
 8' Trompette en Chamade 37 (C2-C5)               IV  Scharff  (22.26.29.33) 244
    Chimes 25 tubes, Enclosed in Swellbox          8' Rohr Schalmei 61
                                                      Tremulant
PEDAL                                              8' Trompette en Chamade GT
 32' Resultant
 16' Principal 56
 16' Brummbass 44
  8' Octave ext.
  8' Gedackt ext.
  4' Choralbass ext.
  2' Octavin 32
 II  Mixture (12.15) 64
 16' Trompete 12 (GT ext.)
  8' Trompete GT
  4' Klarine GT

[Received on line from Matthew Nadalin January 18, 2010.]

Websites

Holy Family Catholic Church - Columbus, OH - 2/25 Schantz organ - Photographs, description, links to stoplist and additional photographs (Check Internet Archive, archive.is)
