Trinity Episcopal Church
2301 Hoyt Ave.
Everett, WA
Images

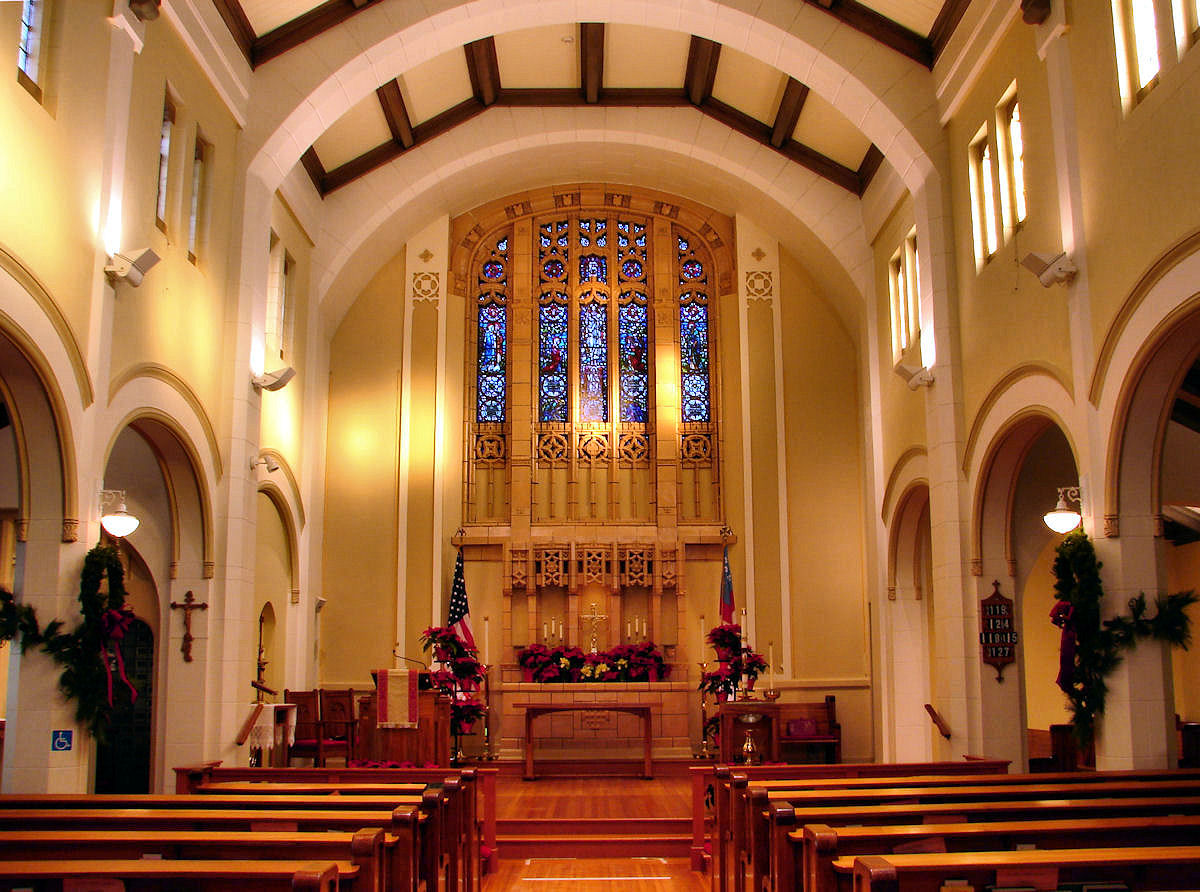

2010-01-09 - Nave interior (Photograph by Michael Way/Database Manager)

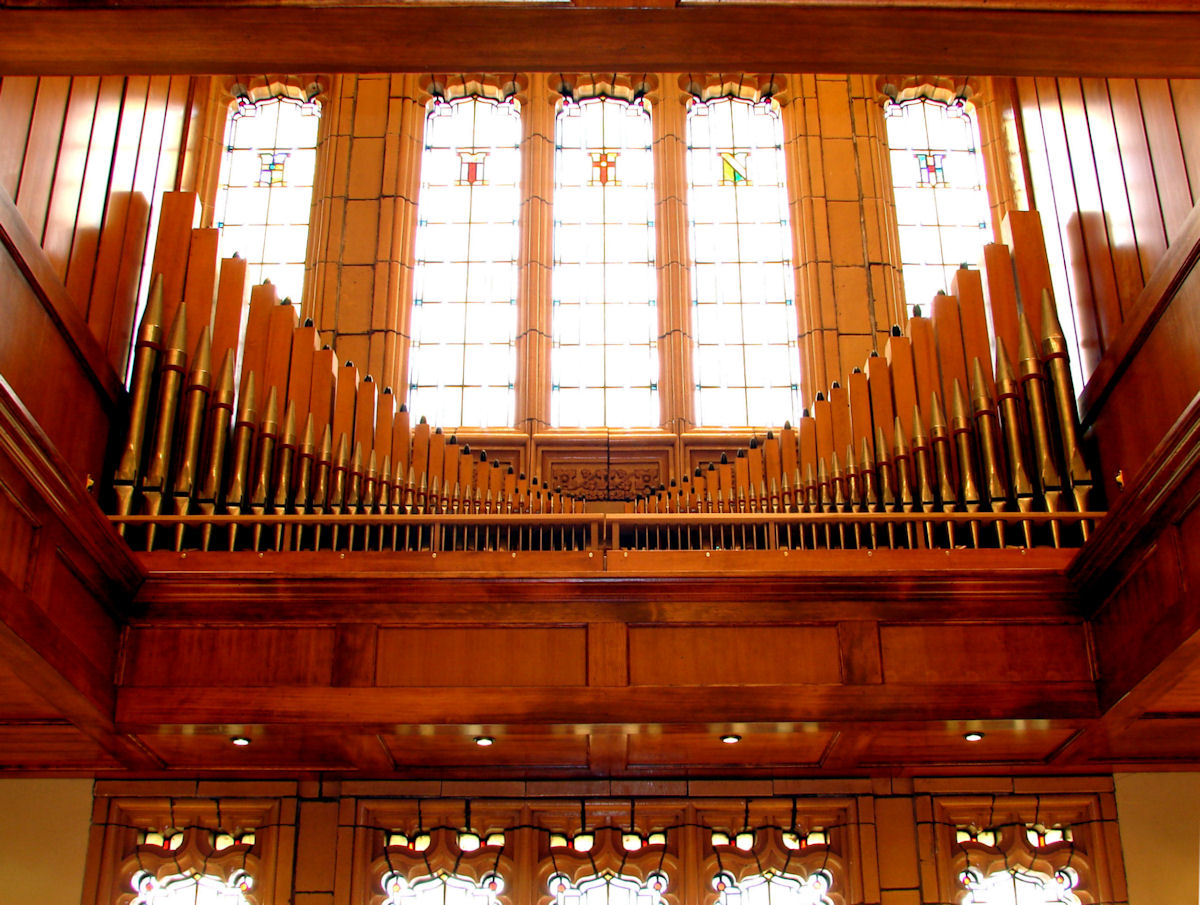

2010-01-09 - Exposed pipework (Photograph by Michael Way/Database Manager)
2010-01-09 - Left facade from nave (Photograph by Michael Way/Database Manager)
2010-01-09 - Right facade from nave (Photograph by Michael Way/Database Manager)

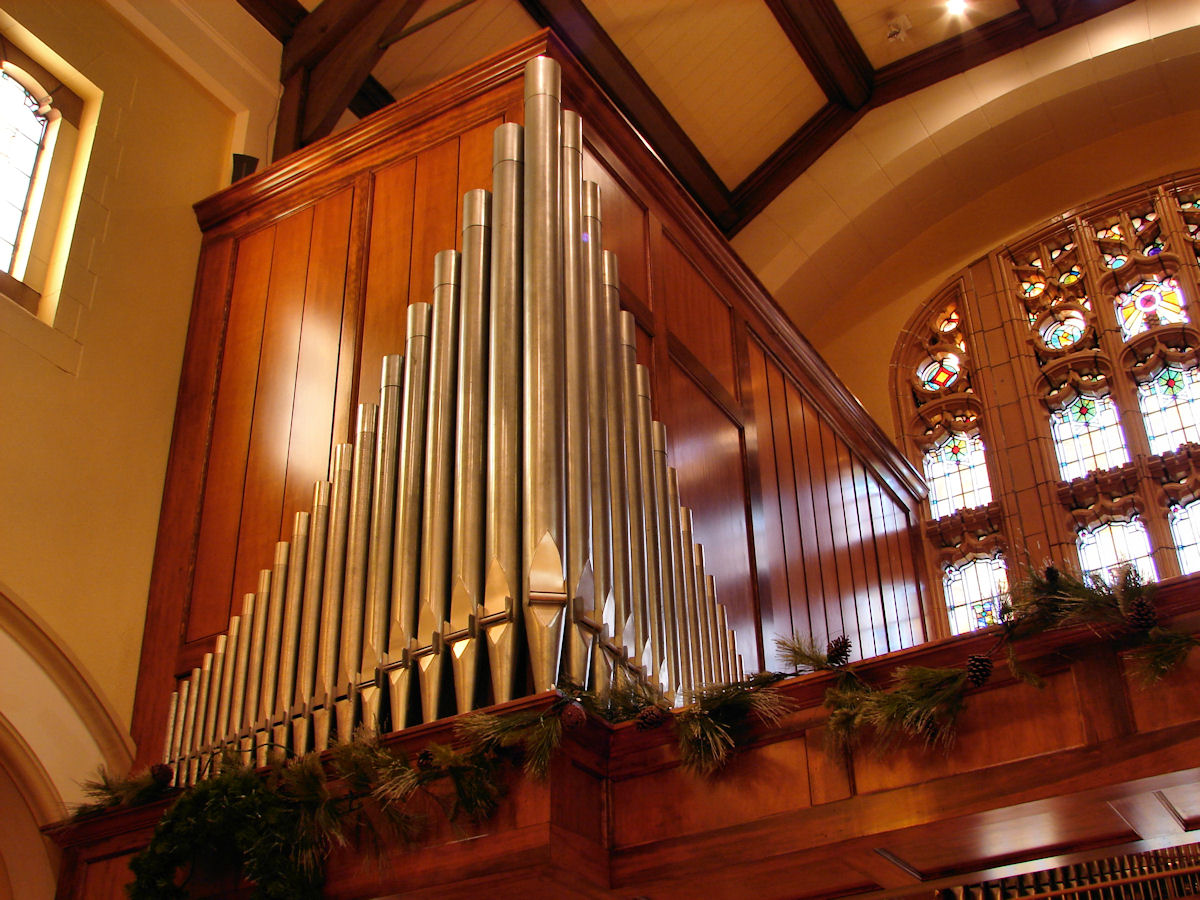

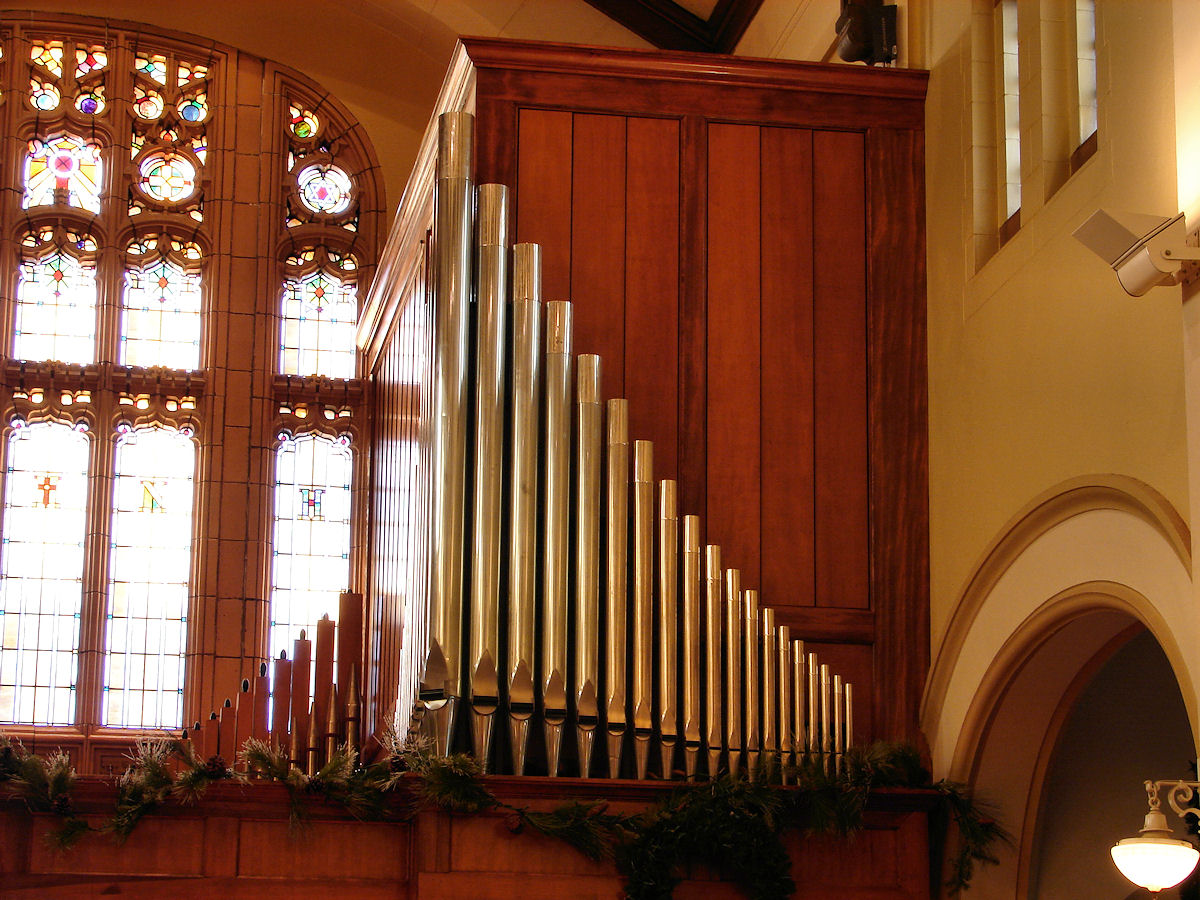

2010-01-09 - Left facade from below (Photograph by Michael Way/Database Manager)

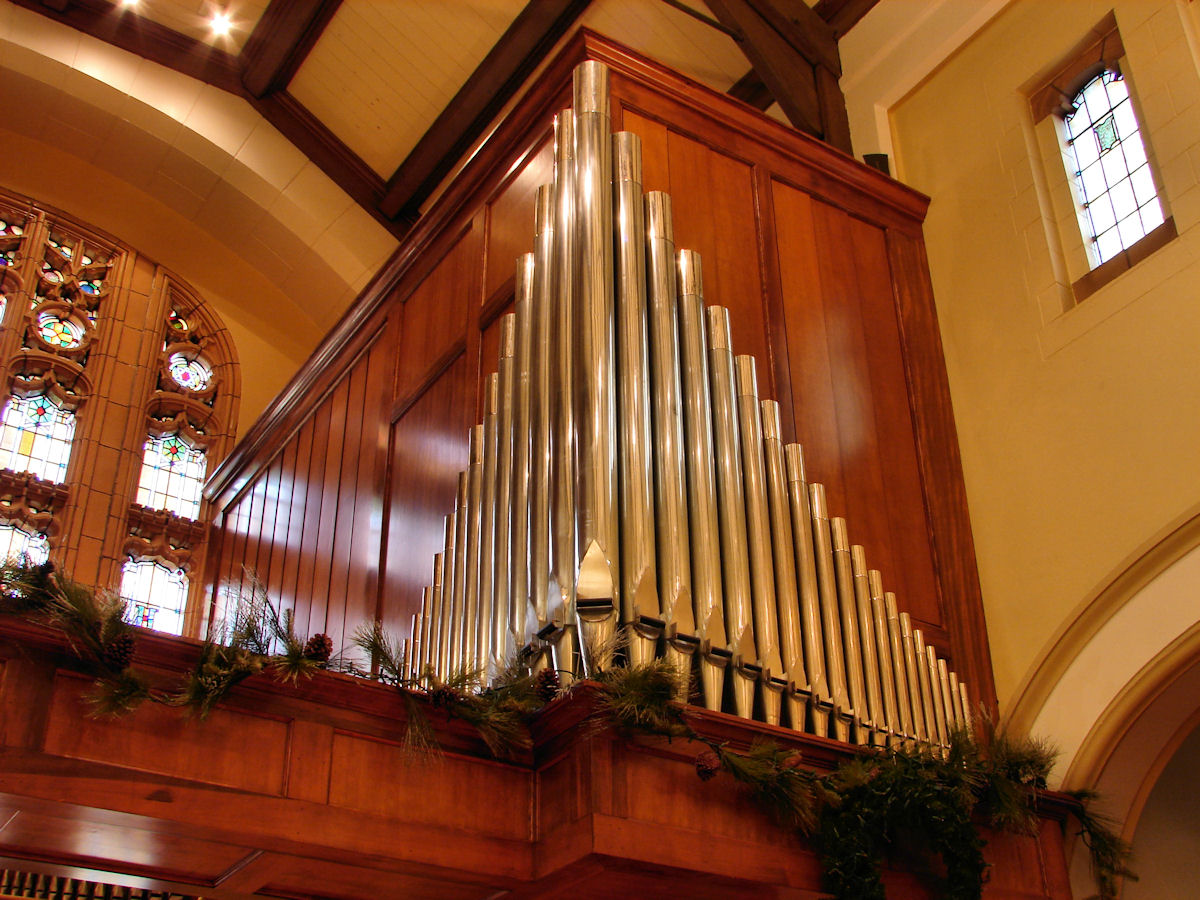

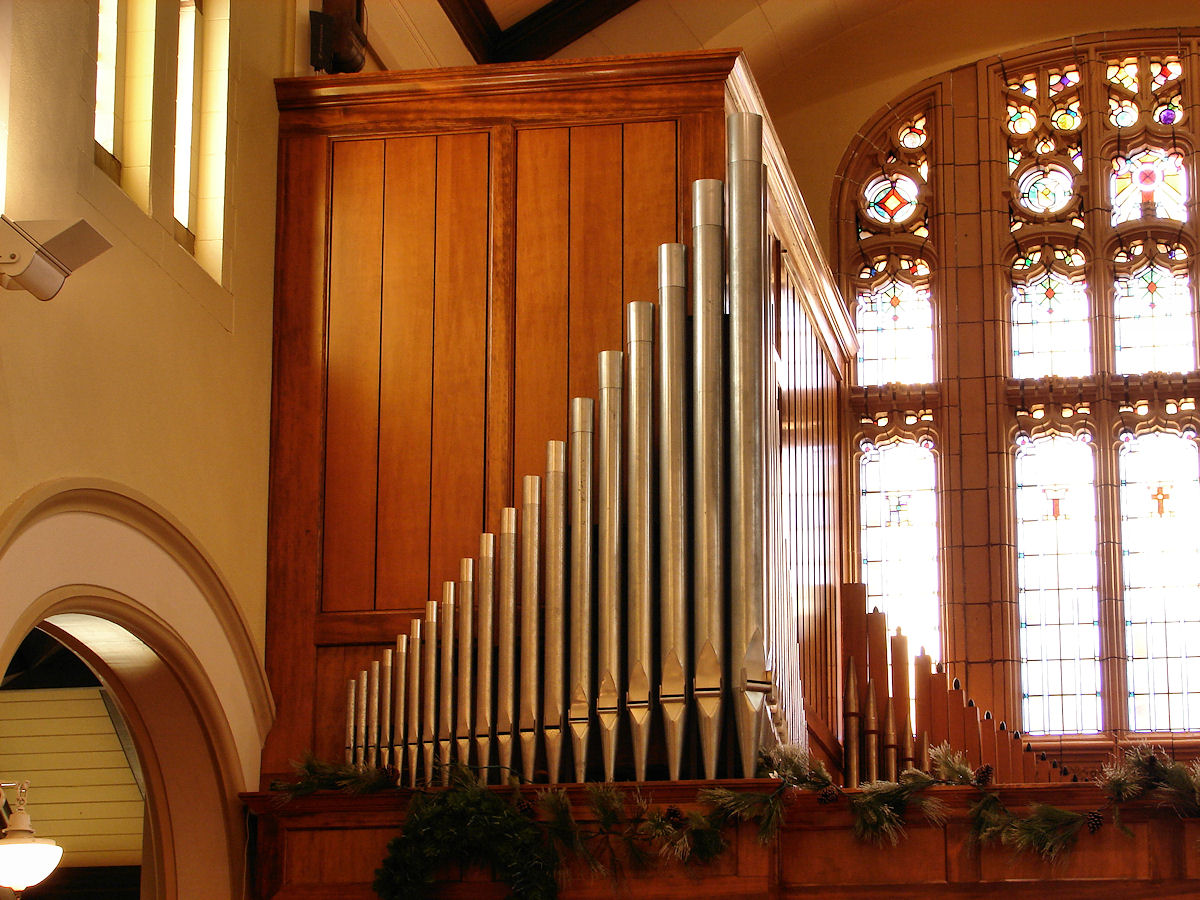

2010-01-09 - Right facade from below (Photograph by Michael Way/Database Manager)

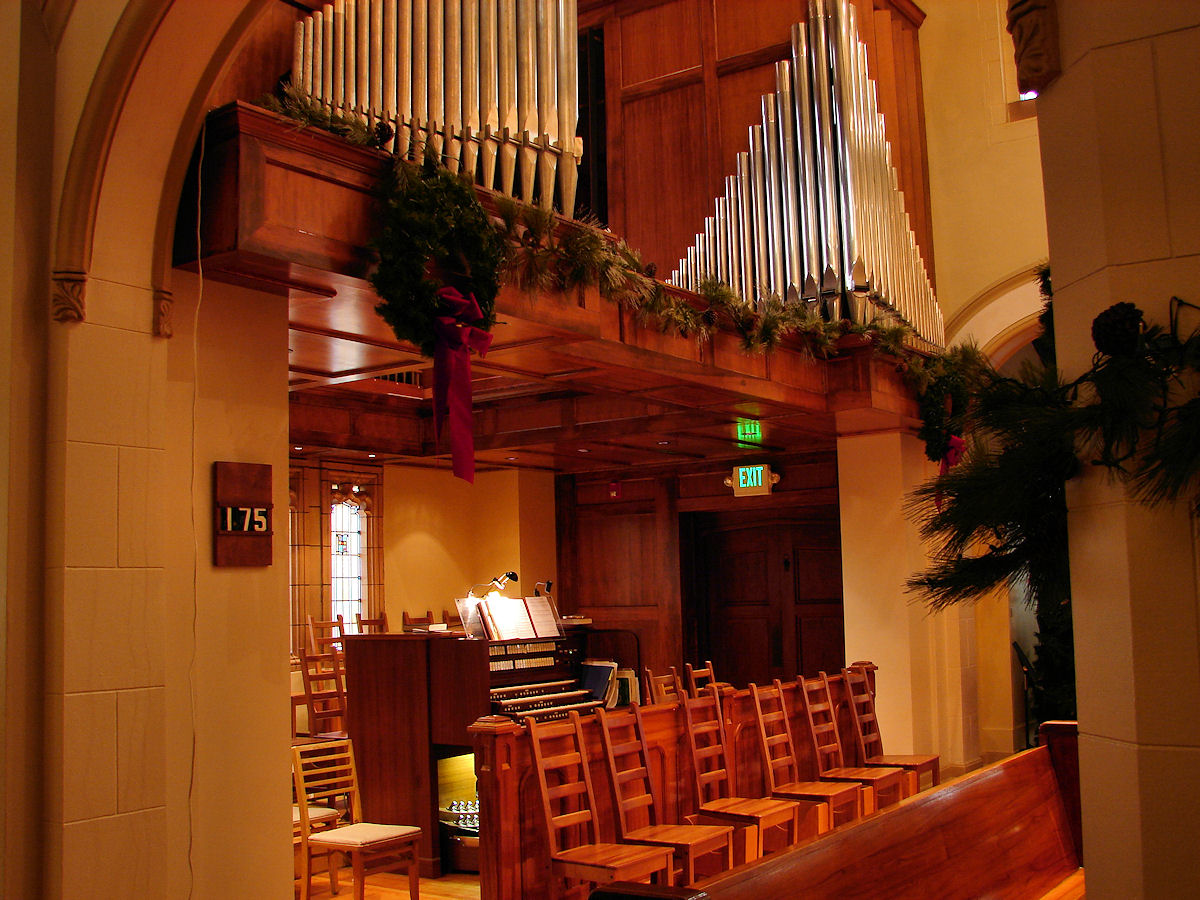

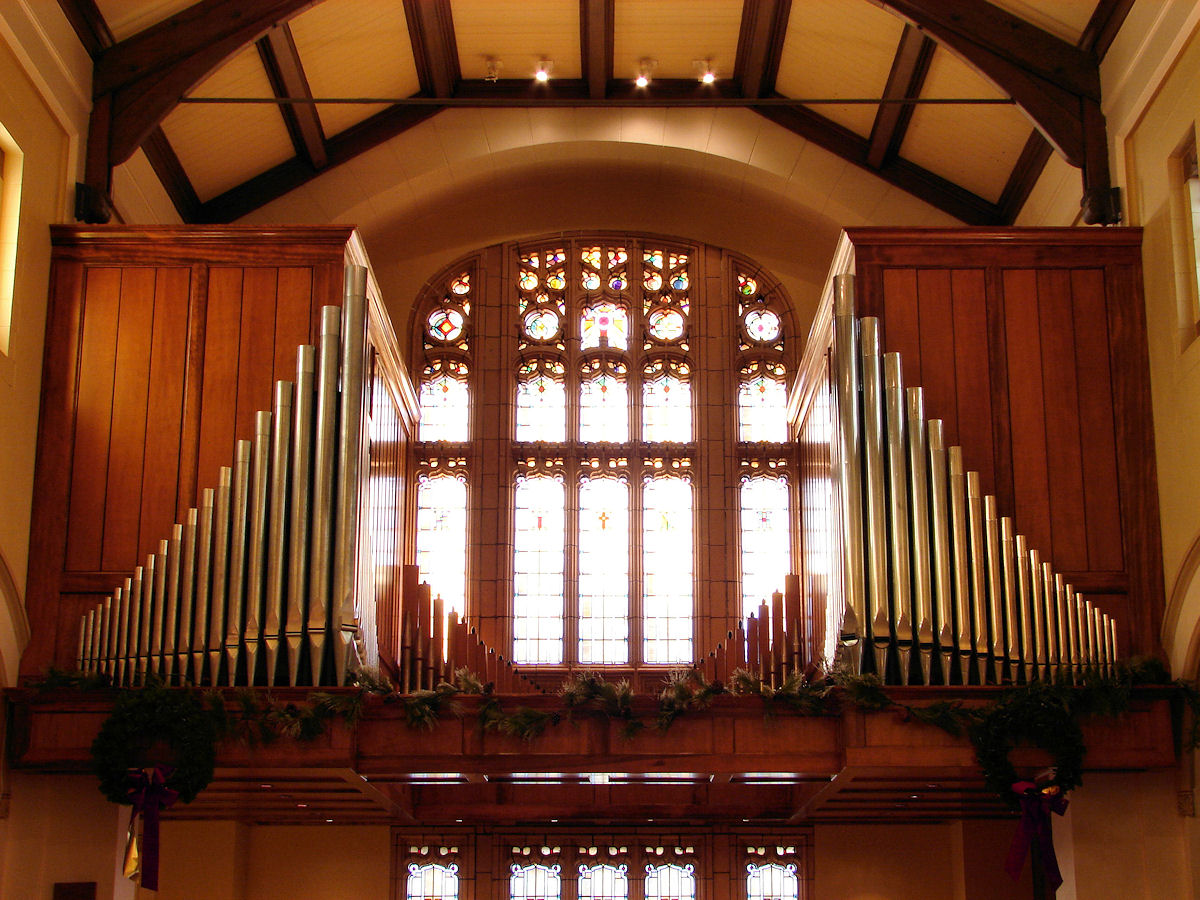

2010-01-09 - Organ and rear choir gallery (Photograph by Michael Way/Database Manager)

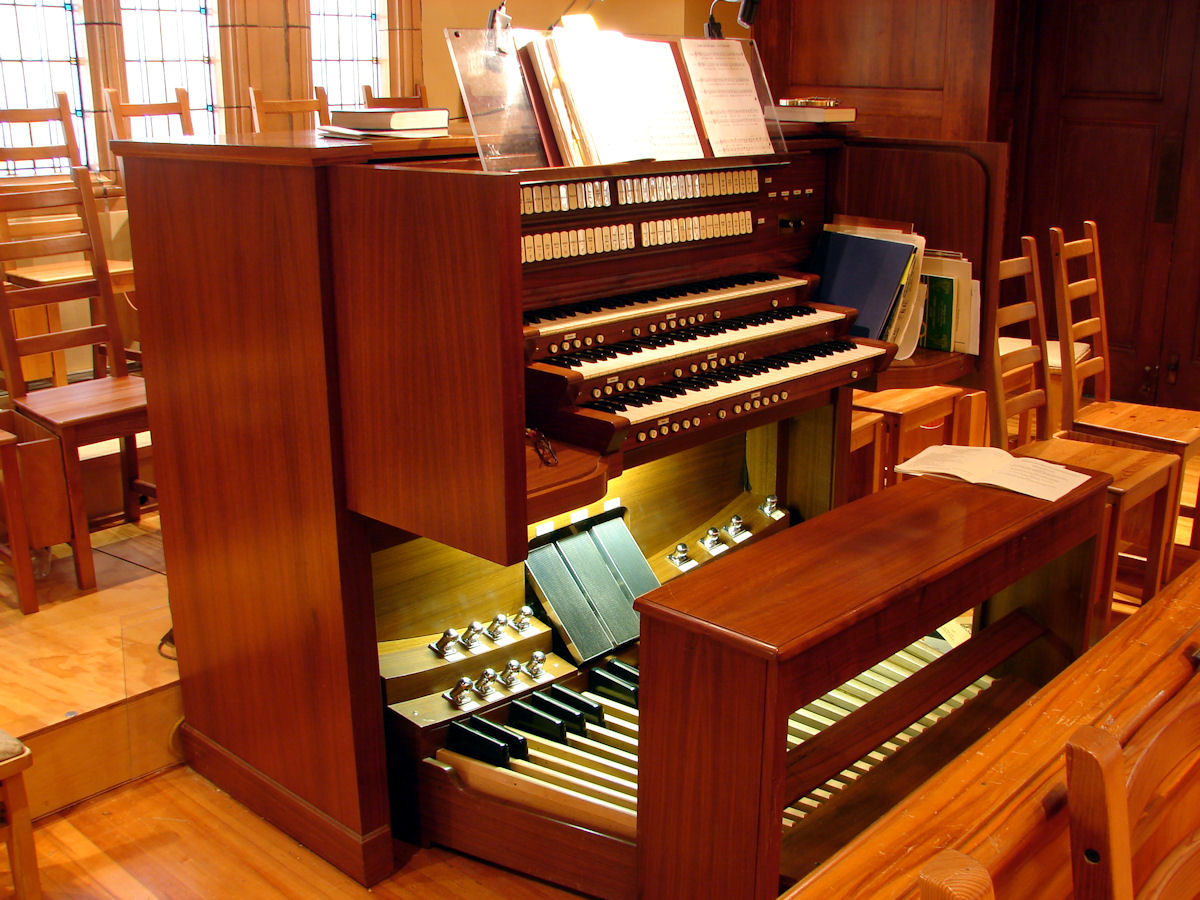

2010-01-09 - Console from left (Photograph by Michael Way/Database Manager)

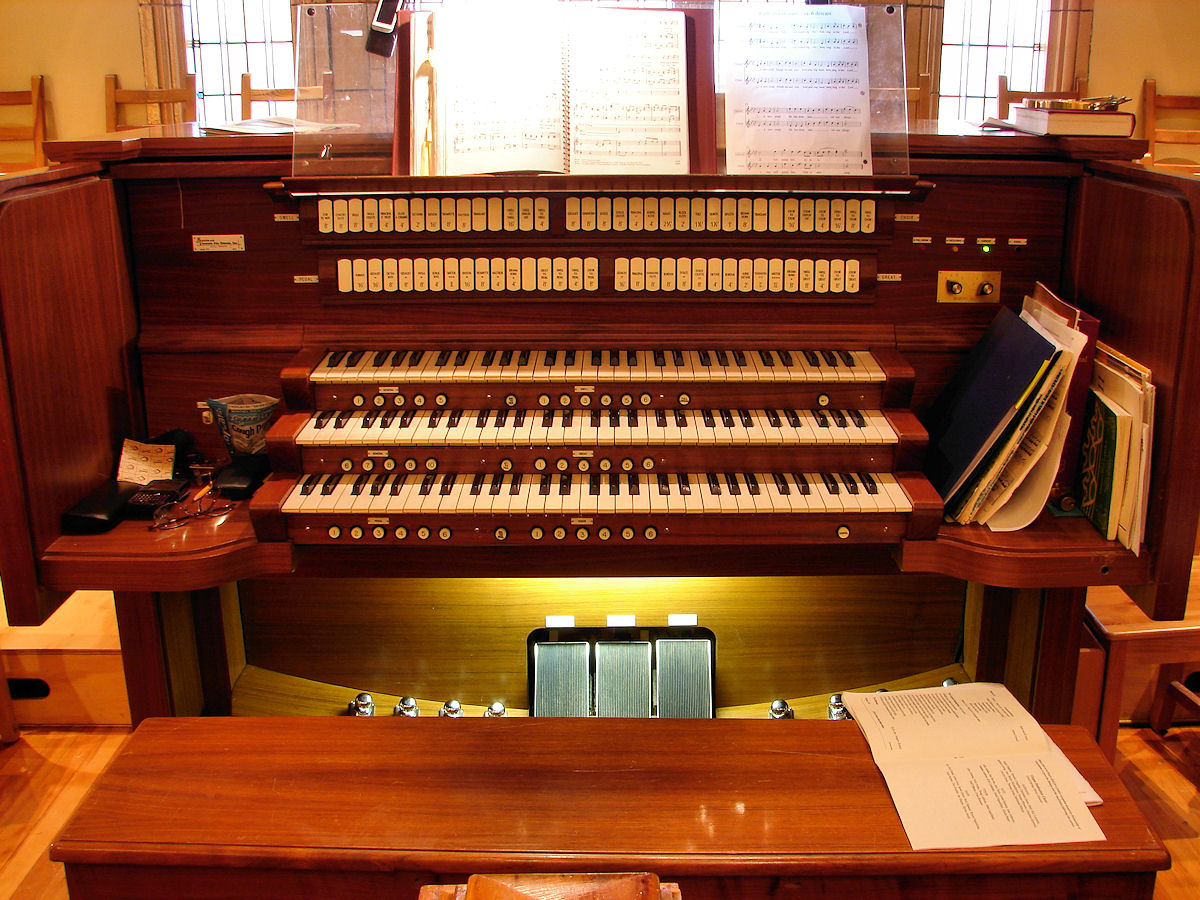

2010-01-09 - Console (Photograph by Michael Way/Database Manager)

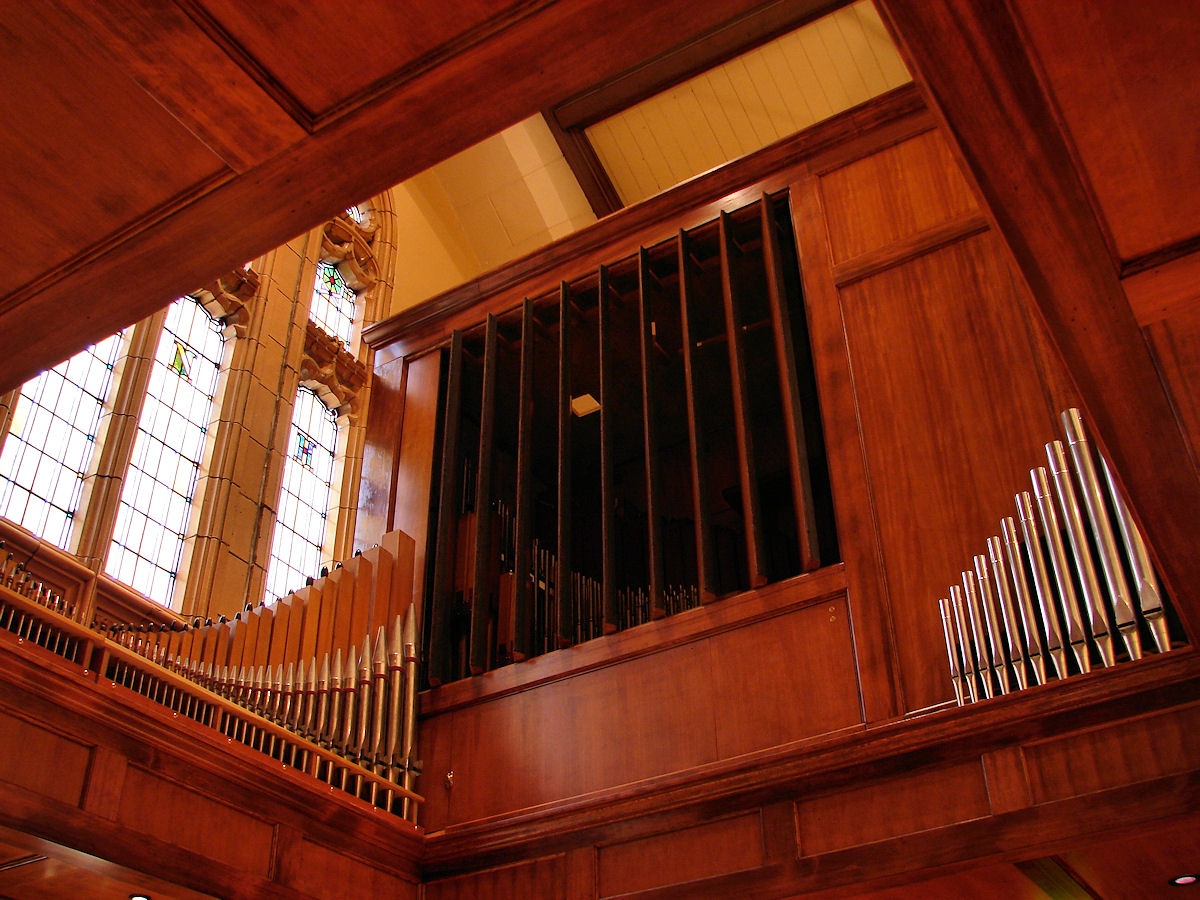

2010-01-09 - Swell enclosure and louvers (Photograph by Michael Way/Database Manager)

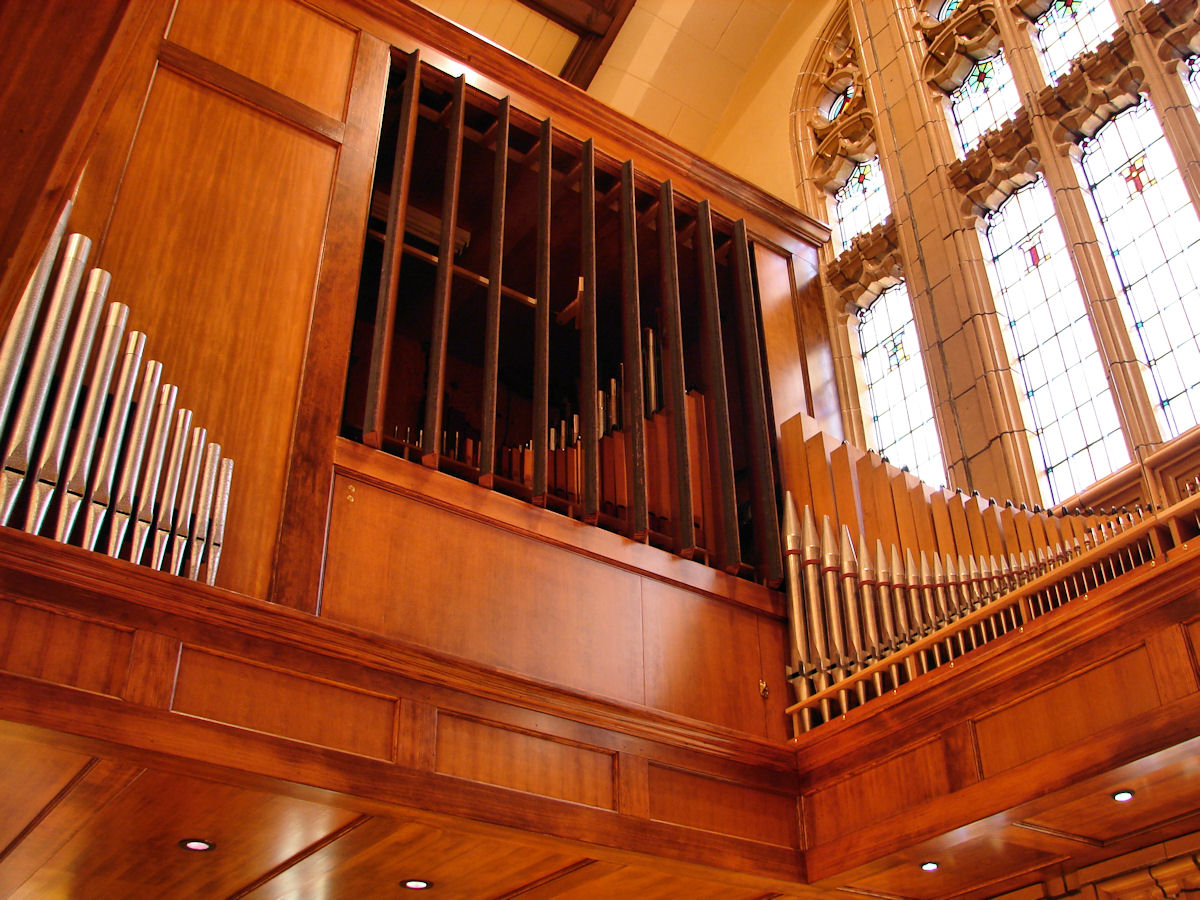

2010-01-09 - Great enclosure and louvers (Photograph by Michael Way/Database Manager)
2010-01-09 - Choir 8' Gedackt and 4'/2' Koppel Flöte (Photograph by Michael Way/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 25 stops
- 41 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Tilting/Rocking Tablets Above Top Manual
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Peterson & Syndyne
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2010-01-11 - Identified through online information from James R. Stettner. -- This was the removal, rebuilding, tonal changes, and reinstallation of Balcom and Vaughan's opus 777 built in 1971 for Covenant Christian Church in Spokane, WA. Trinity purchased it for roughly $40,000.00. The overhead framework for the organ and the swell boxes ran about $110,000.00. Some of the original ranks were not reinstalled due to both space limitations and desired tonal changes. Two new 8' stops were installed utilizing used pipework of unknown provenance. The organ retains some of the original Möller pipework from Central Christian Church in Spokane. The organ was consecrated in worship and recital on Sunday, January 9, 2010 with parish organist David Spring at the console and The Rt. Rev. Greg Rickel, Bishop of the Diocese of Olympia, presiding. The Dedicatory Recital will be January 29, 2010 with Seattle organist David DiFiore as recitalist. -Database Manager
Stoplist
Stoplist copied from the console January 9, 2010 Source: Source not recorded Date not recorded
Everett, Washington
Trinity Episcopal Church
Balcom and Vaughan Pipe Organs, Inc., Opus 777, 1971
Frans W.M. Bosman, 2009 - Moving, rebuilding, tonal changes, re-installation
GREAT (Expressive)
16' Gedeckt (Ch) --
8' Prinzipal 61 Right façade
8' Harmonic Flute 61 New to this organ. 1-12 stopped wood
8' Bordun 61
8' Dolce (Ch) --
8' Dolce Celeste (Ch) --
4' Oktave 61
4' Bordun 12
2' Super Oktave 61
II Sesquialtera (Ch) --
IV Mixtur 19-22-26-29 244
8' Krumm Horn (Ch) --
SWELL (Expressive)
8' Cor de Nuit 61 Original 1915 Moller Sw. 16' Bourdon
8' Concert Flute 61 New to this organ.
8' Viola 61
8' Viola Celeste (GG) 54
4' Principal E'Troit 61
4' Flute A Cheminee 61
2' Octavin 61
16' Basson 12 Extension of the 8' Hautbois
8' Trompette 61
8' Hautbois 61
Tremulant
blank
Swell to Swell 16'
Swell Unson Off
Swell to Swell 4'
CHOIR (Expressive *)
8' Gedackt 61 Original 1915 Möller Sw. 8' Stopped Diapason
8' Gemshorn -- Not reinstalled.
8' Dolce (*) 61 Original 1915 Möller Gt. 8' Dulciana
8' Dolce Celeste (*) (tc) 49 Original 1915 Möller Sw. 8' Muted Viol
4' Principal (Gt) --
4' Koppel Flöte 61
2-2/3' Nasat (*) (tf) 44
2' Block Flöte 12 Extension of the 4' Koppel Flöte
1-3/5' Tierce (*) (tc) 44
1-1/3' Quinte (*) -- From the 2-2/3' Nasat. 49 notes
1' Sifflöte -- Originally from the Koppel Flöte, 49 notes. Not reconnected.
8' Krumm Horn (*) 61
Tremulant
blank
Choir to Choir 16'
Choir Unison Off
Choir to Choir 4'
PEDAL
blank -- Wired as a 32' Resultant
16' Subbass 32 Enclosed in Great. Original 1915 Möller Ped. 16' Subbass
16' Gedackt (Ch) 12 Extension of the Ch. 8' Gedackt
8' Oktav Bass 32 Left façade
8' Gedackt (Ch) --
8' Viola (Sw) --
4' Koral Bass 32 Enclosed in Great
III Mixtur 19-22-26 -- Not reinstalled
16' Basson (Sw) --
8' Trompette (Sw) --
4' Hautbois (Sw) --
4' Krumm Horn (Ch) --
blank
COUPLERS
Swell to Pedal 8,4
Great to Pedal 8
Choir to Pedal 8
Swell to Great 8,4
Choir to Pedal 8,4
Swell to Choir 16,8,4
FINGER PISTONS
General 1 - 10
Swell 1 - 6
Sw. to Ped. (rev)
Great 1 - 6
Gt. to Ped. (rev)
Choir 1 - 6
Ch. to Ped. (rev)
Pedal 1 - 6
Full Organ (rev)
Set
Cancel
TOE STUDS
General 1 - 8
Pedal 1 - 6
Gt. to Ped. (rev)
Full Organ (rev)
PEDAL MOVEMENTS (l - r)
Choir Expression (bal.)
Swell Expression (bal.)
Crescendo (bal.)
ACTION: Electro-Pneumatic pitman & unit
VOICES: 25
STOPS: 41
RANKS: 28
PIPES; 1,619
[Received on line from James R. Stettner January 24, 2010.]
