Casavant Frères Ltée. Opus 3271 (1975)

Faith Lutheran Church
555 US Highway 1
North Palm Beach, FL

Images

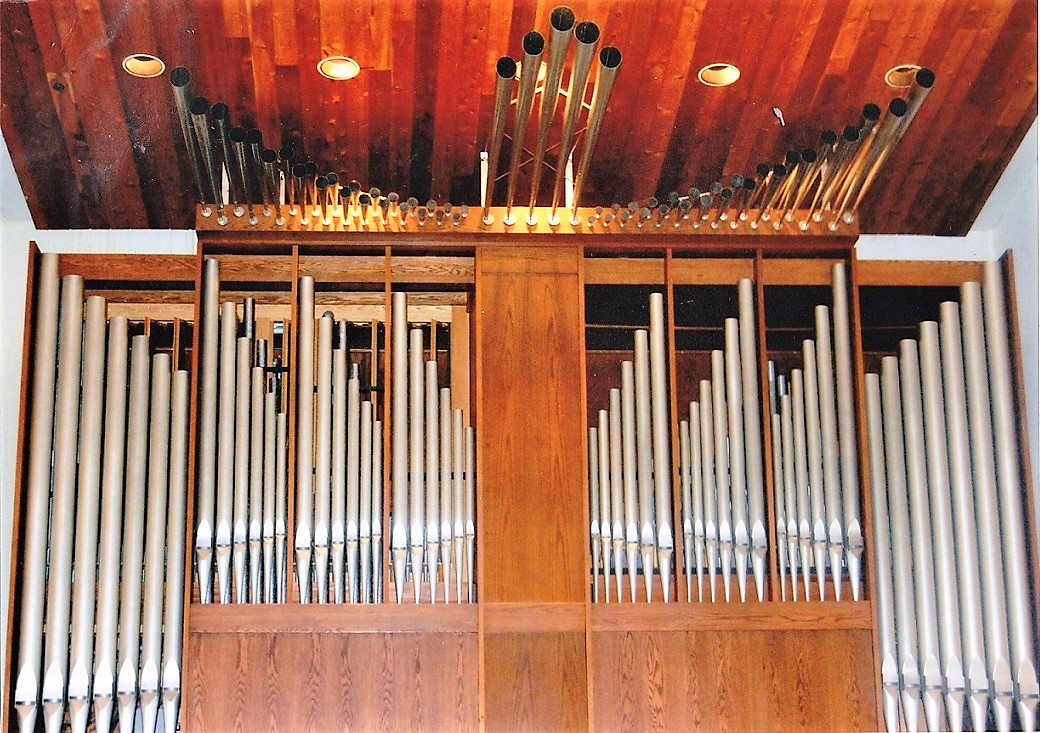

2013-02-01 - Organ Case and Trompette en Chamade (Photograph by Ben Schuemann/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
17 stops
21 registers
3 divisions
Key action Type: Electrical
Stop action Type: Mechanical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons

Notes

2010-01-12 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-04-19 - Updated through online information from Jeff Scofield. -- 56-note Trompette-en-chamade added by Casavant in 1979 -Database Manager

2012-09-21 - Updated through online information from Ben Schuemann. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    North Palm Beach, Florida
    Faith Lutheran Church

    Casavant   Op. 3271   1975   2/23

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    _____________________________________________________________

    GREAT                    SWELL                  PEDAL
 8' Prinzipal     56      8' Gedackt     56     16' Subbass    32
 8' Rohrflöte     56      8' Gemshorn    56      8' Prinzipal  32
 4' Oktave        56      4' Spitzflöte  56      8' Bordun     12
 4' Koppelflöte   56      2' Prinzipal   56      4' Oktave     12
 2' Blockflöte    56    III  Scharf     168     16' Fagott     32
II  Sesquialtera  88      8' Trompete    56      8' Fagott     12
IV  Mixtur       224         Tremulant           4' Fagott     12
 8' Trompette-en-
    Chamade       56

[Received on line from Jeff Scofield April 19, 2010.]
