Better Pipe Organ Database

Casavant Frères Ltée. Opus 3273 (1975)

McFarland Lutheran Church: Sanctuary
5529 Marsh Rd.
McFarland, WI

Images

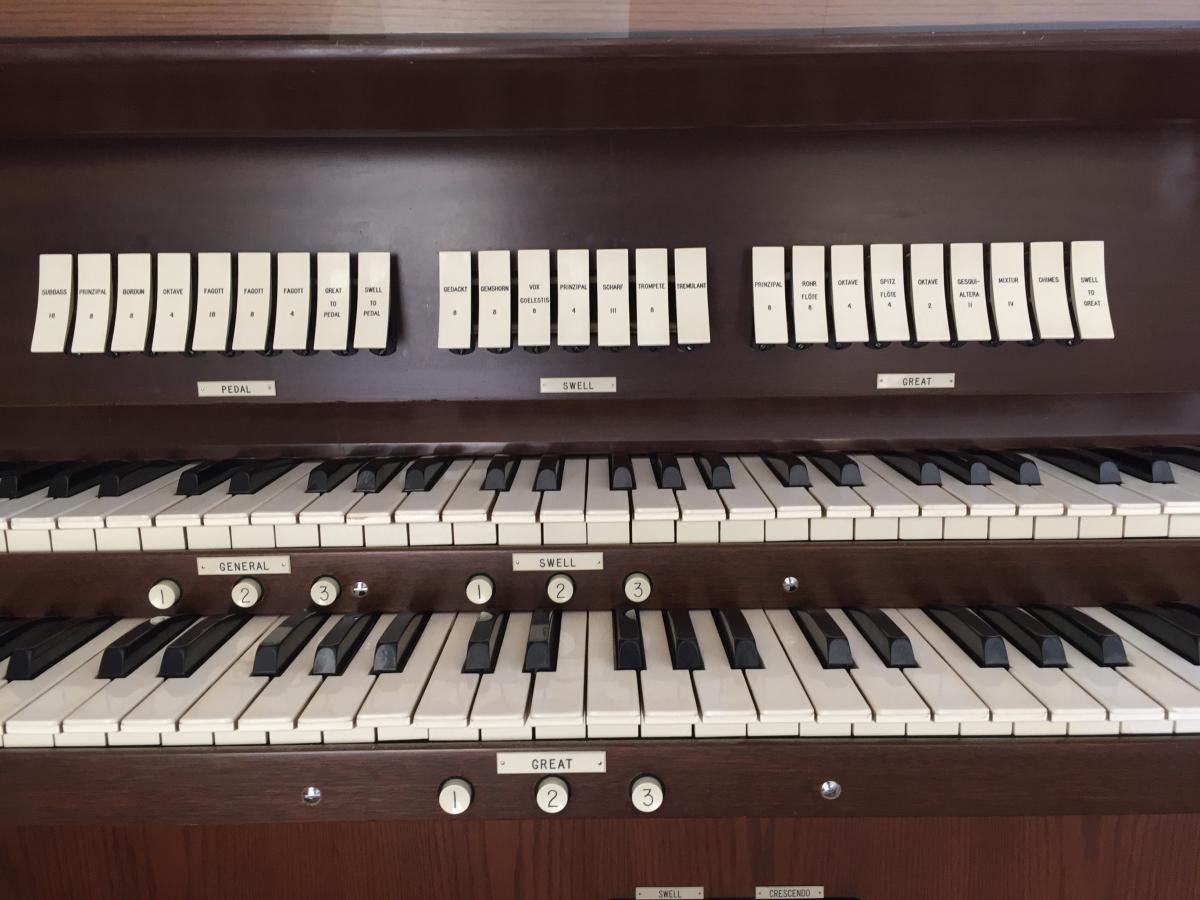

2019-02-01 - Console (Photograph by Andrew Schaeffer/Database Manager)

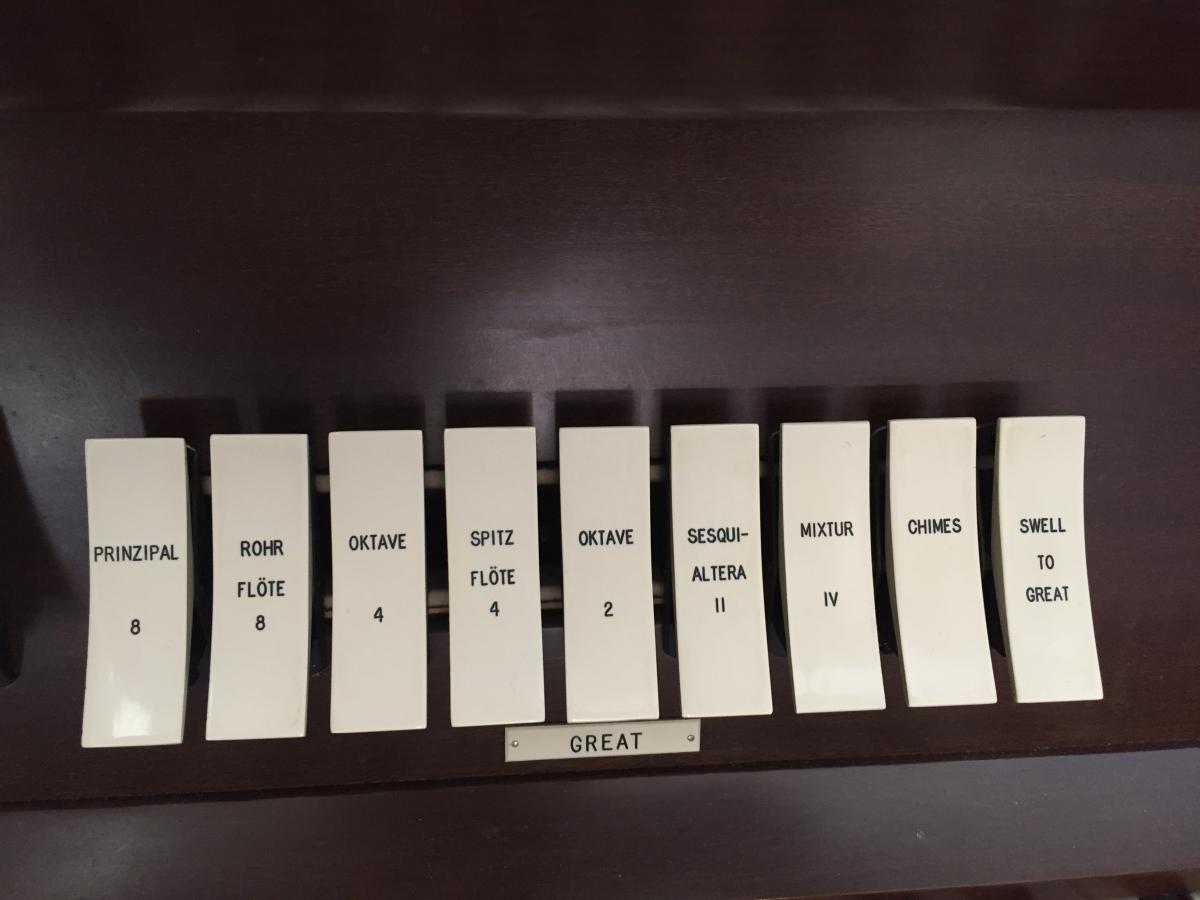

2019-02-01 - Great Stops (Photograph by Andrew Schaeffer/Database Manager)

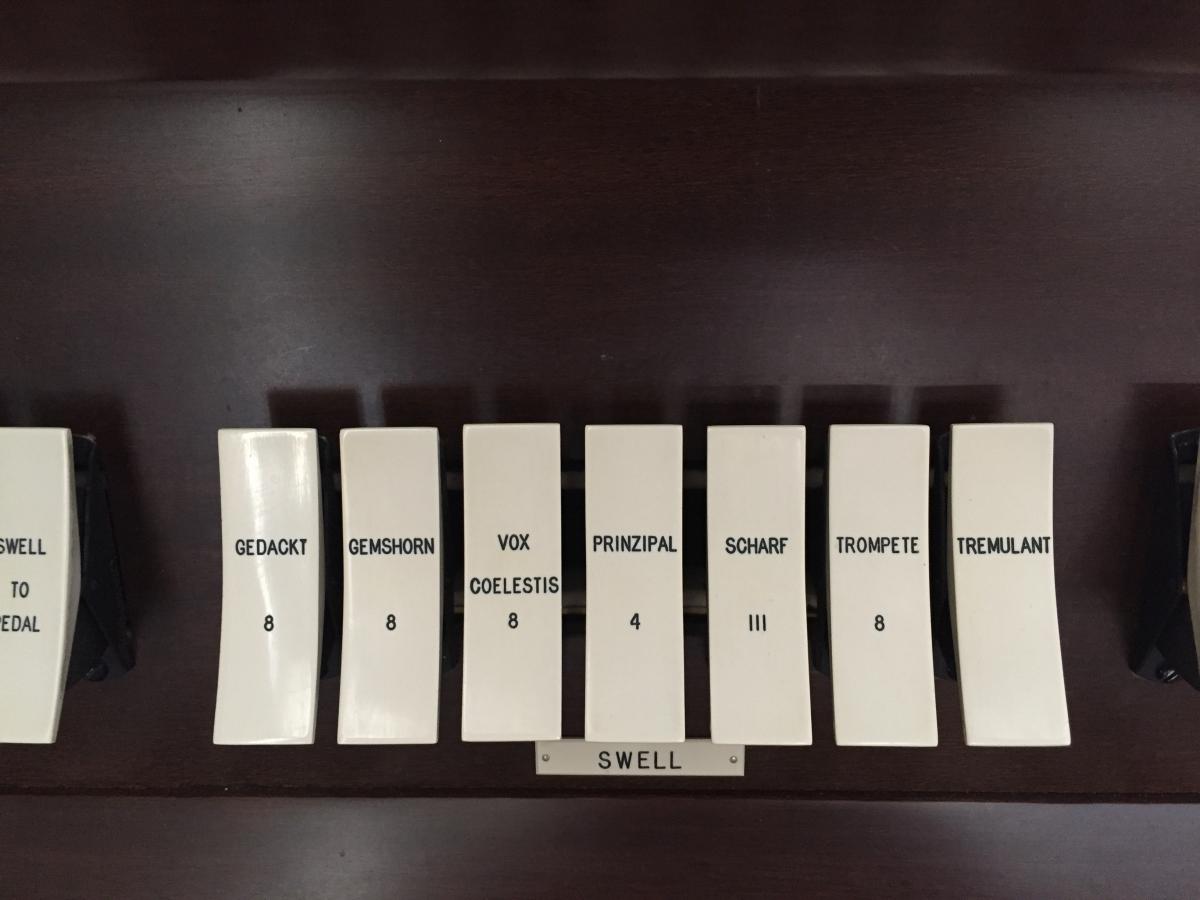

2019-02-01 - Swell Stops (Photograph by Andrew Schaeffer/Database Manager)

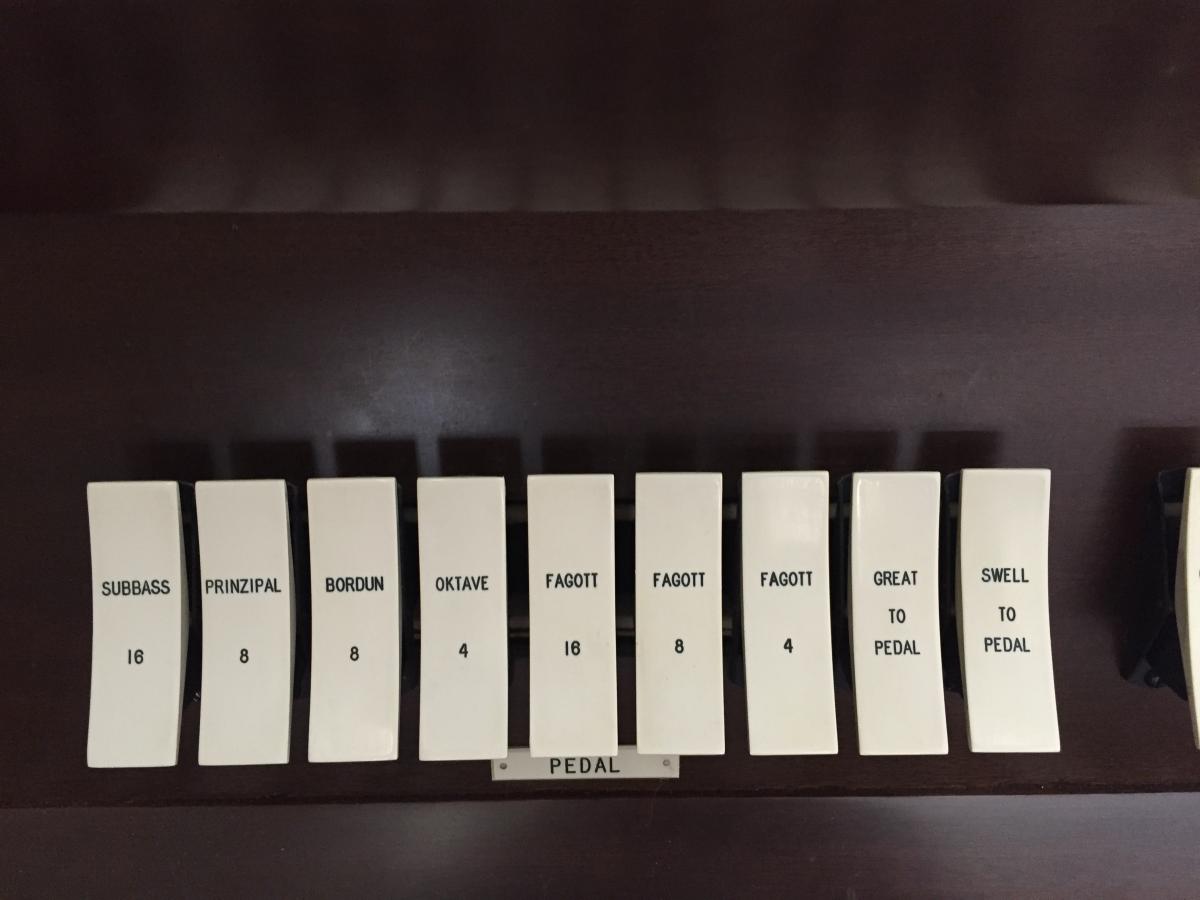

2019-02-01 - Pedal Stops (Photograph by Andrew Schaeffer/Database Manager)

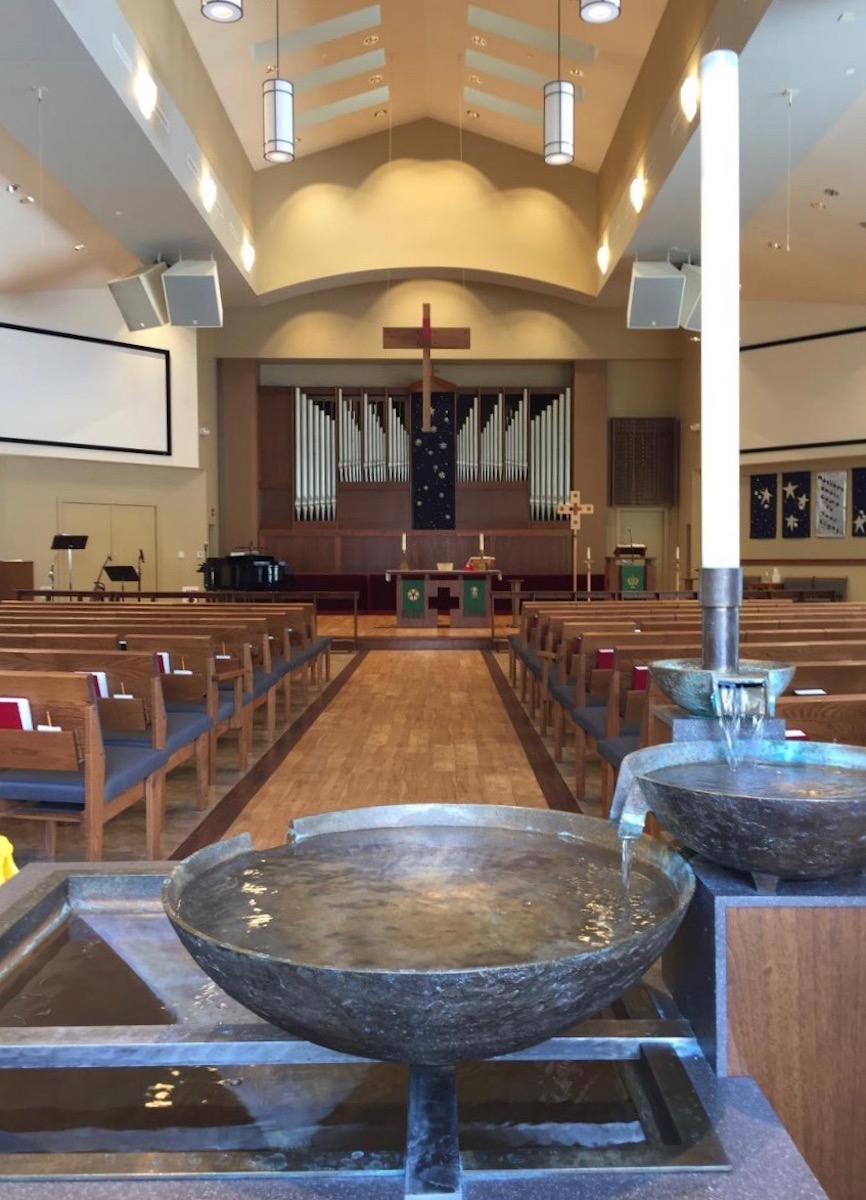

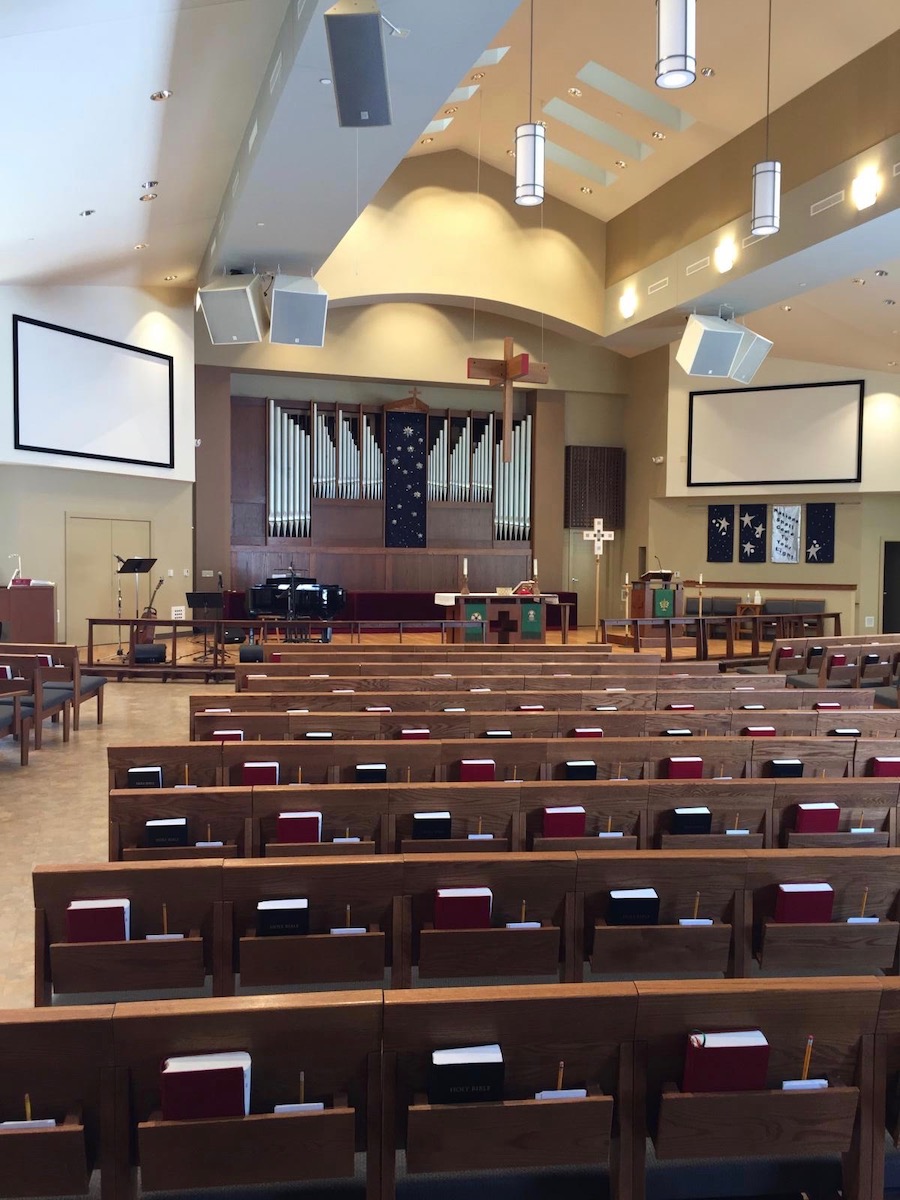

2019-02-01 - Nave and Organ (Photograph by Andrew Schaeffer/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
20 stops
16 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons

Notes

2010-01-12 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-06-06 - Updated through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    McFarland, Wisconsin
    McFarland Lutheran Church

    Casavant   Op. 3273   1975   2/22

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    ___________________________________________________________

    GREAT                  SWELL                   PEDAL
 8' Prinzipal    56     8' Gedackt       56    16' Subbass   32
 8' Rohrflöte    56     8' Gemshorn      56     8' Prinzipal 32
 4' Oktave       56     8' Vox coelestis 44     8' Bordun    12
 4' Spitzflöte   56     4' Prinzipal     56     4' Oktave    12
 2' Oktave       56   III  Scharf       168    16' Fagott    32
II  Sesquialtera 88     8' Trompete      56     8' Fagott    12
IV  Mixtur      224        Tremulant            4' Fagott    12
    Chimes (existing)

[Received on line from Jeff Scofield June 06, 2010.]
