Better Pipe Organ Database

Casavant Frères Ltée. Opus 3300 (1976)

Blessed Sacrament Catholic Church
2116 Hollister Ave.
Madison, WI

Images

2023-12-16 - Console and church interior (Photograph by Andrew Schaeffer, via Facebook, submitted by Jeff Scofield/Jeff Scofield)

2023-01-31 - Console (Photograph by Andrew Schaeffer/Andrew Schaeffer)

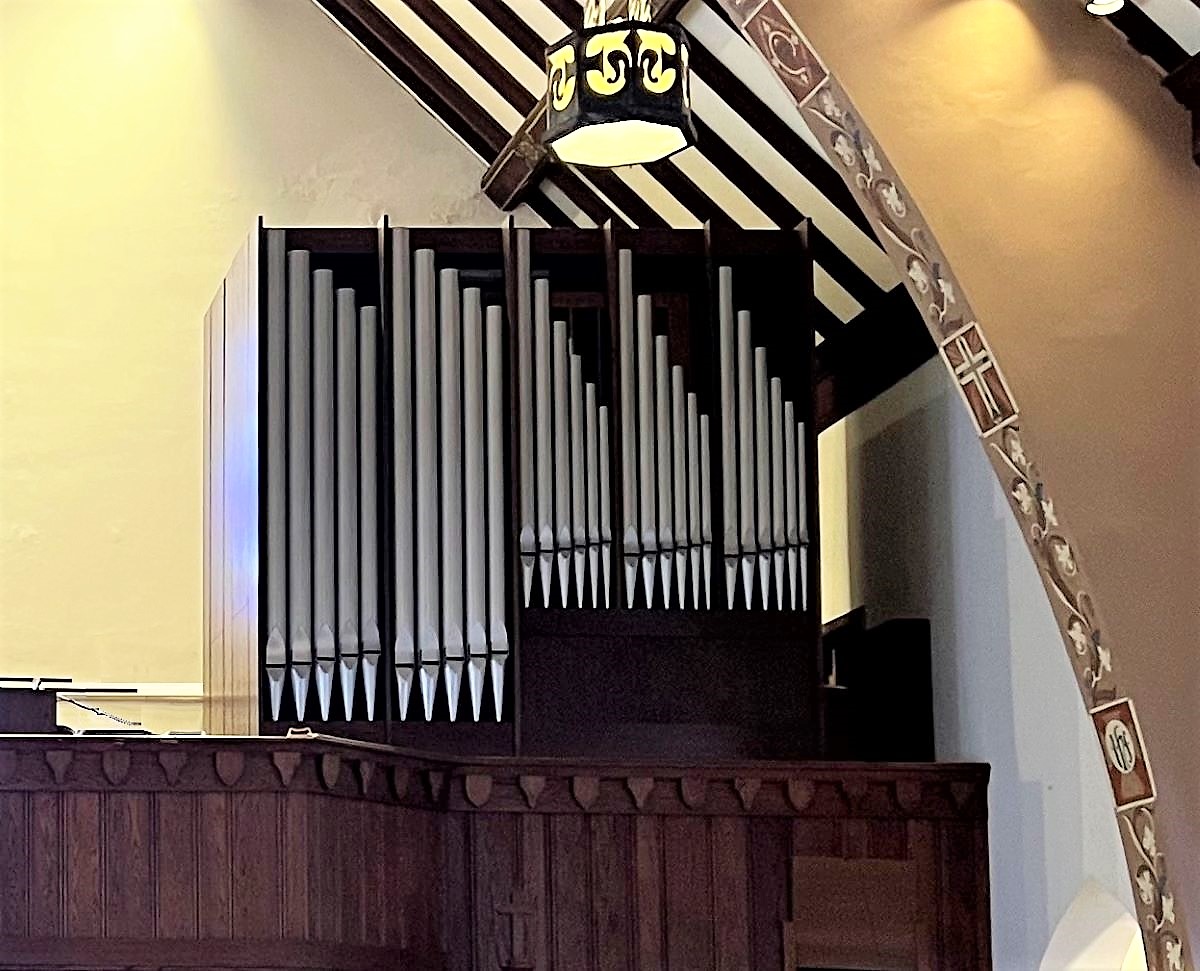

2023-01-31 - Organ case (Photograph by Andrew Schaeffer [cropped]/Andrew Schaeffer)

2023-01-31 - Organ in rear gallery (Photograph by Andrew Schaeffer/Andrew Schaeffer)

2023-01-31 - Sanctuary interior showing organ in rear gallery (Photograph by Andrew Schaeffer/Andrew Schaeffer)

2023-01-31 - Nave (Photograph by Andrew Schaeffer/Andrew Schaeffer)

Consoles

Gallery

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
10 stops
13 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: None

Notes

2010-01-12 - This entry represents the installation of a new organ. Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-06-07 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Source: Stoplist copied from the factory specifications / verified and corrected from console photo 1976 / February. 1, 2023

    Madison, Wisconsin
    Blessed Sacrament R. C. Church

    Casavant   Op. 3300   1976   2/13

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    ________________________________________________

    GRAND ORGUE                         COUPLERS
8'  Montre                  56          Recit to Pedale         8,4
8'  Flute a Cheminee        56          Gr. Orgue to Pedale     8
4'  Prestant                56
IV  Fourniture             224          Recit to Gr. Orgue   16,8


    RECIT (Expressif)                   FINGER PISTONS
8'  Bourdon                 56          None
8'  Viole De Gambe          56
4'  Flute Conique           56
2'  Doublette               56          TOE STUDS
8'  Trompette               56          None
    Tremblant

                                        PEDAL MOVEMENTS
    PÉDALE                              Recit Expression      (bal.)
16' Soubasse          (GO)  12          Crescendo             (bal.)
8'  Octave Basse            32
8'  Flute A Cheminee  (GO)  --
4'  Octave                  12


[Received on line from Jeff Scofield  June 07, 2010.]
[Corrected & Updated by James R. Stettner  February 01, 2023.]
