Better Pipe Organ Database

Casavant Frères Ltée. Opus 2893 (1966)

St. David's Episcopal Church: Church
4700 Roland Ave.
Baltimore, MD

Images

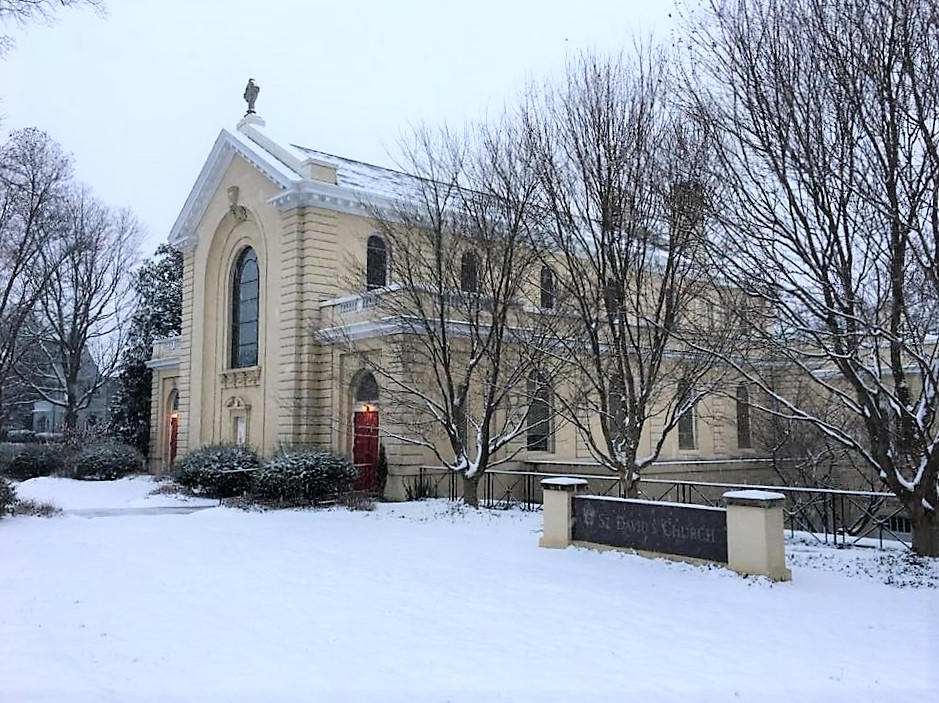

2017-12-10 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

2018-12-26 - Chancel and exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

2015-11-06 - Church interior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
38 stops
35 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2010-01-12 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-05-02 - Updated through on-line information from Jeff Scofield. -- Originally installed as 3/42; two stops (5 ranks) added in 1983; received a new Austin 3-manual drawknob console at some point. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Baltimore, Maryland
       St. David's Episcopal Church

       Casavant   Op. 2893   1966   3/47

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       _____________________________________________________

       GREAT                           SWELL
   16' Quintade            61       8' Salicional         61
    8' Principal           61       8' Salicional Céleste 54
    8' Rohrflöte           61       8' Nachthorn          61
    4' Octave              61       4' Principal          61
    4' Koppelflöte         61       4' Flute              pf
2 2/3' Quint               pf       2' Octave             61
    2' Octave              61      IV  Scharf            244
   IV  Mixture            244      16' Fagott     L/2     61
    8' Trompete            pf       8' Trompete           61
       Chimes              pf       8' Oboe               pf
                                       Tremulant
       CHOIR
    8' Flûte harmonique    54 *        PEDAL
    8' Gedackt             61      16' Principal          32
    8' Spitzflöte          61      16' Subbass            32
    8' Spitzflöte Céleste  54      16' Quintade           GT
    4' Gemshorn            61       8' Octave             32
2 2/3' Nasat               61       8' Gedackt            32
    2' Blockflöte          61       4' Choralbass         32
1 3/5' Terz                61       4' Flûte harmonique   CH
1 1/3' Quintflöte          61       2' Flûte harmonique   CH
   IV  Mixture            244 *    IV  Mixture           128
    8' Krummhorn           61      16' Posaune            32
       Tremulant                    8' Trompete           32
                                    4' Schalmei           32
    *  added in 1983

[Received on line from Jeff Scofield May 02, 2010.]
