St. Lorenz Lutheran Church
140 Churchgrove Rd.
Frankenmuth, MI
Images

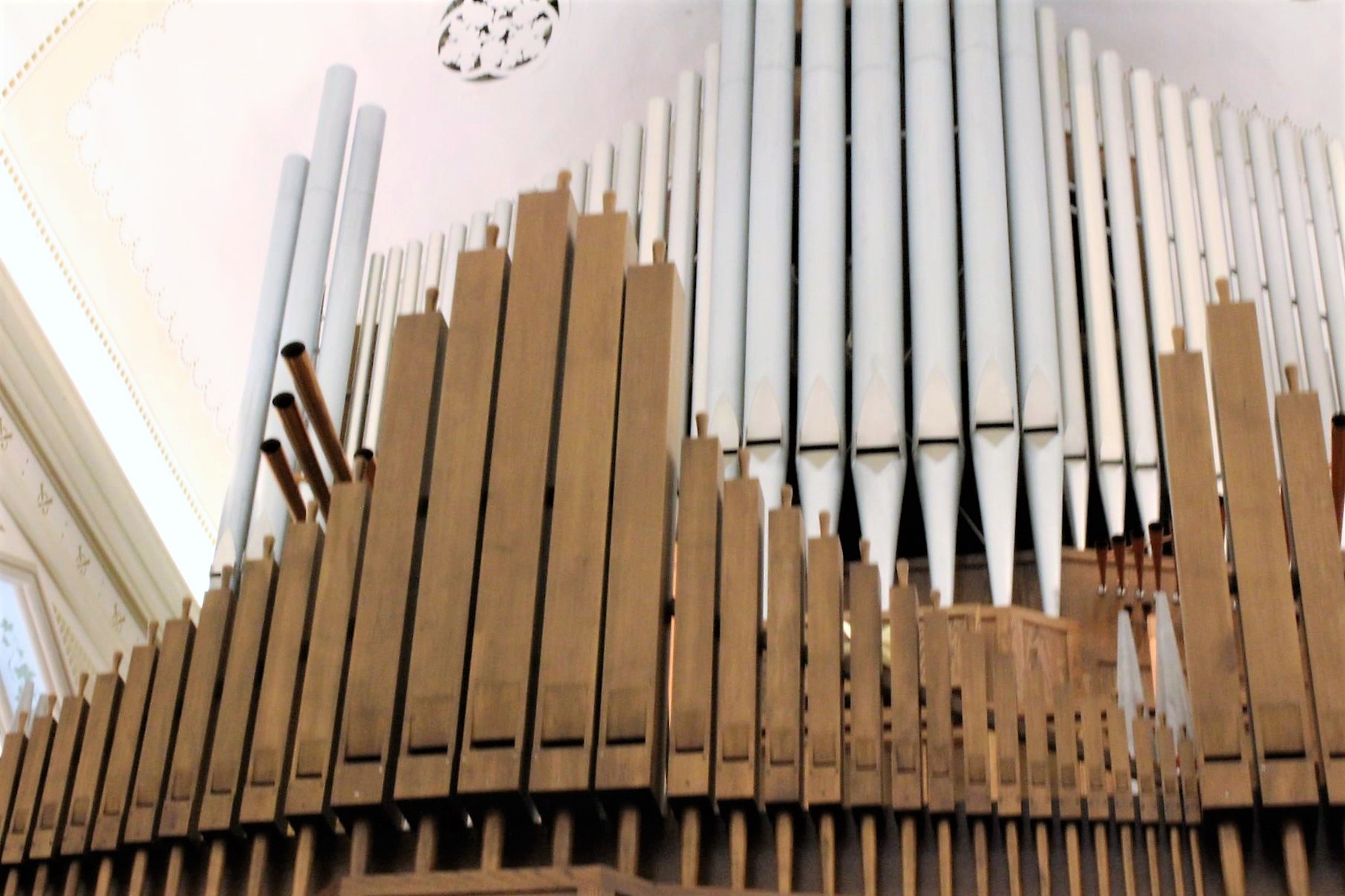

2012-01-16 - Rueckpositive exposed pipes (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)

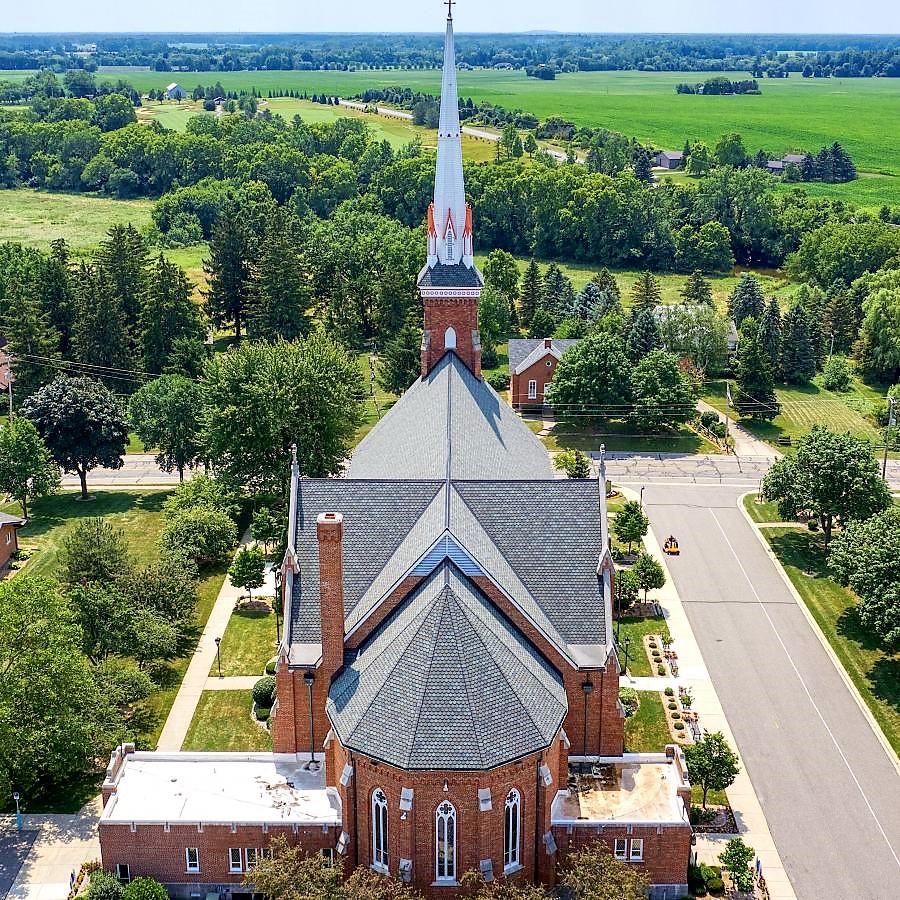

Unknown - Church exterior from rear (Photograph by frankenmuth.org, submitted by Jeff Scofield/Jeff Scofield)

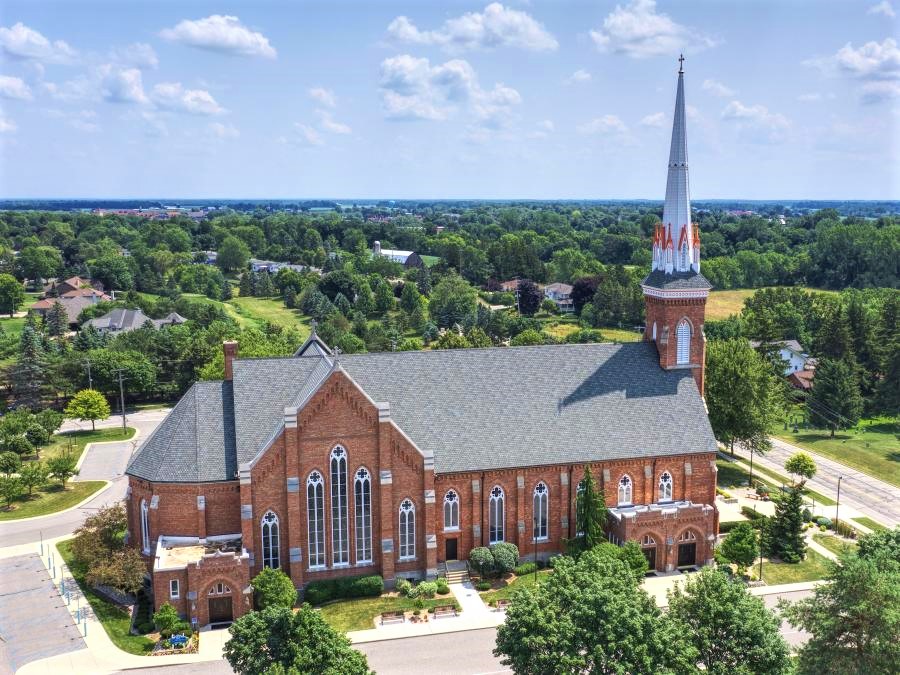

Unknown - Church exterior (Photograph by frankenmuth.org, submitted by Jeff Scofield/Jeff Scofield)

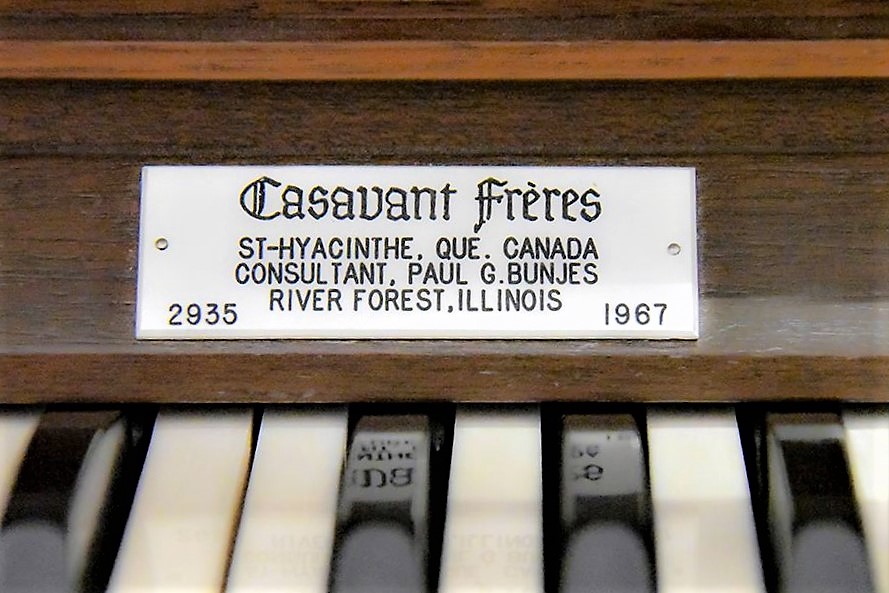

2018-01-05 - Builder nameplate (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)

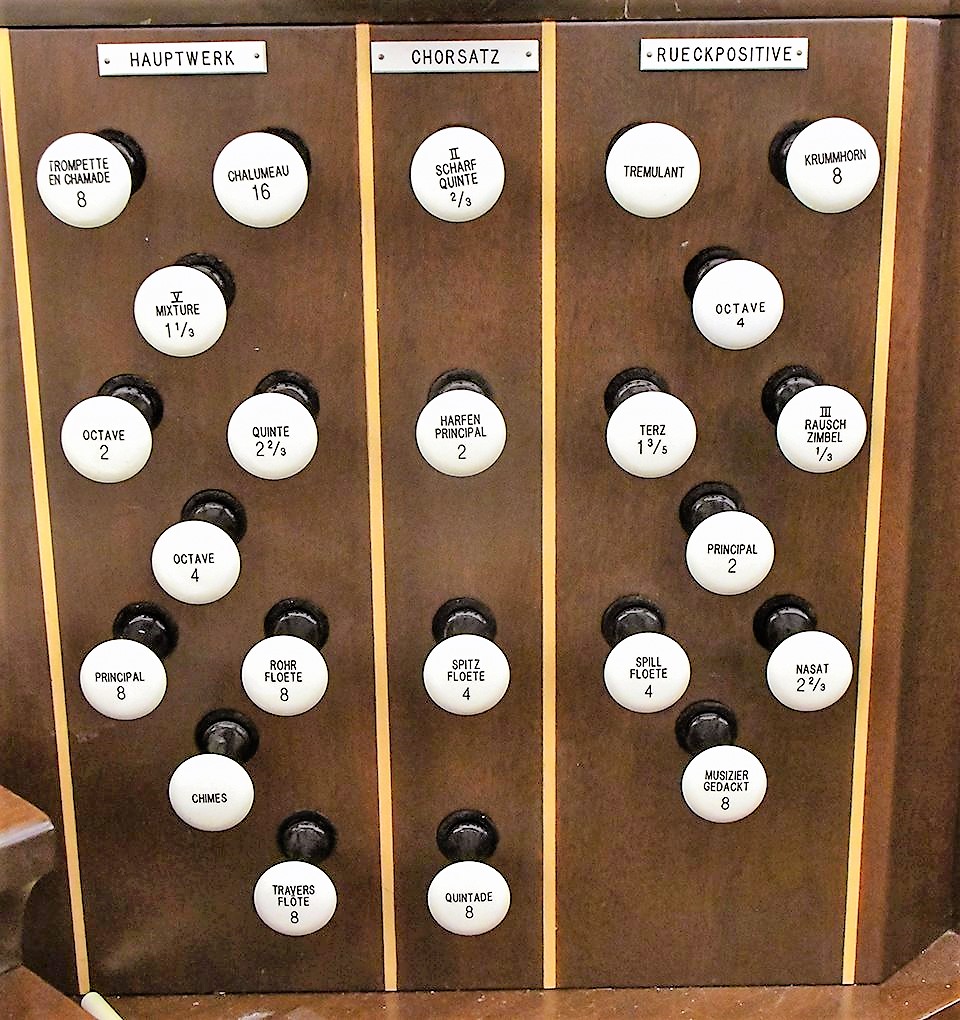

2018-01-05 - Right stopjamb (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)

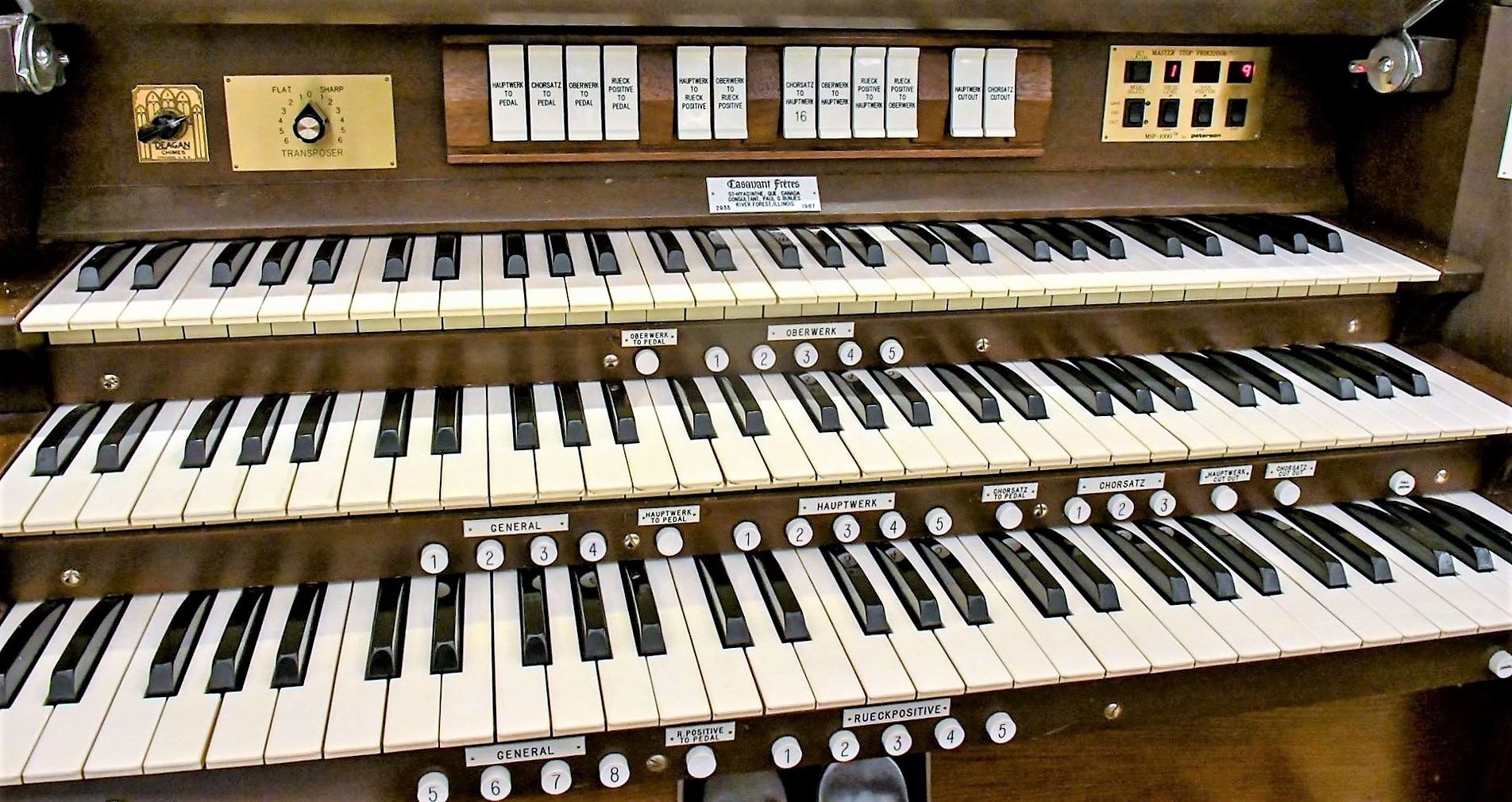

2018-01-26 - Console manuals and controls (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)

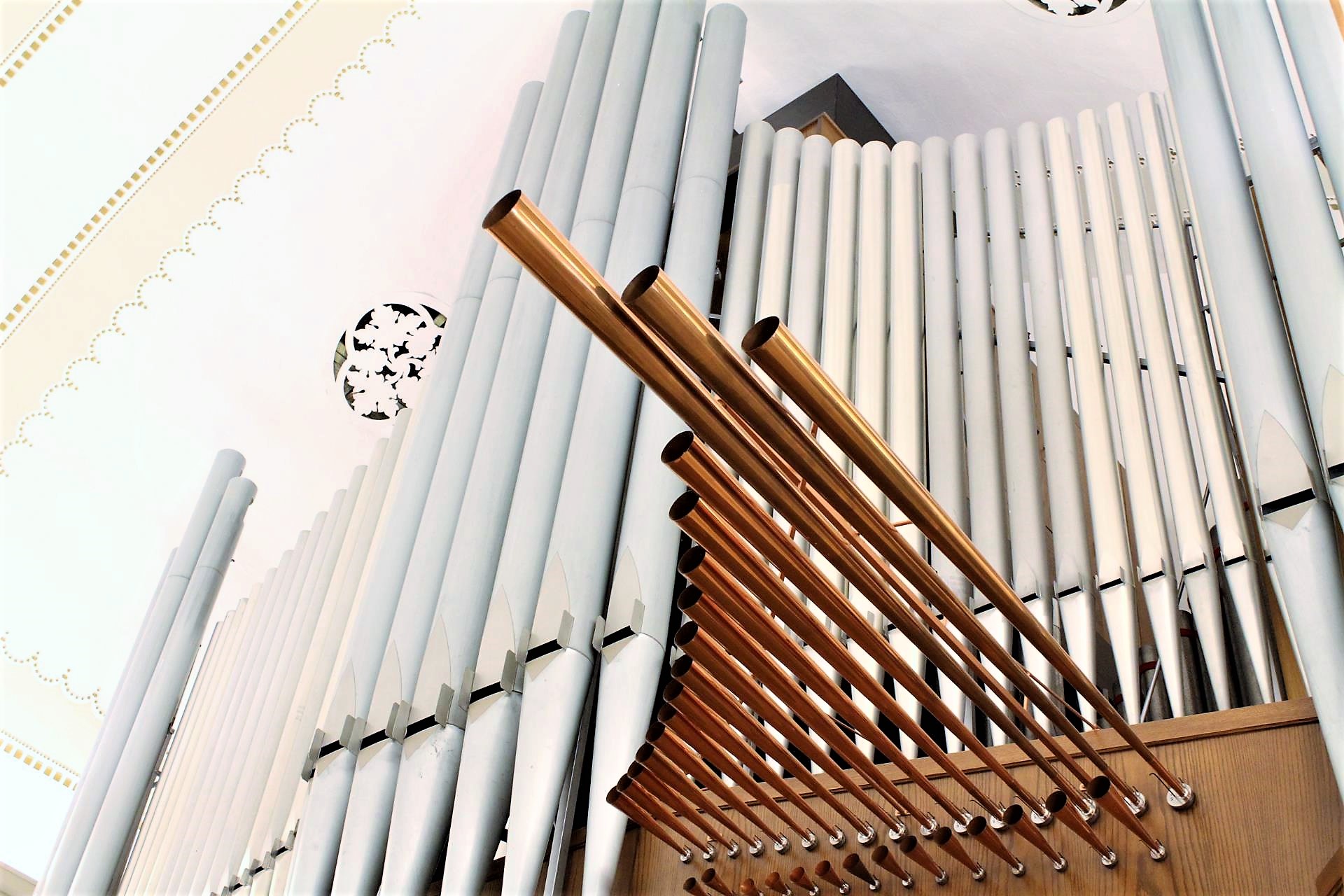

2012-11-16 - Trompette-en-Chamade (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)

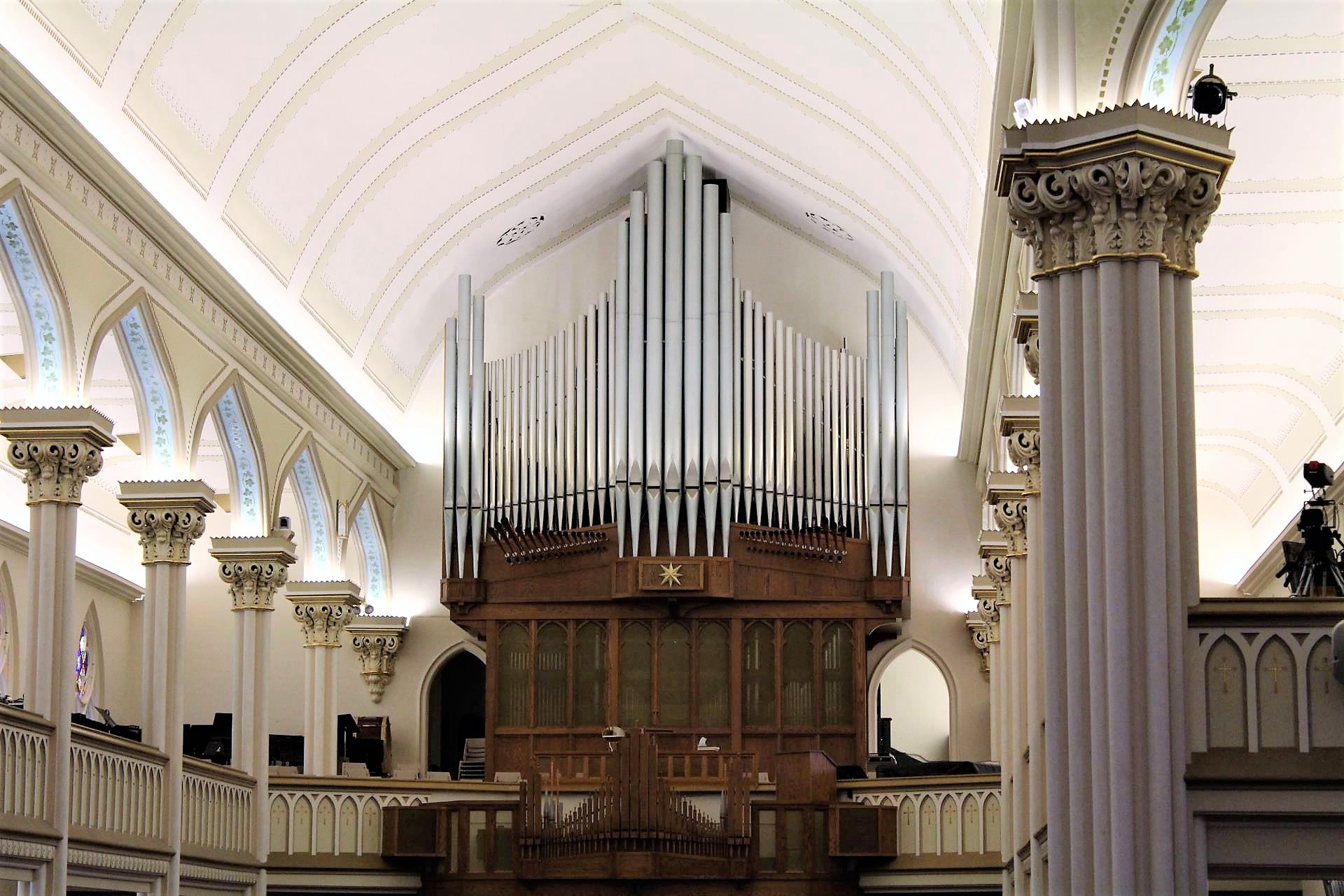

2012-11-16 - Organ case and pipework (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)

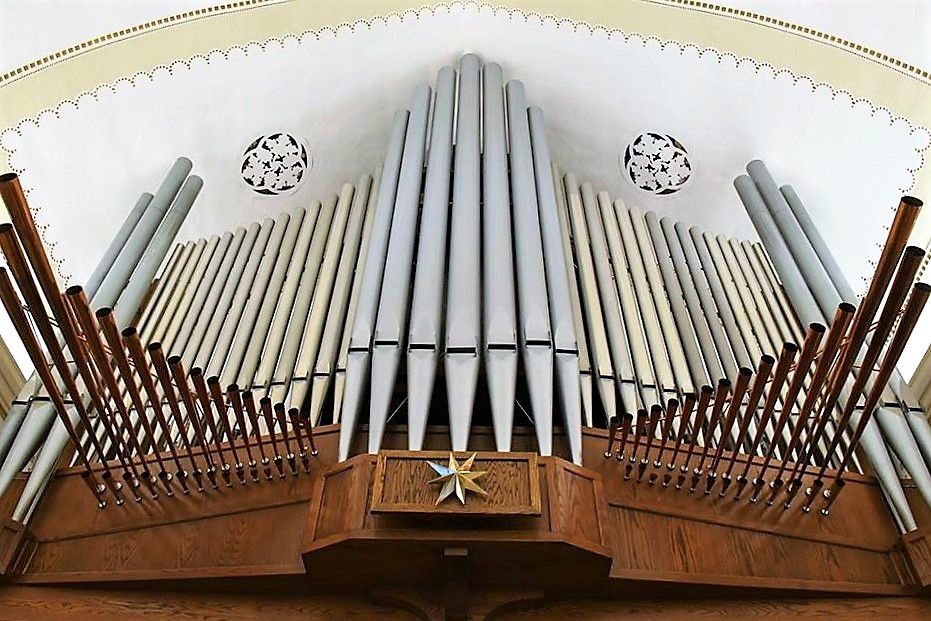

2018-01-05 - Organ pipes and en-chamade (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)

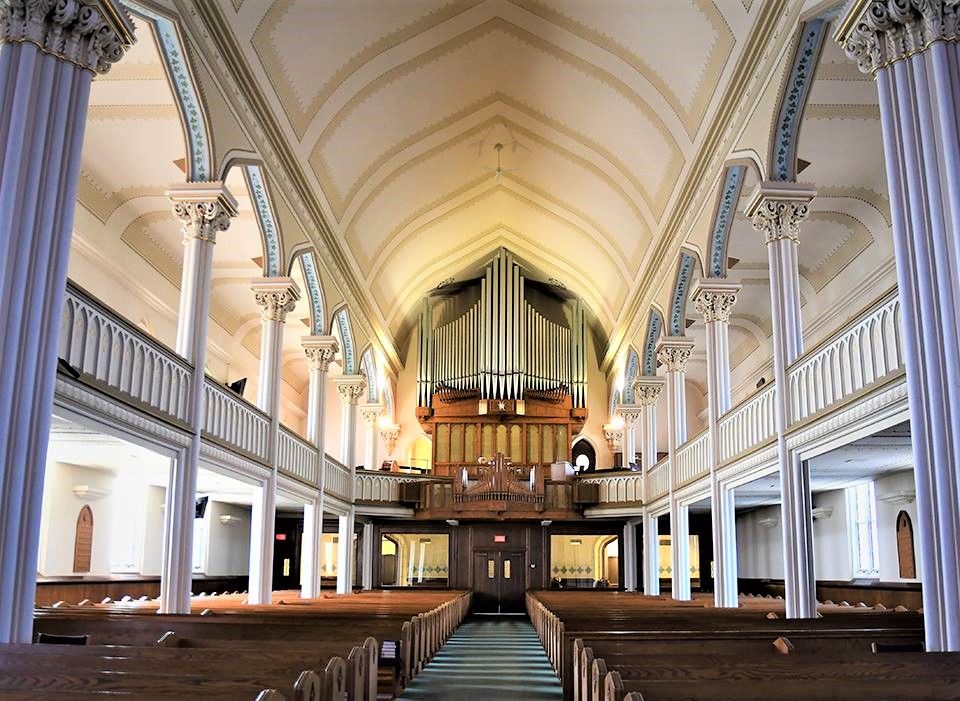

2018-01-05 - Church interior to gallery, organ and exposed pipes (Photograph by Music at St. Lorenz on Facebook, submitted by Jeff Scofield/Jeff Scofield)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 37 stops
- 37 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Remote Pneumatic/Mechanical Capture
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2010-01-14 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager
2010-06-28 - Updated through online information from Jeff Scofield. -- Paul Bunjes grew up in this church and was the consultant for the organ; Hébert & Sons, Troy, MI, renovated the console in 2004 and Berghaus added the Celeste to the Oberwerk; Casavant did further console work in 2008. -Database Manager
Stoplist
Personal visit, 2012 Source: Source not recorded Date not recorded
This is a supplement to the given stoplist: mixture compositions
Frankenmuth, Michigan
Saint Lorenz Lutheran Church, 140 Church Grove Road, 48734
Casvant Frères Limitée, 1967, opus 2935
tonal design by Paul Bunjes
HAUPTWERK Mixture V:
C 19 22 26 29 33
A# 15 19 22 26 29
aº 12 15 19 22 26
g’ 8 12 15 19 22
f’’ 1 8 12 15 19
OBERWERK Scharf IV:
C 26 29 33 36
c#º 22 26 29 33
aº 19 22 26 29
f#’ 15 19 22 26
c#’’ 12 15 19 22
a’’ 8 12 15 19
f’’’ 1 8 12 15
OW 1-1/3’ Nasat (cº; breaks to 2-2/3’ @ f’’’)
CHORSATZ Scharfquinte II:
C 26 29
cº 22 26
c’ 19 22
c’’ 15 19
c’’’ 12 15
RÜCKPOSITIV Rauschzimbel III:
C 33 36 40
cº 29 33 36
gº 26 29 33
d’ 22 26 29
a’ 19 22 26
e’’ 15 19 22
b’’ 12 15 19
f#’’’ 8 12 15
RP 1-3/5’ Terz (breaks to 3-1/5’ @ g#’’’)
PEDAL Auszug II:
2’ 1-1/3’ throughout
PEDAL Mixture II:
2-2/3’ 1’ throughout
[Received from Timothy Tikker 2014-03-17.]
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Frankenmuth, Michigan
St. Lorenz Lutheran Church
Casavant Op. 2935 1967 3/50
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
_____________________________________________________
Paul Bunjes, Consultant
HAUPTWERK RUECKPOSITIVE
8' Principal 61 8' Musiziergedackt 61
8' Rohrfloete 61 4' Spillflete 61
4' Octave 61 2 2/3' Nasat tc 49
2 2/3' Quinte 61 2' Principal 61
2' Octave 61 1 3/5' Terz tf 44
V Mixture 305 III Rauschzimbel 183
8' Trompete en chamade 61 16' Rankett 61
Chimes 8' Krummhorn 61
Tremulant
CHORSATZ (playable on
HW, unexpressive) PEDAL
8' Quintade 61 16' Principalbass 32
4' Spitzfloete 61 16' Subbass 32
2' Harfenprincipal 61 8' Octave 32
II Scharfquinte 122 8' Gemshorn 32
4' Labial Dulzian 32
OBERWERK (expressive) II Auszug -- 2', 1 1/3'
8' Metallgedackt 61 IV Mixture 128
8' Salicional 61 16' Posaune 32
8' Celeste tc 49 4' Schalmei 32
4' Geigendprincipal 61 Chimes
2' Blockfloete 61
1 1/3' Klein Nasat tc 49
IV Scharf 244
8' Fagott 61
4' Klarine 61
Tremulant
[Received online from Jeff Scofield June 28, 2010]
