Better Pipe Organ Database

Casavant Frères Ltée. Opus 2954 (1967)

Trinity Lutheran Church
609 Court Street
St. Joseph, MI

Images

2018-07-12 - Builder's Nameplate (Photograph by Chad Boorsma/Database Manager)

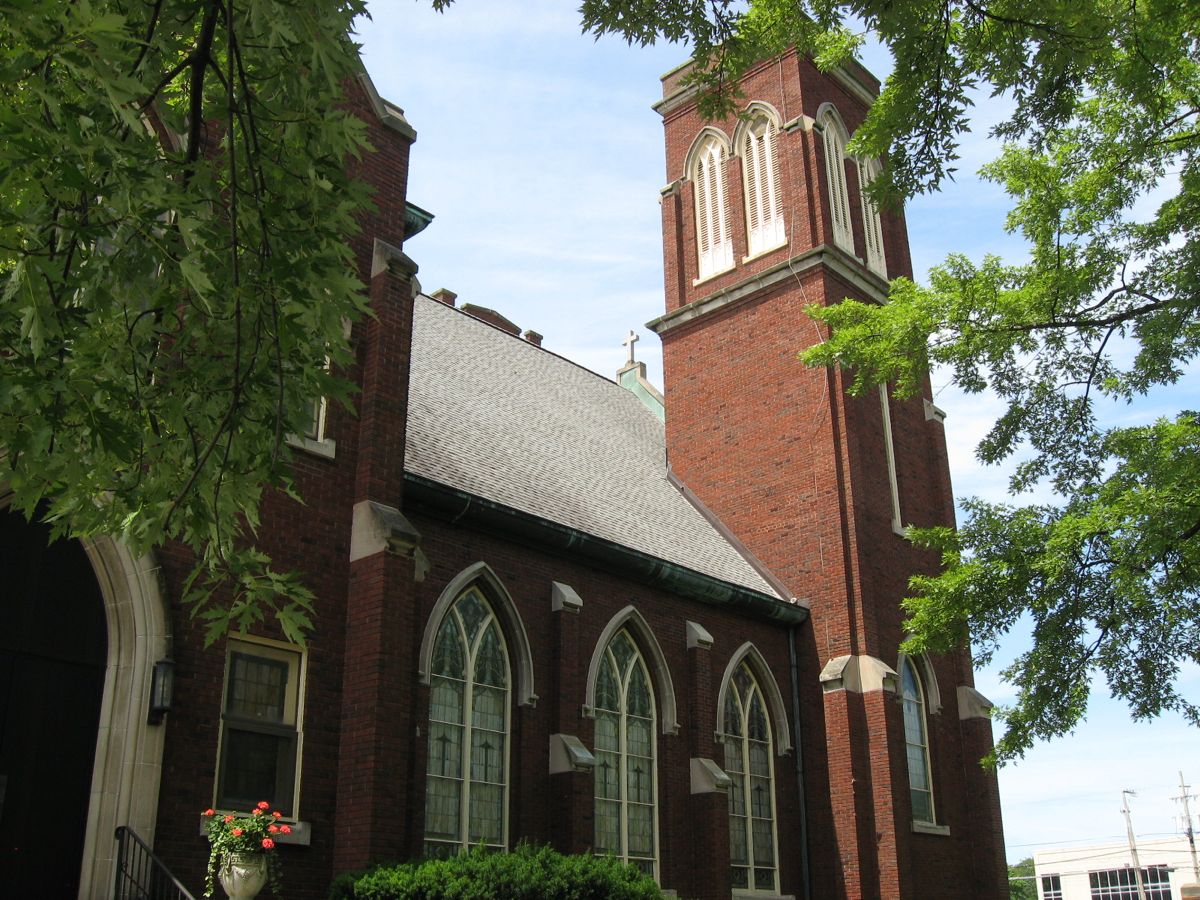

2017-07-20 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

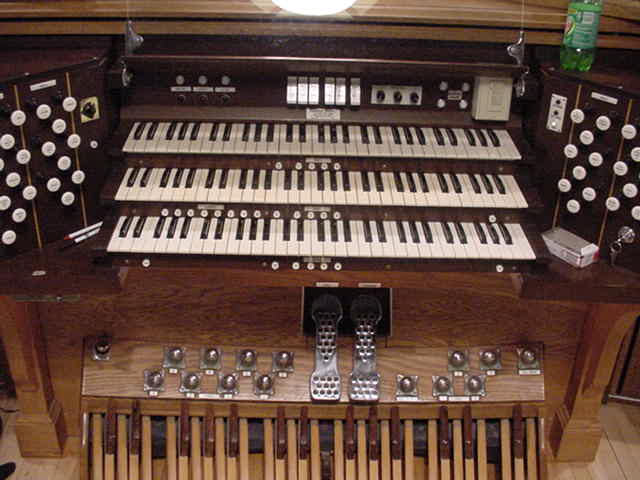

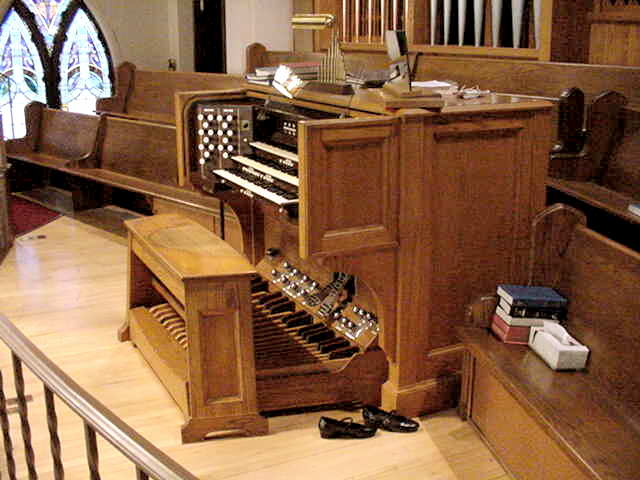

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
32 stops
33 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-01-14 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-06-28 - Updated through online information from Jeff Scofield. -- Paul Bunjes was consultant. -Database Manager

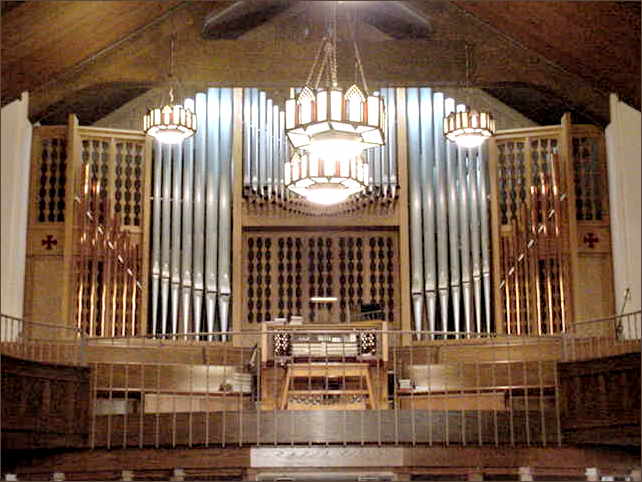

2018-07-14 - The organ replaced the church's Möller organ (opus 3967), which had been installed in 1924 when the building was dedicated. According to a church history article in the church newsletter, the Casavant was likely the first organ to be located in the back balcony. The instrument was extensively rebuilt and expanded in 2007 by G. M. Buck Pipe Organs. The work included rebuilding the console, moving the Positiv to the balcony rail, and adding ranks and digital stops. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       St. Joseph, Michigan
       Trinity Lutheran Church

       Casavant   Op. 2954   1967   3/40

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       _____________________________________________________

       Paul Bunjes, Consultant

       GREAT                              POSITIV
   16' Pommer              61          8' Musiziergedackt 61
    8' Principal           61          4' Flachflöte      61
    8' Rohrflöte           61      2 2/3' Nasat           61
    4' Octave              61          2' Klein Principal 61
2 2/3' Quinte              61      1 3/5' Terz            49 tc
    2' Octave              61        III  Rauschzimbel   183
   IV  Mixture            244          8' Krummhorn       61
    8' Trompete en chamade 61             Tremulant
       Chimes
                                          PEDAL
       SWELL                          16' Principalbass   12
    8' Metallgedackt       61         16' Gedacktbass     32
    4' Principal           61          8' Octave          32
    4' Flûte douce         61          8' Gemshorn        32
    2' Blockflöte          61          4' Labial Dulzian  32
1 1/3' Klein Nasat         61         II  Auszug          --  2', 1 1/3'
  III  Scharf             183         IV  Mixture        128
    8' Schalmei            61         16' Posaune         32
    4' Klarine             61          4' Fagott          32
       Tremulant                          Chimes

Related Pipe Organ Database Entries

#62759 - G.M. Buck Pipe Organs (2007)
