Casavant Frères Ltée. Opus 3109 (1971)

Redeemer Lutheran Church
3377 Aloma Avenue
Winter Park, FL

Images

2012-01-29 - Chancel (Photograph by Stephen Hall/Database Manager)

2012-01-29 - Rear Gallery (Photograph by Stephen Hall/Database Manager)

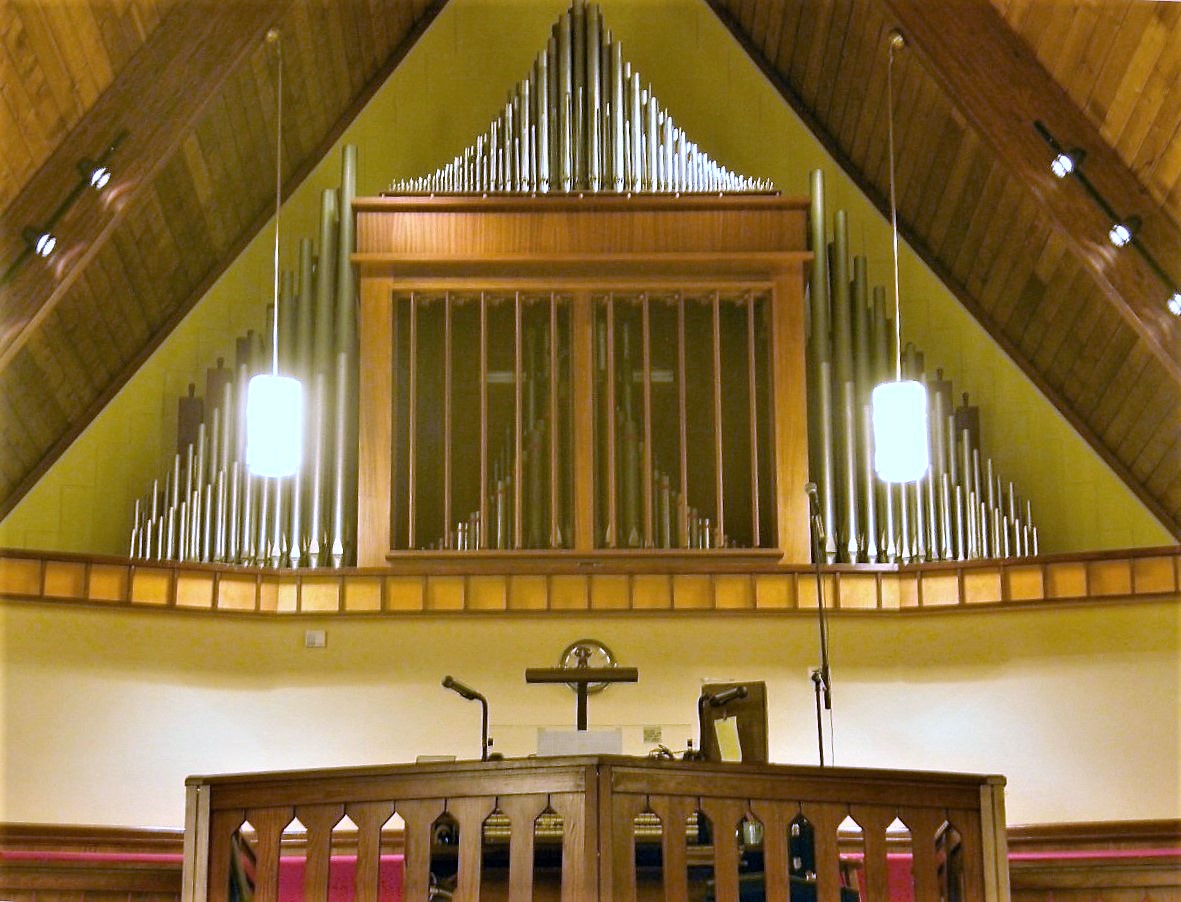

2012-01-29 - Organ Façade (Photograph by Stephen Hall/Database Manager)

2012-01-29 - Console (Photograph by Stephen Hall/Database Manager)

2012-01-29 - Console Detail - Nameplate (Photograph by Stephen Hall/Database Manager)

2012-01-29 - Church Exterior (Photograph by Stephen Hall/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
2 manuals
16 stops
15 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-01-15 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-04-24 - Updated through online information from Jeff Scofield. -Database Manager

2012-01-30 - Updated through online information from Stephen Hall. -- The prepared for Gemshorn in the Swell was installed with the basses mitered, there is no room in the swell box for a celeste. Entire instument on 1-3/4 inch wind. Instrument was patterned tonally after Andreas Silbermann instruments and was originally intended to be tracker action. (Information from Organist Dave Hallman, Jan 29, 2012.) -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Winter Park, Florida
    Redeemer Lutheran Church

    Casavant   Op. 3109   1971   2/19

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    ___________________________________________________________________

    GREAT                     SWELL                   PEDAL
 8' Rohrflöte     61       8' Gemshorn      61    16' Subbass        32
 4' Prinzipal     61       8' Vox coelestis pf     8' Spitzprinzipal 32
 2' Flachflöte    61       8' Gedackt       61     4' Choralbass     32
II  Sesquialtera 122       4' Spitzflöte    61    16' Fagott   L/2   32
IV  Mixtur       244       2' Prinzipal     61
 8' Trompete      pf   1 1/3' Quintflöte    61
                           8' Krummhorn     61
                              Tremulant

[Received on line from Jeff Scofield April 24, 2010.]
