Better Pipe Organ Database

Casavant Frères Ltée. Opus 3118 (1971)

Grace Lutheran Church: Sanctuary
3149 Waverley St.
Palo Alto, CA

Images

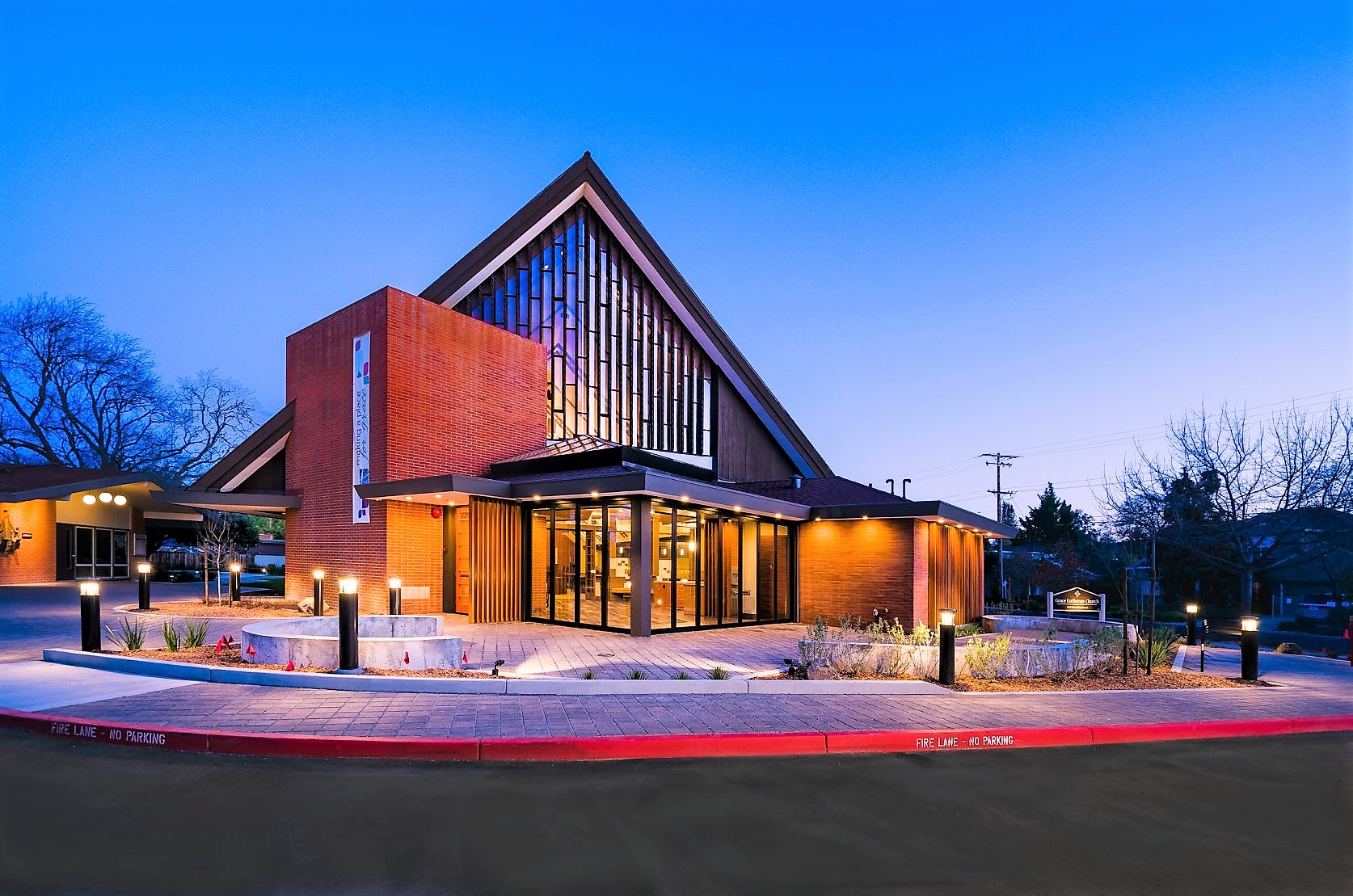

2018-03-13 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

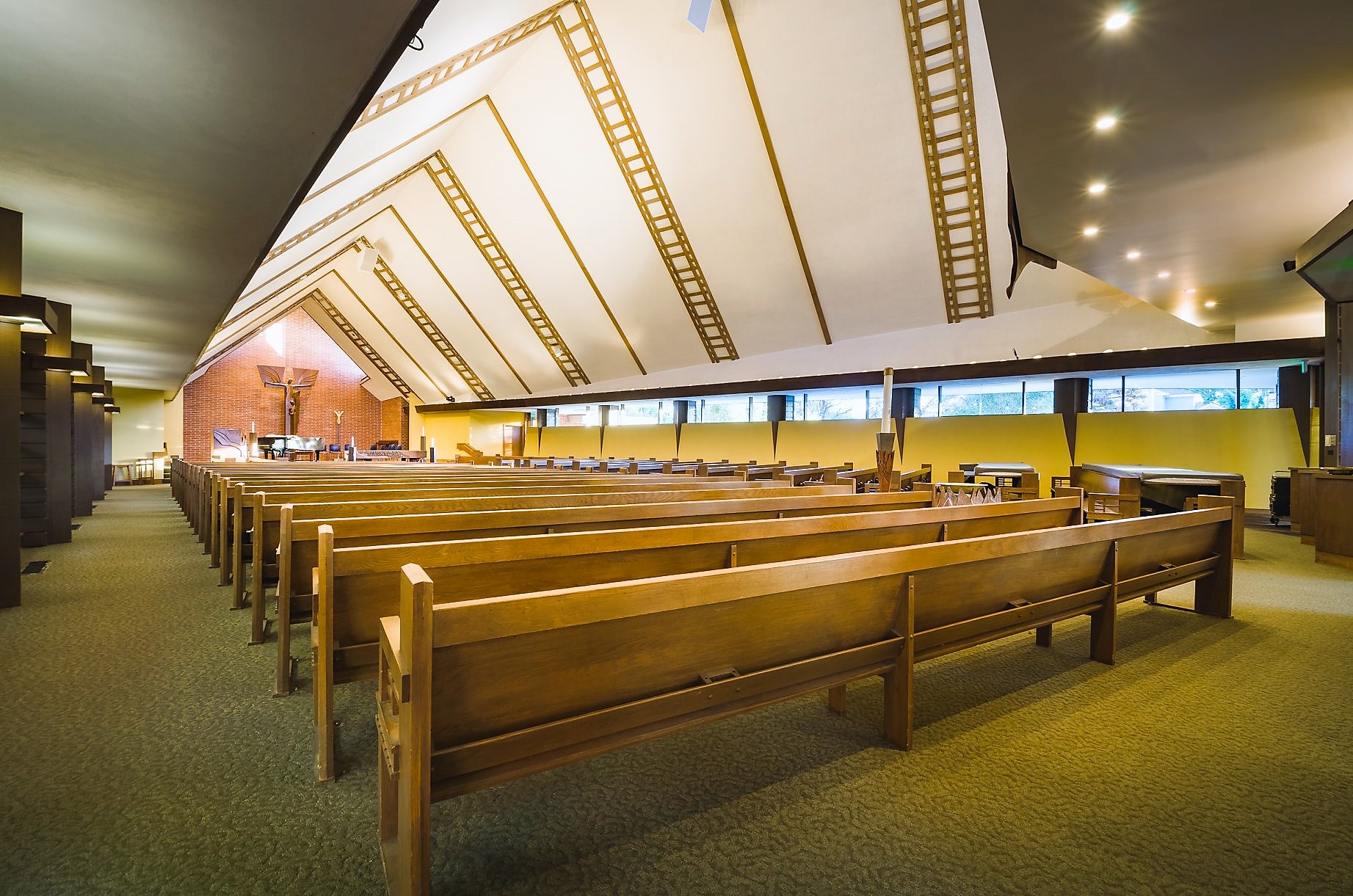

2018-03-13 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

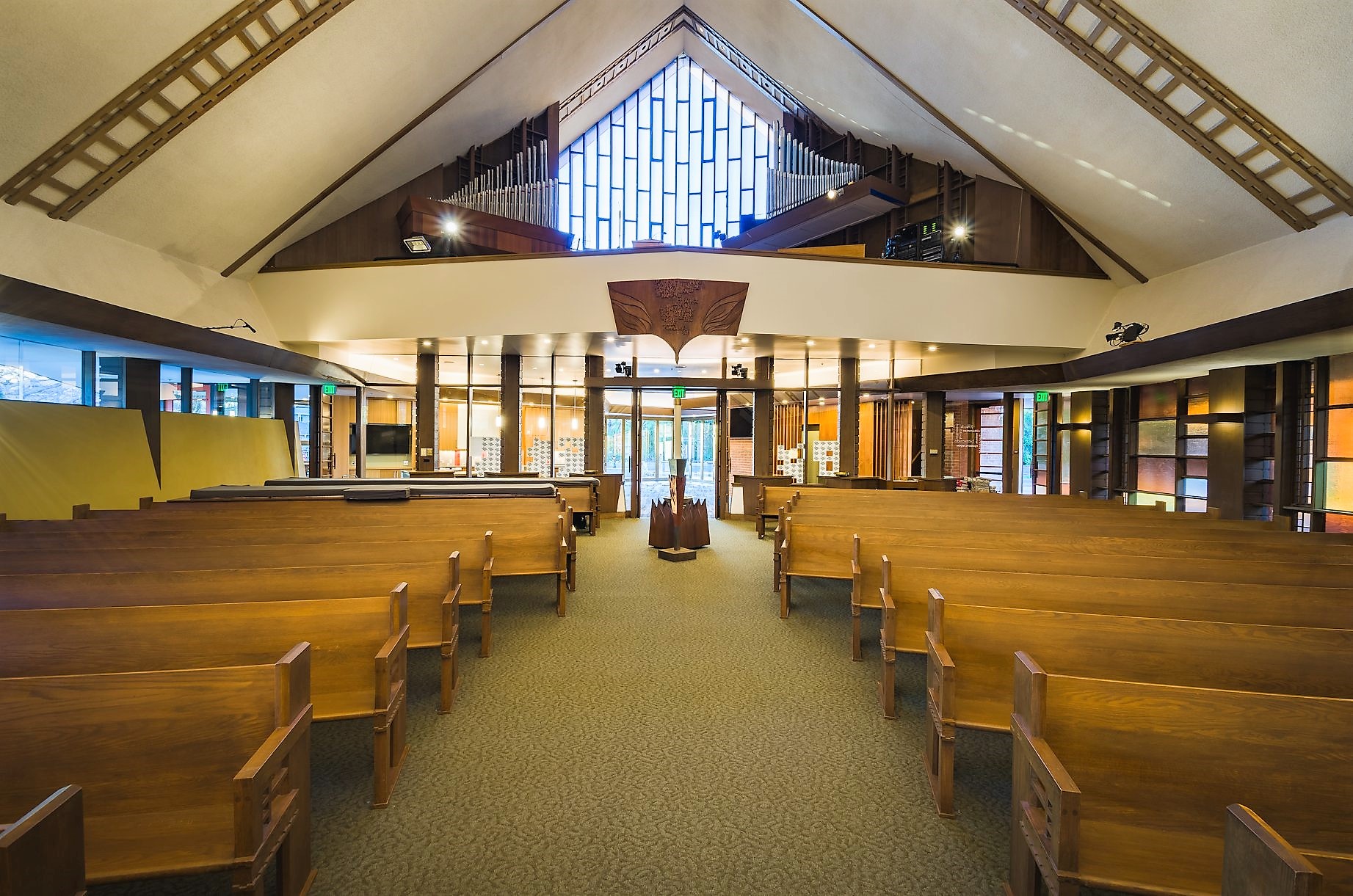

2018-03-13 - Gallery, organ and exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Center
2 manuals
15 stops
15 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons

Notes

2010-01-15 - Identified by Riley Wes Mitchell from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-04-17 - Updated through on-line information from Jeff Scofield. -Database Manager

2015-08-10 - Updated through online information from Duane Soubirous. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Palo Alto, California
    Grace Lutheran Church

    Casavant   Op. 3118   1971   2/20

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    _______________________________________________________________

    GREAT                   SWELL (encl)             PEDAL
 8' Rohrflöte   56       8' Salizional  56       16' Subbass     32
 4' Prinzipal   56       8' Gedackt     56        8' Prinzipal   32
 2' Flachflöte  56       4' Spitzflöte  56        4' Choralbass  32
IV  Mixtur     224       2' Prinzipal   56       16' Fagott  L/2 32
 8' Trompete    56     III  Zimbel     168
                            Tremulant
                            Sub

[Received on line from Jeff Scofield April 17, 2010.]
