Casavant Frères Ltée. Opus 3073 (1970)

First United Methodist Church: Sanctuary
1903 East Euclid Avenue
Arlington Heights, IL

Images

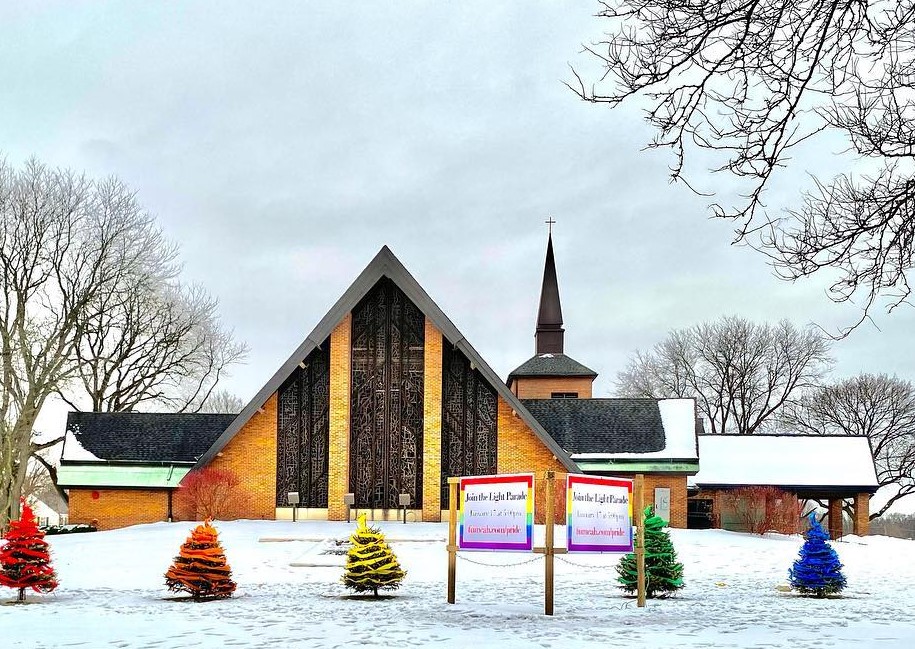

2021-01-11 - Church exterior (Photograph by Alice Kelsey, via church Facebook, submitted by Jeff Scofield/Jeff Scofield)

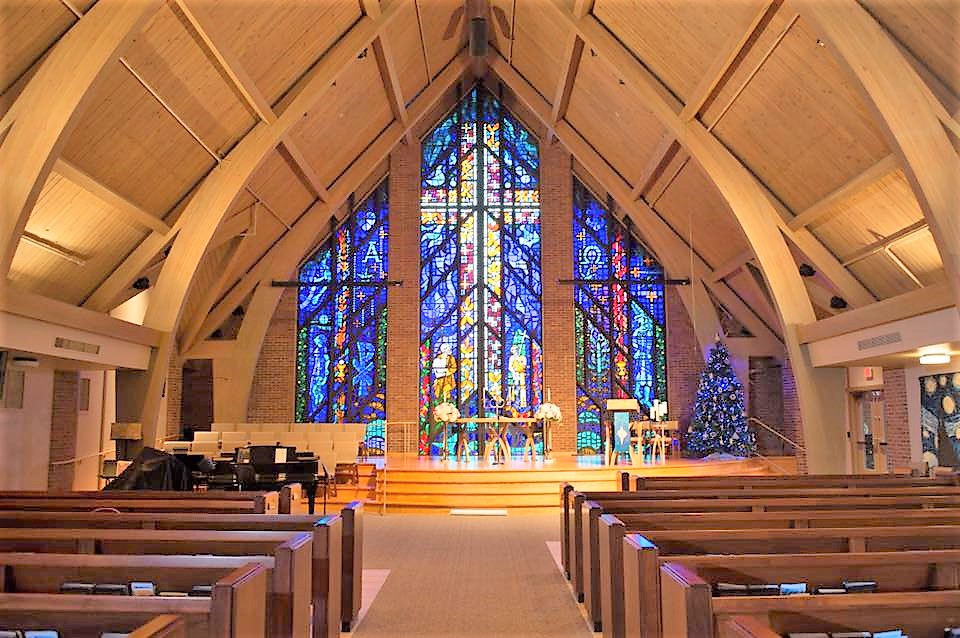

2016-02-02 - Church interior to front (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

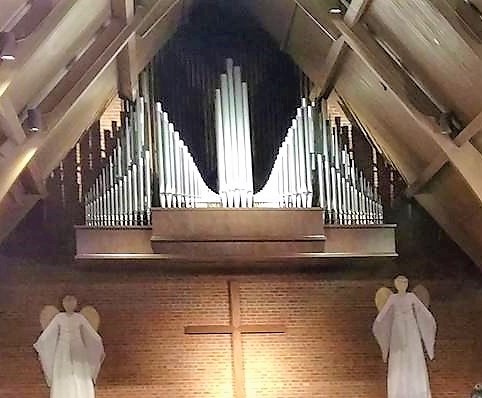

2016-12-25 - Organ and exposed pipes on rear wall, former chancel (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
29 stops
28 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2010-01-17 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2010-08-02 - Updated through on-line information from Jeff Scofield. -Database Manager

2016-06-05 - Updated through online information from Samuel J. Chizmar. <br>Platform of worship space was moved to the opposite end of the room. Thus the organ is now at the back of the worship room. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Arlington Heights, Illinois
    First United Methodist Church

    Casavant   Op. 3073   1970   2/38

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    _______________________________________________________________

    GREAT                  SWELL                      PEDAL
16' Quintade   61       8' Viola            61    16' Subbass    32
 8' Prinzipal  61       8' Viola céleste tc 49    16' Quintade   GT
 8' Rohrflöte  61       8' Gedackt          61     8' Prinzipal  32
 4' Oktav      61       4' Spitzprinzipal   61     8' Gemshorn   32
 4' Spitzflöte 61       4' Spillflöte       61     4' Choralbass 32
 2' Oktav      61       2' Oktavine         61     4' Rohrpfeife 32
 2' Blockflöte 61   1 1/3' Nasat            61    IV  Mixtur    128
IV  Mixtur    244      II  Sesquialtera  tc 98    16' Posaune    32 L/2
 8' Trompete   61      IV  Scharf          244     4' Schalmei   32
 4' Klarine    61       8' Krummhorn        61
    Chimes                 Tremulant

   [Received online from Jeff Scofield  August 2, 2010]
