M. P. Möller Opus 11222 (1977)

All Saints' Episcopal Church
437 Rogers Avenue
Watsonville, CA

Images

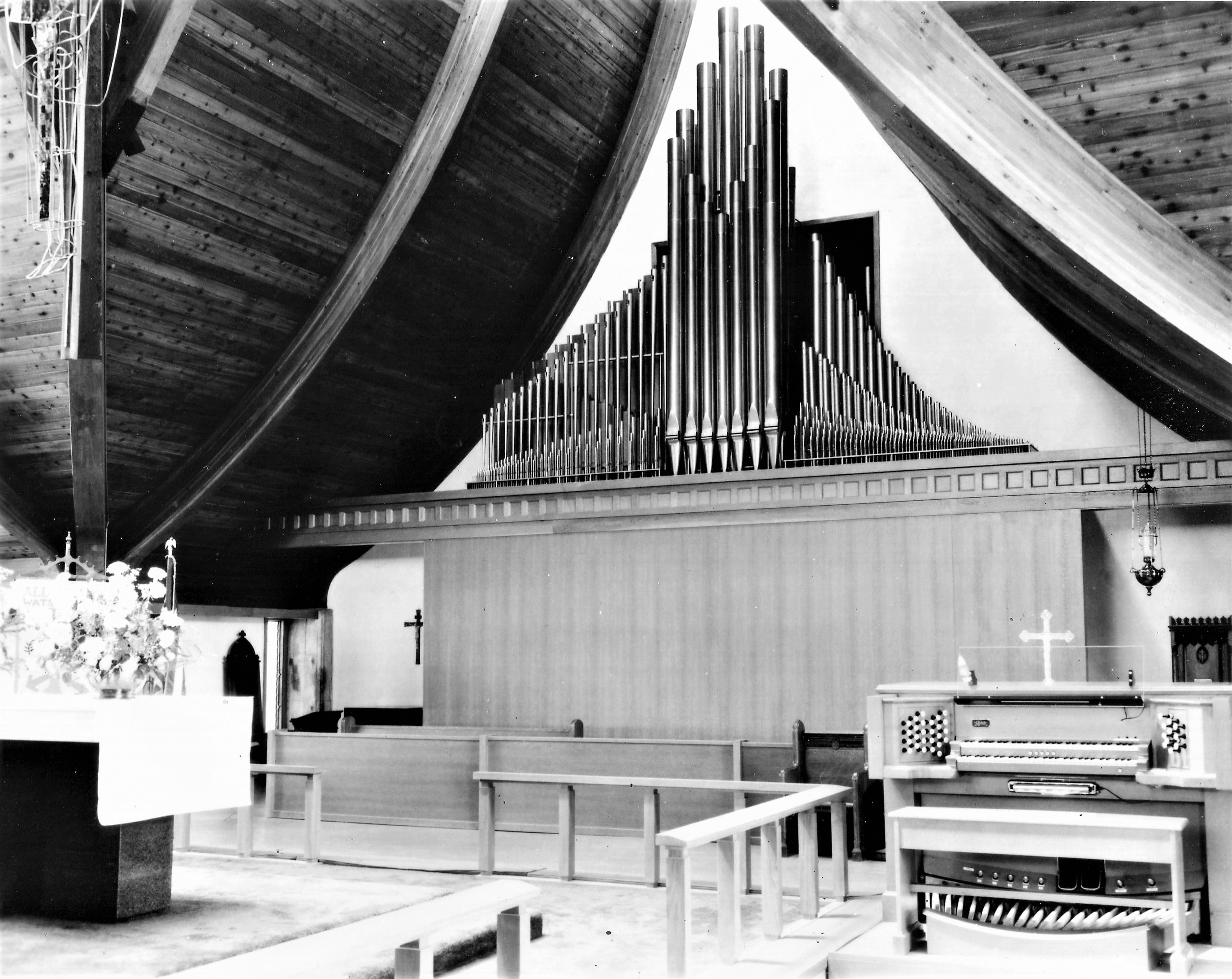

1977 - Chancel, console and exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
2 manuals
16 stops
23 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler toe pistons

Notes

2010-01-26 - Identified through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        Watsonville, California
        All Saints' Episcopal Church

        Möller   Op. 11222   1977   2/23

        GREAT (displayed)        SWELL
     8' Principal 61          8' Rohrflöte 61
     8' Bordun 61             8' Gemshorn 61
     8' Gemshorn SW           8' Gemshorn Celeste 54 GG
     4' Octave 61             4' Rohrflöte 12
     4' Spitzflöte (pf)       4' Flachflöte 61
     2' Waldflöte 61          2' Principal 61
III-IV  Mixture 220          II  Cornet (pf)
                            III  Scharf 183
        PEDAL                 8' Trompette 61
    16' Principal 32             Tremulant
    16' Subbass 32               Sub
    16' Rohrgedeckt 12 SW        Unison Off
     8' Principal 12             Super
     8' Rohrflöte SW
     4' Choralbass 12
     4' Rohrflöte SW
   III  Mixture 96
    16' Fagott 32 (F/L)
     8' Cromorne (pf)

[Received on line from Jeff Scofield January 26, 2010.]

Documents

(1977-02-09) Factory specifications, OHS Archives via Jeff Scofield -Jeff Scofield
