Better Pipe Organ Database

Schantz Organ Co. Opus 2160 (2000)

Cross of Christ Lutheran Church: Sanctuary
1100 Lone Pine Road
Bloomfield Hills, MI

Images

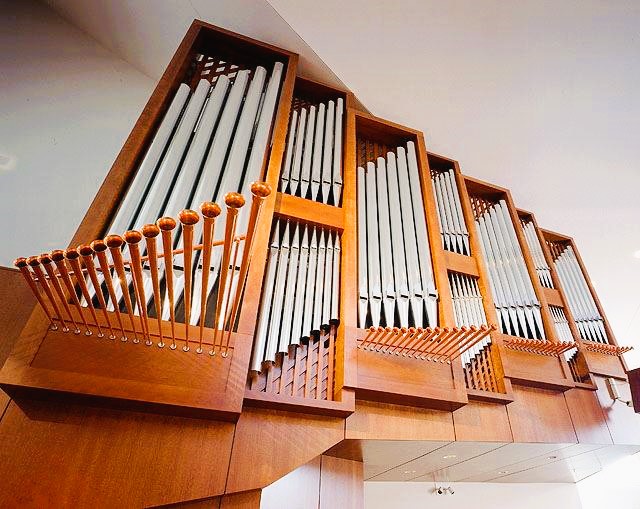

2000-06-01 - Organ Case and Trompette en Chamade (Image from Schantz Organ Company; used with permission/Database Manager)

2000-06-01 - Sanctuary Interior (Image from Schantz Organ Company; used with permission/Database Manager)

2000-06-01 - Organ Case and Console (Image from Schantz Organ Company; used with permission/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
3 manuals
54 stops
4 divisions
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-02-03 - Identified through on-line information from Chad Boorsma. -- The congregation dedicated its new sanctuary and organ in June of 2000. The Schantz instrument replaced an electronic one. The organ is cantilevered from the front side wall of the chancel and is housed within its own case of cherry wood. The facade includes a polished copper Trompette en chamade and principal pipes mounted in an inverted position to enhance the design. -Database Manager

Stoplist

Stoplist from Schantz factory specifications Source: Source not recorded Date not recorded

Bloomfield Hills, Michigan
CROSS OF CHRIST LUTHERAN CHURCH

Schantz Organ Company       Opus 2160       47 ranks       2000
______________________________________________________________________

GREAT:                              POSITIV:
    16' Violone 73                      8' Spitzprincipal 61
     8' Principal 61                    8' Holz Gedeckt 61
     8' Violone                         8' Flute Celeste II [SW]
     8' Bourdon 61                      4' Oktav 61
     4' Octave 61                       4' Koppelflöte 61
     4' Traversflöte 61                 2' Gemshorn 61
     2' Super Octave 61             1 1/3' Larigot 61
    IV  Mixture 244                    IV  Cymbal 244
     8' Trompette en Chamade 61         8' Cromorne prep
        Tremulant                       8' Clarinet [SW]
        MIDI                               Tremulant
                                           Zimbelstern
PEDAL:                                  8' Trompette en Chamade [GT]
    32' Resultant                          MIDI
    16' Principal 44
    16' Violone [GT]                SWELL:
    16' Subbass 56                     16' Rohrgedeckt 73
    16' Rohrgedeckt [SW]                8' Geigen 61
10 2/3' Quinte [SW]                     8' Rohrflöte
     8' Octave                          8' Salicional 61
     8' Violone [GT]                    8' Celeste [GG] 54
     8' Subbass                         8' Flute Celeste II 110
     8' Gedecktbass [SW]                4' Principal 61
     4' Choralbass 32                   4' Nachthorn 61
     4' Flute                       2 2/3' Nazard 61
   III  Mixture 96                      2' Blockflöte 61
    16' Posaune 44                  1 3/5' Tierce 61
    16' Basson-Hautbois [SW]           IV  Plein Jeu 244
     8' Posaune                        16' Basson-Hautbois 73
     4' Schalmei 32                     8' Trompette 61
     8' Trompette en Chamade [GT]       8' Hautbois
        MIDI                            4' Clarinet 61
                                           Tremulant
                                           MIDI

[Received on line from Chad Boorsma February 07, 2010.]

Documents

(1999-12-22) Factory Specification Factory Documentation found on site visit -Roman Lizak

Websites

The Schantz Organ Company [Cross of Christ Lutheran page] - Photographs, link to stoplist (Check Internet Archive, archive.is)
