Grace Covenant Presbyterian Church: Sanctuary
1627 Monument Ave.
Richmond, VA
Images

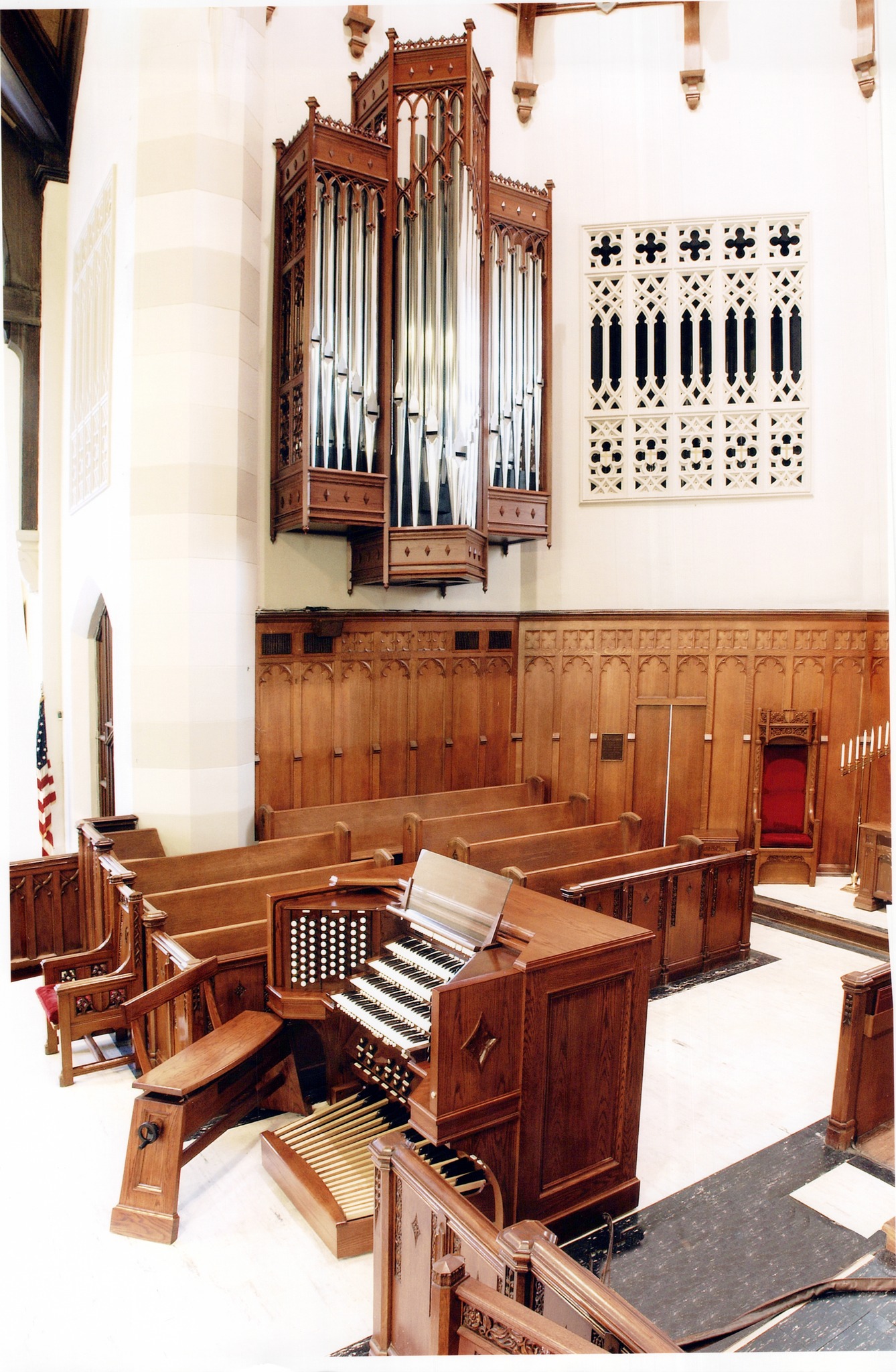

2005 - Chancel, console and organ case (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

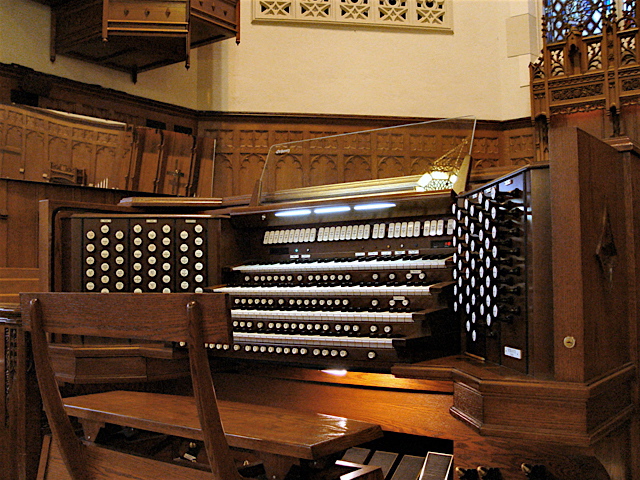

2009-01-15 - Console (Photograph by John G. DeMajo/Database Manager)

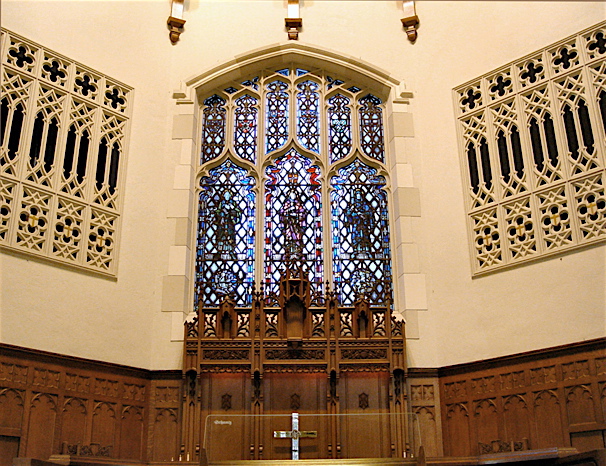

2009-01-15 - Chancel and Chamber Grillework (Photograph by John G. DeMajo/Database Manager)

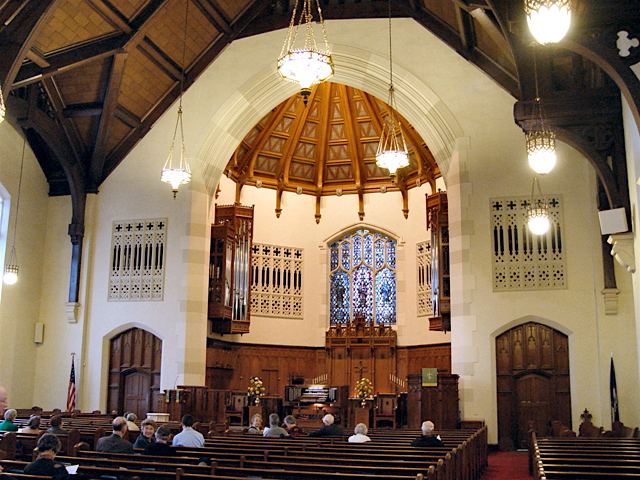

2009-01-15 - Sanctuary Interior and Chancel (Photograph by John G. DeMajo/Database Manager)

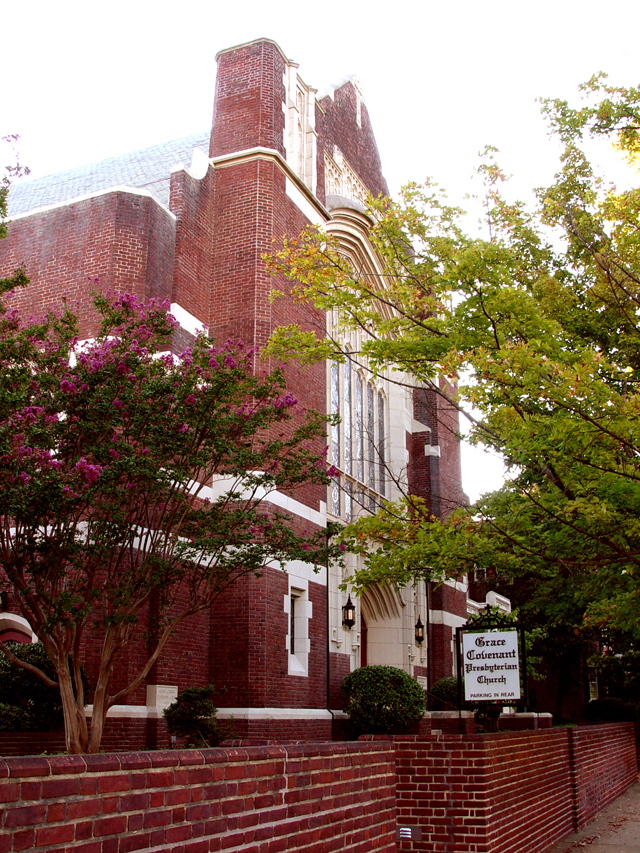

2009-01-15 - Church Exterior (Photograph by John G. DeMajo/Database Manager)

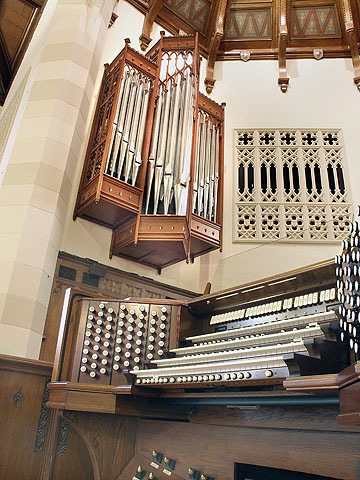

2005-06-01 - Console and Left Organ Case and Grille (Schantz Promotional Photo; used with permission/Database Manager)

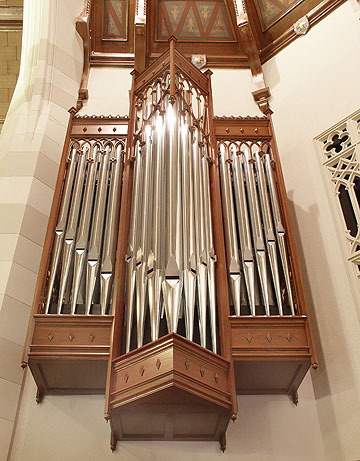

2005-06-01 - Organ Case (Schantz Promotional Photo; used with permission/Database Manager)

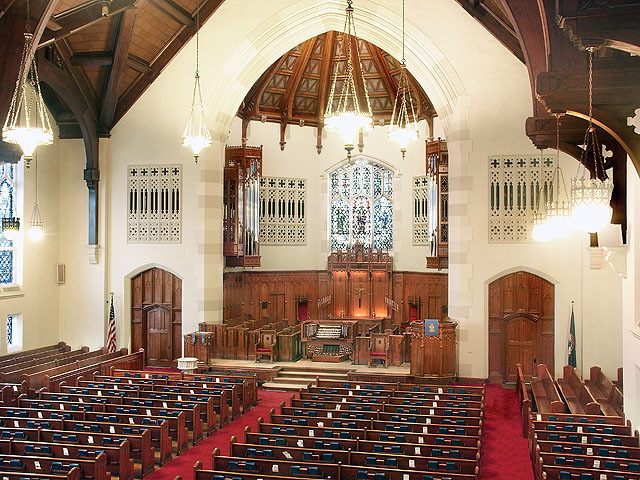

2005-06-01 - Sanctuary Interior and Chancel (Schantz Promotional Photo; used with permission/Database Manager)

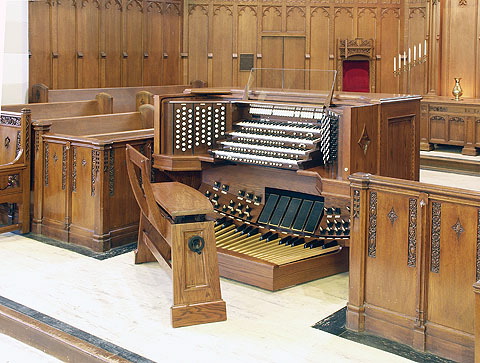

2005-06-01 - Console (Schantz Promotional Photo; used with permission/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Movable Console
- 4 manuals
- 87 stops
- 6 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Has sostenuto
- Has pedal divide
- Has transposer
- Combination action: Computerized/Digital
- Has sequencer
- Has record/playback
- Has midi
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2010-02-04 - Identified through on-line information from Chad Boorsma. -Database Manager
2014-01-02 - Updated through online information from Connor Annable. -Database Manager
Stoplist
Taken from Schantz Factory Specifications Source: Schantz Factory Specifications
Great Violone 16, Open Diapason 8, Harmonic Flute 8, Bourdon 8, Violone 8, Twelfth 2 2/3, Principal 4, Koppelflöte 4, Mixture IV, Fifteenth 2, Covenant Trumpet 8, Tuba Mirabilis 8, Tremulant
Choir Contra Viola 16, Principal 8, Viola 8, Gedeckt 8, Viola Celeste (GG) 8, Octave 4, Zauberflöte 4, Gemshorn 2, Quinte 1 1/3, Sifflöte 1, Cymbal IV, Clarinet 8, Tremulant, Zimbelstern, Covenant Trumpet 8 , Covenant Trumpet (tc) 16, Covenant Clarion 4, Tuba Mirabilis 8
Swell Lieblich Bourdon 16, Geigen Diapason 8, Salicional 8, Voix Celeste 8, Chimney Flute 8, Flauto Dolce 8, Flute Celeste (tc) 8, Principal 4, Harmonic Flute 4, Nasard 2 2/3, Tierce 1 3/5, Block Flute 2, Full Mixture IV, Bassoon 16, Trompette 8, Oboe 8, Vox Humana 8, Clairon 4, Tremulant, Covenant Trumpet 8
Solo Gamba 8, Gamba Celeste 8, Flauto Mirabilis 8, Orchestral Flute 4, English Horn 8, French Horn 8, Tuba Mirabilis 8, Tremulant
Pedal Contre Violone 32, Contre Bourdon 32, Contrebasse 16, Violone 16, Bourdon 16, Lieblich Bourdon 16, Octave 8, Contra Viola 16, Violone 8, Bourdon 8, Gedecktbass 8, Cello 8, Choral Bass 4, Open Flute 4, Mixture III, Contre Posaune 32, Posaune 16, Bassoon 16, Double Bassoon 32, Tromba 8, Oboe 8, Clarion 4, Oboe Clarion 4, Covenant Trumpet 8, Tuba Mirabilis 8
Antiphonal Erzahler 8, Octave 4, Rohrflöte 8, Fifteenth 2, Twelfth 2 2/3
