Bond Pipe Organs Inc. Opus 9 (1985)

St. Paul's Episcopal
1609 W. 10th Ave.
Kennewick, WA

Images

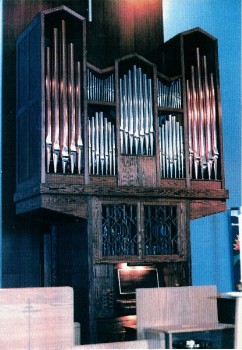

2006-05-05 - Organ case (Photograph by James R. Stettner/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Keydesk Attached
2 manuals
15 stops
15 registers
3 divisions
Key action Type: Mechanical (Details Unknown)
Stop action Type: Mechanical
Stop layout Type: Drawknobs in Vertical Rows on Flat Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: None
Has hitchdown couplers

Notes

2005-12-30 - Updated through on-line information from James R. Stettner. -- The organ is free-standing, housed in an oak case with an attached, projecting keydesk. The 5-sectional facade contains 57 pipes of polished tin and polished copper arranged: 5-20-7-20-5. The two sections with 20 pipes are arranged into upper (13 pipes) and lower (7 pipes) sections. The facade is the entire Great 8' Principal plus one dummy pipe. The organ was originally 17 ranks as originally installed, but the prepared-for Pedal 16' Fagott was added in 1992 by the original builder. -Database Manager

2013-03-13 - Updated through online information from James R. Stettner. -Database Manager

Stoplist

Stoplist copied from the console April 4, 1995 Source: Source not recorded Date not recorded

Kennewick, Washington
St. Paul's Episcopal Church

RICHARD L. BOND, Opus 9, 1985
Richard L. Bond, 1992 - Addition


GREAT                                        COUPLERS (Hitch-down)
   8  Principal           (façade)  52          Swell to Pedal
   8  Rohrflöte                     56          Great to Pedal
   4  Octave                        56
   2  Super Octave   [from IV Mix]  56          Swell to Great
   IV Mixture                      168
   8  Trumpet                       56
                                             FOOT LEVERS (Labeled; l - r)
                                                I - P
SWELL (Expressive)                              II - P
   8  Gedackt                       56
   8  Salicional              (tc)  44          II - I
   4  Rohrflöte                     56
   2  Gemshorn                      56
   II Sesquialtera  [12-17]   (tc)  88       PEDAL MOVEMENTS
      Tremolo                                   Swell Expression             (bal.)


PEDAL
   16 Sub Bass                      32       ACTION: Mech. Key & Stop
   8  Gedackt Bass                  20
   4  Choral Bass                   24       VOICES: 15          STOPS: 14
   16 Fagott                (1992)  32
   8  Trumpet                 (Gt)  --       RANKS: 18           PIPES: 852


NOTES
The organ is housed in a free-standing oak case at the front of the room. The façade
contains the entire Great 8' Principal. The pipes for which in the two side towers
are polished copper. The keydesk is attached and projecting.

The Great 8' Principal borrows its first 4 notes from the 8' Rohrflöte. The IV Mixture
drawknob is notched. In the half-drawn position, only the 2' register plays. When fully
drawn, the other three ranks are added. The 8' Trumpet also has a notched shank. When
half-drawn, it plays on the Great. When fully-drawn, it plays on the Pedal. It can not
be registered on both divisions at the same time.

The Swell 8' Salicional borrow its first 12 notes from the 8' Gedackt.

On the Pedal, the first 12 notes of the 8' Gedackt Bass are also borrowed from the Great
8' Rohrflöte. The first 8 notes of the Pedal 4' Choral Bass are borrowed from the Great
4' Octave.

Sources: Bond opus list; builder's notes; JRS; extant organ.

 [Received from James R. Stettner 2013-03-12.]
