Better Pipe Organ Database

Casavant Frères Ltée. Opus 1943 (1949)

St. Joseph's Health Centre: Chapel
30 The Queensway
Toronto, ON, CA

Images

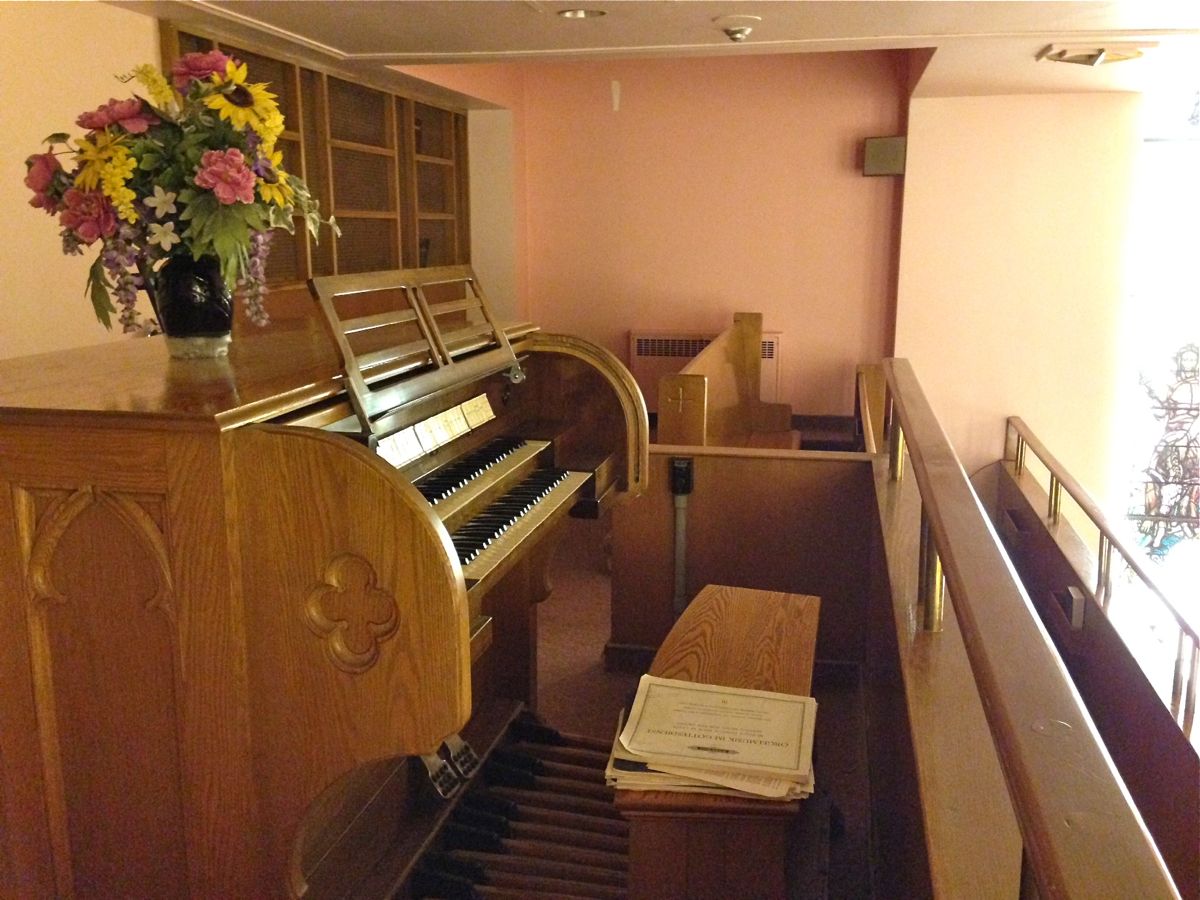

2014-12-01 - Console and Chamber Grillework (Photograph by Marcus Elia/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
5 stops
25 registers
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: None

Notes

2010-02-17 - Identified by Rae Bolton from information furnished by Casavant Frères, courtesy of Simon Couture. -Database Manager

2015-07-14 - Updated through information in Casavant documents, courtesy of Simon Couture and Denis Blaine. The tonal director was Stephen Stoot. -Database Manager

Stoplist

Source: Courtesy of the Casavant Frères Archives

       Toronto, Ontario
       St. Joseph's Health Centre

       Casavant   Op. 1943   1949   2/5
       __________________________________________________________________

       GREAT                      SWELL                     PEDAL

   16' Lieblich Gedeckt tc    16' Contra Dulciana tc    16' Bourdon    32
    8' Open Diapason    73     8' Rohrflöte              8' Octave
    8' Rohrflöte        85     8' Salicional             8' Stopped Flute
    8' Salicional       85     8' Dulciana               8' Cello
    8' Dulciana         73     4' Lieblichflöte          4' Dulcet
    4' Octave                  4' Salicet
    4' Lieblichflöte           4' Dulcet
    4' Dulcet              2 2/3' Nazard
2 2/3' Nazard                  2' Piccolo
    2' Fifteenth           1 3/5' Tierce
                                  Tremulant

                  [Received from Jeff Scofield May 29, 2020]
