Schantz Organ Co. Opus 2301 (2010)

St. Paul's Lutheran Church
10600 North Council Road
Oklahoma City, OK

Images

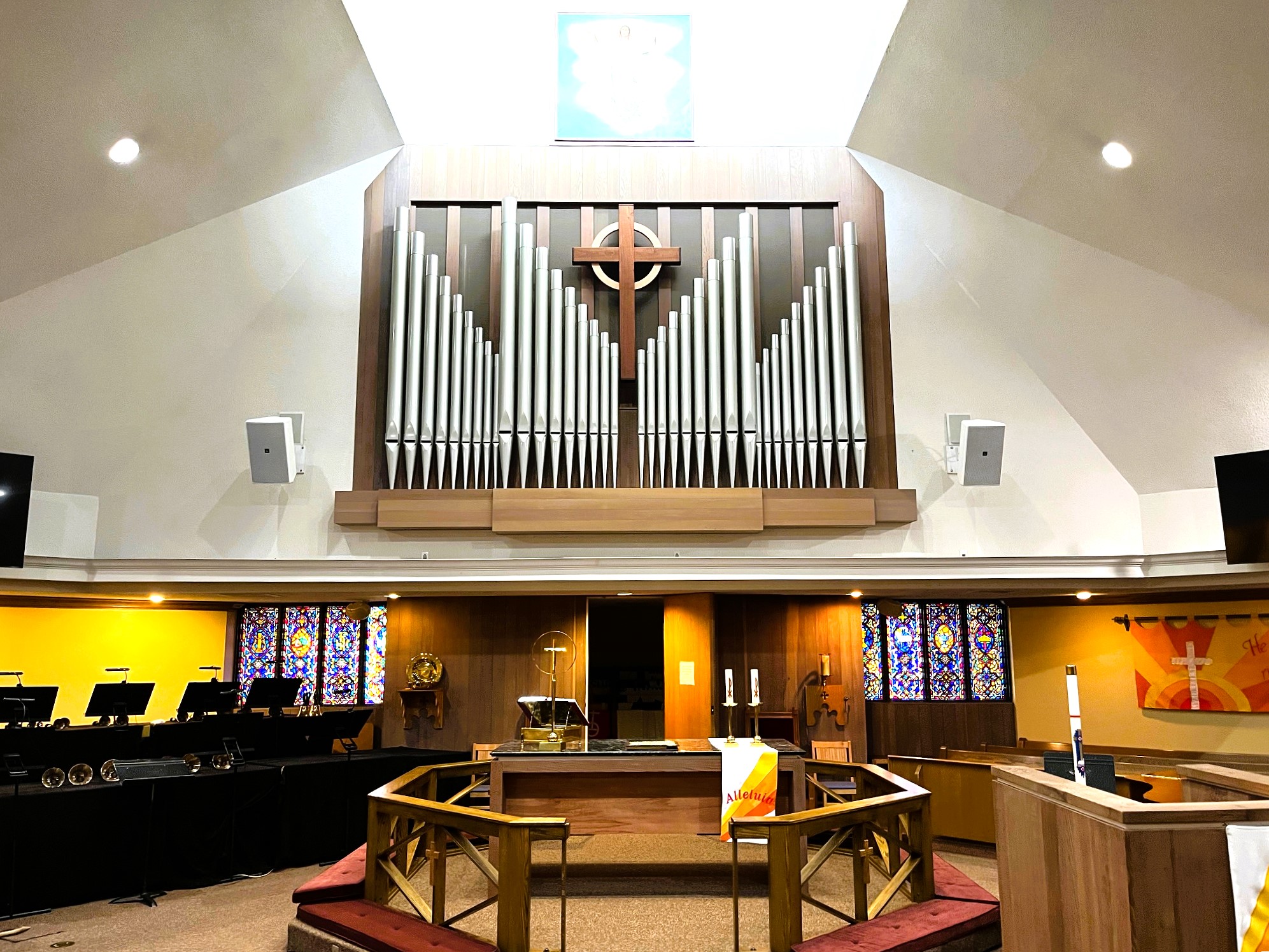

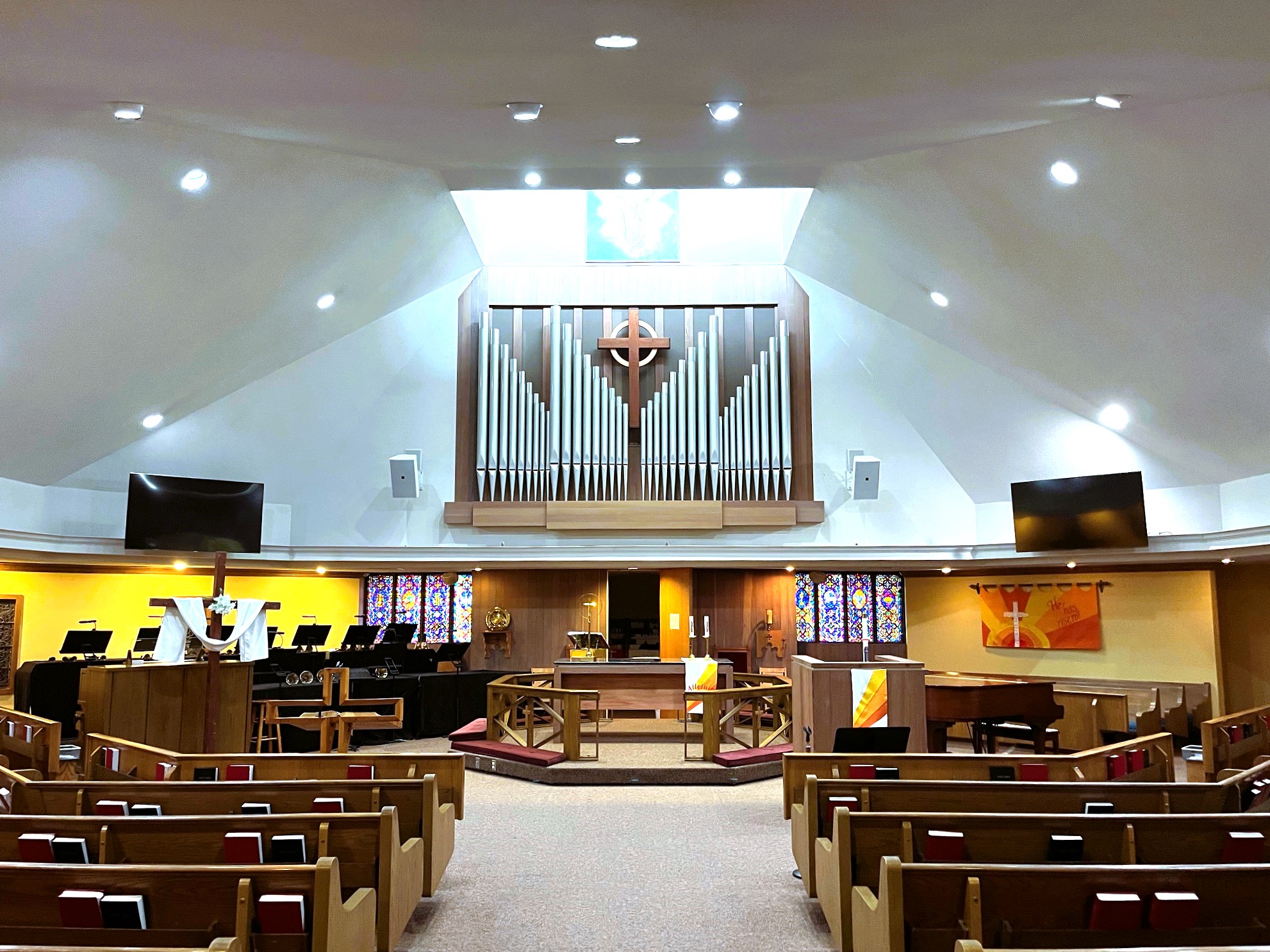

2018-05-20 - Facade (Photograph by Andrew Schaeffer/Database Manager)

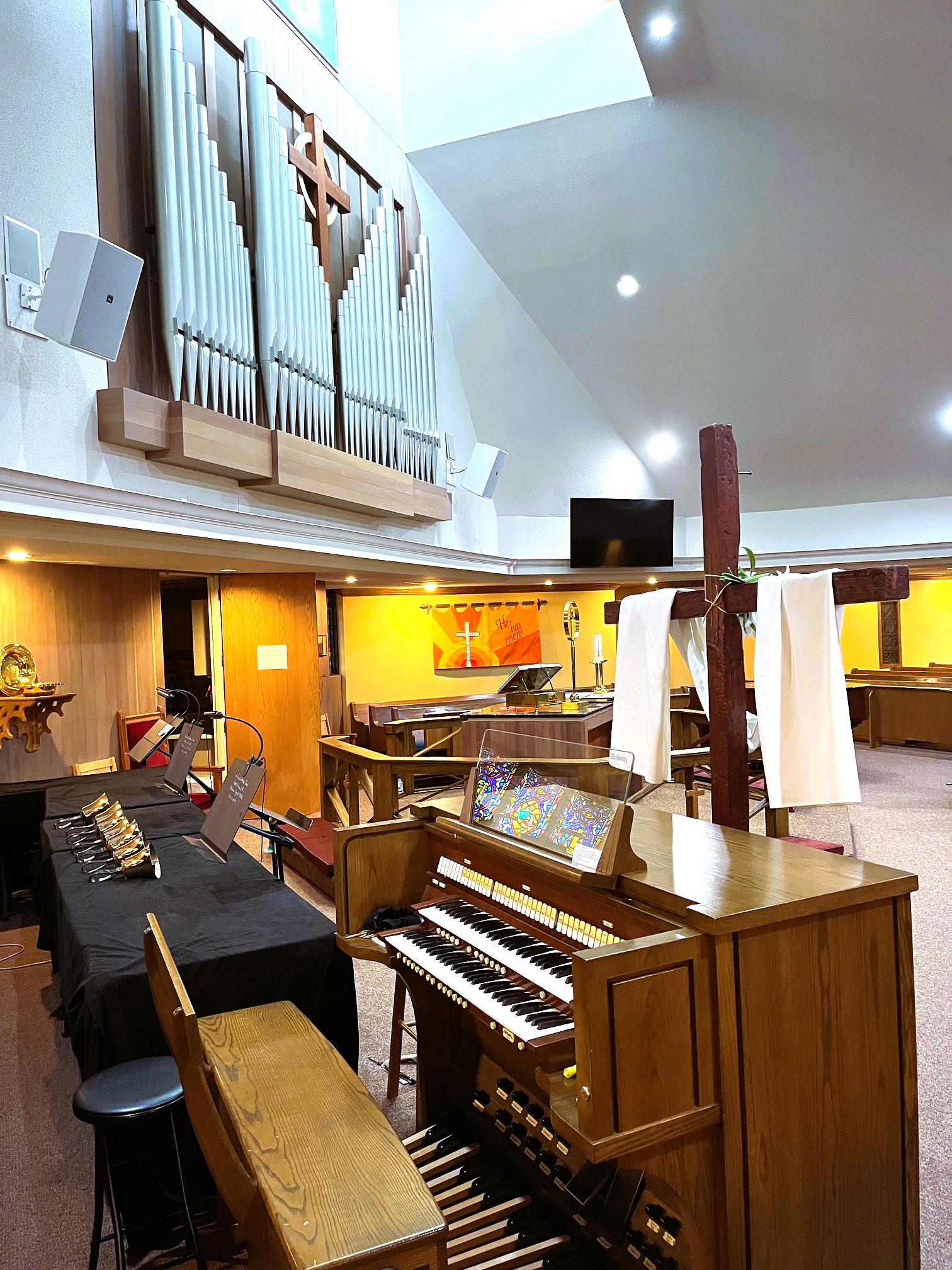

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Movable Console
2 manuals
18 stops
28 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Computerized/Digital
Has sequencer
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-02-27 - Identified through online information from Jeffrey Dexter. -Database Manager

2012-06-25 - Updated through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist from factory specifications courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

    Oklahoma City, Oklahoma
    St. Paul's Lutheran Church

    Schantz   Op. 2301   2010   2/21
    __________________________________________________________________________

    GREAT  3½" wind               SWELL  4"                PEDAL  4"
16' Lieblich Gedeckt 12 SW     8' Gedeckt              32' Resultant        --
 8' Prestant         61        8' Viole de Gambe 61    16' Subbass          32
 8' Bourdon          61        8' Voix Celeste   54    16' Lieblich Gedeckt 12 GT/SW
 4' Octave           61        4' Principal      61     8' Octave           32
 4' Harmonic Flute   61        4' Chimney Flute  61     8' Subbass          12
 2' Gemshorn         61    2 2/3' Nazard         61     8' Gedeckt          SW
IV  Mixture         244        2' Zauber Flute   61     4' Choralbass       12
 8' Trumpet          61    1 3/5' Tierce         61    16' Double Trumpet   12 GT
 8' Oboe             SW        8' Oboe           61     8' Trumpet          GT
    Tremulant                     Tremulant             4' Oboe             SW
    Sub                           Sub
    Unison Off                    Unison Off
    Super                         Super

               [Received online from Jeff Scofield  June 23, 2012]
