Schantz Organ Co. Opus 2223 (2003)

St. Peter's Episcopal Church: Sanctuary; front
3 West Ridge Road
Savannah, GA

Images

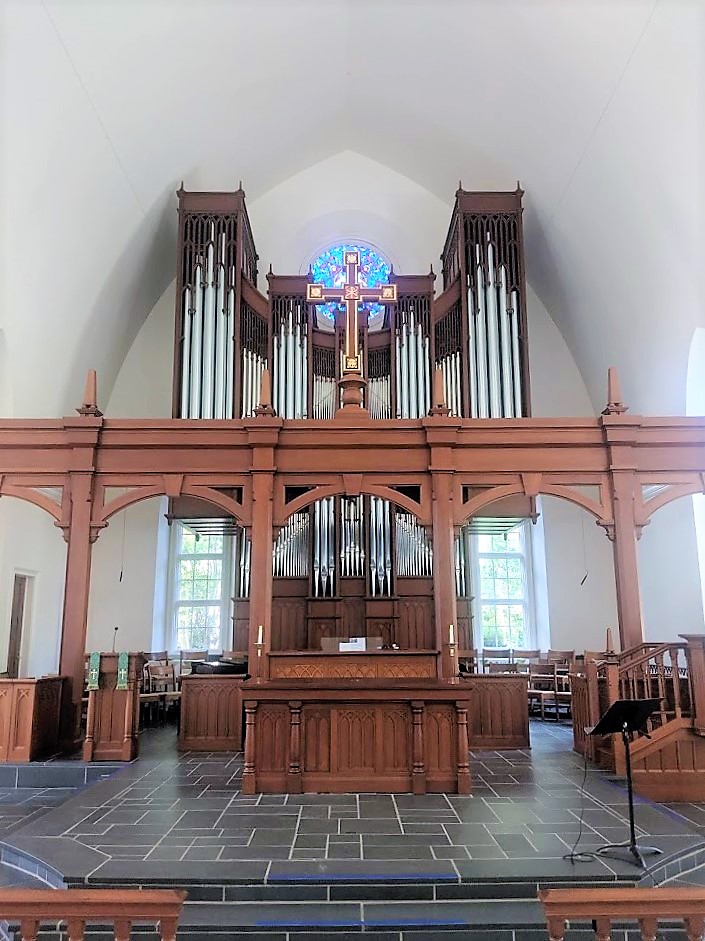

2019-06-15 - Chancel and organ case (Photograph by Justin Little/Database Manager)

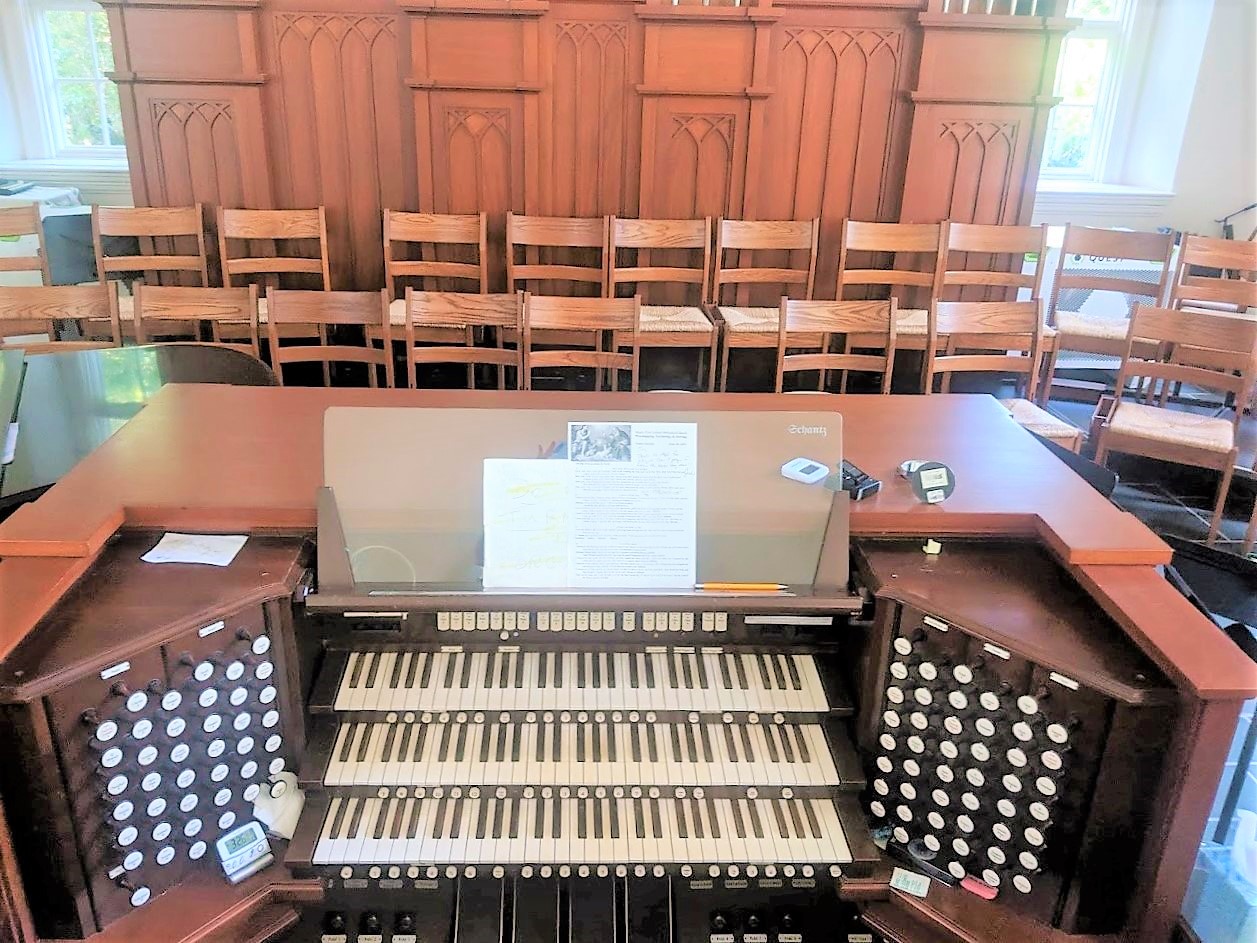

2019-06-15 - Console (Photograph by Justin Little/Database Manager)

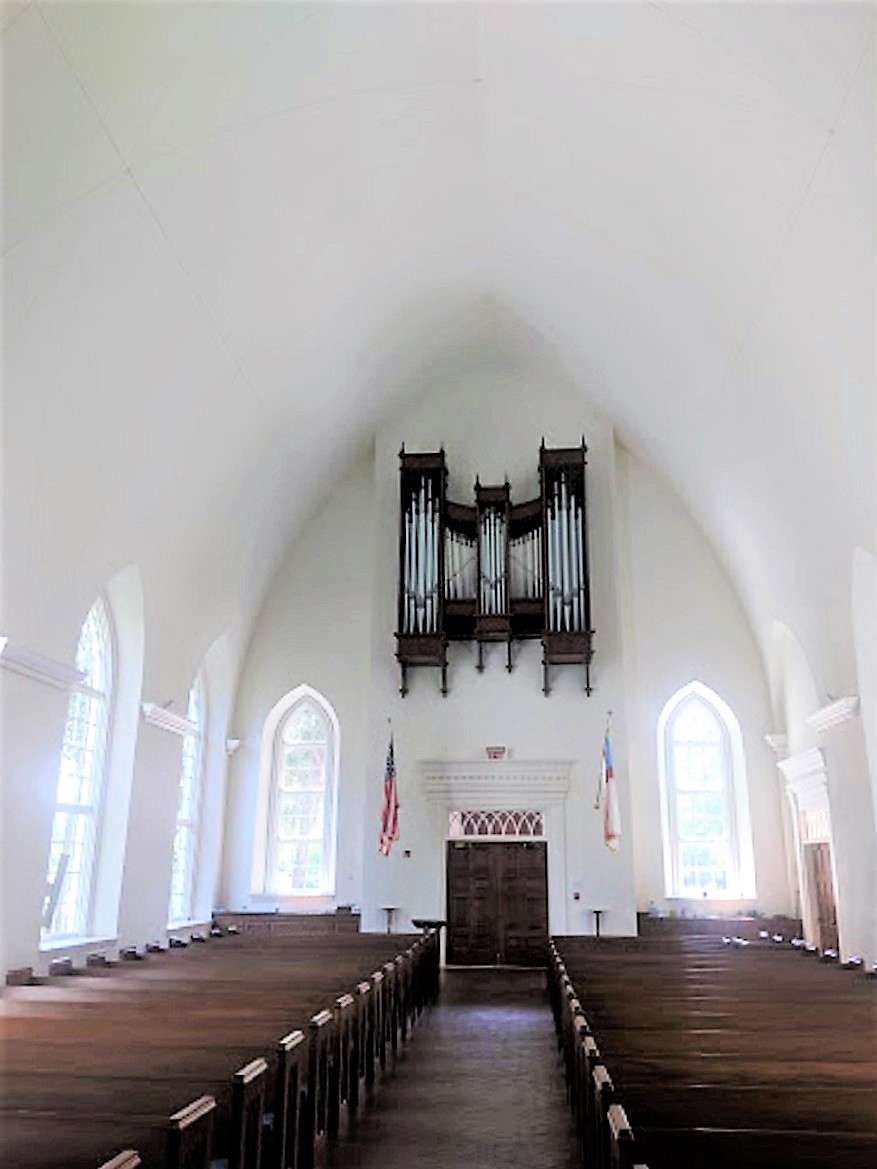

2019-06-15 - Nave and Antiphonal case (Photograph by Justin Little/Database Manager)

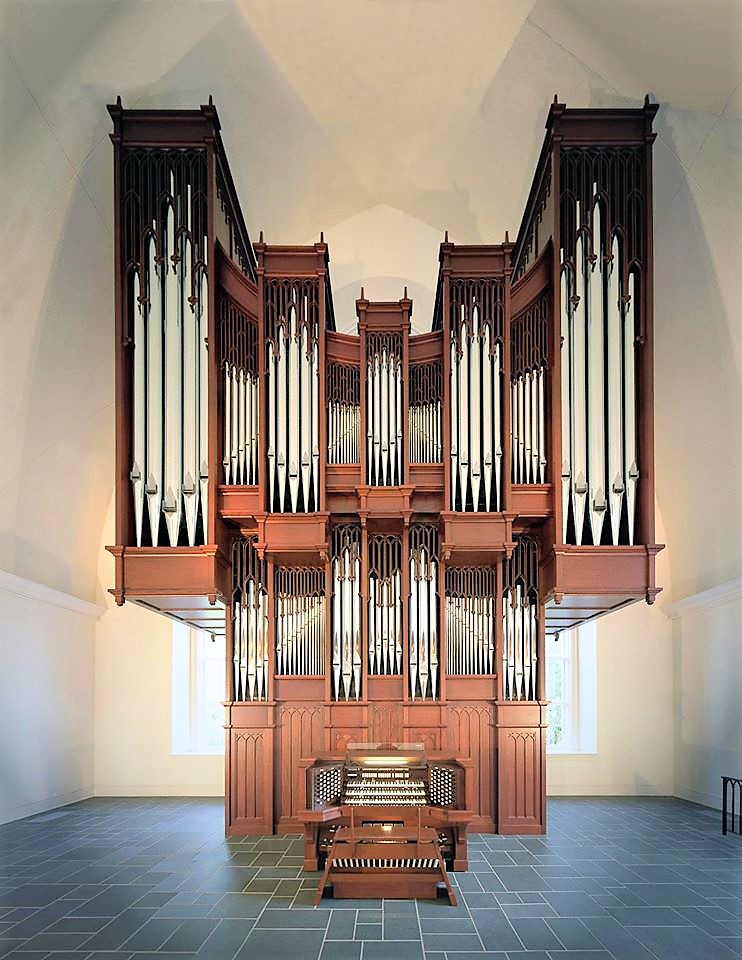

2003-10-30 - Console and Organ Case (Photograph courtesy of the Schantz Organ Company/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
69 stops
5 divisions
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-04-05 - Identified through online information from Chad Boorsma. -- The organ was built for the congregation's new sanctuary, which has excellent acoustics (4 seconds reverberation). It was dedicated on October 12, 2003, in a service of Evensong, followed by a recital with Dale Caldwell at the console. The majority of the pipes are in a mahogany case at the front of the sanctuary, but ten ranks are in an antiphonal case at the rear of the room. -Database Manager

Stoplist

Stoplist from Schantz factory specifications Source: Source not recorded Date not recorded

Savannah, Georgia
SAINT PETER'S EPISCOPAL CHURCH

Schantz Organ Company     Opus 2223     56 ranks     2003
____________________________________________________________________

GREAT:                                SWELL:
   16' Violone 73                        16' Bourdon 73
    8' Open Diapason 61                   8' Geigen Diapason 61
    8' Violone                            8' Viole 61
    8' Chimney Flute 61                   8' Viole Celeste [GG] 54
    8' Harmonic Flute 49                  8' Bourdon
    4' Octave 61                          4' Principal 61
    4' Spire Flute 61                     4' Harmonic Flute 61
    2' Fifteenth 61                   2 2/3' Nazard 61
   IV  Fourniture 244                     2' Piccolo 61
    8' Tromba 61                      1 3/5' Tierce 61
    8' Oboe [SW]                         IV  Plein Jeu 244
    8' Festival Trumpet [ANT]            16' Basson-Oboe 73
       Tremulant                          8' Trumpet 73
       Zimbelstern 5 bells                8' Oboe
                                          4' Clarion
CHOIR:                                       Tremulant
    8' Stopped Diapason 61                8' Festival Trumpet [ANT]
    8' Gemshorn 61
    8' Gemshorn Celeste [TC] 49       PEDAL:
    4' Principal 61                      32' Contra Bourdon
    4' Spindle Flute 61                  16' Diapason 44
    2' Fifteenth 61                      16' Violone [GT]
1 1/3' Larigot 61                        16' Subbass 56
  III  Mixture 183                       16' Bourdon [SW]
    8' Cremona 61                         8' Octave
       Tremulant                          8' Violone [GT]
    8' Festival Trumpet [ANT]             8' Subbass
                                          8' Bourdon [SW]
ANTIPHONAL:                               4' Choralbass 32
    8' Open Diapason 61                   4' Open Flute
    8' Gedeckt 73                       III  Mixture 96
    8' Dolcan 61                         32' Contra Trombone
    8' Dolcan Celeste [TC] 49            32' Contra Bassoon
    4' Principal 61                      16' Trombone [GT] 12
    4' Koppel Flute                      16' Bassoon [SW]
    2' Fifteenth                          8' Tromba [GT]
   IV  Mixture 244                        8' Trumpet [SW]
       Tremulant                          4' Clarion [SW]
    8' Festival Trumpet 61                8' Festival Trumpet [ANT]

ANTIPHONAL PEDAL:
   16' Gedecktbass 12

[Received on line from Chad Boorsma April 08, 2010.]

Websites

The Schantz Organ Company [St. Peter's Savannah page] - Photographs, link to stoplist (Check Internet Archive, archive.is)
