Casavant Frères Ltée. (1994)

Images

2017-06-05 - Right chamber (Photograph by Roger Chausee, submitted by Jeff Scofield/Jeff Scofield)

2017-06-05 - Left chamber (Photograph by Roger Chausee, submitted by Jeff Scofield/Jeff Scofield)

2017-06-05 - Church exterior (Photograph by From church Facebook page, submitted by Jeff Scofield/Jeff Scofield)

2020-03-28 - Church interior (Photograph by From church Facebook page, submitted by Jeff Scofield/Jeff Scofield)

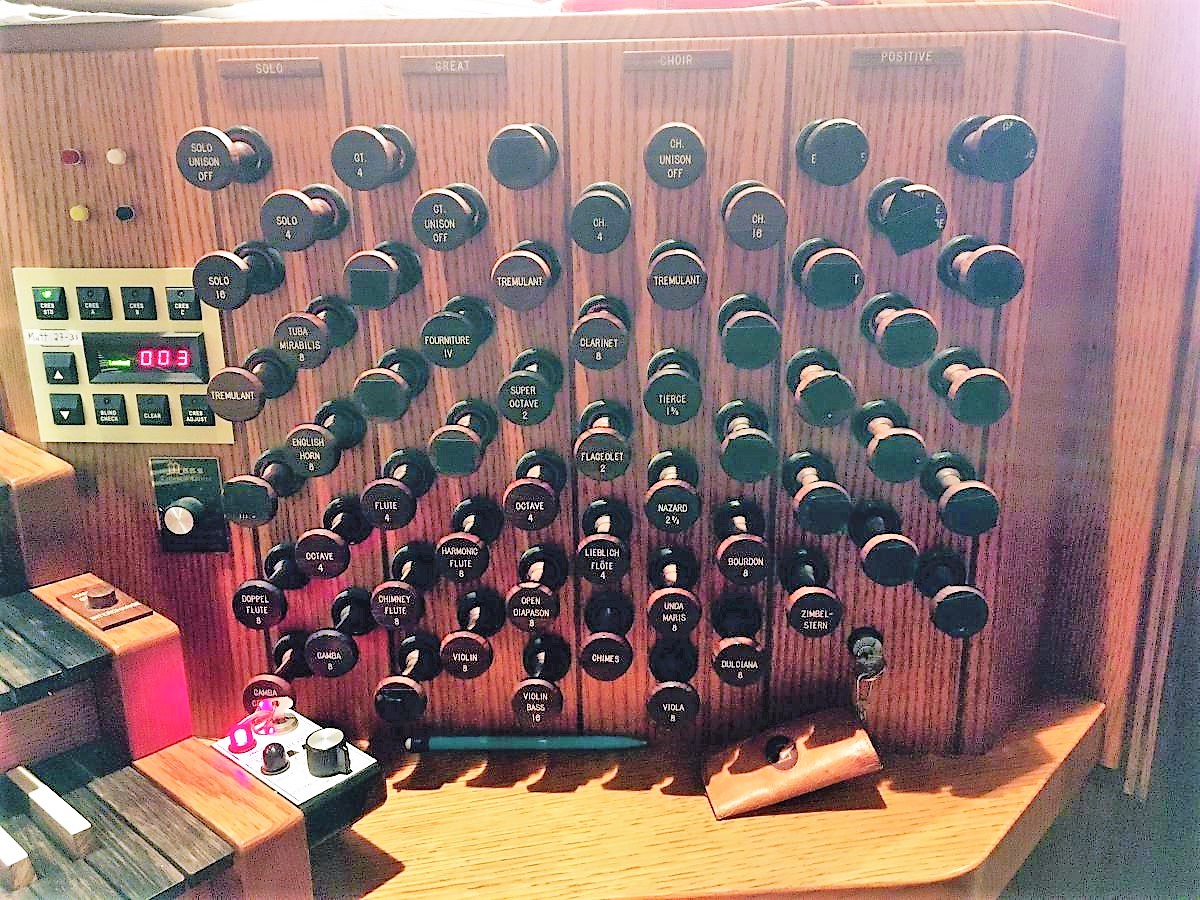

2017-06-05 - Right stopjamb (Photograph by Roger Chausee, submitted by Jeff Scofield/Jeff Scofield)

2017-06-05 - Left Stopjamb (Photograph by Roger Chausee, submitted by Jeff Scofield/Jeff Scofield)

2017-06-05 - Console (Photograph by Roger Chaussee/Database Manager)

2017-06-05 - Backrail and Manual Stack (Photograph by Roger Chaussee/Database Manager)

2017-06-05 - Pedalboard (Photograph by Roger Chaussee/Database Manager)

2017-06-05 - Builder's Nameplate #1 (Photograph by Roger Chaussee/Database Manager)

2017-06-05 - Builder's Nameplate #2 (Photograph by Roger Chaussee/Database Manager)

Consoles

Main

• Organ type: Traditional Without Cover
• 4 manuals
• 5 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Computerized/Digital
• Has combination thumb pistons
• Has combination toe pistons
• Has coupler thumb pistons
• Has coupler toe pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Notes

2010-04-11 - Identified through online information from Jeff Scofield. -- New console for existing organ. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

        San Marino, California
        San Marino Community Church

        Casavant  Op. 1985   1994   Console-only

        Courtesy of the Casavant Frères Archives
        St. Hyacinthe, Québec, Canada
        ____________________________________________________

                        CONSOLE SPECIFICATIONS

        GREAT (II)                    CHOIR (I)
    16' Violinbass                 8' Viola
     8' Open Diapason              8' Viola céleste
     8' Violin                     8' Bourdon
     8' Chimney Flute              8' Dulciana
     8' Harmonic Flute             8' Unda Maris
     4' Octave                     4' Principal
     4' Flute                      4' Lieblichflöte
 2 2/3' Quint                  2 2/3' Nazard
     2' Super Octave               2' Flageolet
   III  Cornet                 1 3/5' Tierce
    IV  Fourniture               III  Mixture
     8' Trumpet                    8' Clarinet
        Tremulant                     Tremulant
        Unison Off                    Sub
     8' Trompette-en-chamade          Unison Off
     8' Tuba                          Super
        Chimes
                                      SOLO (IV)
        SWELL (III)                8' Doppel Flute
    16' Bourdon                    8' Gamba
     8' Open Diapason              8' Gamba céleste
     8' Rohrflöte                  4' Octave
     8' Salicional             III-V  Cornet
     8' Viola da Gamba             8' Tuba Mirabilis
     8' Voix céleste               8' English Horn
     4' Principal                     Tremulant
     4' Flauto Traverso               Sub
     2' Blockflöte                    Unison Off
   III  Cornet                        Super
III-IV  Plein Jeu
    16' Double Trumpet                PEDAL
     8' Harmonic Trumpet          32' Contrabass           dg
     8' Oboe                      32' Subbass              dg
     4' Clarion                   16' Open Diapason
        Tremulant                 16' Violinbass
        Sub                       16' Subbass
        Unison Off                16' Bourdon              SW
        Super                      8' Principal
     8' Trompette-en-chamade       8' Stopped Flute        12
                                   8' Violin               GT
        POSITIVE (I)               8' Bourdon              GT
     8' Cor de nuit                4' Octave
     4' Prestant                   4' Flute
     4' Spindle Flute              2' Flute                12
     2' Principal                III  Harmonics
 1 1/3' Larigot                   IV  Mixture
    II  Sesquialtera              32' Contre trombone      dg
    IV  Cymbal                    16' Trombone
     8' Cromorne                  16' Double Trumpet       SW
        Tremulant                  8' Tromba               12
        Unison Off                 8' Tuba                 SO
    16' Bombarde-en-chamade        8' Trumpet              SW
     8' Trompette-en-chamade       8' Cromorne             PO
     4' Clairon-en-chamade         4' Clairon              GT
        Zimbelstern                4' Tuba                 SO
                                   4' Cromorne             PO
        ANTIPHONAL (floating)      8' Trompette-en-chamade GT
     8' Principal                  4' Clairon-en-chamade   GT
     8' Bourdon                       Chimes
     4' Octave
     4' Flûte douce                   ANTIPHONAL PEDAL
     2' Doublette                 16' Bourdon
    II  Cornet                     8' Principal
   III  Mixture                    8' Bourdon
                                   4' Bourdon

[Received on line from Jeff Scofield April 13, 2010.]
