Better Pipe Organ Database

Casavant Frères Ltée. Opus 2701 (1962)

Zion Lutheran Church: Sanctuary
1204 Center St.
Manning, IA

Images

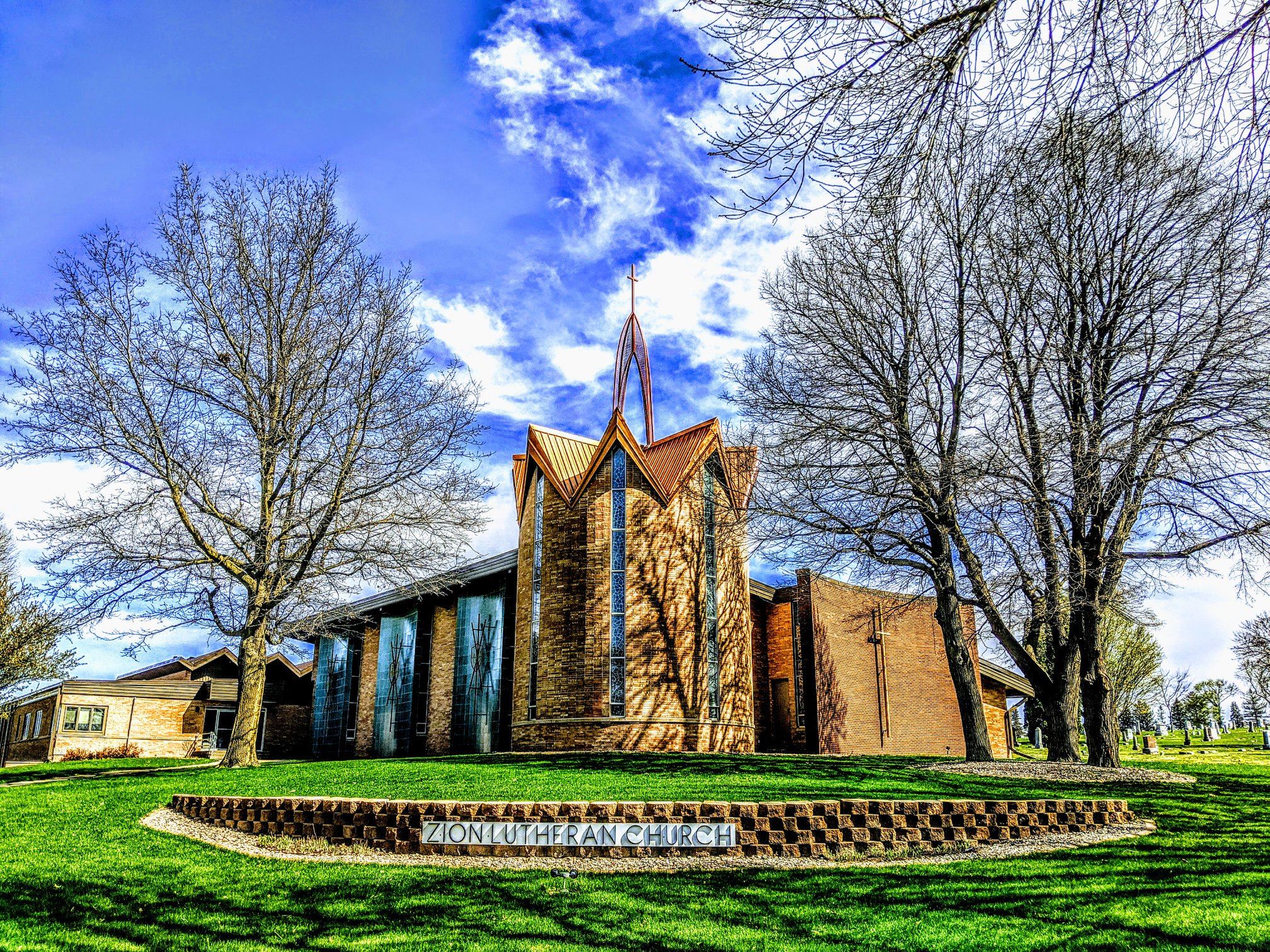

2020-05-02 - Church exterior (Photograph from an archival source: Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Left
2 manuals
19 stops
19 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has coupler thumb pistons
Has tutti toe pistons

Notes

2010-05-28 - Identified through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

    Manning, Iowa
    Zion Lutheran Church

    Casavant   Op. 2701   1962   2/25

    Courtesy of the Casavant Frères Archives
    St. Hyacinthe, Québec, Canada
    __________________________________________________________________

    GREAT                   SWELL                    PEDAL
 8' Principal   61       8' Salicional     61    16' Subbass        32
 8' Rohrflöte   61       8' Salicional Cel 54     8' Spitzprincipal 32
 4' Octave      61       8' Gedackt        61     4' Nachthorn      32
 4' Spitzflöte  61       4' Koppelflöte    61    II  Mixture        64
 2' Octave      61   2 2/3' Nazard         61    16' Fagott         32
IV  Mixture    244       2' Flachflöte     61
    Chimes             III  Cymbal        183
                         8' Trompette      61
                            Tremulant

[Received on line from Jeff Scofield May 29, 2010.]
