Wicks Organ Co. Opus 3988 (1960)

LaGrave Avenue Christian Reformed Church (Chapel): Dewey Battjes Memorial Chapel
107 LaGrave Ave. SE
Grand Rapids, MI

Images

2019-07-07 - Chapel Exterior (Photograph by Chad Boorsma/Database Manager)

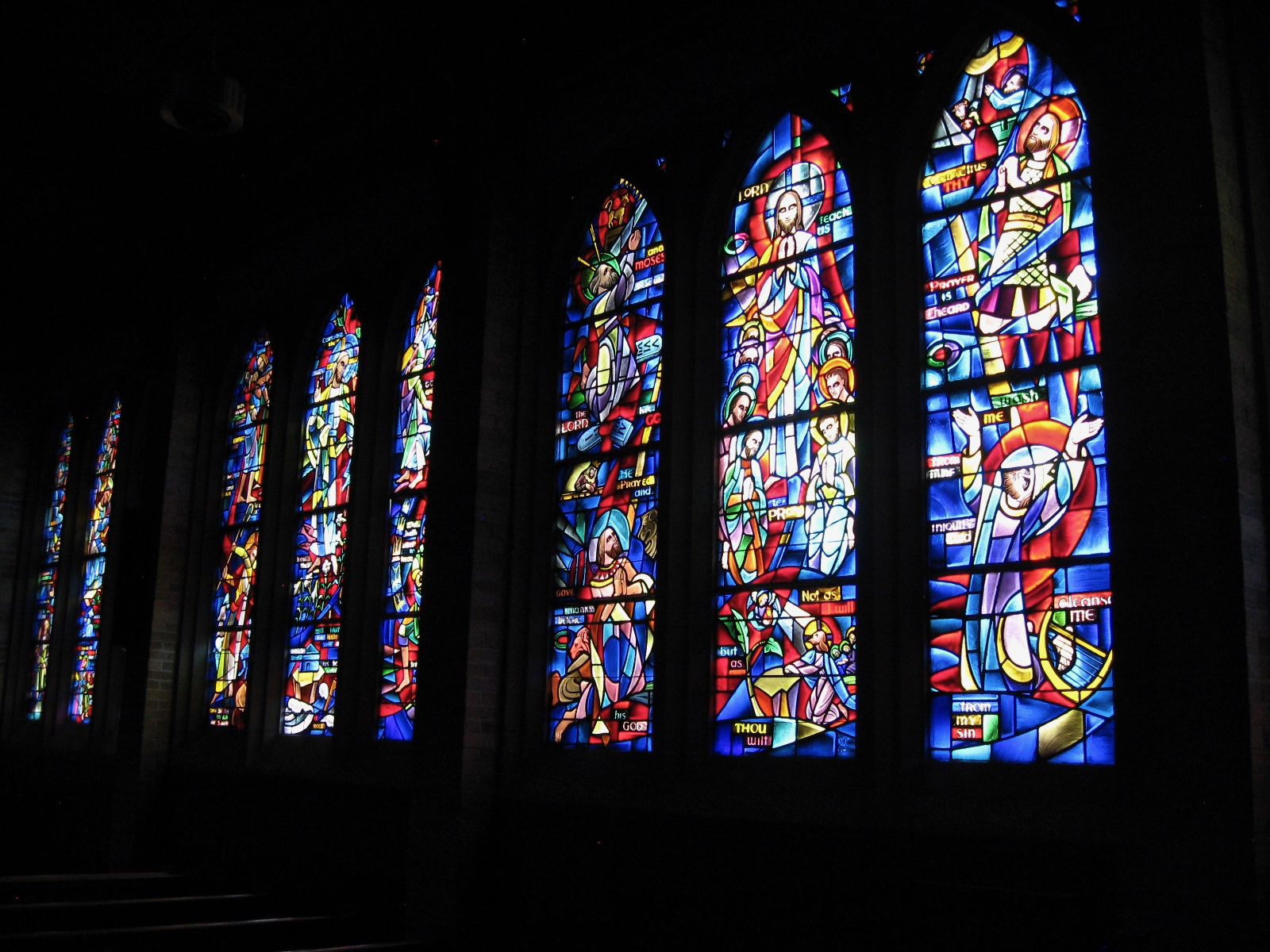

2019-06-20 - Stained Glass Windows (Photograph by Chad Boorsma/Database Manager)

2019-06-20 - Stained Glass Clerestory Windows (Photograph by Chad Boorsma/Database Manager)

2019-06-26 - Chapel Exterior (Photograph by Chad Boorsma/Database Manager)

2019-06-26 - Chapel Entrance (Photograph by Chad Boorsma/Database Manager)

2010-06-09 - Chapel Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

2010-06-09 - Console, Nave, Gallery, and Chamber Grille (Photograph by Chad Boorsma/Database Manager)

2010-06-09 - Console (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Console in Fixed Position, Left
2 manuals
26 stops
2 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination toe pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2010-06-10 - Identified through on-line information from Chad Boorsma. -- Don Haan made some changes and updates to the organ ca. 2007. This included replacing the Great 8' Diapason Conique and adding more general thumb pistons. The pipe chamber is located in the church's tower and speaks from the back of the chapel's balcony. -Database Manager

Stoplist

Stoplist taken from the console (June 9, 2010) Source: Source not recorded Date not recorded

Grand Rapids, Michigan
LAGRAVE AVENUE CHRISTIAN REFORMED CHURCH
DEWEY BATTJES MEMORIAL CHAPEL

Wicks Organ Company    Opus 3988   8 ranks    1960
____________________________________________________________

GREAT:                          PEDAL:
    8' Diapason Conique 61         16' Subbass 12 [SW]
    8' Rohrfloete 61               16' Rohr Bourdon 12 [GT]
    8' Dolcan 61                    8' Cello [SW]
    8' Unda Maris [TC] 49           8' Flauto Dolce [GT]
    4' Prestant 12                  8' Dolcan [GT]
    4' Flute 12                 5 1/3' Quint [GT]
    4' Dulcet 12                    4' Choral Bass [GT]
2 2/3' Twelfth                      4' Rohrfloete [GT]
    2' Fifteenth 12                 8' Fagot [SW]
       Tremolo
       Chimes

SWELL:
    8' Stopped Flute 61
    8' Salicional 61
    8' Voix Celeste [TC] 49
    4' Flute D'Amour 12
    4' Salicet 12
2 2/3' Nazard
    2' Flautino 12
    8' Fagot 61
       Tremolo

[Received on line from Chad Boorsma June 14, 2010.]
