Casavant Frères Opus 1980-R (2004)

St. Mary's Chapel: Chapel
331 Thompson St.
Ann Arbor, MI

Images

2004-03-15 - Console (Photograph courtesy of the Casavant Frères Archives/Database Manager)

2020 - Chapel interior to rear and organ (Mina Ehab/Jeff Scofield)

2014-04-16 - Facade Pipework (Chapel Facebook/Jeff Scofield)

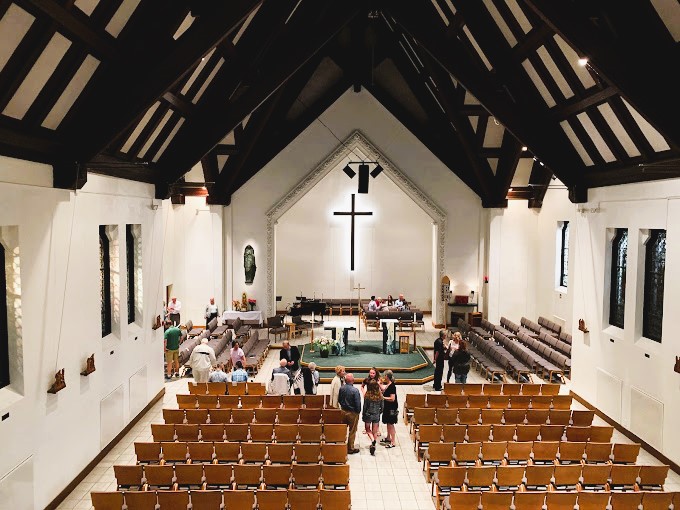

2020 - Chapel interior (Mina Ehab/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
33 stops
8 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-06-14 - Identified through on-line information from Jeff Scofield. -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       Ann Arbor, Michigan
       St. Mary's Chapel

       Casavant   Op. 1980   1949/2004   2/8

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       ____________________________________________________________

          TONAL RESOURCES
A      8' Open Diapason  61  new pipes from Tenor C, racked on site
B      8' Major Flute    73  new pipes from Tenor C, racked on site
C      8' Viola da Gamba 61  existing, revoiced
D      4' Octave         73  new, on Dulciana action, racked on site
E  1 3/5' Seventeenth    42  new, from G20, 20-31 on Flute action 74-85,
                             32-55 on Gamba action 62-85, 56-61 on C side
                             of Open Diapason 63-73; racked on site; chest
                             holes and pouches sizes revised
F  1 1/3' Nineteenth     60  new, with toeboard for 1-54, 1-54 on Celeste
                             8' action, 55-60 on C# side of Open Diapason
                             62-72 racked on site; top note repeats
G     16' Bassoon-Trumpet73  1-12 revoiced with new tongues; 13-73 new
                             Trumpet pipes with toeboard and stays on
                             existing action
H     16' Pedal Bourdon  44  existing

          GREAT
      16' Bourdon         H-B
       8' Open Diapason   A
       8' Major Flute     H-B
       8' Viola da Gamba  C
       4' Octave          D
       4' Spindle Flute   B
       2' Fifteenth       D
       2' Flute           B
      II  Sesquialtera    E-F  from G20
      II  Mixture         F-D
      16' Bassoon         G
       8' Trumpet         G
       4' Clarion         G    top octave repeats

          SWELL
      16' Contra Gamba    C    from C13
       8' Major Flute     H-B
       8' Viola da Gamba  C
       4' Octave          D
       4' Spindle Flute   B
   2 2/3' Twelfth         F    from C13
       2' Fifteenth       D
       2' Flute           B
   1 3/5' Seventeenth     E    from G20
   1 1/3' Nineteenth      F
       8' Trumpet         G
          Tremulant            affecting entire organ

          PEDAL
      16' Bourdon         H
       8' Octave          A
       8' Cello           C
       8' Stopped Flute   H
       4' Choral Bass     D
       2' Principal       D
      16' Bassoon         G
       8' Trumpet         G
       4' Clarion         G

[Received on line from Jeff Scofield June 20, 2010.]

Documents

(2004-04-17) Dedication program, collection of Jeff Scofield -Jeff Scofield

Related Pipe Organ Database Entries

#46256 - Casavant Frères Ltée. Opus 1980 (1949)
