Lauck Pipe Organ Co. Opus 39 (1995)

Images

Unknown - Pipe Facade ((2014) Photograph by Andrew Clark/Database Manager)

2010-07-17 - Console (Photograph by Bryan Dunnewald/Database Manager)

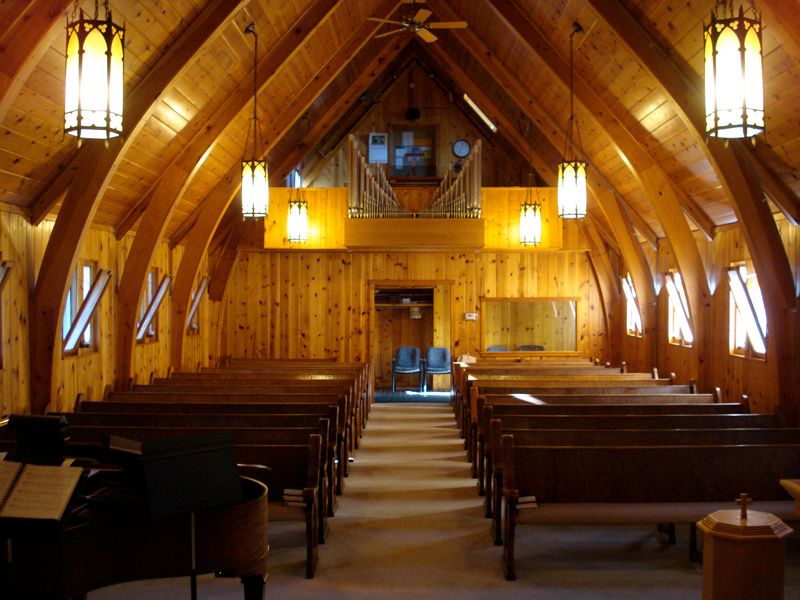

2010-07-17 - Sanctuary Interior and Chancel (Photograph by Bryan Dunnewald/Database Manager)

2010-07-17 - Nave and Pipe Display (Photograph by Bryan Dunnewald/Database Manager)

2010-07-17 - Pipe Display (Photograph by Bryan Dunnewald/Database Manager)

Consoles

Main

• Organ type: Traditional Without Cover
• Console position: Console in Fixed Position, Center
• 2 manuals
• 7 stops
• 21 registers
• 3 divisions
• Stop layout Type: Drawknobs in Horizontal Rows on Curved Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Has crescendo
• Combination action: Adjustable Combination Pistons
• Has combination thumb pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Notes

2010-06-28 - Identified through on-line information from Bryan Dunnewald. -- The instrument has a low-profile french console. Great is on the railing, and swell and pedal is in a chamber behind. The small, dry room seats 140 persons. Built of Walnut and ebony. -Database Manager

2010-06-29 - Updated through online information from Bryan Dunnewald. -Database Manager

2010-07-06 - Updated through online information from Bryan Dunnewald. -Database Manager

Stoplist

Records from Church. Probably an advertisement for the company. Source: Source not recorded Date not recorded

Glen Arbor, Michigan
Bethlehem Lutheran Church

Lauck Pipe Organ Co., Opus 39, 1995

8 ranks of pipes:

Swell

16' Gedeckt - 85 pipes
4' Geigen Principal - 73 pipes
4' Voix Celeste - 49 pipes
8' Trumpet - 61 pipes

Great

8' Spitzflute - 85 pipes
8' Principal - 85 pipes
II Mixture - 98 pipes

From these tonal resources, there are 21 stops:

Great:
 8'     Principal
 8'     Spitzflute
 4'     Octave
 4'     Blockflute
 2 2/3' Nazard
 2'     Superoctave
 2'     Hohlflute
 1 3/5' Tierce
        II Mixture

Swell:
 8'     Gedeckt
 8'     Viola
 8'     Voix Celeste
 4'     Geigen Principal
 4'     Gedeckt
 2'     Geigen Octave
 1 1/3' Quint
 8'     Trumpet
        Tremulant

Pedal:
16'     Bourdon
 8'     Principal
 8'     Gedeckt
 4'     Choralbass

Couplers:
Swell Super
Swell to Great
Swell to Great Super
Swell to Pedal
Great to Pedal

[Received on line from Bryan Dunnewald June 29, 2010.]
