Better Pipe Organ Database

Temple Organ Co. (1990)

Immanuel Lutheran Church
930 Creston Street
Muskegon, MI

Images

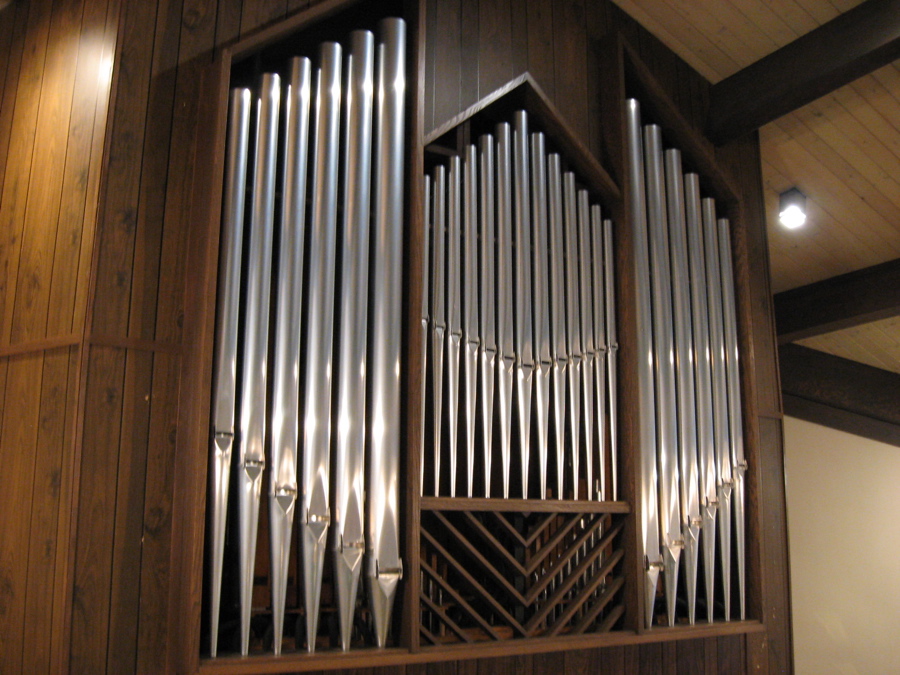

2010-07-01 - Organ Case (Photograph by Chad Boorsma/Database Manager)

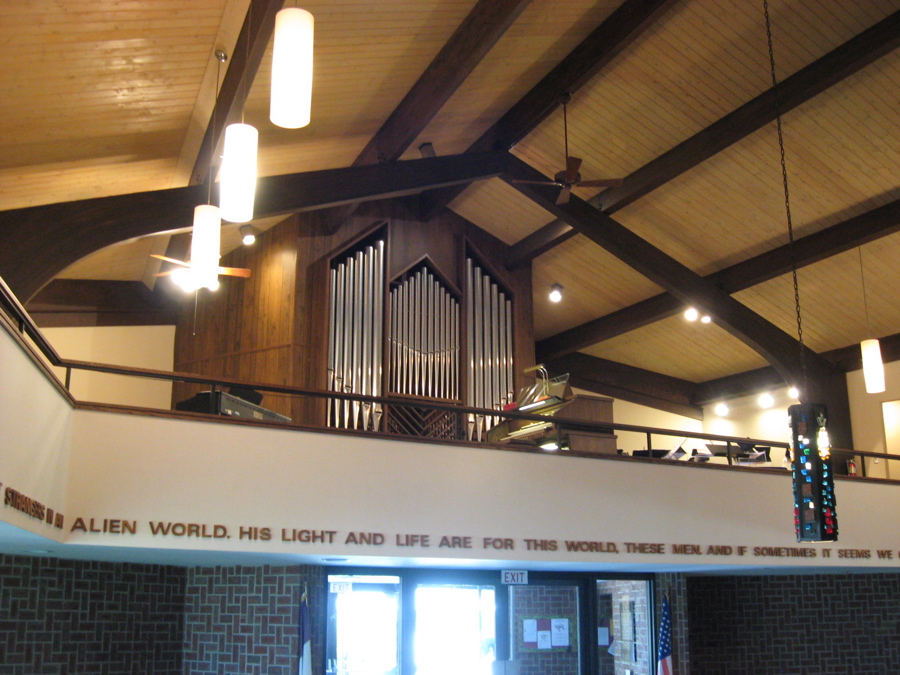

2010-07-01 - Balcony and Organ Case (Photograph by Chad Boorsma/Database Manager)

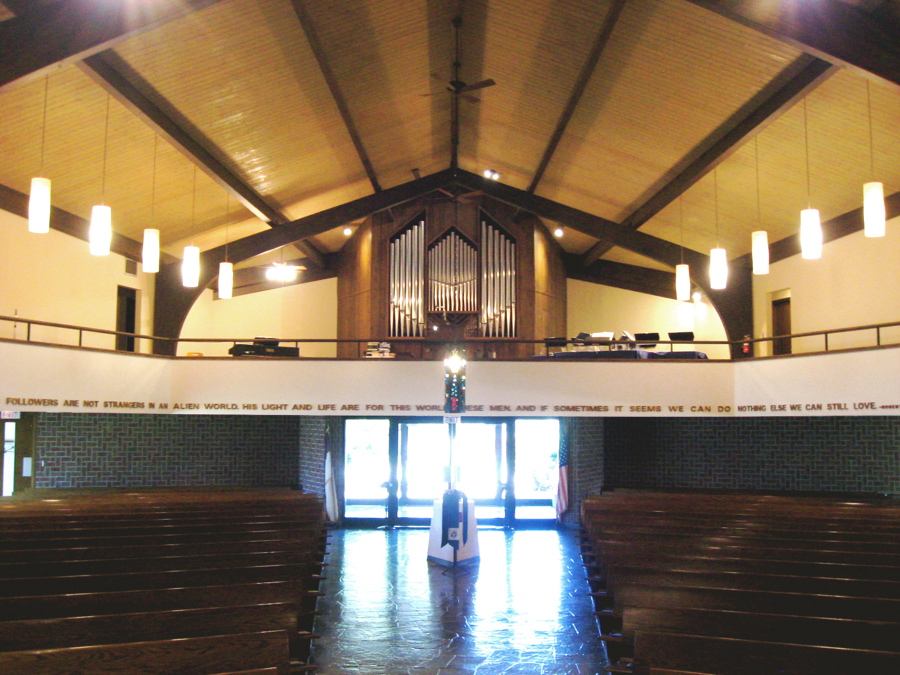

2010-07-01 - Nave, Balcony, and Organ Case (Photograph by Chad Boorsma/Database Manager)

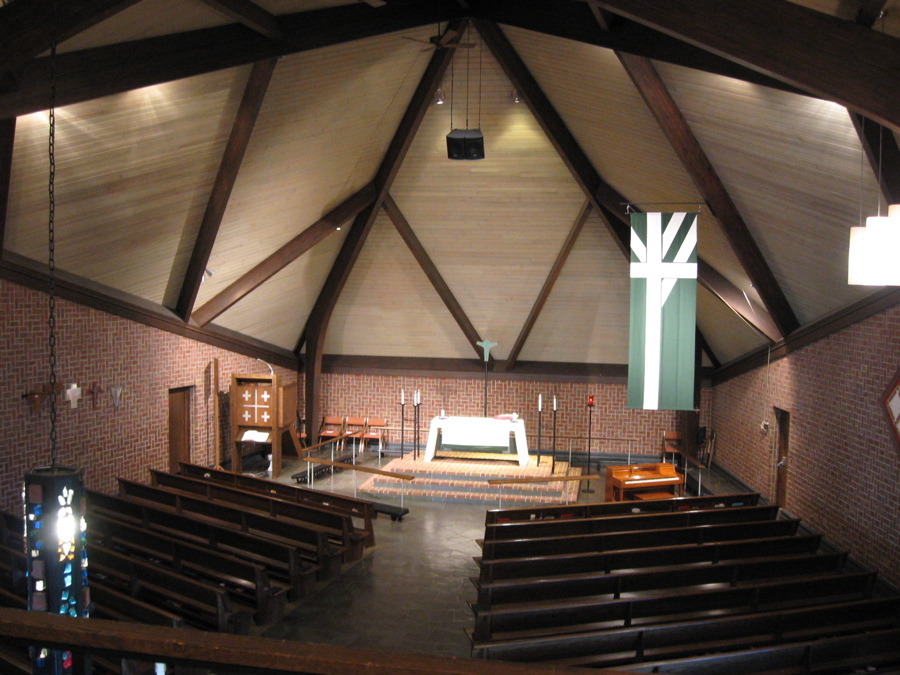

2010-07-01 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

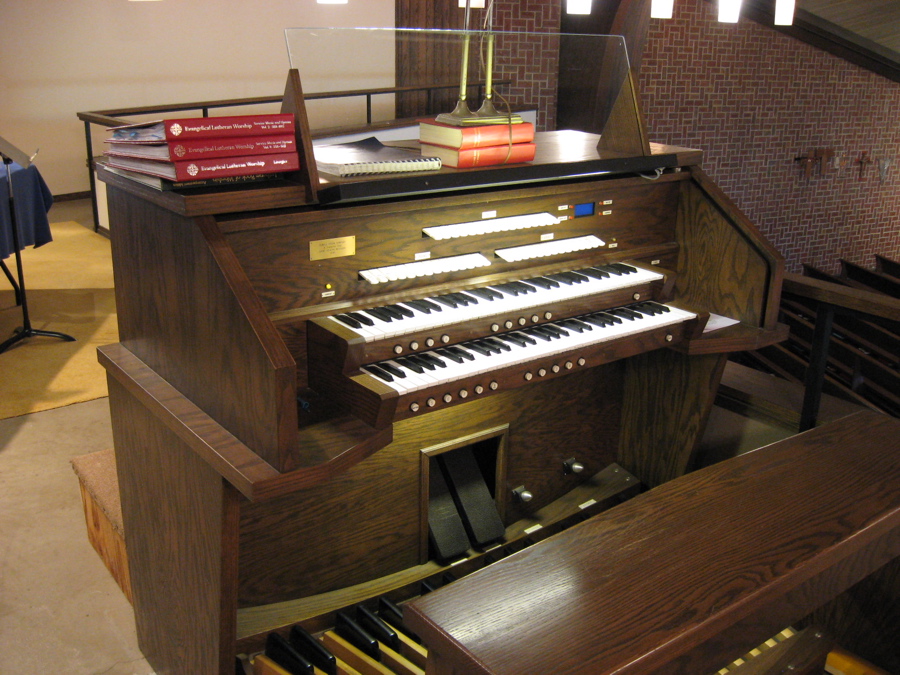

2010-07-01 - Console (Photograph by Chad Boorsma/Database Manager)

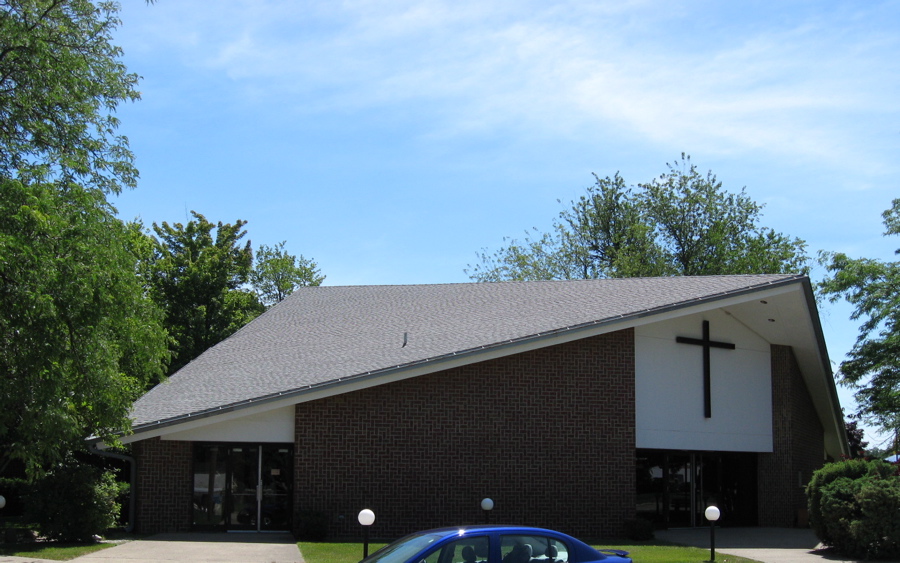

2010-07-01 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
2 manuals
16 stops
27 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2010-07-02 - Identified through online information from Chad Boorsma. -- The organ has 12 levels of memory. N. Frederick Cool designed the organ (information from the nameplate). -Database Manager

Stoplist

Stoplist taken from the console (July 1, 2010) Source: Source not recorded Date not recorded

Muskegon, Michigan
IMMANUEL LUTHERAN CHURCH

Temple Organs    1990    18 ranks
_______________________________________________________________________________

GREAT:                  SWELL:                         PEDAL:
  8' Principal 61           8' Gedeckt 61                  16' Subbass 32
  8' Melodia 61             8' Salicional 61           10 2/3' Quint
  8' Dolce 61               8' Voix Celeste [TC] 49         8' Principal [GT]
  4' Octavin 61             4' Harmonic Flute 61            8' Bourdon 12
  2' Octavin 61         2 2/3' Nazard 61                    4' Octave 12 [GT]
III  Mixture 183            2' Piccolo 61                   2' Octave 12 [GT]
  8' Trumpet [SW]       1 3/5' Tierce 61                   16' Trumpet [SW]
     Blank                 16' Trumpet 12                   8' Trumpet [SW]
                            8' Trumpet 61                   4' Clarion [SW]
                            8' Oboe 61                         Blank
                            4' Clarion 12
                               Tremulant
                               Blank

[Received online from Chad Boorsma • July 1, 2010]
