Schantz Organ Co. Opus 41 (1948)

Oakland Christian Reformed Church: Sanctuary
4452 - 38th Street
Hamilton, MI

Images

2010-07-08 - Console (Photograph by Chad Boorsma/Database Manager)

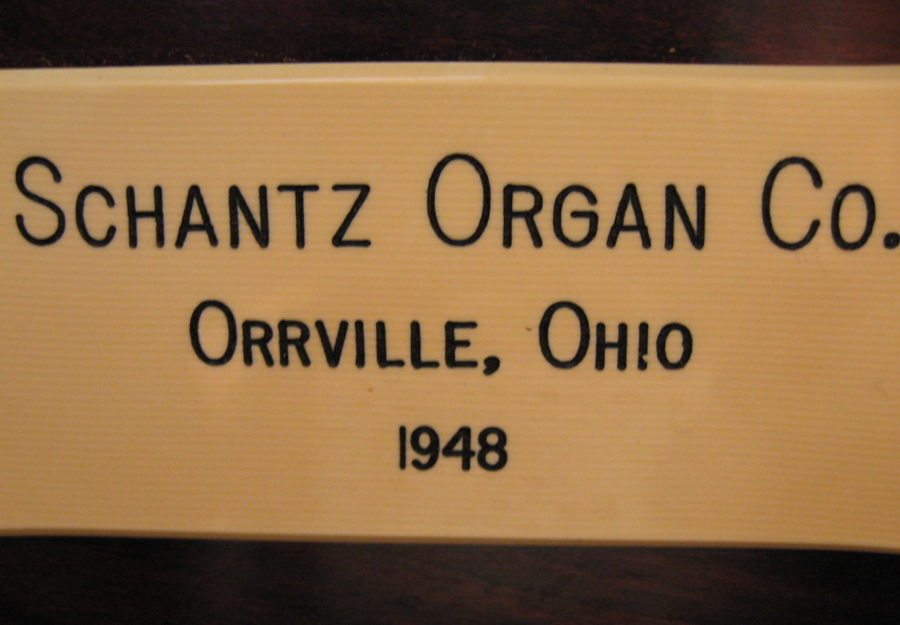

2010-07-08 - Nameplate (Photograph by Chad Boorsma/Database Manager)

2010-07-08 - Chancel, Chamber Grillework, and Facade Pipes (Photograph by Chad Boorsma/Database Manager)

2010-07-08 - Sanctuary Interior and Chancel (Photograph by Chad Boorsma/Database Manager)

2010-07-08 - Church Exterior (Photograph by Chad Boorsma/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
21 stops
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Stop Keys Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2010-07-09 - Identified through on-line information from Chad Boorsma. -- All the stops are under expression together. To the sides of the grillework are fake facade pipes, likely from the church's previous Hinners organ. -Database Manager

2010-07-11 - Updated through on-line information from Chad Boorsma. -Database Manager

Stoplist

Stoplist courtesy of Schantz Organ Company Source: Source not recorded Date not recorded

Hamilton, Michigan
OAKLAND CHRISTIAN REFORMED CHURCH

Schantz Organ Company    Opus 41    1948     11 ranks
__________________________________________________________________________________

GREAT:                     SWELL:                      PEDAL:
 8' Open Diapason 73          16' Gedeckt                16' Bourdon 32
 8' Stopped Diapason [SW]      8' Stopped Diapason 97    16' Lieblich Gedeckt [SW]
 8' Dulciana 73                8' Salicional 73           8' Bass Flute 12
 4' Octave 73                  8' Voix Celeste [TC] 61    8' Dolce Flute [SW]
 4' Flute [SW]                 4' Flute D'Amour           4' Flute [SW]
II  Mixture 122            2 2/3' Nazard
    Chimes                     2' Flautino
    Tremulant                  8' Trumpet 73
                               8' Oboe 73
                                  Tremulant
                                  Blank [2]

[Received online from Chad Boorsma • July 10, 2010]
