2010-10-10 - Identified through online information from Jeff Scofield. -- In addition to the console work, an additional blower was installed in the blower room to accommodate the increased wind supply required by the addition of sub and super couplers; a new Chimes/Harpe/Célesta system by Walker Digital Products was provided. -Database Manager
Typed Specification Source: courtesy Jason Charneski Date not recorded
Rye, New York

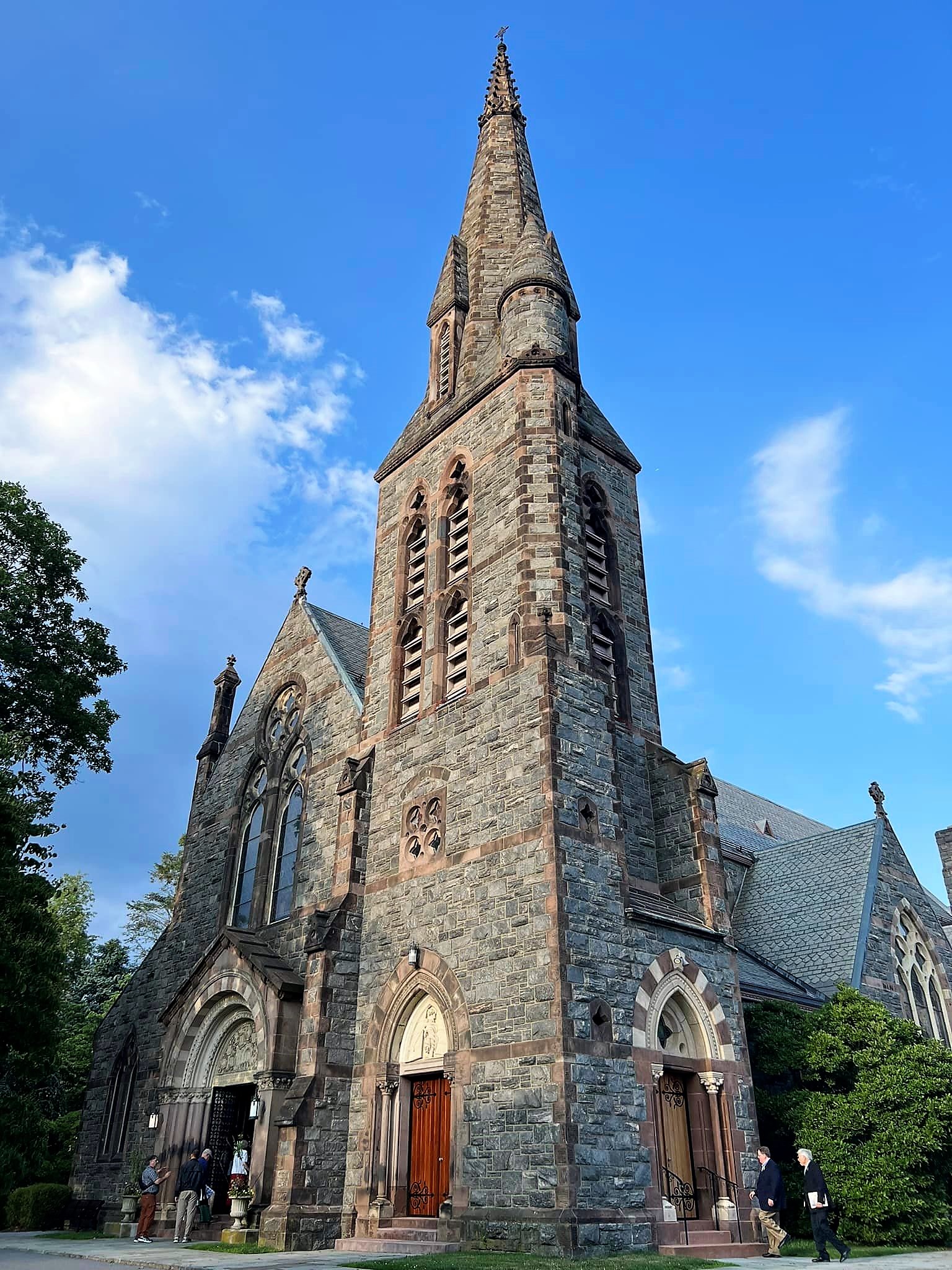

Rye Presbyterian Church
Casavant Frères Ltée Opus 3506 1981 4 manuals, 50 stops, 68 ranks
Casavant Frères Ltée Opus 3506 2002 Console Updated & Modified
____________________________________________________________________________
GRAND-ORGUE (I) RÉCIT EXPRESSIF (III)
16' Bourdon 61 16' Bourdon 61
8' Montre 61 8' Flûte ouverte 61
8' Flûte à pavillon 61 8' Flûte céleste (TC) 49
8' Bourdon 61 8' Viole de gambe 61
4' Prestant 61 8' Voix céleste (GG) 54
4' Flûte ouverte 61 4' Octave 61
2' Doublette 61 4' Flûte octaviante 61
2 2/3' Cornet III 183 2 2/3' Nasard 61
2' Fourniture IV 244 2' Octavin 61
2/3' Cymbale III 183 1 3/5' Tierce 61
16' Basson 61 2' Plein Jeu V 305
8' Trompette 61 16' Cor Anglais 61
4' Clairon 61 8' Trompette 61
Tremblant 8' Basson-Hautbois 61
Grand-Orgue 16' 8' Voix humaine 61
Muet 4' Clairon 61
Cloches (digital) Tremblant
Harpe (digital) Récit 16'
Célesta (digital) Muet
Carillon (Schulmerich) Récit 4'
POSITIF EXPRESSIF (II) SOLO (IV) (in Positif box)
16' Quintaton 61 16' Bombarde (1-12 Pédale) --
8' Principal 61 8' Trompette harmonique 61
8' Bourdon 61 4' Clairon harmonique --
8' Dulciane 61 (top octave repeats)
4' Octave 61
4' Flûte 61 PÉDALE
2 2/3' Nasard 61 32' Soubasse 44
2' Doublette 61 16' Contrebasse 32
2' Quarte de nasard 61 16' Soubasse (fr. 16') --
1 3/5' Tierce 61 16' Bourdon (G-O) --
1 1/3' Larigot 61 16' Bourdon en bois (Réc) --
2/3' Plein Jeu IV 244 16' Quintaton (Pos) --
8' Trompette 61 8' Octavebasse 32
8' Cromorne 61 8' Bourdon (G-O) --
Tremblant 8' Bourdon en bois (Réc) --
Positif 16' 4' Octave 32
Muet 4' Flûte ouverte (G-O) --
Positif 4' 2 2/3' Mixture V 160
Clochettes 32' Bombarde 44
16' Bombarde (fr. 32') --
16' Basson (G-O) --
16' Cor anglais (Réc) --
8' Trompette (G-O) --
4' Clairon (G-O) --
4' Cor anglais (Réc) --
Cloches (G-O)
COMBINATIONS (999 levels) COUPLERS
Récit 1-8 (thumb) G-O to Pédale 8
Grand-Orgue 1-8 (thumb) Positif to Pédale 8 4
Positif 1-8 (thumb) Récit to Pédale 8 4
Pédale 1-3 (toe) Solo to Pédale 8 4
General 1-8 (thumb & toe) Positif to G-O 16 8 4
General 9-12 (toe) Récit to G-O 16 8 4
Solo to G-O 8
REVERSIBLES Pédale to G-O 8
G-O to Pédale (thumb & toe) Récit to Positif 16 8 4
Positif to Pédale (thumb & toe) Solo to Positif 8
Récit to Pédale (thumb & toe) Solo to Récit 8
Solo to Pédale (thumb & toe) G-O to Solo 8
Positif to G-O (thumb & toe) Positif to Solo 8
Récit to G-O (thumb & toe) Récit to Solo 8
Solo to G-O (thumb & toe) Pedal Divide
Récit to Positif (thumb & toe) Manual Interchange (G-O/Pos)
Tutti (thumb & toe)*
Clochettes (toe) PISTON SEQUENCER
32' Soubbasse (toe) Next (2 thumb & 1 toe)
32' Bombarde (toe) Previous (2 thumb & 1 toe)
Pedal Divide (thumb)
Péd Combs to G-O (button)* RECORD/PLAYBACK SEQUENCER
Péd Combs to Pos (button)* Remote Control via iPad
Péd Combs to Réc (button)*
Manual Interchange (thumb) EXPRESSION
Mixtures Muettes (button)* Balanced Récit Pedal+
Anches Muettes (button)* Balanced Positif Pedal+
Pos Nave Shutters Crescendo Pedal (4 settings)
Closed (button)* + with LED bar graph indictaor
Carillon (Tower
and/or Chancel (button)*
* with indicator lamp
[Received from Steven E. Lawson 2018-08-01]
