Better Pipe Organ Database

Schantz Organ Co. Opus A-185 (2010)

First Presbyterian Church
200 N. Lisbon St.
Carrollton, OH

Images

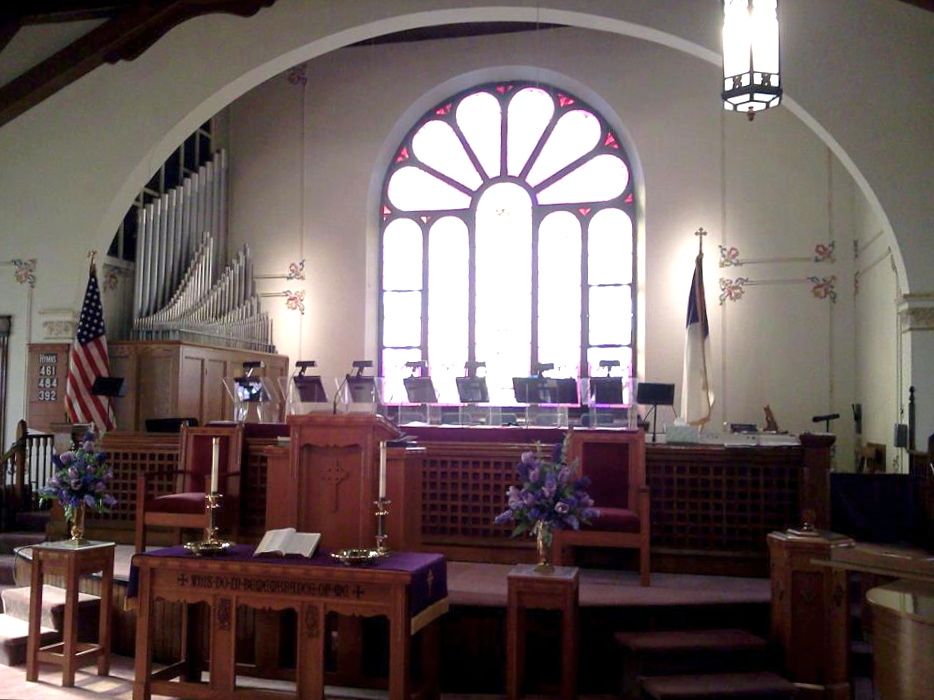

2012-03-07 - Chancel and Pipe Display (Photograph by John Rohr/Database Manager)

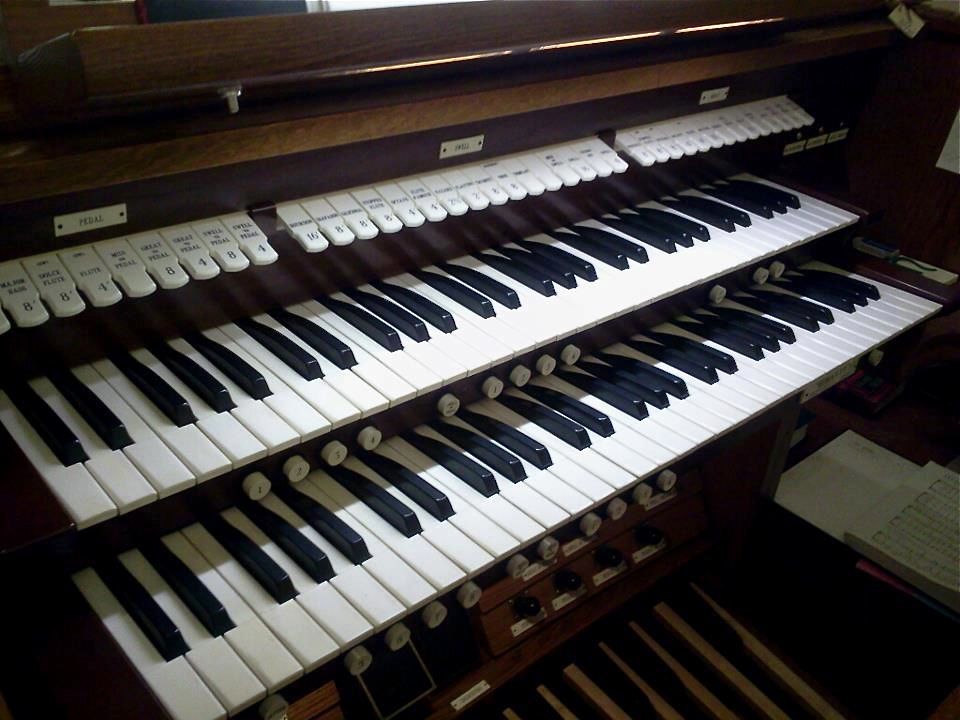

2012-03-07 - Console (Photograph by John Rohr/Database Manager)

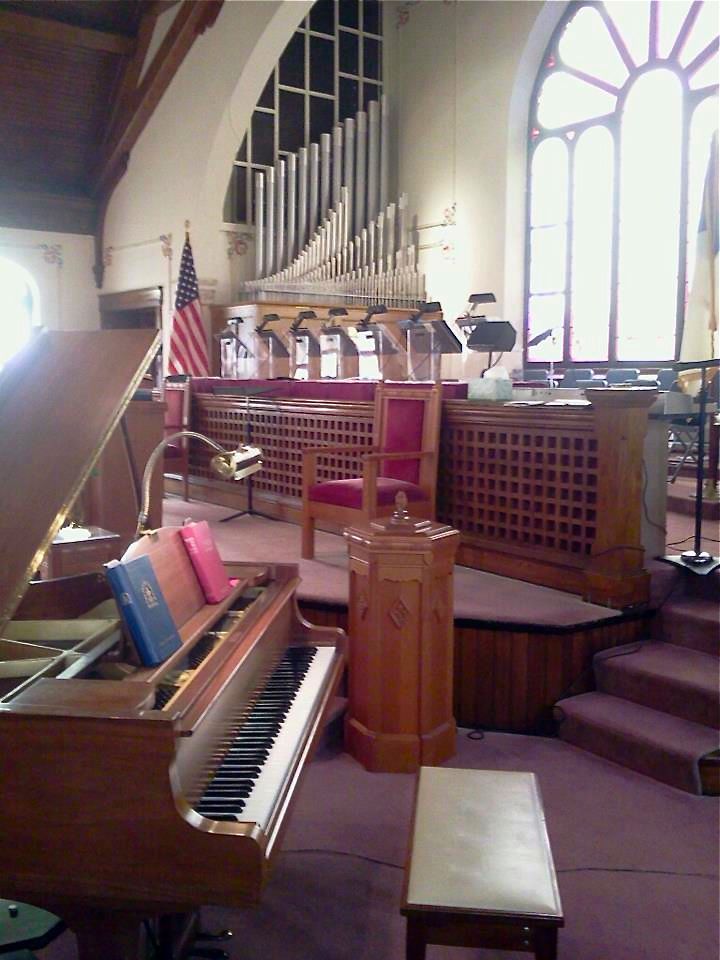

2012-03-07 - Chancel and Pipe Display (Photograph by John Rohr/Database Manager)

2012-03-02 - Stained Glass Window (Photograph by John Rohr/Database Manager)

Consoles

Main

2 manuals
9 stops
21 registers
Key action Type: Electrical
Stop action Type: Electrical
Manual compass: 61 notes
Pedal compass: 32 notes

Notes

2013-10-23 - This is a rebuild of an existing organ. Identified by Jeff Scofield, using information found in Factory specifications. -- -Database Manager

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

     Carrollton, Ohio
     First Presbyterian Church

     Schantz   Op. 185     1953
     Schantz   Op. 1761    1982         Additions
     Schantz   Op. A-185   2009   2/11  Rebuild
     ____________________________________________________________________________

     GREAT                       SWELL                        PEDAL
  8' Principal     61        16' Bourdon          61      16' Bourdon          32
  8' Stopped Flute SW         8' Diapason         61      16' Lieblich Gedeckt SW
  8' Dulciana      73 *       8' Salicional       73       8' Major Bass       12
  4' Octave        61         8' Stopped Flute    12       8' Dolce Flute      SW
  4' Flute         SW         4' Octave           12       4' Flute            SW
III  Mixture      183         4' Flute d'Amour    12          MIDI to Pedal
     Sub                  2 2/3' Nazard            7
     Unison Off               2' Flautino          5
     Super                    8' Trumpet          73
     Chimes                   8' Oboe            syn **
     MIDI to Great               Tremulant
                                 Sub
                                 Unison Off
                                 Super
                                 MIDI to Swell

  *  enclosed in SW          **  from Bourdon and Salicional

                  [Received from John Rohr October 14, 2013]

Related Pipe Organ Database Entries

#48743 - Schantz Organ Co. Opus 185 (1953)
