Better Pipe Organ Database

Casavant Frères Ltée. Opus 2968 (1968)

St. Mark's Episcopal Church
147 W. Main St.
New Britain, CT

Images

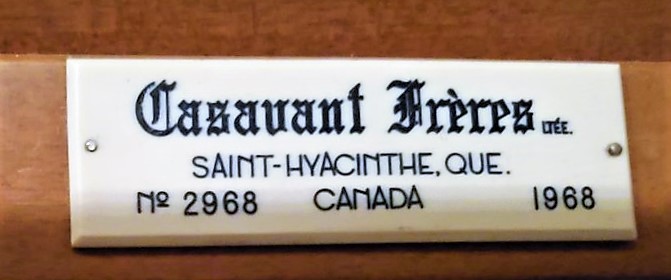

Unknown - Builder nameplate (Photograph by Organ Clearing House, submitted by Jeff Scofield/Jeff Scofield)

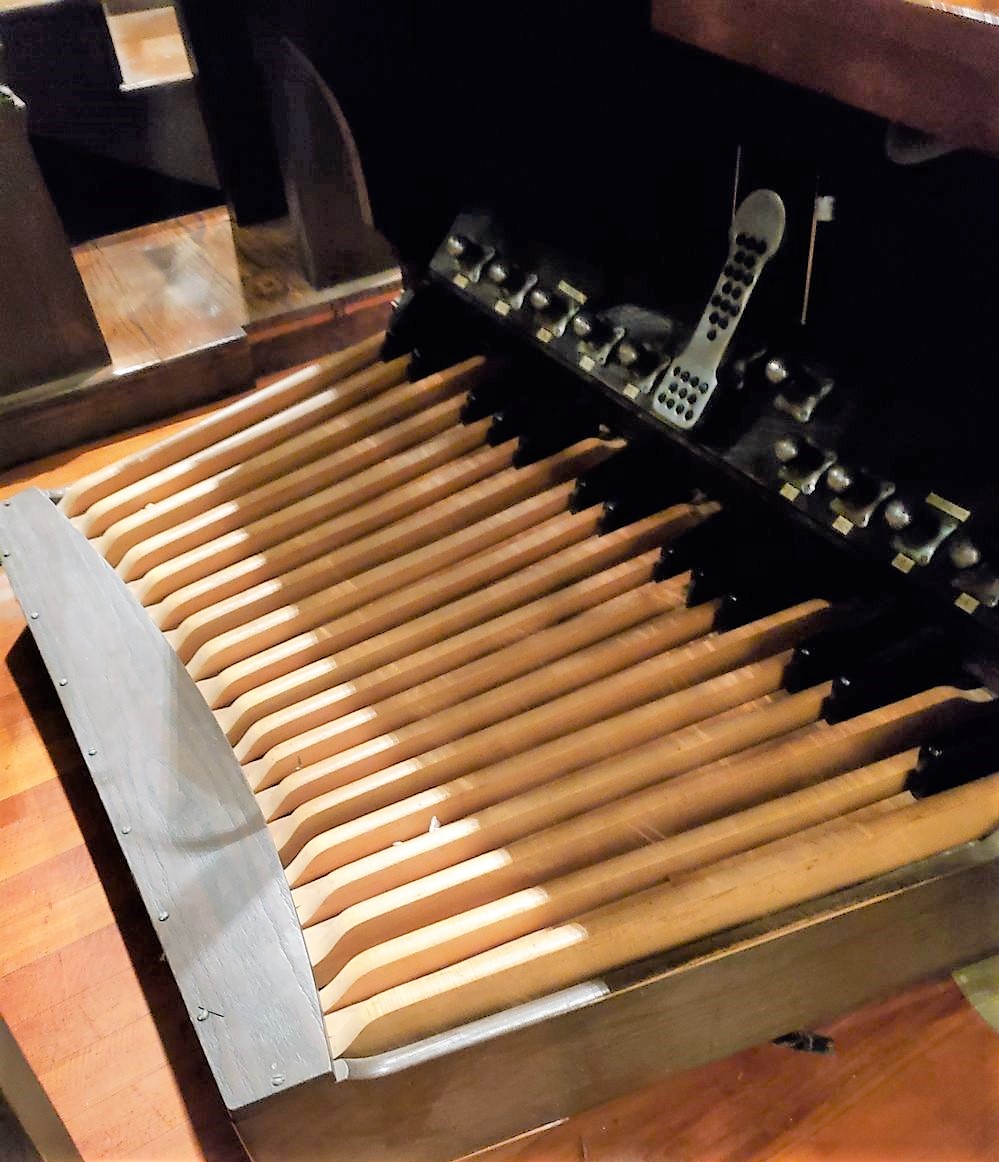

Unknown - Pedal board and toe stud terrace (Photograph by Organ Clearing House, submitted by Jeff Scofield/Jeff Scofield)

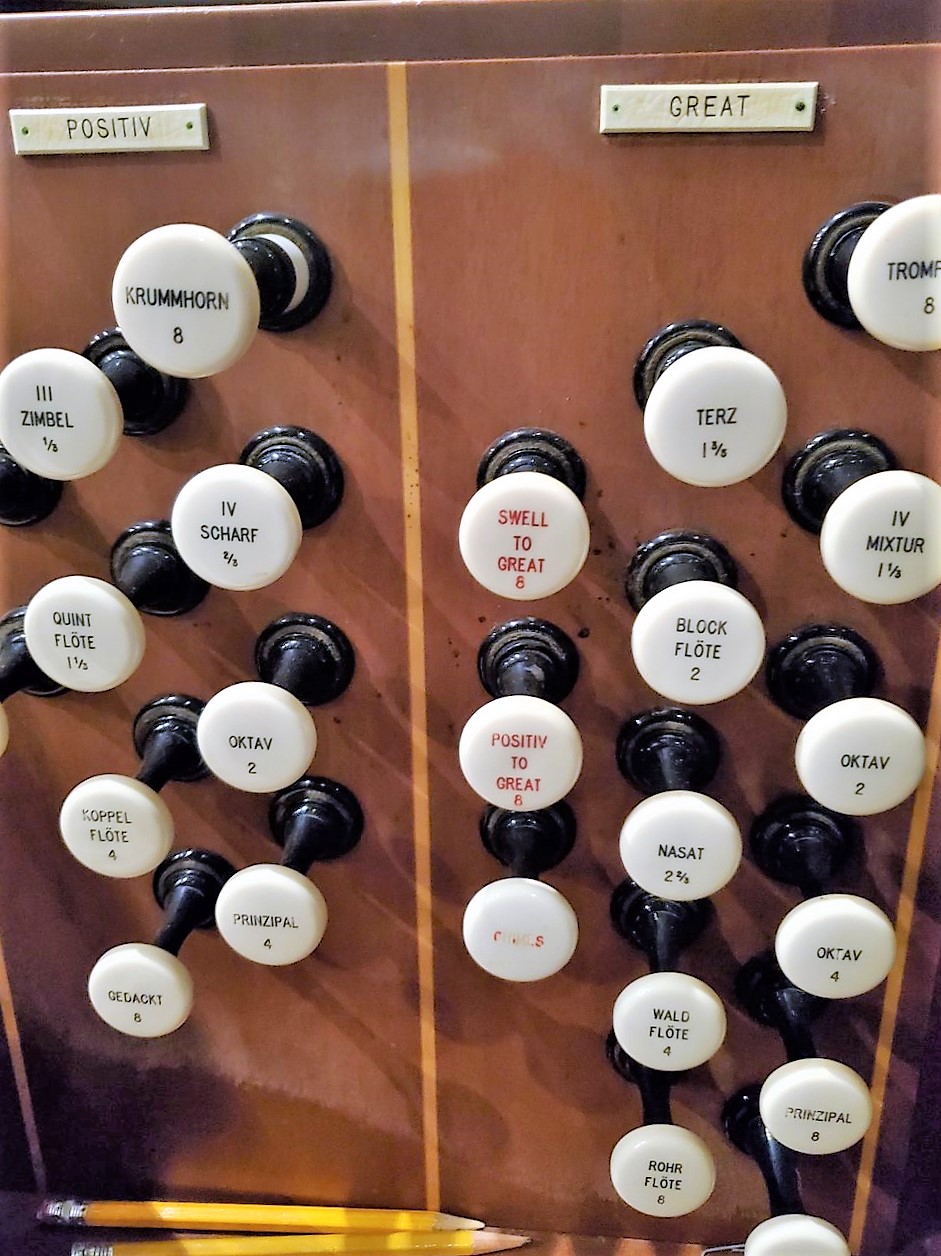

Unknown - Right stopjamb (Photograph by Organ Clearing House, submitted by Jeff Scofield/Jeff Scofield)

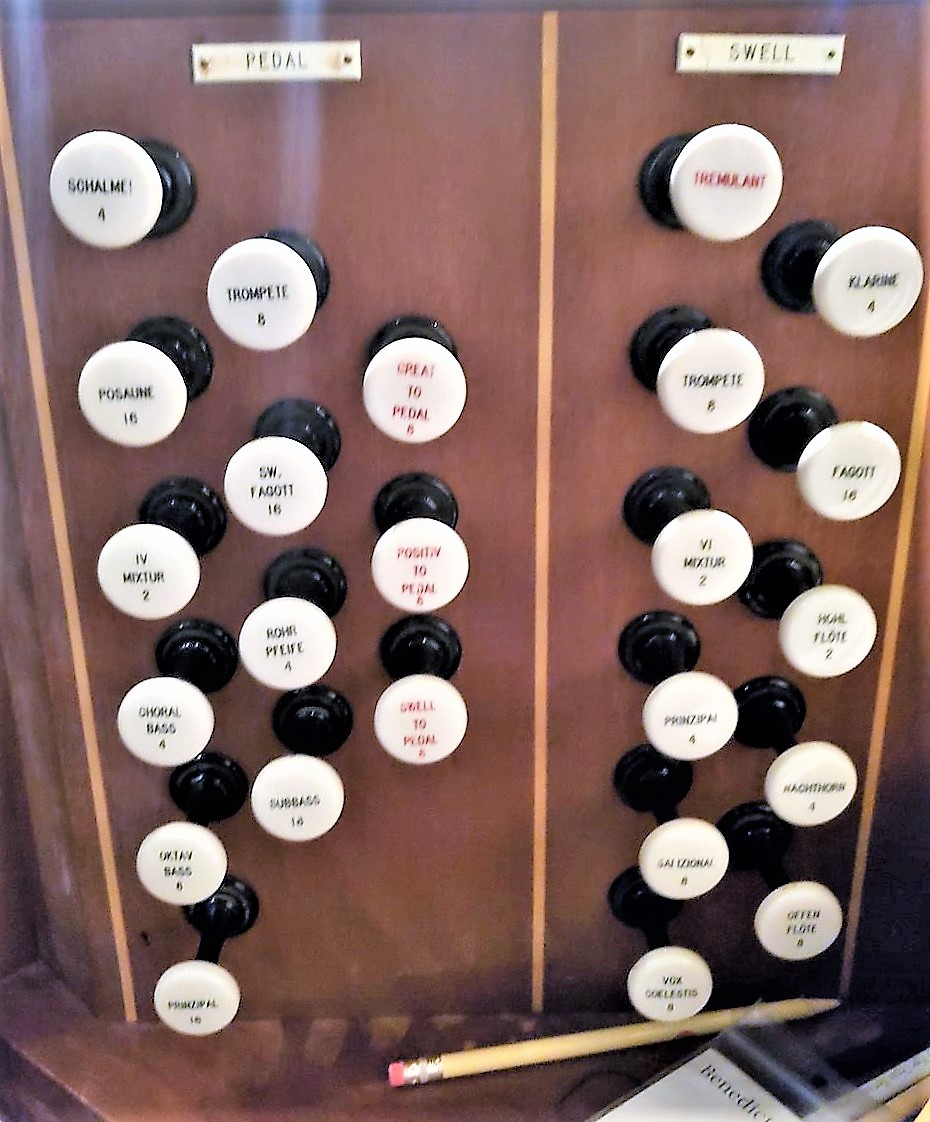

Unknown - Left stopjamb (Photograph by Organ Clearing House, submitted by Jeff Scofield/Jeff Scofield)

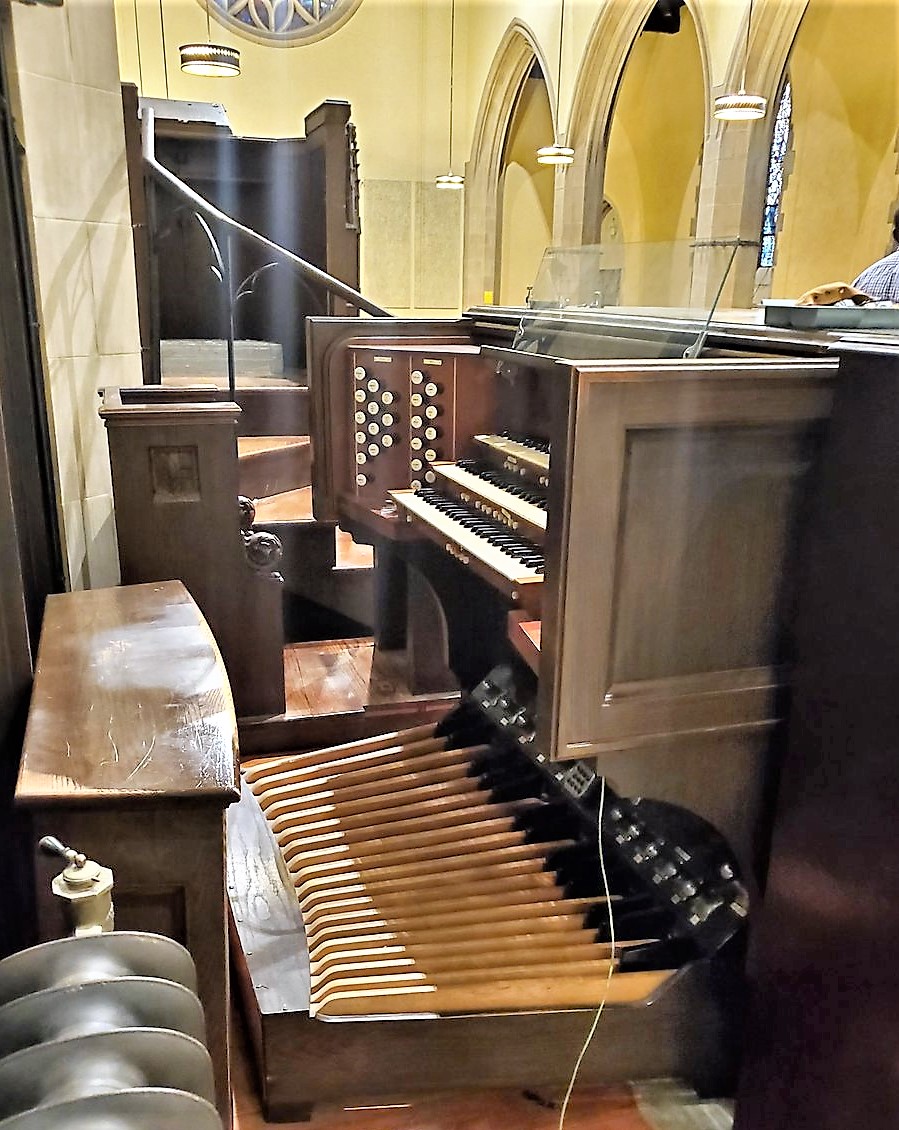

Unknown - Console (Photograph by Organ Clearing House, submitted by Jeff Scofield/Jeff Scofield)

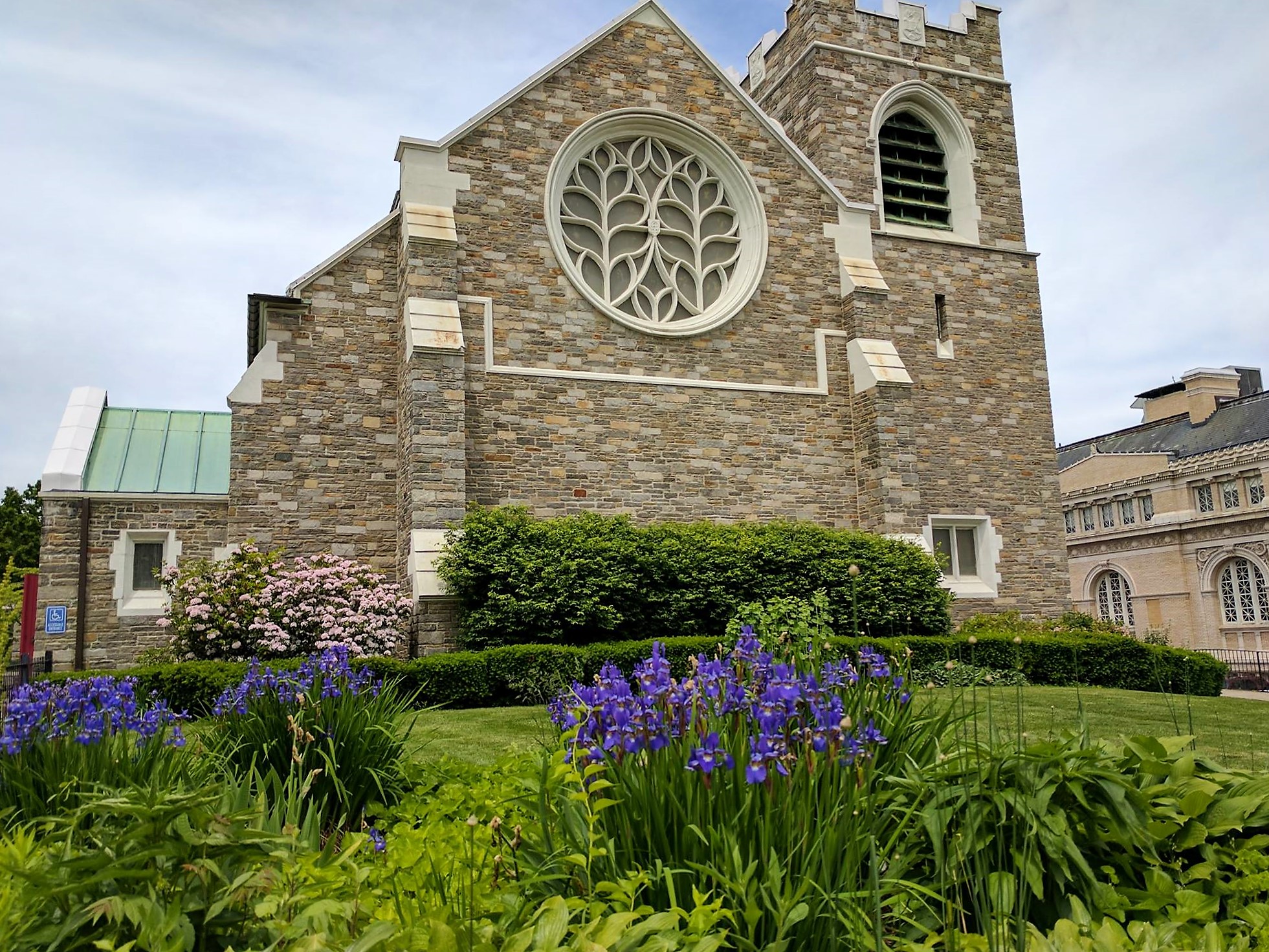

2017-06-08 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

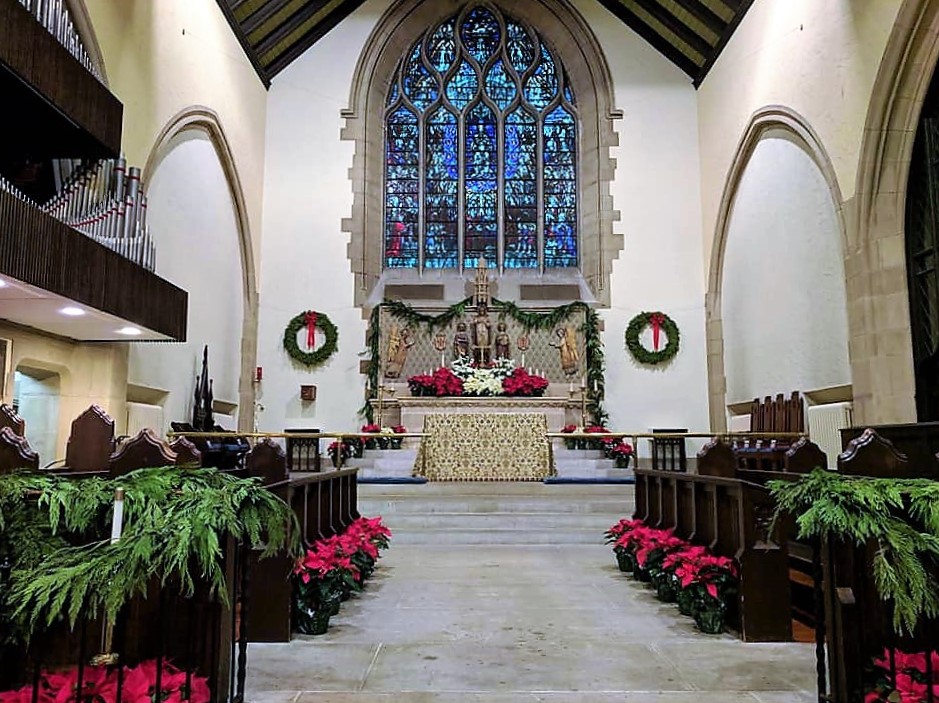

2018-12-24 - Chancel and exposed pipes (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
38 stops
39 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 56 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Remote Pneumatic/Mechanical Capture
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti toe pistons

Notes

2010-11-29 - Identified through online information from Jeff Scofield. -Database Manager

2021-04-28 - Due to a much smaller congregation, St. Mark's sold their buildings to Right Now Ministries in 2018 and moved to the chapel of South Congregational Church, where they share the building with South Church and three other congregations; the organ was offered for sale via The Organ Clearing House. -Jeff Scofield

Stoplist

Stoplist copied from the factory specifications Source: Source not recorded Date not recorded

       New Britain, Connecticut
       St. Mark's Episcopal Church

       Casavant   Op. 2968   1968   3/54

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada
       _________________________________________

       GREAT                   SWELL
   16' Quintaden    56      8' Offenflöte     56
    8' Prinzipal    56      8' Salizional     56
    8' Rohrflöte    56      8' Vox coelestis  44 tc
    4' Oktav        56      4' Prinzipal      56
    4' Waldflöte    56      4' Nachthorn      56
2 2/3' Nasat        56      2' Hohlflöte      56
    2' Oktav        56     VI  Mixtur        336
    2' Blockflöte   56     16' Fagott   L/2   56
1 3/5' Terz         56      8' Trompete       56
   IV  Mixtur      224      4' Klarine        56
    8' Trompete     56         Tremulant
       Chimes (existing)
                               PEDAL
       POSITIV             16' Prinzipal      32
    8' Gedackt      56     16' Subbass        32
    4' Prinzipal    56      8' Oktavbass      32
    4' Koppelflöte  56      4' Choralbass     32
    2' Oktav        56      4' Rohrpfeife     32
1 1/3' Quintflöte   56     IV  Mixtur        128
   IV  Scharf      224     16' Posaune        32
  III  Zimbel      168     16' Fagott         SW
    8' Krummhorn    56      8' Trompete       32
       Tremulant            4' Schalmei       32

[Received online from Jeff Scofield November 30, 2010]
