All Saints Roman Catholic Church / St. Joseph's Roman Catholic Church
120 Bellevue Ave.
Haverhill, MA
Images

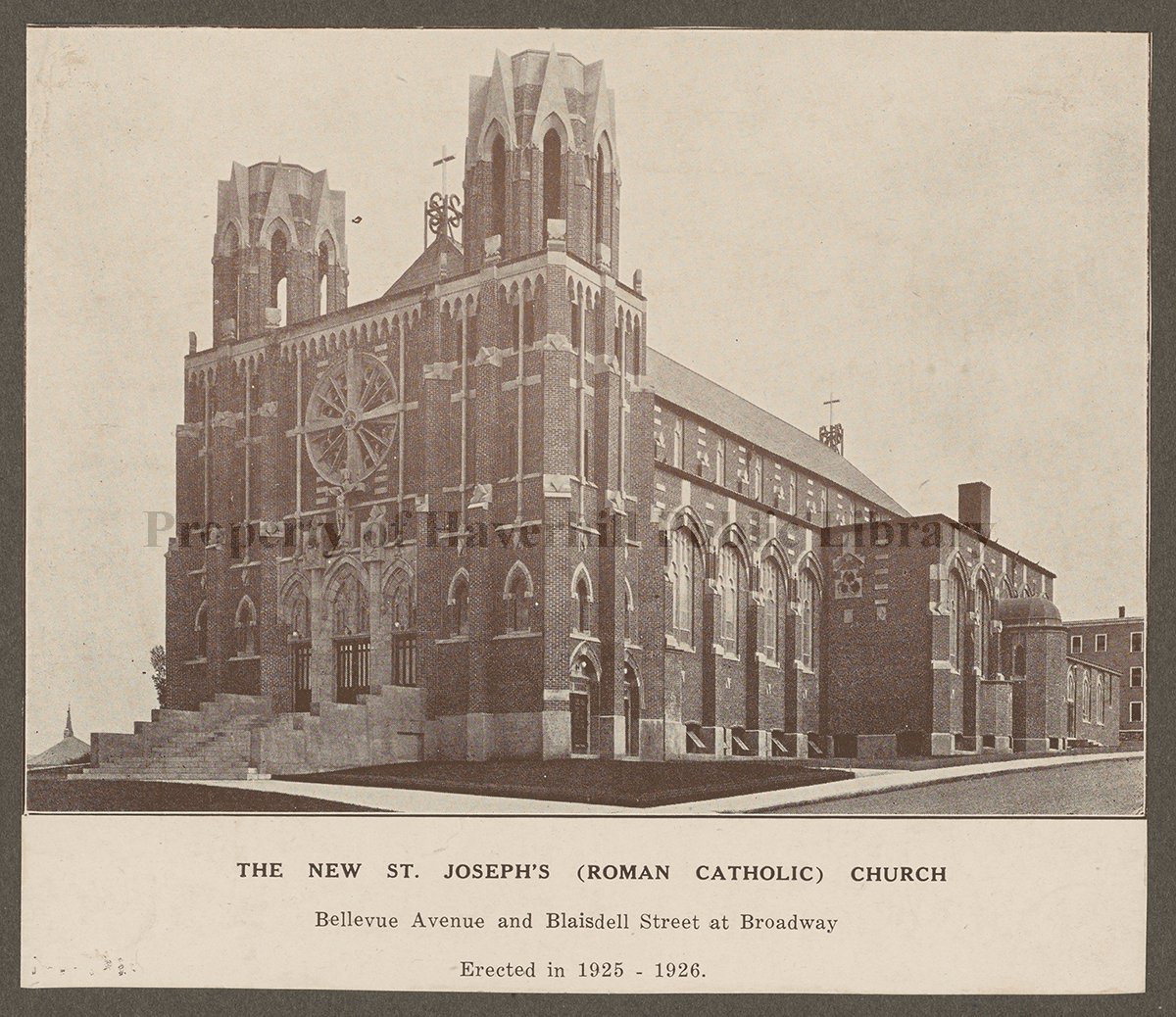

1925 - Exterior (Photograph from an archival source: Haverhill Public LIbrary Special Collections, submitted by Andrew Scanlon/Andrew Scanlon)

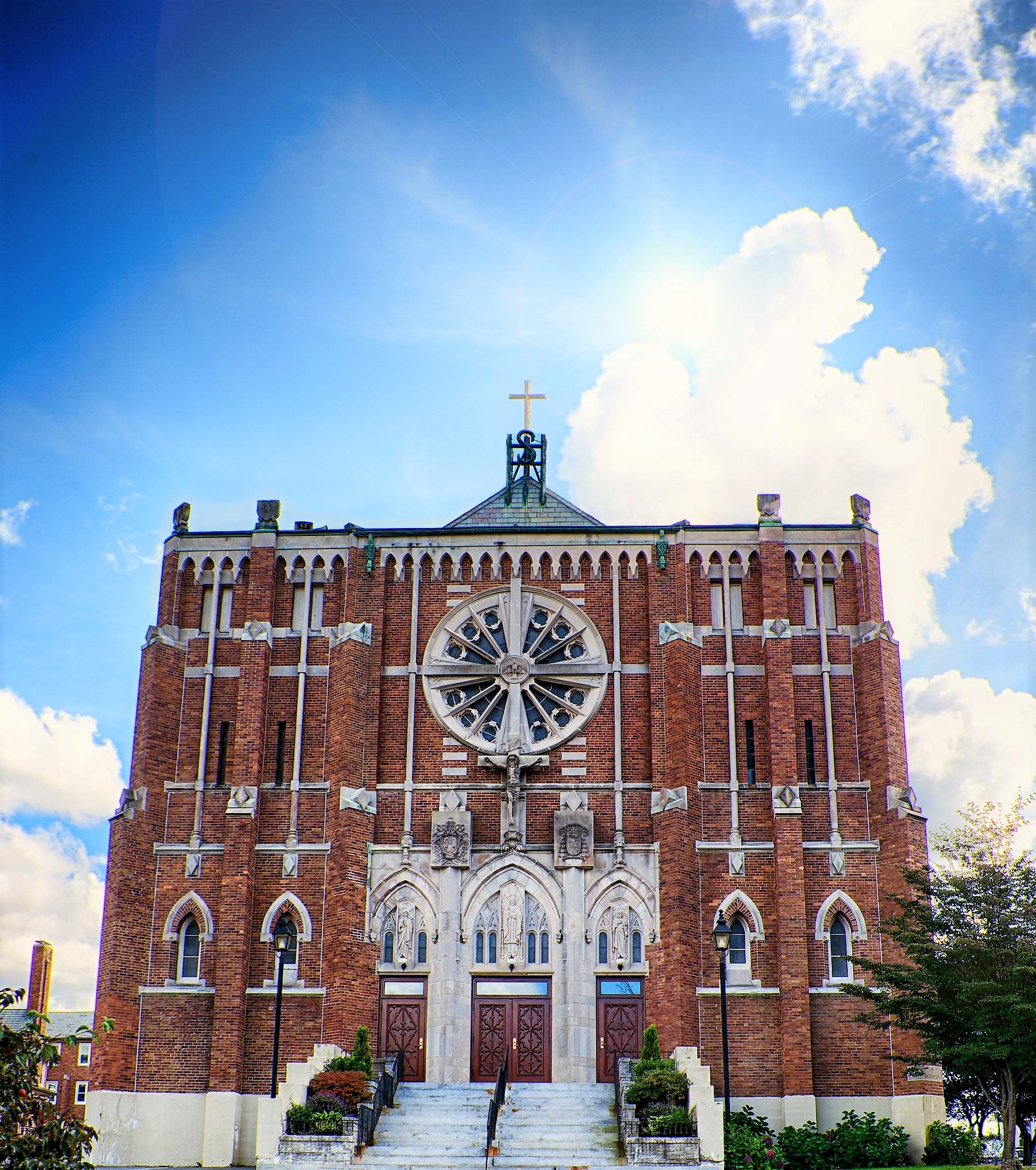

2020-01-31 - Church exterior (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

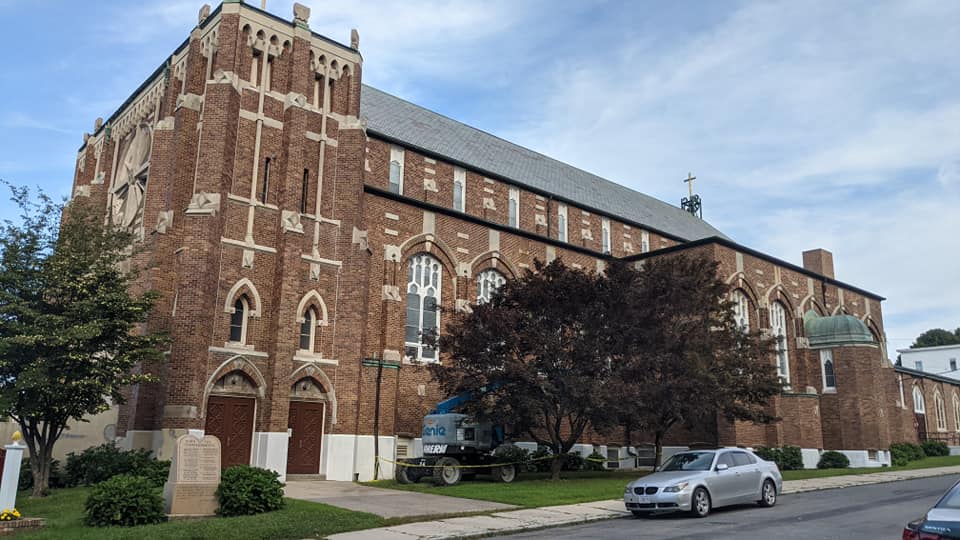

2021-08-21 - Church exterior (Photograph by Brink Bush, via Facebook/Jeff Scofield)

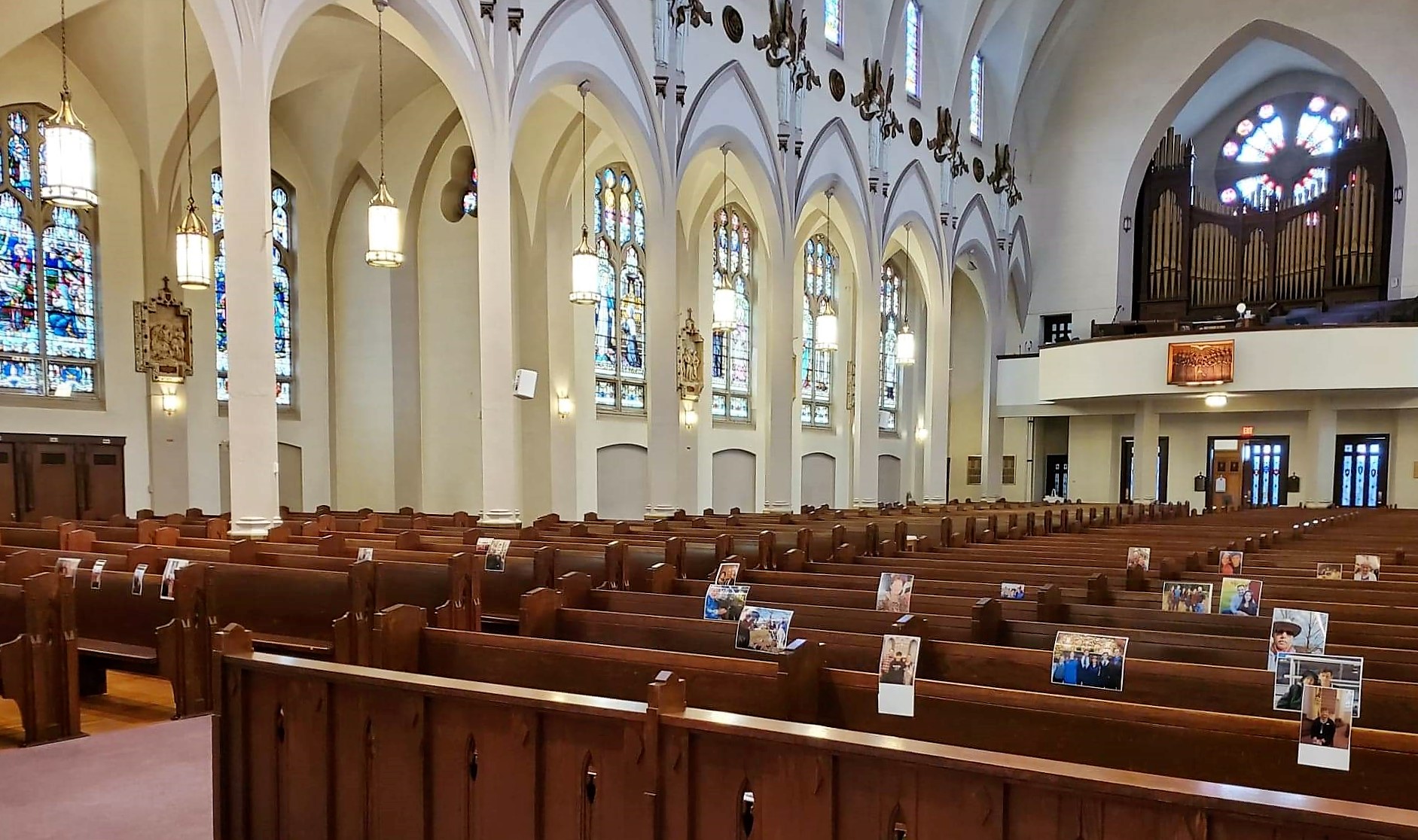

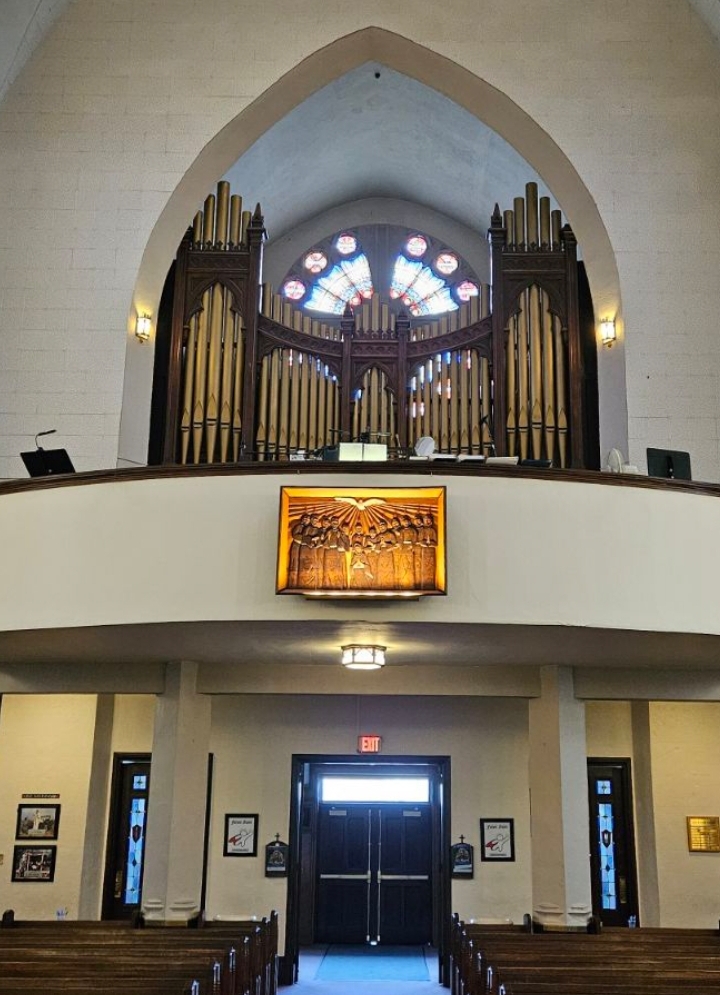

2020-04-10 - Church interior, gallery and organ case (Photograph by Church Facebook, submitted by Jeff Scofield/Jeff Scofield)

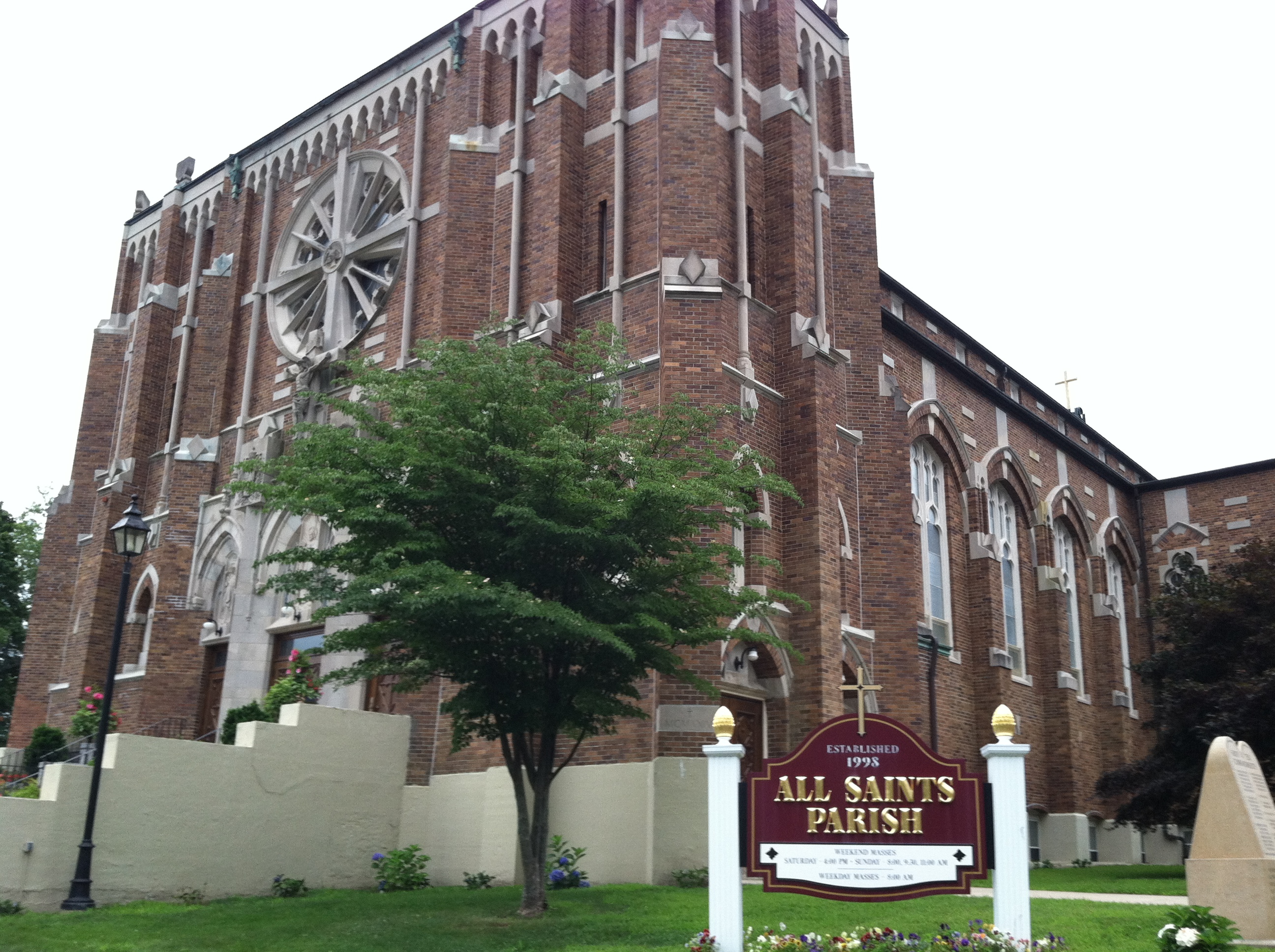

Summer 2013 - Church exterior (Photograph by Andrew Scanlon/Andrew Scanlon)

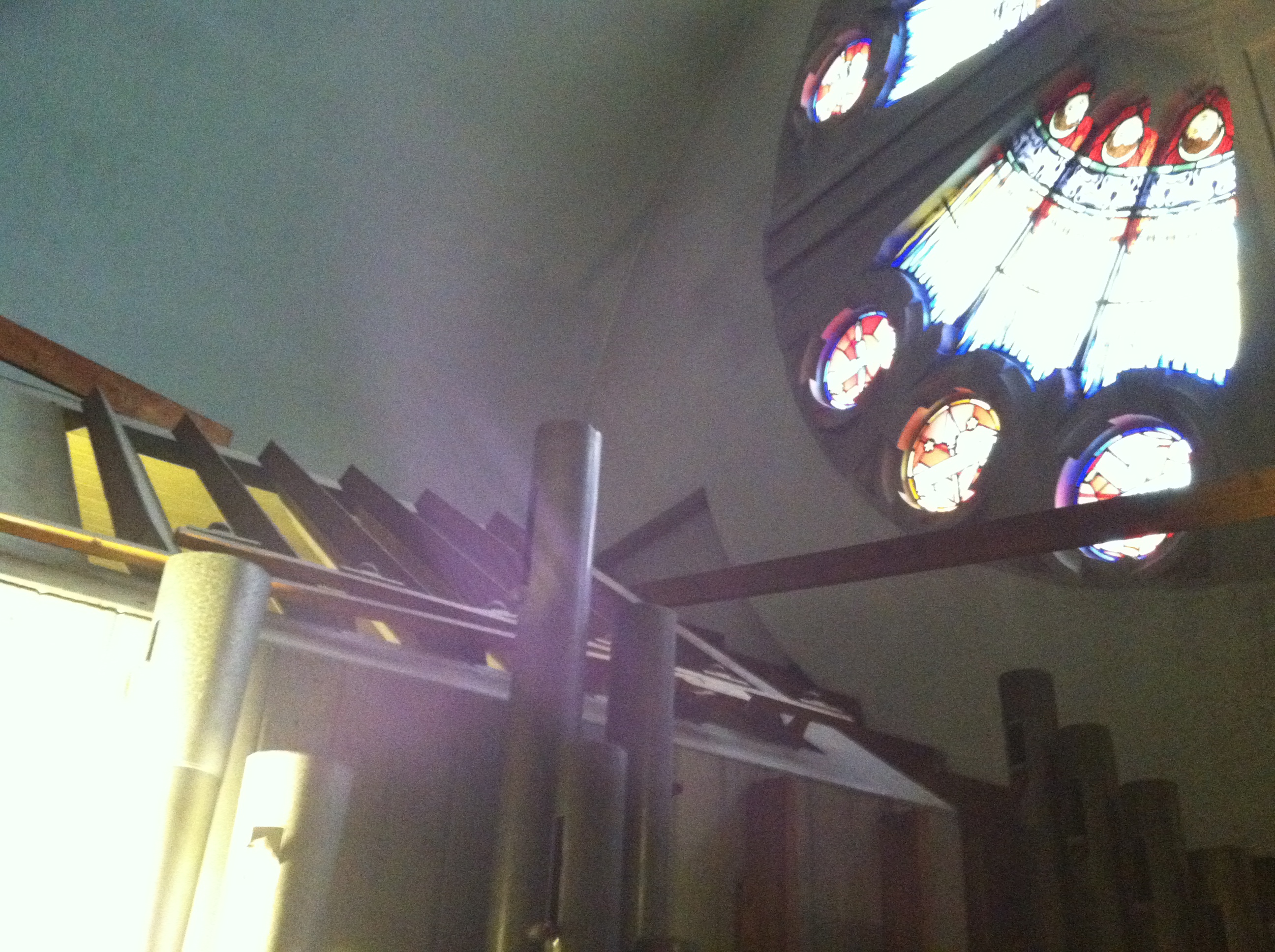

Summer 2013 - Chamber showing swell box with shades on side and top (Photograph by Andrew Scanlon/Andrew Scanlon)

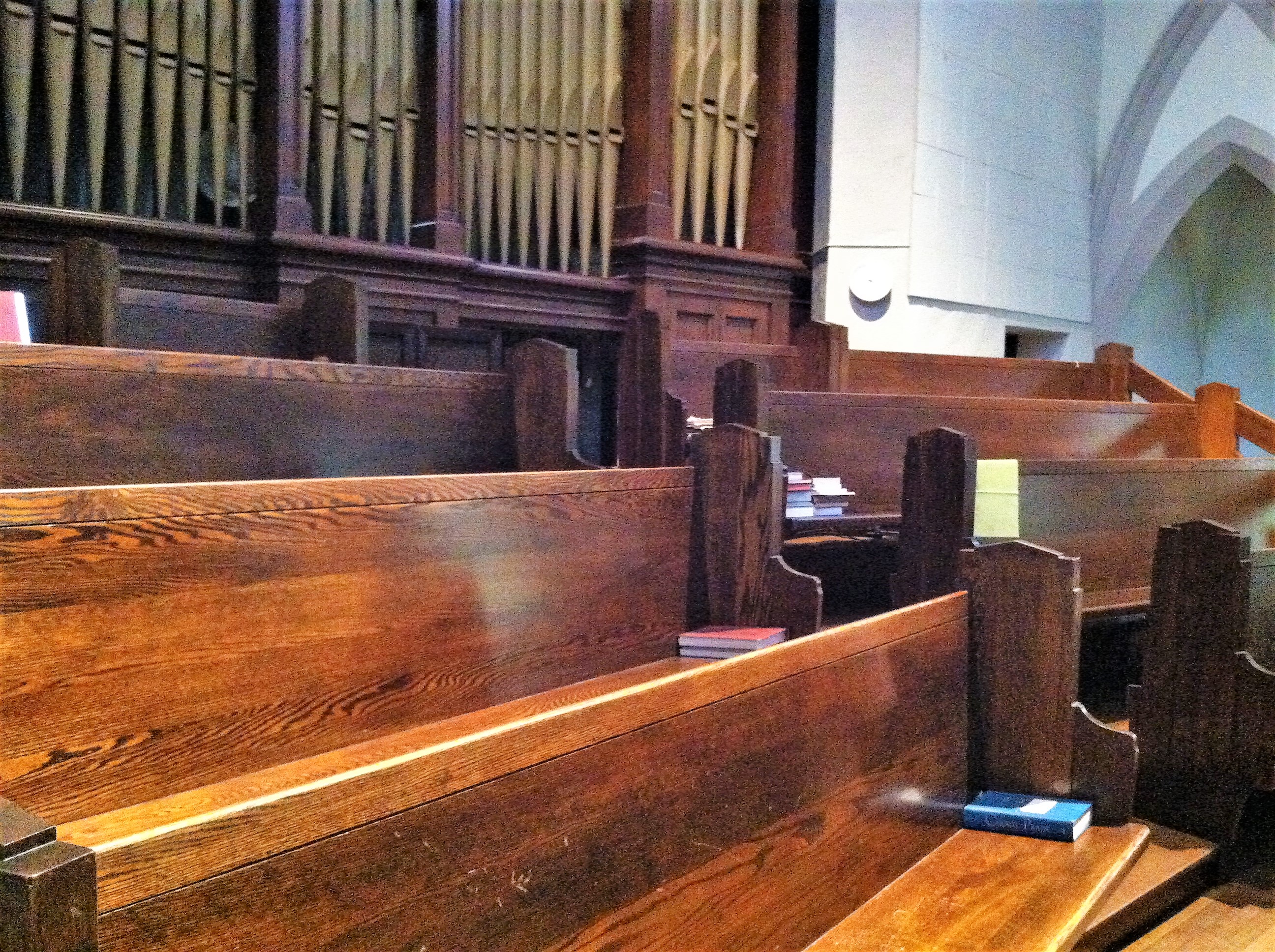

Summer 2013 - Choir loft, tiered choir pews and front pipes (Photograph by Andrew Scanlon/Andrew Scanlon)

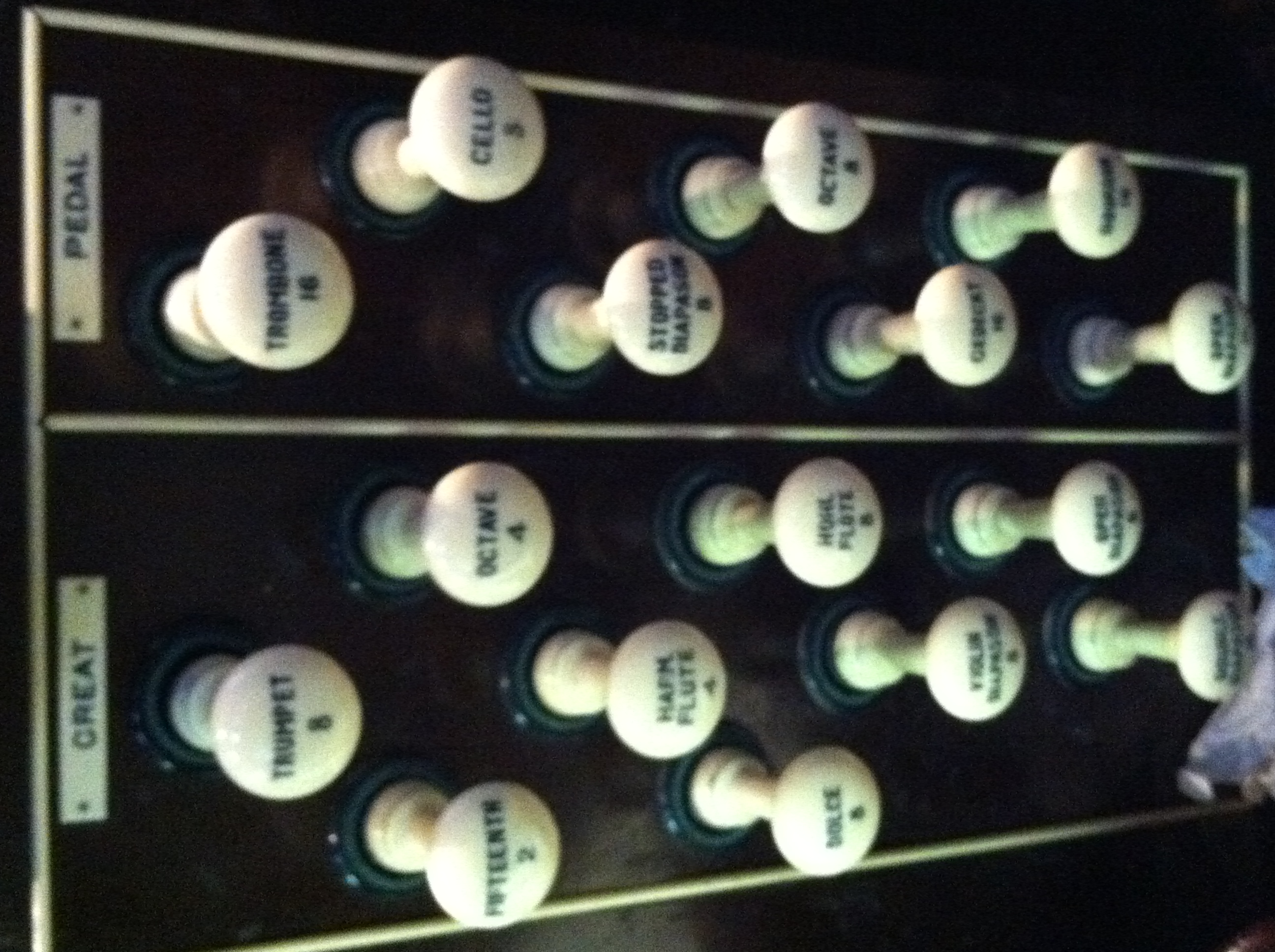

Summer 2013 - Great and pedal stops (Photograph by Andrew Scanlon/Andrew Scanlon)

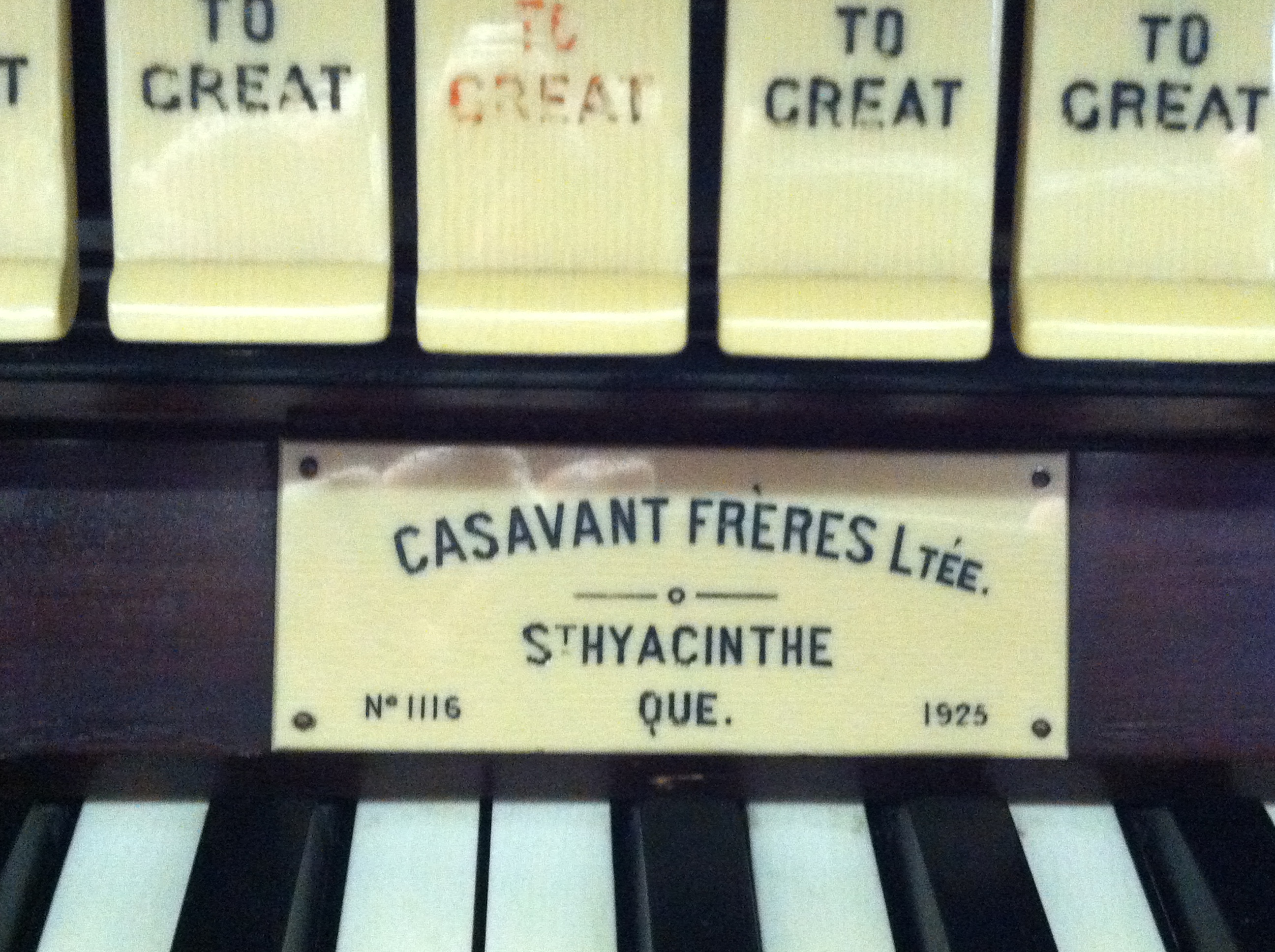

Summer 2013 - Builder's nameplate (Photograph by Andrew Scanlon/Andrew Scanlon)

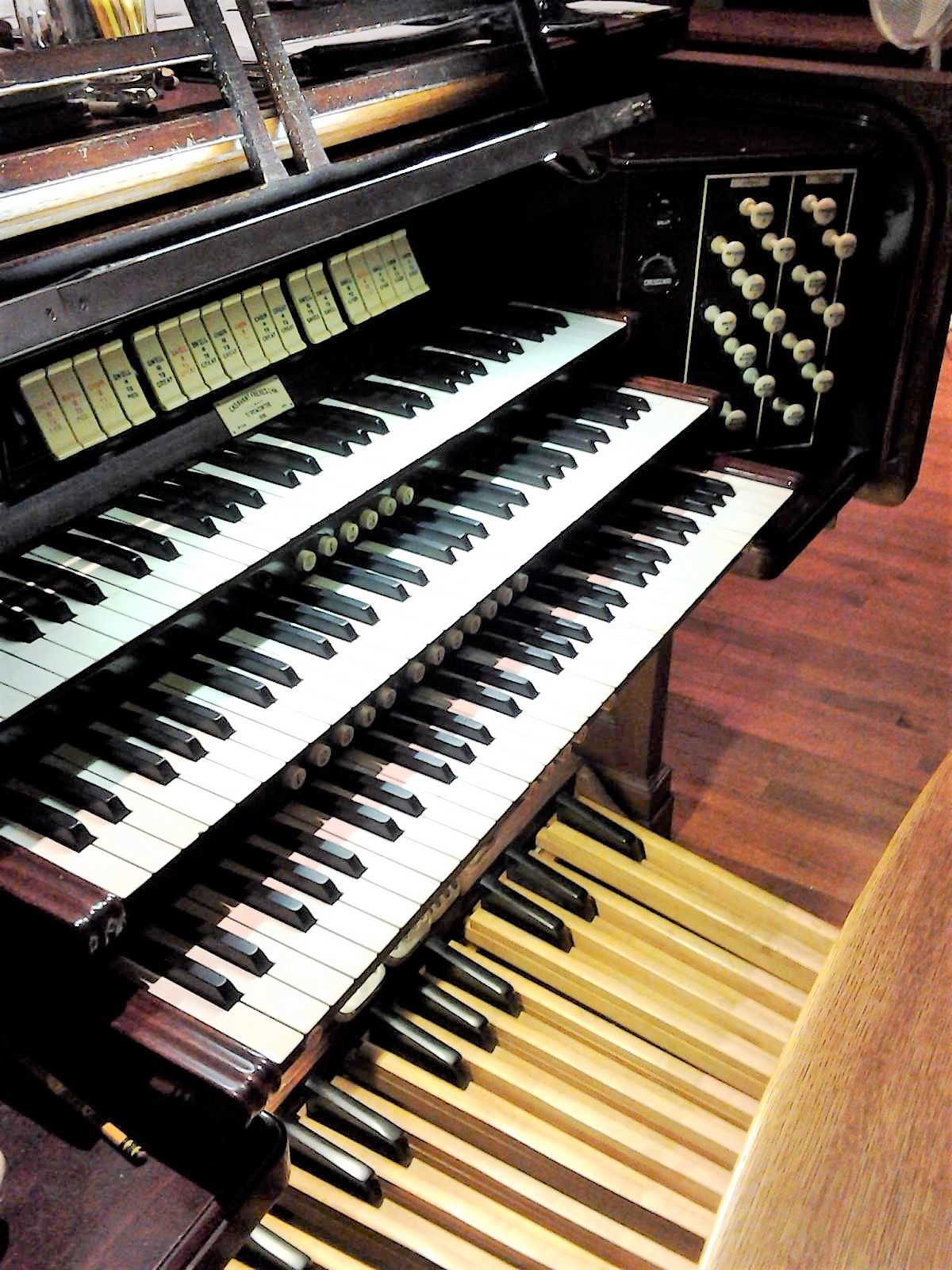

Unknown - Console ((2013) Photograph by Mark Pichowicz/Database Manager)

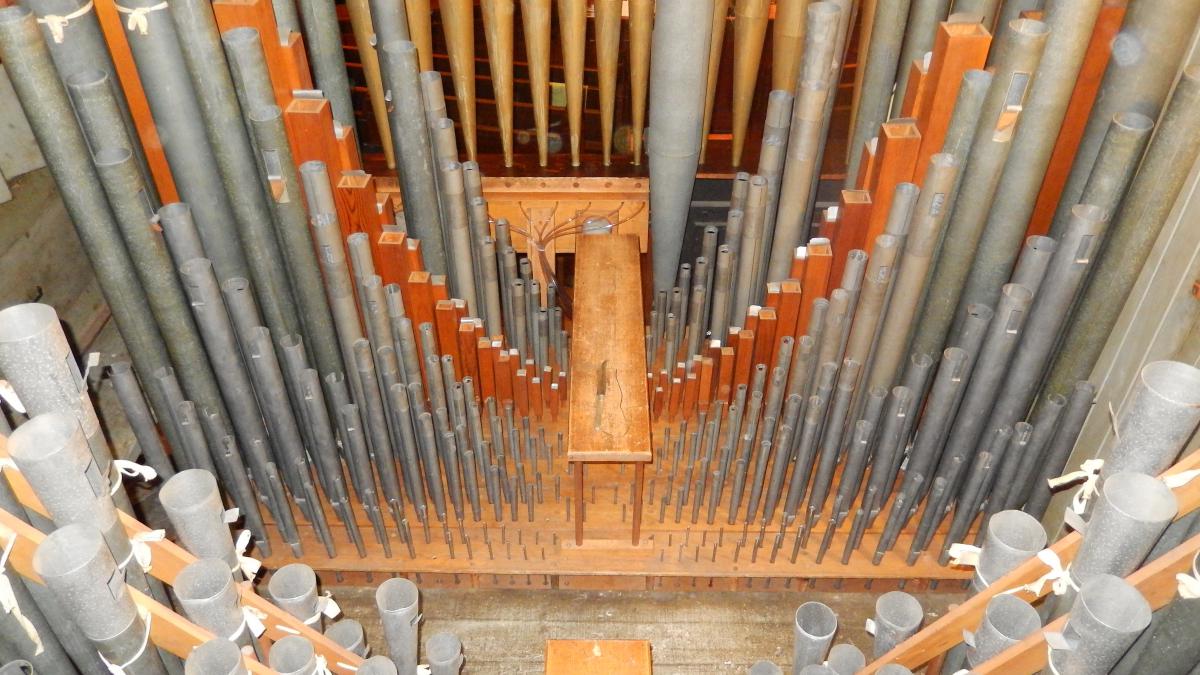

Unknown - Great Pipework ((2013) Photograph by Mark Pichowicz/Database Manager)

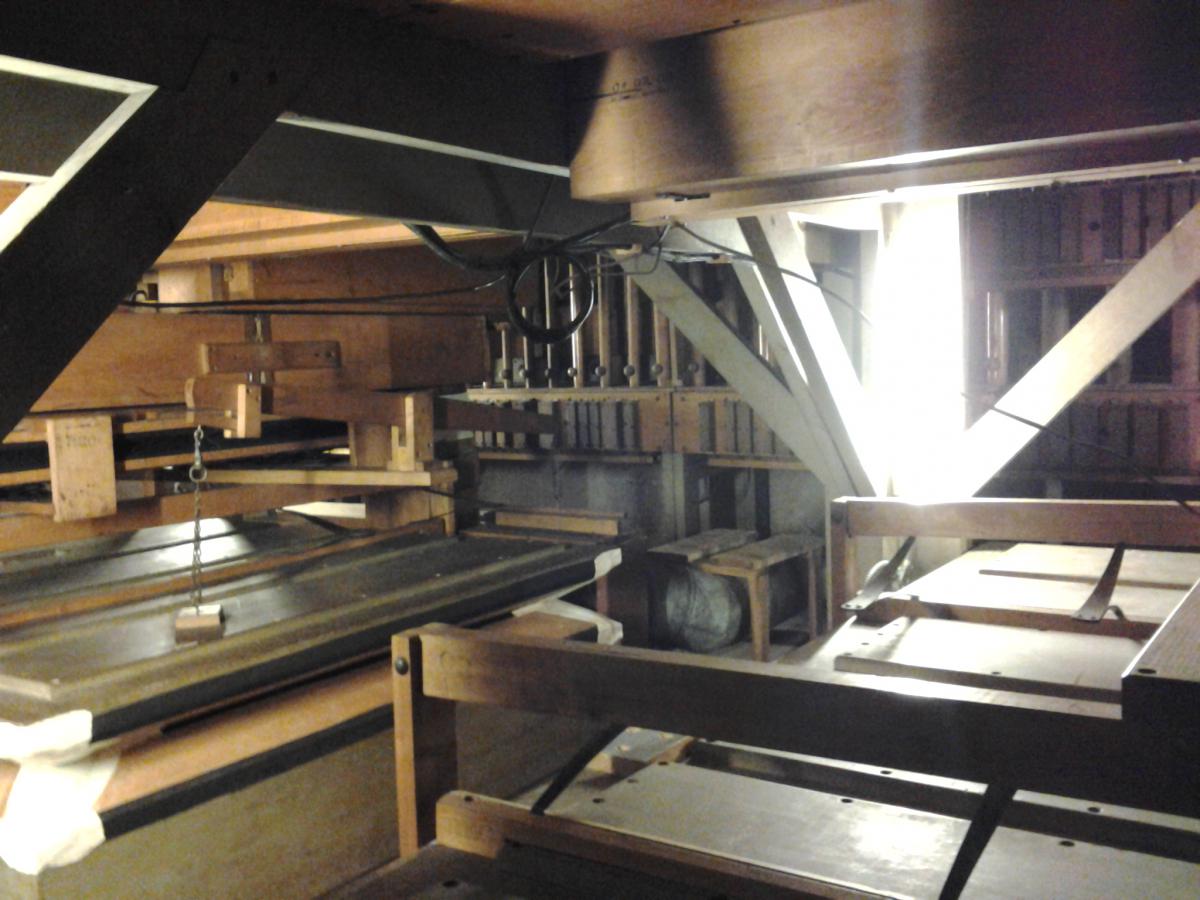

Unknown - Winding ((2013) Photograph by Mark Pichowicz/Database Manager)

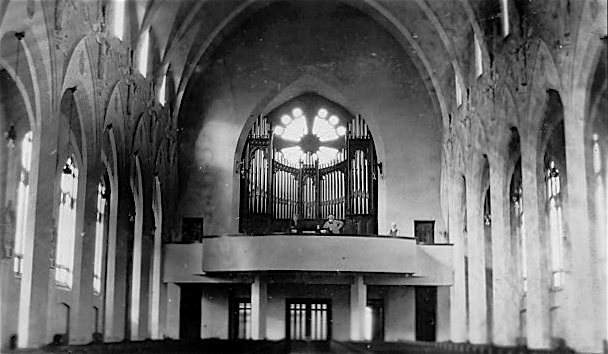

1925-11-02 - Nave, Gallery, and Organ Case (Photograph courtesy of the Casavant Frères Archives/Database Manager)

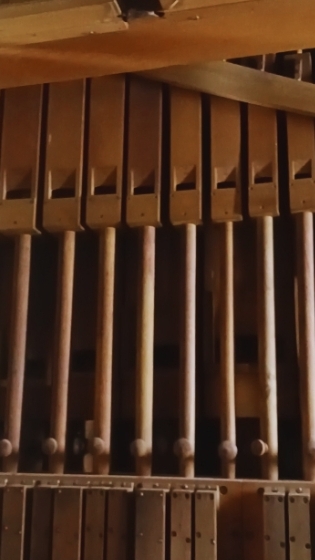

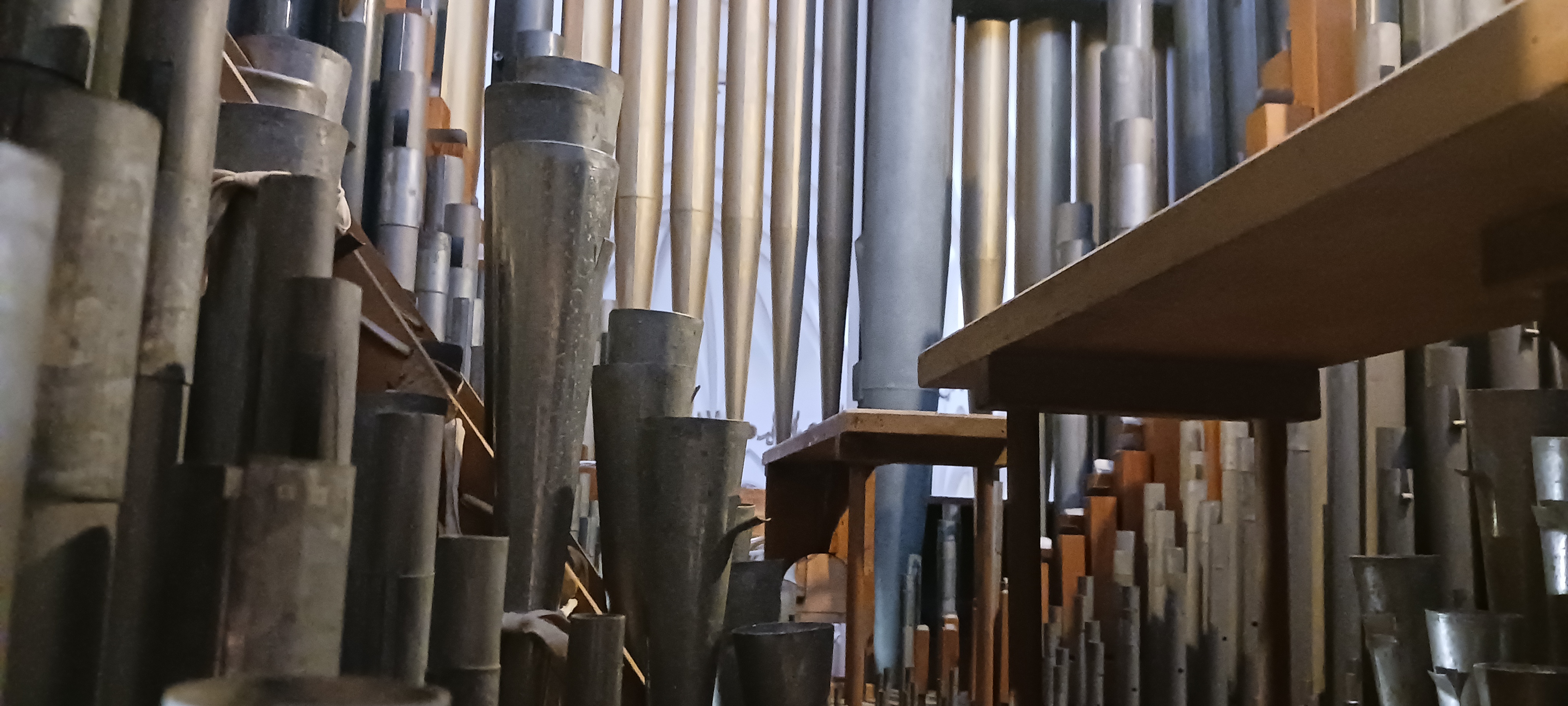

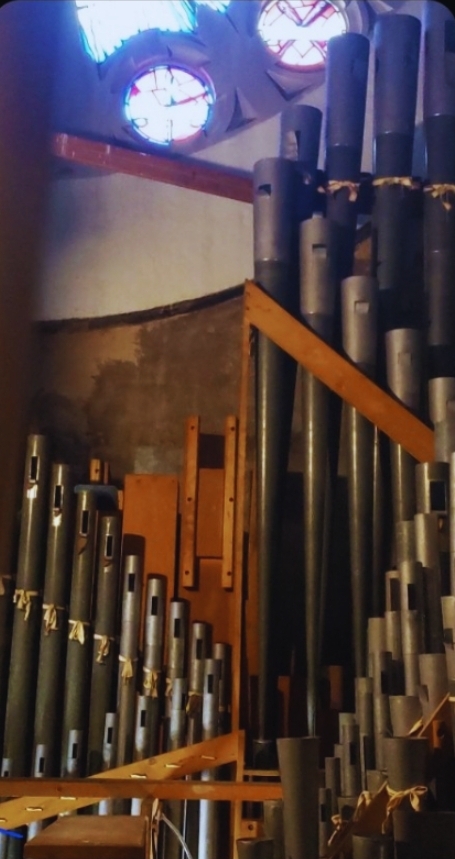

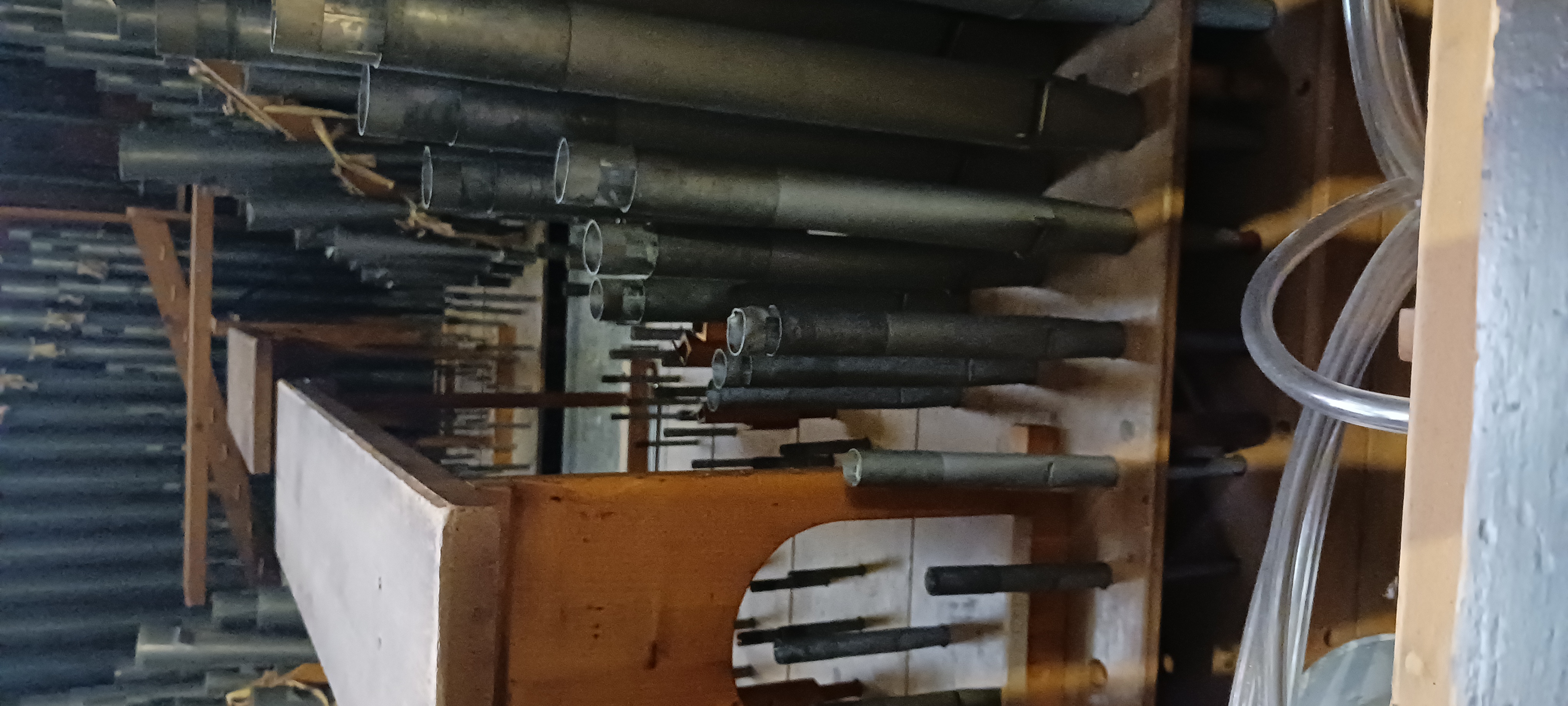

2024 - Pipework (Stephen W./Stephen W.)
2024 - Pipework (Stephe W./Stephen W.)

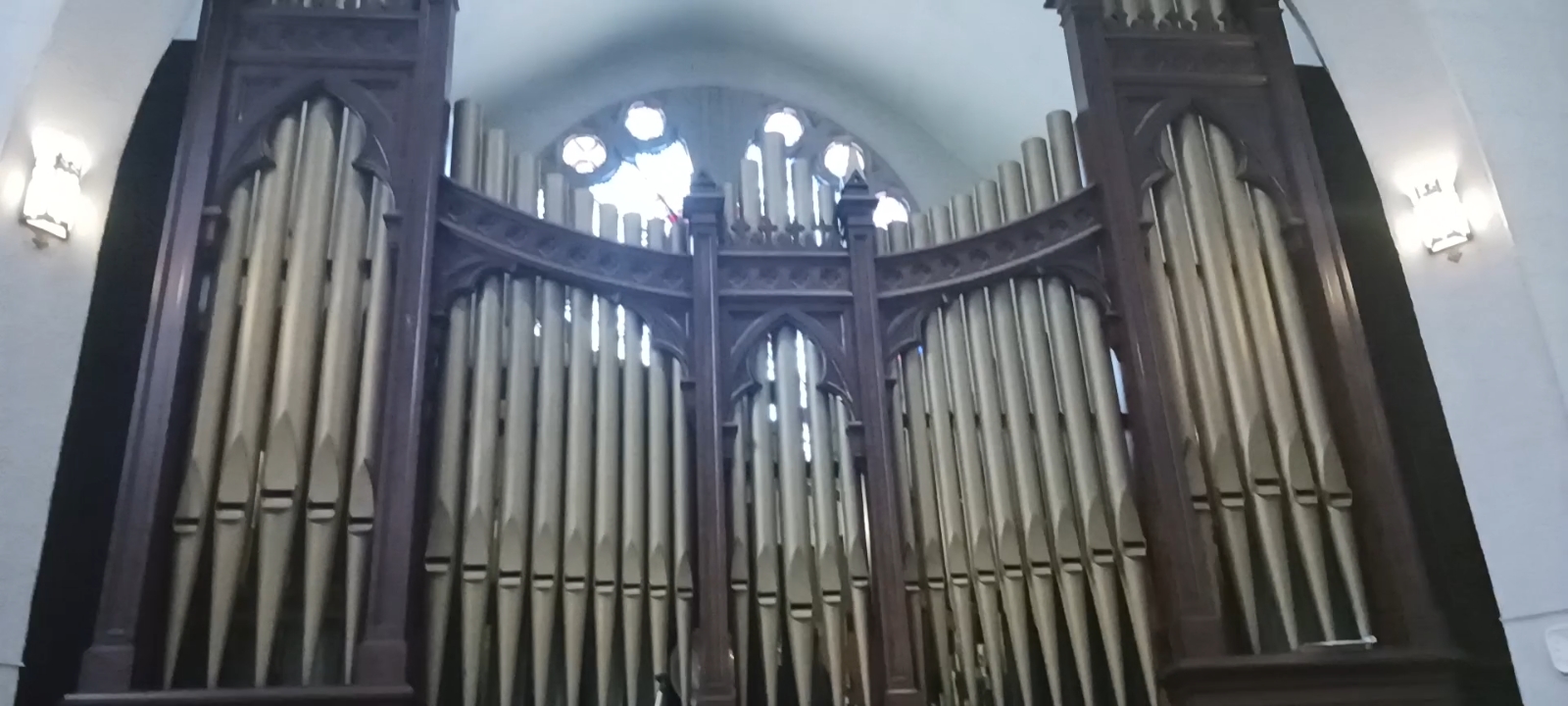

2024 - Facade (Stephen W./Stephen W.)
2024 - Pipework (Stephen W./Stephen W.)
2024 - Pipework (Stephen W./Stephen W.)
2024 - Facade (Stephen W./Stephen W.)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 32 stops
- 35 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 30 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Adjustable Combination Pistons
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has tutti toe pistons
Notes
2010-12-02 - Identified through online information from Jeff Scofield. -- Merged with three other parishes on August 29, 1998, to become All Saints Parish, using the St. Joseph's facility. -Database Manager
2012-09-20 - Updated through online information from Fr. George Hafemann. -- This organ is a superb period Casavant. It is tonally and mechanically unaltered. In the fall of 2011, Daniel Kingman and Fred MacArthur tuned the organ top to bottom (it hadn't been touched in years). While there are several dead notes, and the organ is in need of a thorough cleaning and releathering, it fills the room beautifully. -Database Manager
2016-05-22 - Updated through online information from Mark Pichowicz. <br>The original blower motor was repaired in 1999. The SW and CH was releathered by the Morel Co. in 2003. The organ was entirely cleaned, GT and PED releathered, and console combination action repaired in 2013 by Pichowicz. This instrument is entirely original and in excellent playing condition. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Haverhill, Massachusetts
St. Joseph's R.C. Church
Casavant Op. 1116 1925 3/34
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
_______________________________________________
GREAT SWELL
16' Dbl Open Diapason 68 16' Bourdon 68
8' Open Diapason 68 8' Open Diapason 68
8' Violin Diapason 68 8' Stopped Diapason 68
8' Hohlflöte 68 8' Viola di Gamba 68
8' Dolce 68 8' Voix Céleste 49
4' Octave 68 8' Aeoline 68
4' Harmonic Flute 68 4' Flauto Traverso 68
2' Fifteenth 61 2' Piccolo 61
8' Trumpet 68 III Dolce Cornet 204
Super 8' Cornopean 68
8' Oboe 68
CHOIR 8' Vox Humana 68
8' Geigen Principal 68 Tremulant
8' Melodia 68 Sub
8' Viole d'Orchestre 68 Super
8' Dulciana 68
4' Waldflöte 68 PEDAL
2' Flageolet 61 16' Open Diapason 30
8' Clarinet 68 16' Bourdon 30
Tremulant 16' Gedeckt SW
Sub 8' Octave 12
Super 8' Stopped Diapason 12
8' Violoncello 30
16' Trombone 30
[Received online from Jeff Scofield December 5, 2010]
