Better Pipe Organ Database

Schantz Organ Co. Opus 1574 (1979)

Grace Lutheran Church: Sanctuary
300 S. Grant Street
Fairmont, MN

Images

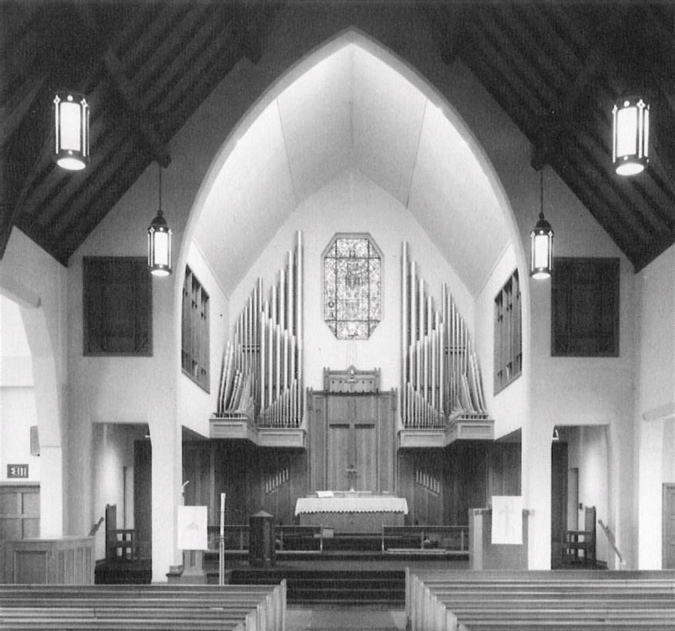

1979-12-14 - Sanctuary Interior, Chancel, and Pipe Display (Image from Schantz Promotional Material; used with permission/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
3 manuals
37 stops
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has combination thumb pistons
Has tutti toe pistons

Notes

2010-12-08 - Identified through on-line information from Chad Boorsma -- The entire Great division and part of the Pedal division are exposed on the front wall and on chests on each side of the chancel. -Database Manager

2012-11-13 - Updated through online information from Richard C Greene. -- The organ was updated in 2003. The console was converted to solid state and made moveable. A zimbelstern was also added. -Database Manager

Stoplist

Stoplist provided by Schantz Organ Company Source: Source not recorded Date not recorded

Fairmont, Minnesota
GRACE LUTHERAN CHURCH

Schantz Organ Company    Opus 1574    1979    35 ranks
_________________________________________________________________

GREAT: (exposed)                SWELL:
   8' Principal 61                  8' Bordun 61
   8' Rohrflöte 61                  8' Viole 61
   4' Octave 61                     8' Viole Celeste [TC] 49
   4' Spitzflöte 61                 4' Principal 61
   2' Super Octave 61               4' Flute Harmonique 61
  IV  Fourniture 244                2' Waldflöte 61
      Chimes                       IV  Scharf 244
                                    8' Trompette 73
PEDAL:                              4' Clairon
  32' Resultant                        Tremulant
  16' Principal 44 *
  16' Subbass 56                CHOIR:
  16' Lieblich Gedeckt [CH] 12      8' Holzgedackt 61
   8' Octave                        8' Gemshorn 61
   8' Flute                         8' Gemshorn Celeste [TC] 49
   8' Gedackt [CH]                  4' Koppelflöte 61
   4' Choralbass 32 *           2 2/3' Nasat 61
   4' Flute                         2' Prinzipal 61
 III  Mixture 96 *              1 3/5' Terz 61
  16' Posaune 44 *                  8' Krummhorn 61
   8' Posaune                          Tremulant
   4' Krummhorn [CH]

   * Pedal Facade Pipes

[Received online from Chad Boorsma • December 12, 2010]
