Holy Trinity Lutheran Church: Sanctuary
547 Sixth Ave. NW
Hickory, NC
Images

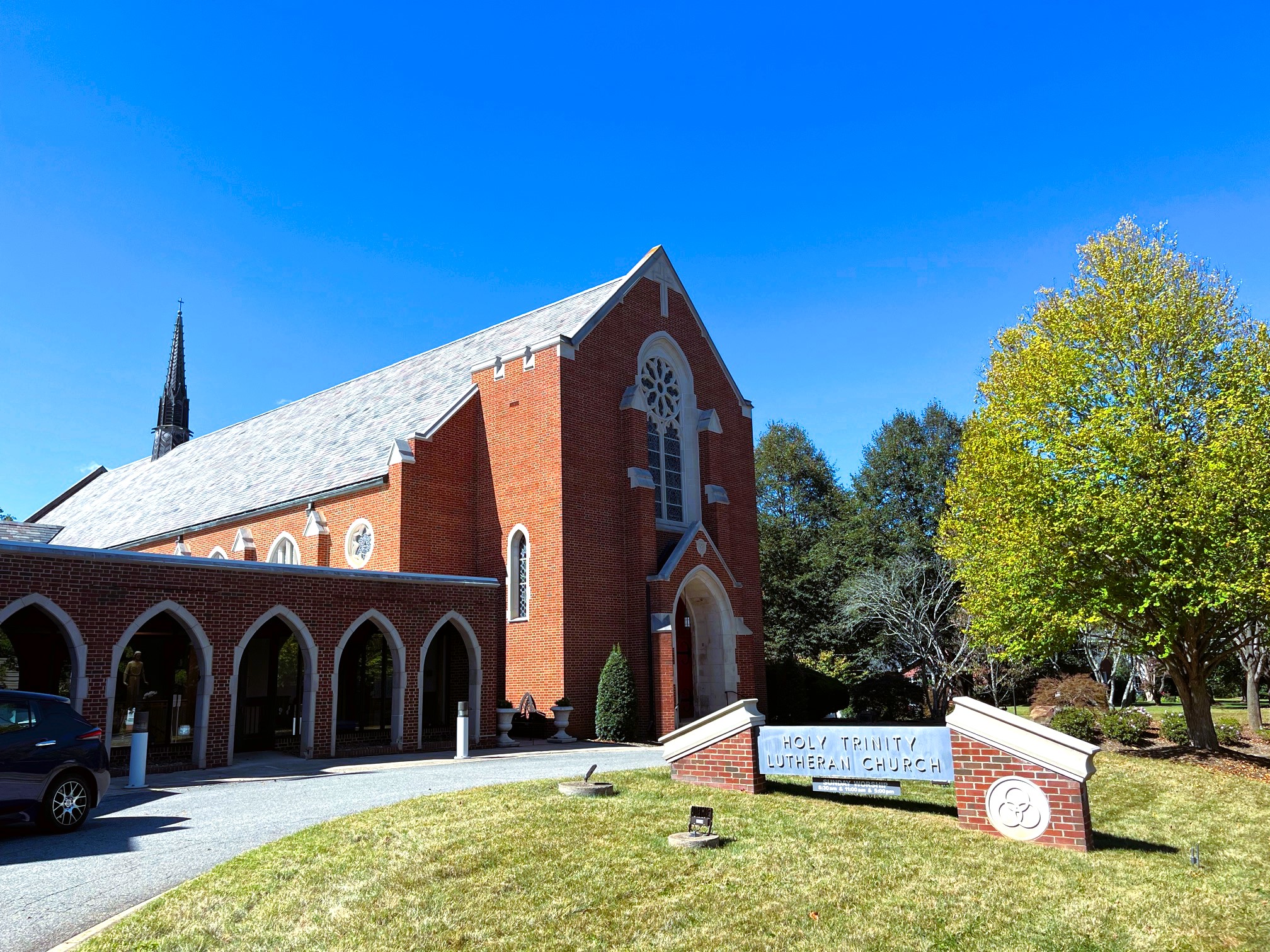

2023-10-02 - Church exterior (Photograph by Jeff Scofield/Jeff Scofield)

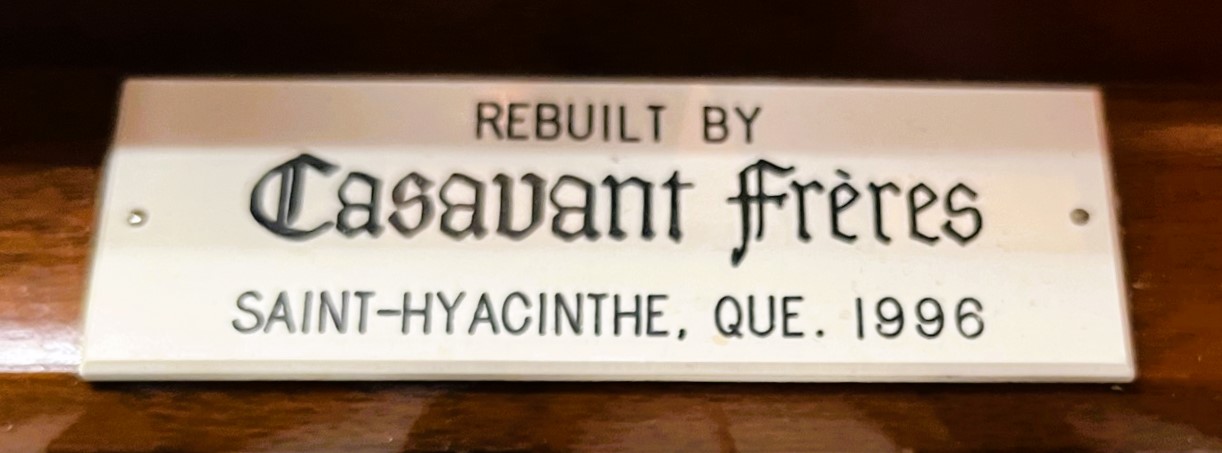

2023-10-02 - 1996 builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

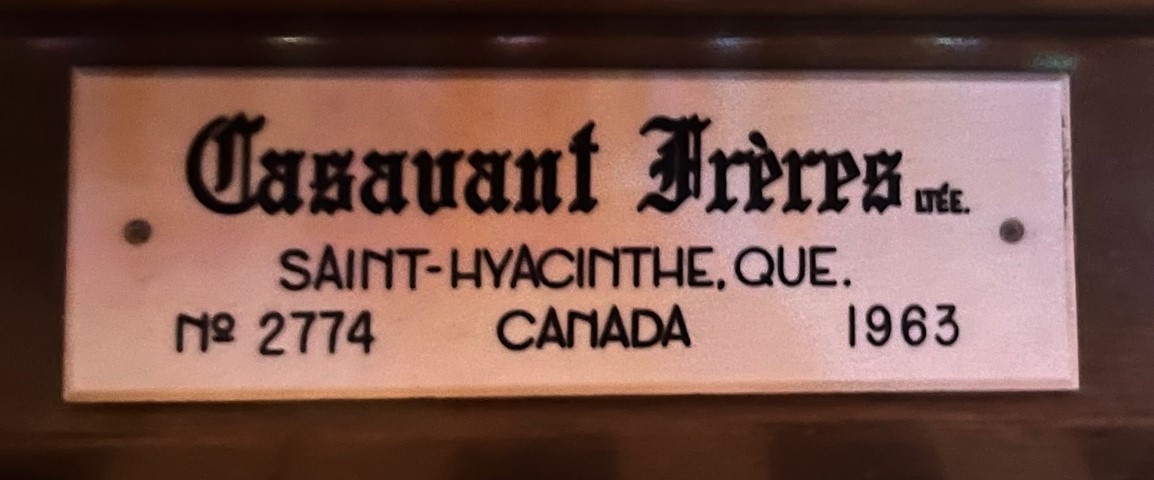

2023-10-02 - 1963 builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

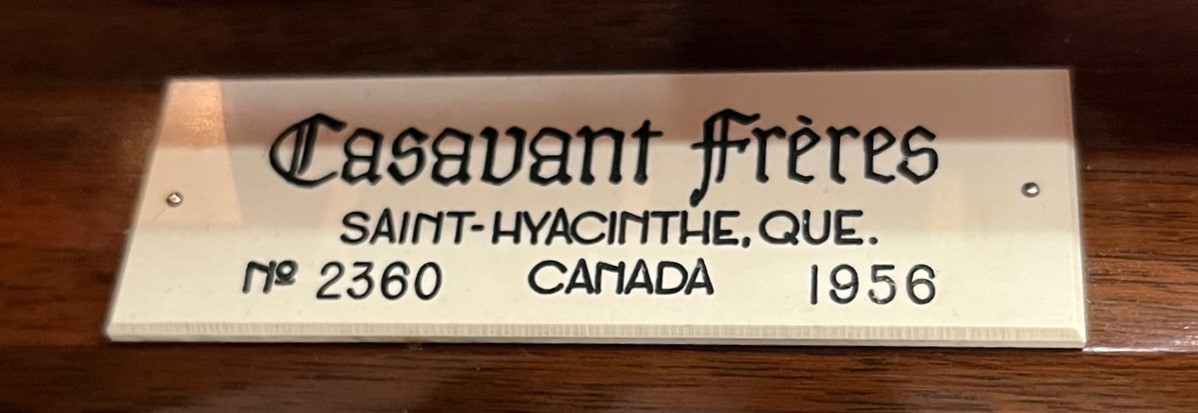

2023-10-02 - 1956 builder nameplate (Photograph by Jeff Scofield/Jeff Scofield)

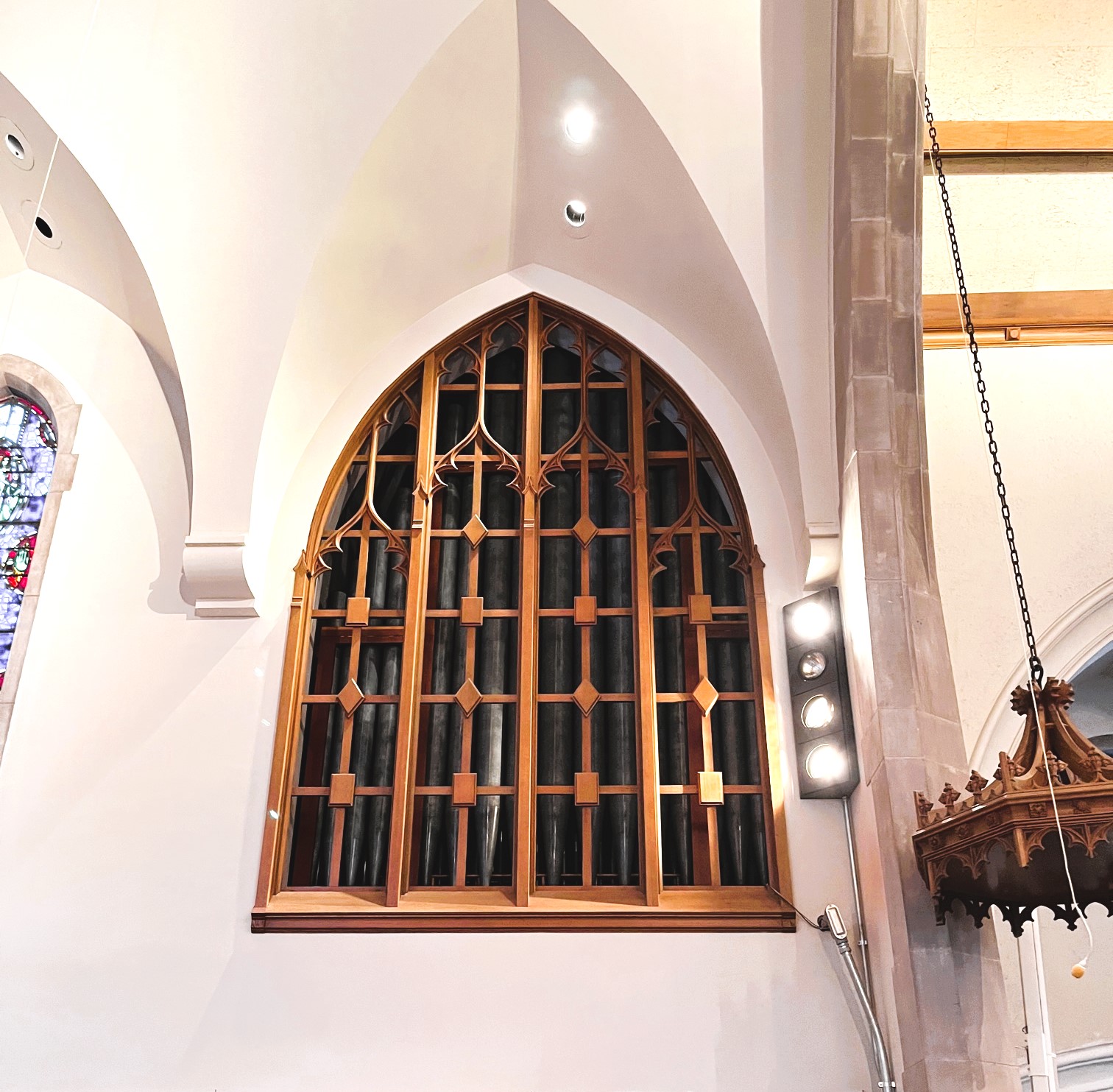

2023-10-02 - Right organ chamber (Photograph by Jeff Scofield/Jeff Scofield)

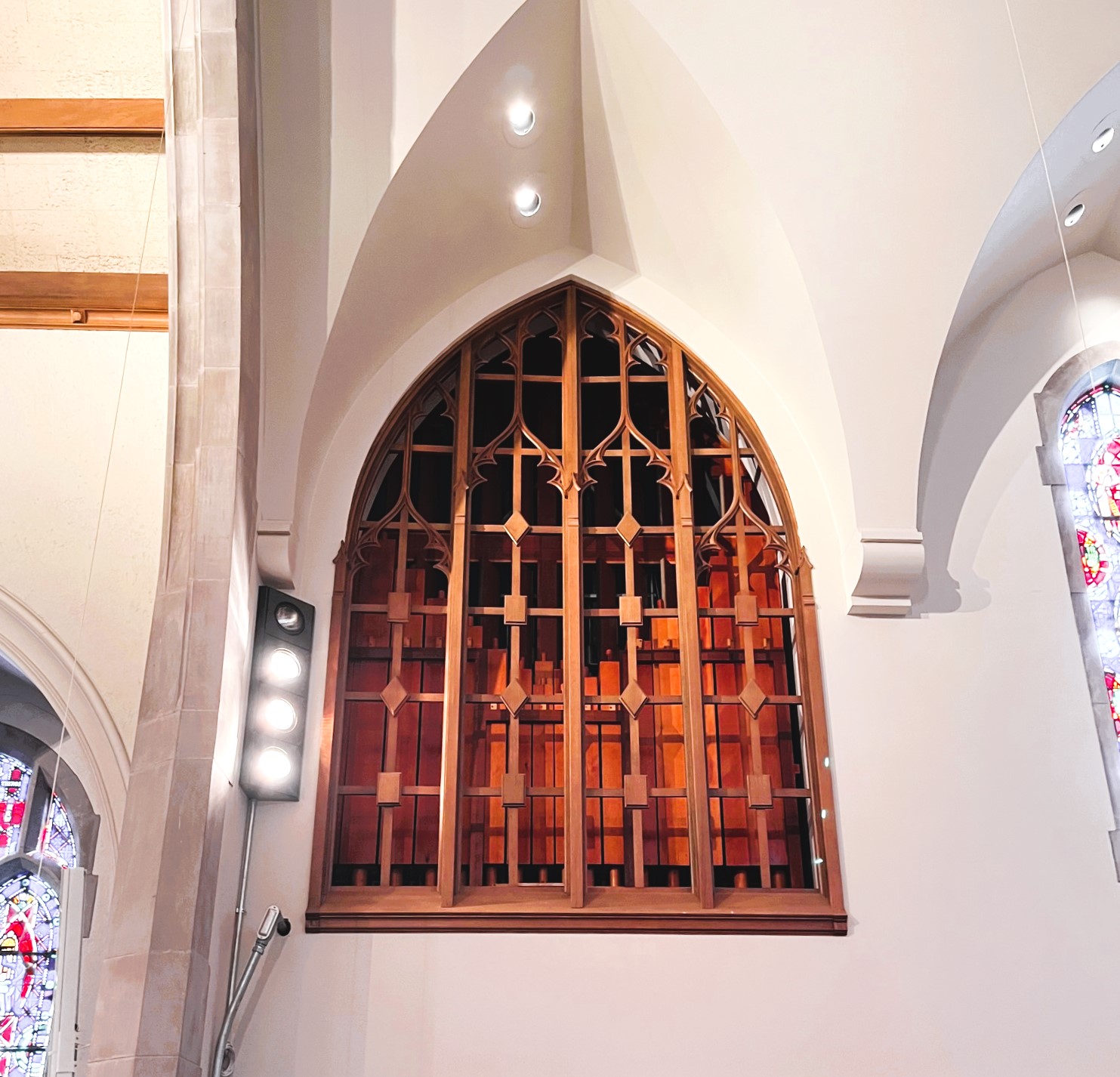

2023-10-02 - Left organ chamber (Photograph by Jeff Scofield/Jeff Scofield)

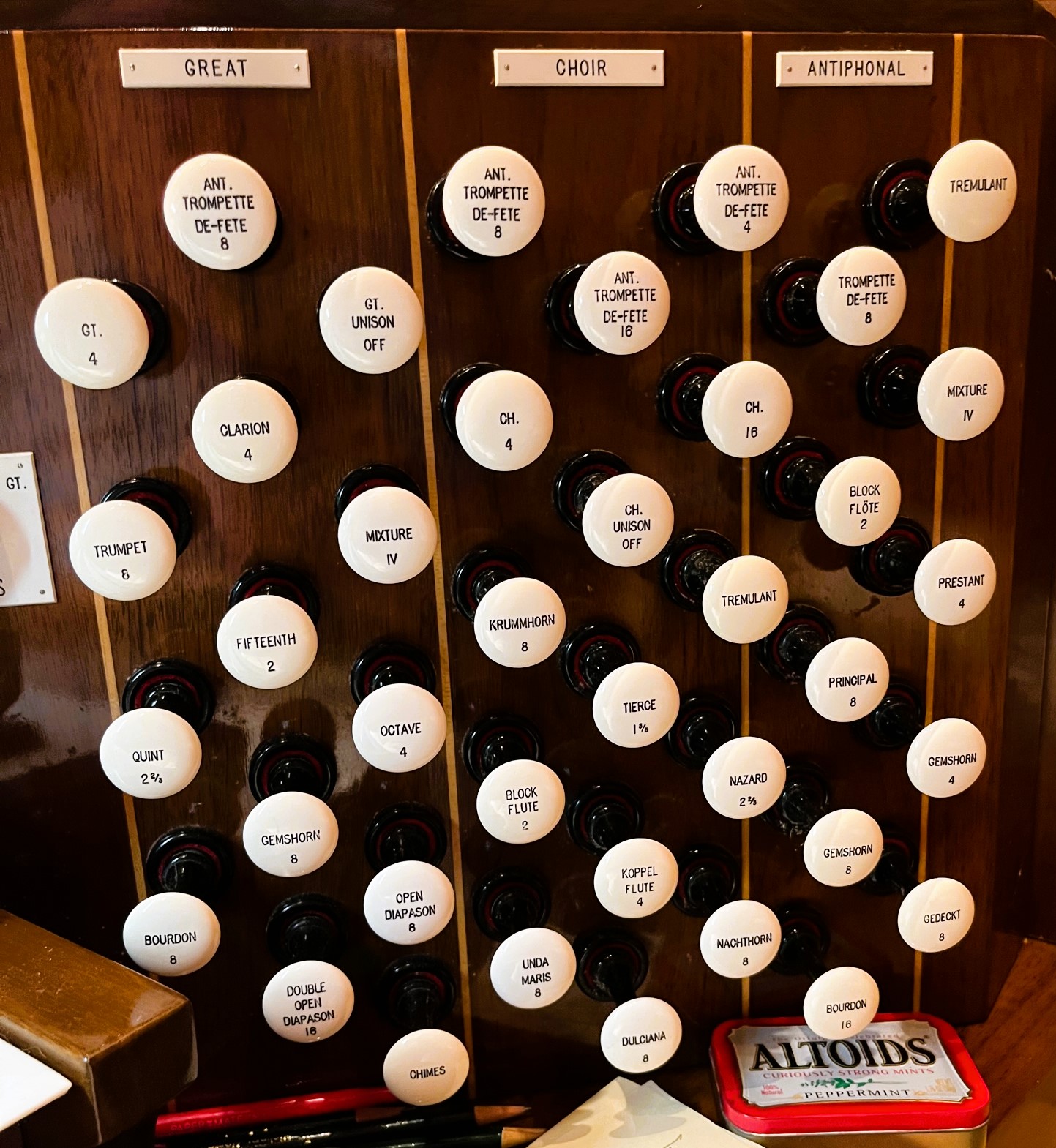

2023-10-02 - Right stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

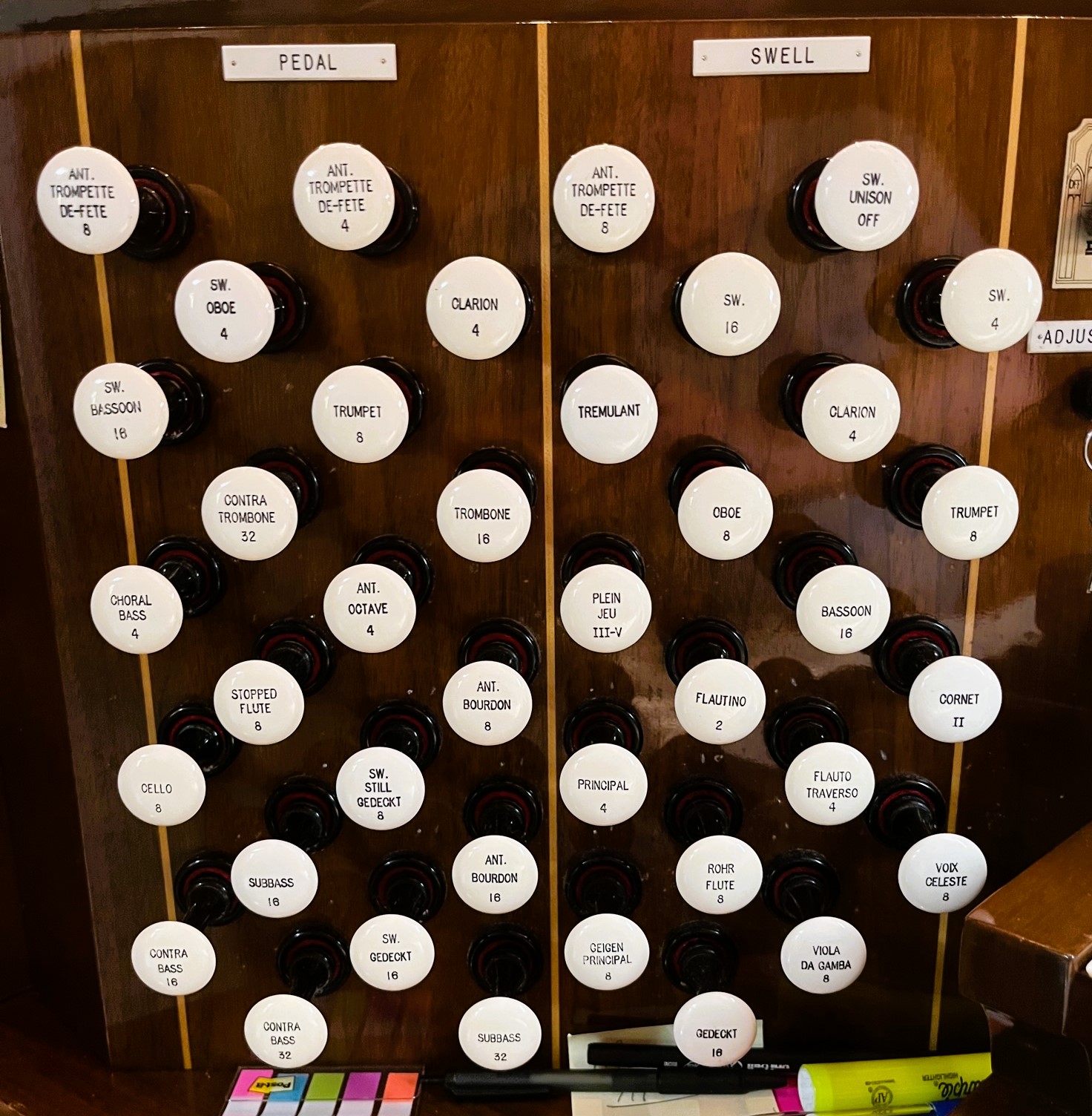

2023-10-02 - Left stopjamb (Photograph by Jeff Scofield/Jeff Scofield)

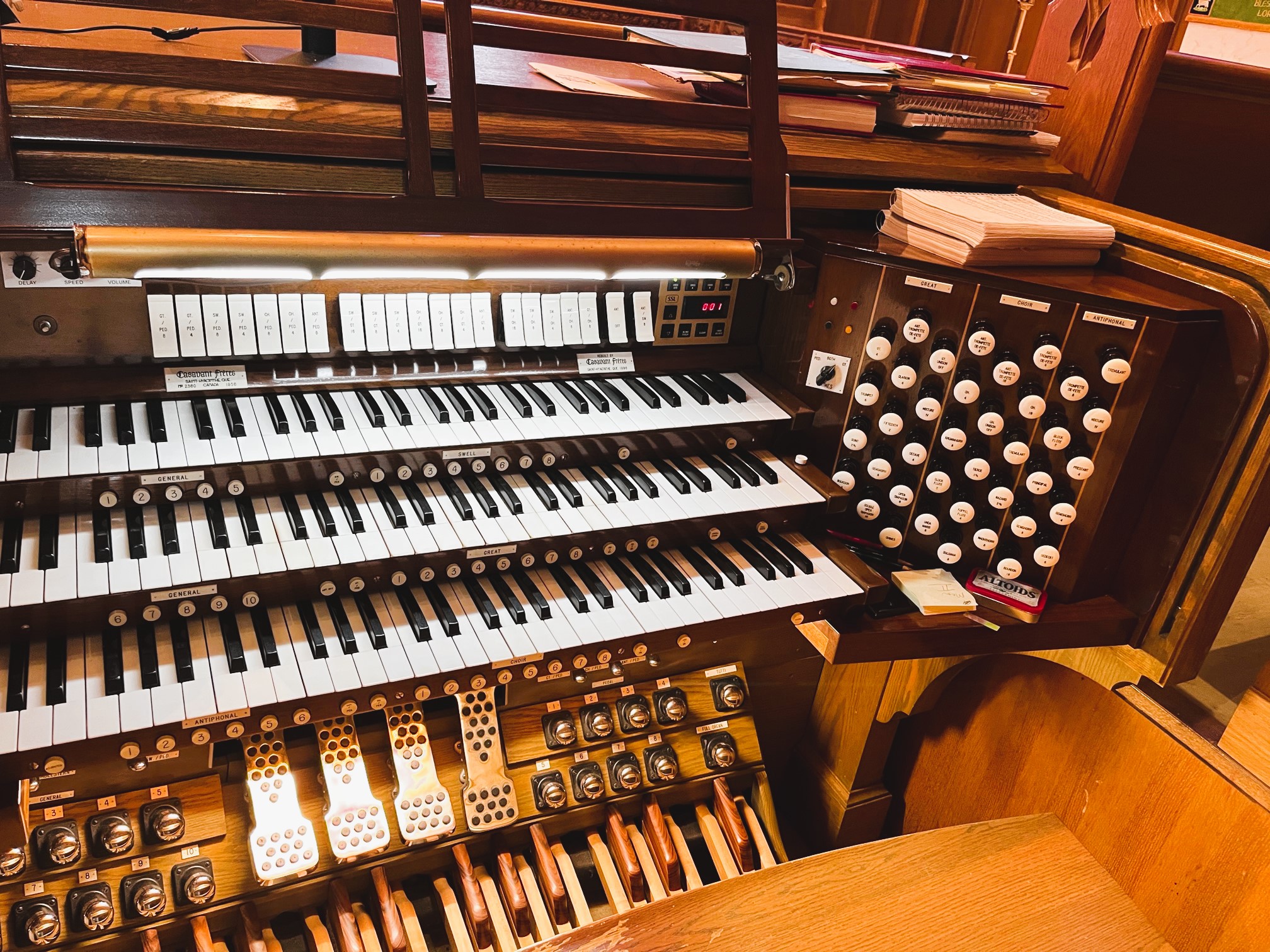

2023-10-02 - Console to right (Photograph by Jeff Scofield/Jeff Scofield)

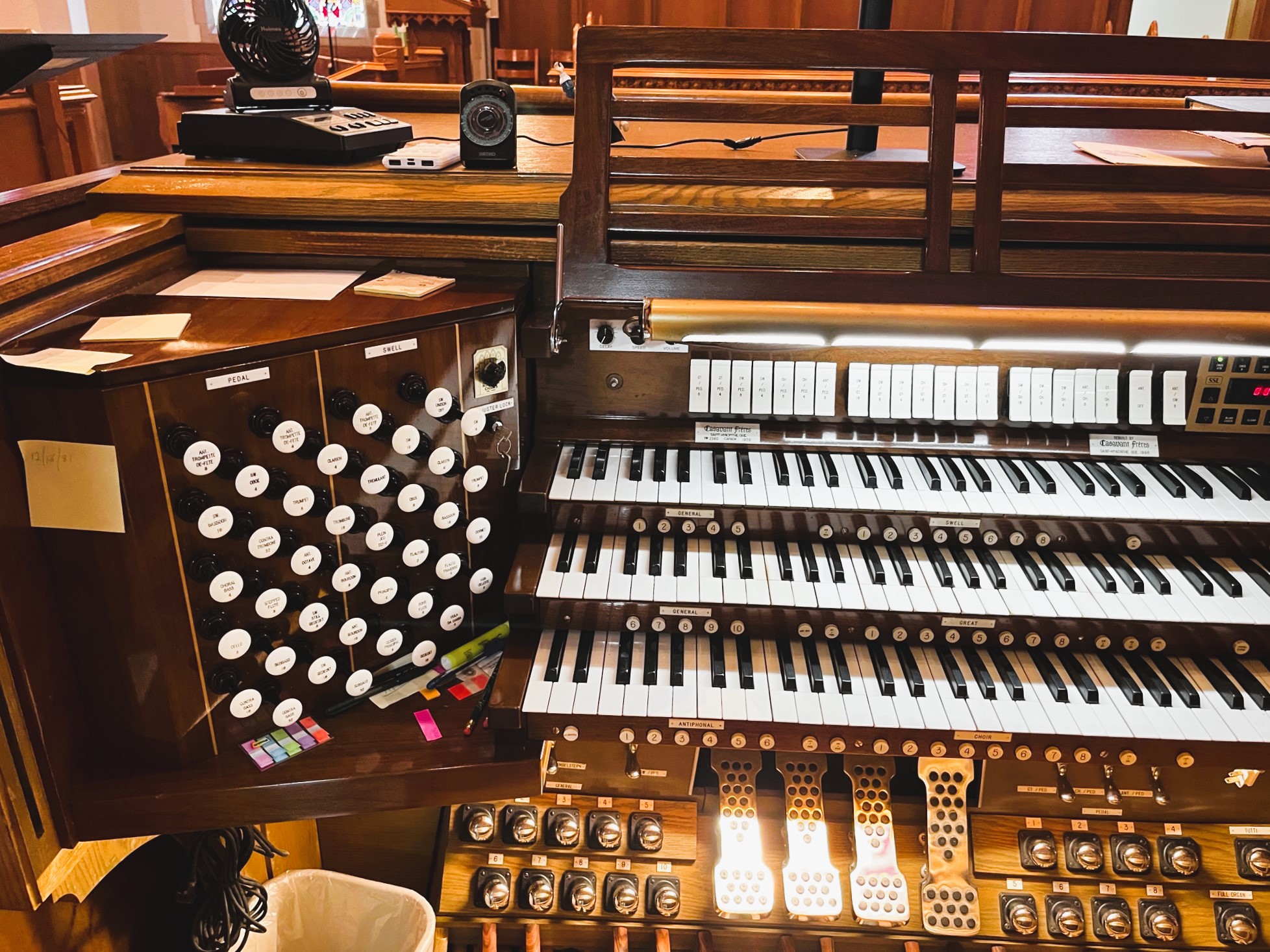

2023-10-02 - Console to left (Photograph by Jeff Scofield/Jeff Scofield)
2023-10-02 - Interior to rear and Antiphonal (Photograph by Jeff Scofield/Jeff Scofield)

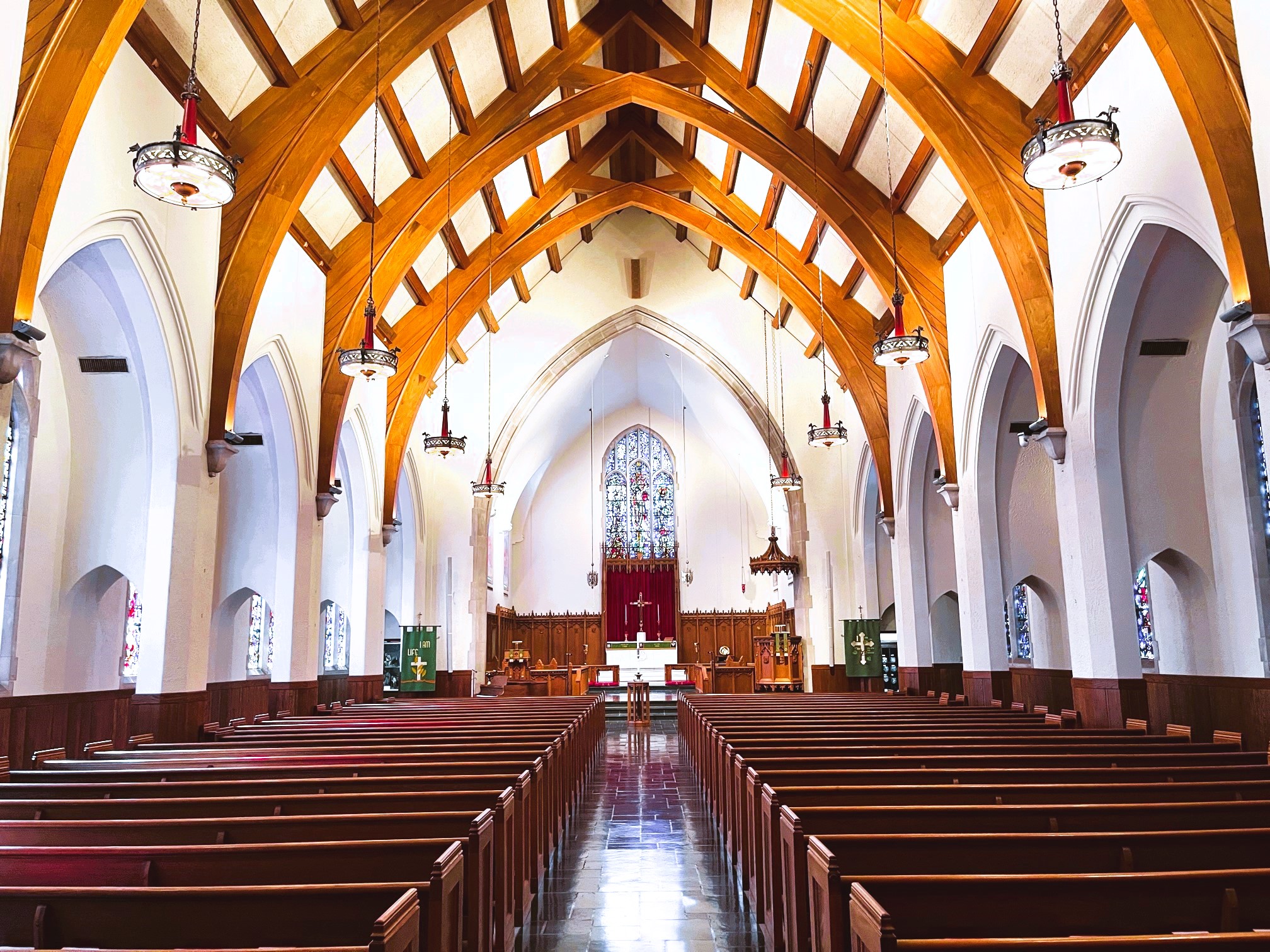

2023-10-02 - Interior to front from floor (Photograph by Jeff Scofield/Jeff Scofield)

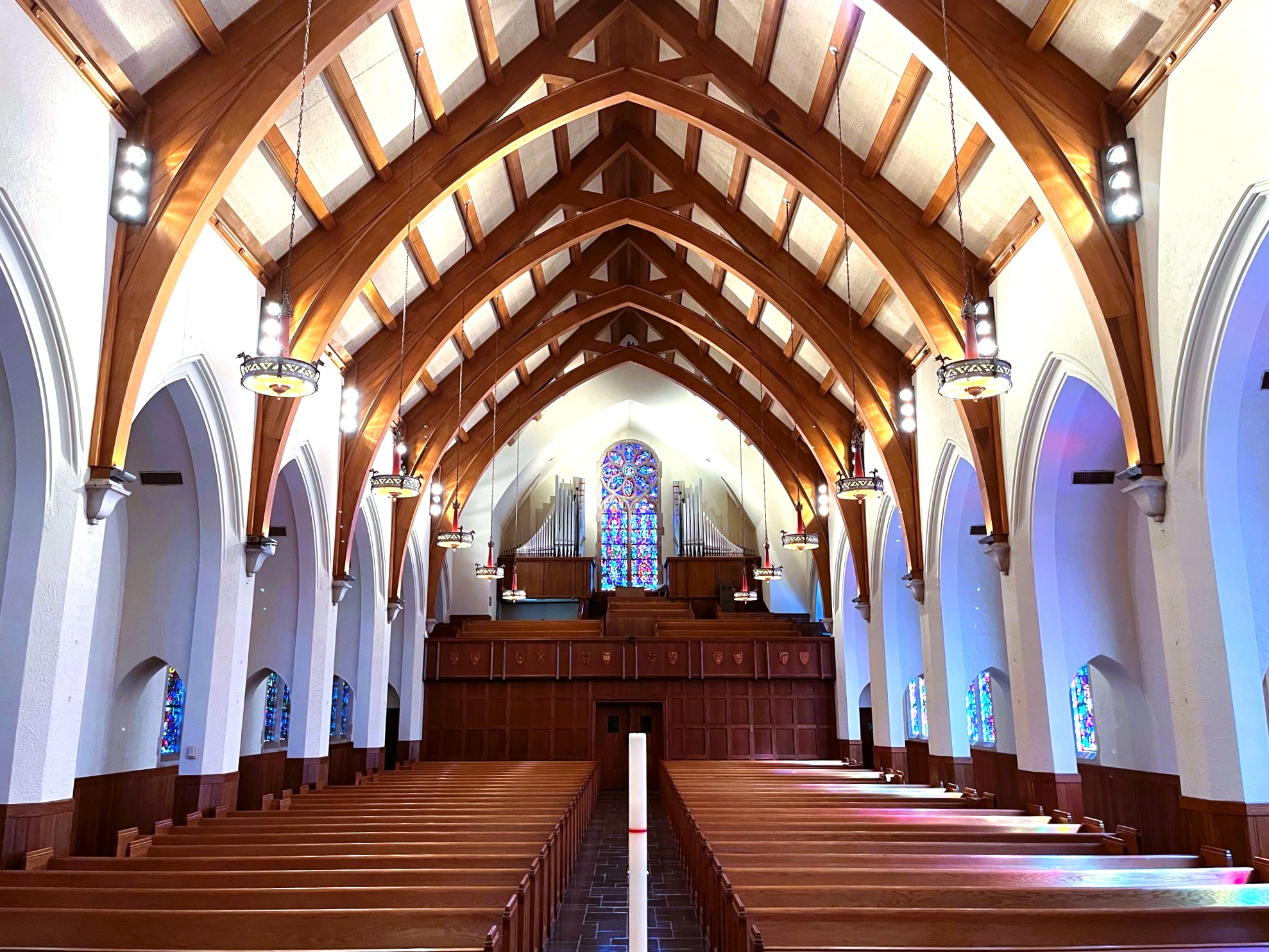

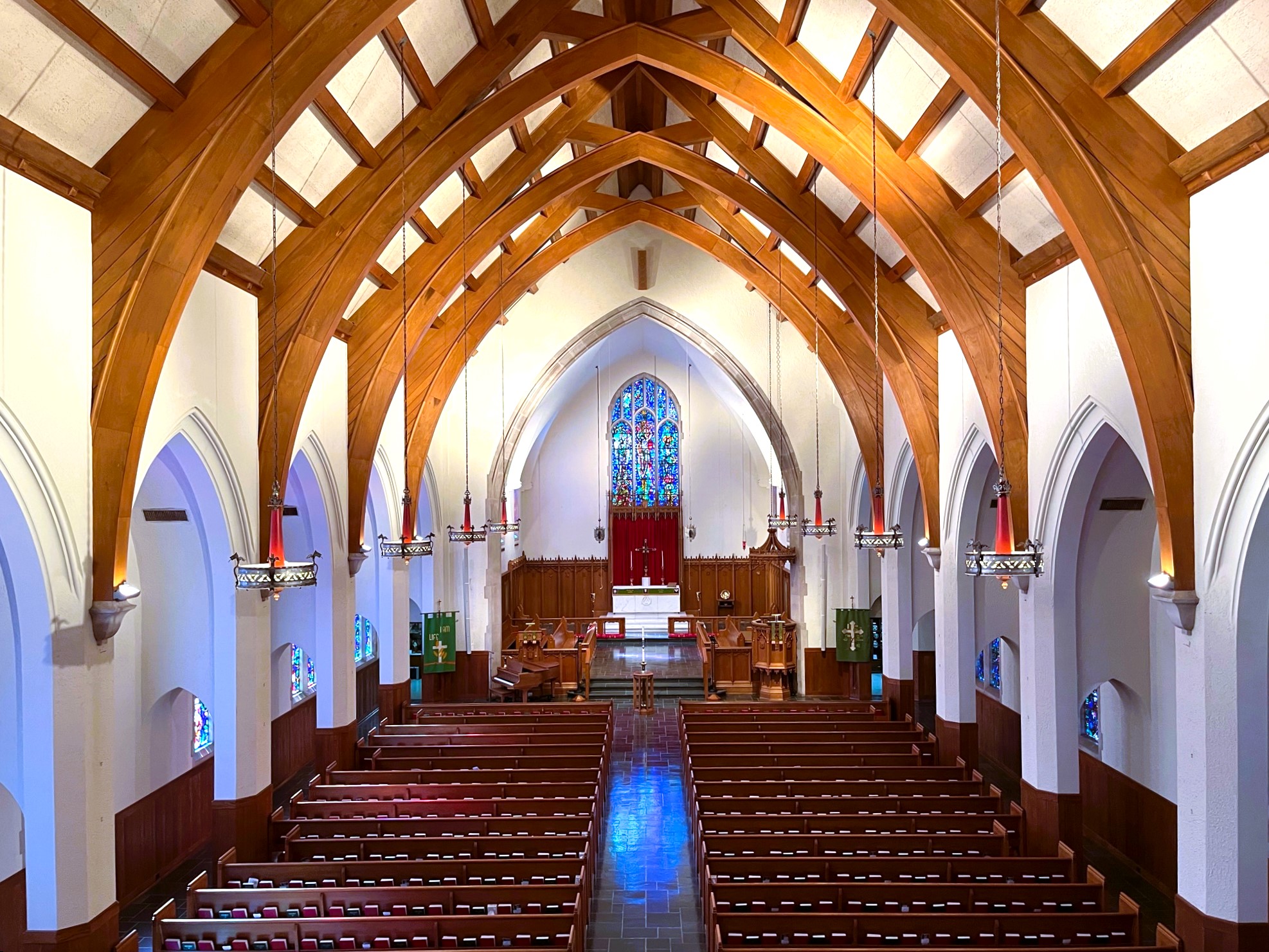

2023-10-02 - Interior from gallery (Photograph by Jeff Scofield/Jeff Scofield)
2024-03-05 - Antiphonal console (Colton Barber/Colton Barber)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Right
- 3 manuals
- 65 stops
- 37 registers
- 5 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Has crescendo
- Combination action: Computerized/Digital
- Has combination thumb pistons
- Has combination toe pistons
- Has coupler thumb pistons
- Has coupler toe pistons
- Has tutti thumb pistons
- Has tutti toe pistons
Notes
2010-12-23 - Identified through on-line information from Jeff Scofield. -- Originally installed in 1956 as 3/31 Casavant Op. 2360; 9-rank Antiphonal added in 1963 as Casavant Op. 2774; rebuild and tonal changes by Casavant in 1996. -Database Manager
Stoplist
Stoplist copied from the factory specifications Source: Source not recorded Date not recorded
Hickory, North Carolina
Holy Trinity Lutheran Church
Casavant Op. 2360 1956/1996 3/47
Courtesy of the Casavant Frères Archives
St. Hyacinthe, Québec, Canada
________________________________________________________________
GREAT
16' Double Open Diapason 12 Existing Pedal Contrabass plus new unit
chest and treble pipes for notes 57-68
8' Open Diapason 68
8' Bourdon 68
8' Gemshorn 68
4' Octave 68
2 2/3' Quint 61 Existing Mixture pipes on new sill
on one existing mixture action
2' Fifteenth 61
IV Mixture 244 New pipes and sill on two existing
mixture actions
8' Trumpet 24 Existing Pedal Trumpet 8' plus new unit
chest and treble pipes for notes 45-68
4' Clarion 12
Tremulant In keycheek
Unison Off
Super
Chimes Existing volume control reused
8' Trompete-de-fête AN
SWELL
16' Gedeckt 12
8' Geigen Principal 68
8' Rohr Flute 68
8' Viola da Gamba 68
8' Voix céleste 61 GG
4' Principal 68
4' Flauto Traverso 68
2' Flautino 61
II Cornet 61 TC, new pipes and sill on existing
Plein-jeu action
III-V Plein-jeu 269 New pipes and sill on remaining
existing Plein-jeu action
16' Bassoon 12 New half-length pipes and unit windchest
8' Trumpet 68 Revoiced with new tongues
8' Oboe 68 Revoiced with new tongues, existing
action unified
4' Clarion 68 Revoiced with new tongues
Tremulant
Sub
Unison Off
Super
8' Trompete-de-fête AN
CHOIR
8' Nachthorn 68 Action for 1-12 unified
8' Dulciana 56 Remove pipes and unit chest for 1-12,
to have common bass with Nachthorn
8' Unda Maris 56 TC, new pipes and windchest section in
place of Dulciana offset windchest
4' Koppel Flute 68
2 2/3' Nazard 61
2' Block Flute 61
1 3/5' Tierce 61
8' Krummhorn 68 Revoiced with new tongues
Tremulant
Sub
Unison Off
Super
16' Trompette-de-fête AN
8' Trompette-de-fête AN
4' Trompette-de-fête AN
ANTIPHONAL (floating)
16' Bourdon 12
8' Principal 61 New pipes, sill and unit windchest
8' Gedeckt 61 Action for 33-61 unified
8' Gemshorn 61 Action unified
4' Prestant 61
4' Gemshorn 12 Ext. with 12 treble pipes and unit windchest
2' Blockflöte 61
IV Mixture 244
Tremulant
8' Trompette-de-fête 61 Revoiced with new tongues
PEDAL
32' Contrabass dg
32' Subbass dg
16' Contrabass 32
16' Subbass 32 Existing Bourdon 16' renamed
16' Gedeckt SW
16' Bourdon AN
8' Cello 12 Ext. of Contrabass
8' Stopped Flute 12 Ext. of Subbass
8' Still Gedeckt SW
8' Bourdon AN
4' Choral Bass 12 Ext. of Cello
4' Octave AN
32' Contra Trombone dg
16' Trombone 32 Revoiced with new tongues
16' Bassoon SW
8' Trumpet 12 Ext. of Trombone
8' Trompette-de-fête AN
4' Clarion 12 Ext. of Trumpet
4' Trompette-de-fête AN
4' Oboe SW
Chimes 3-position switch in right stop jamb
directing Chimes to GT, PED or both
[Received online from Jeff Scofield December 26, 2010]
