Casavant Frères Ltée. Opus 259 (1906)

Knox Presbyterian Church: Sanctuary
400 Edmonton Street
Winnipeg, MB, CA

Images

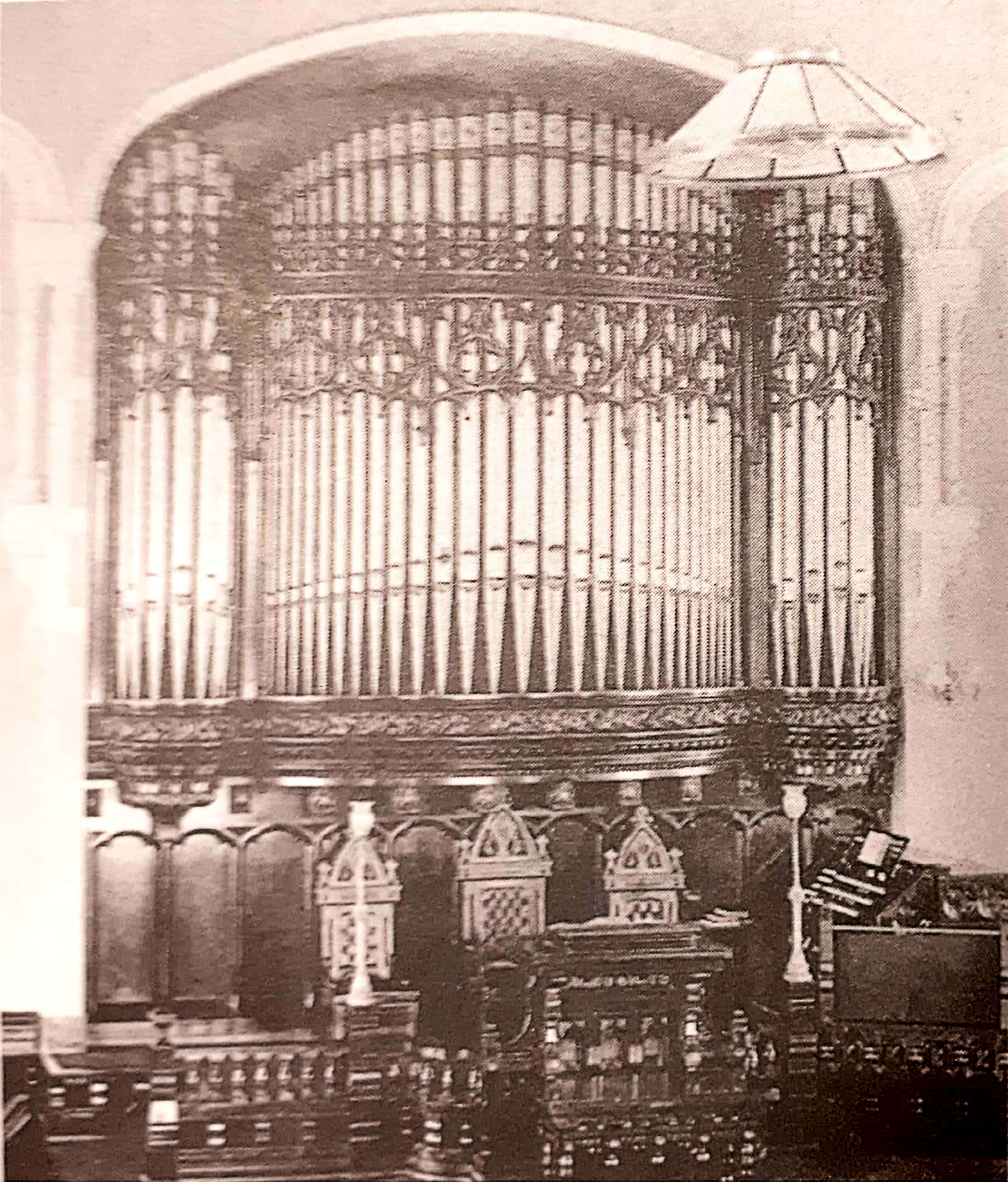

1917 - Facade with console to the right (Photograph from an archival source: Casavant Frères Archives, submitted by The Zach/The Zach)

1917 - Organ being reinstalled in new church (Photograph from an archival source: Casavant Frères Archives , submitted by The Zach/The Zach)

1920s - New church building exterior (Photograph from an archival source: Archives of Manitoba, submitted by The Zach/The Zach)

ca. 1884 - Engraving of original church building. (Photograph from an archival source: Archiseek, submitted by The Zach/The Zach)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
32 stops
4 divisions
Key action Type: Tubular Pneumatic (Details Unknown)
Stop action Type: Tubular Pneumatic (Details Unknown)
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 58 notes
Pedal compass: 30 notes
Pedal Type: Concave Radiating (Details Unknown)
Expression Type: Balanced Expression Shoes/Pedals (Details Unknown)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons

Notes

2011-02-21 - Originally installed in building on the corner of Ellice Avenue and Donald Street and moved to new building on the corner of Edmonton Street and Qu'Appelle Avenue in 1917 with no apparent changes. Congregation voted to become part of the United Church of Canada in 1925. Electrified and given a new console as opus 1947 in 1949 and ultimately discarded in 1968 to make way for opus 2992, which reused the casework and the console. -Database Manager

2011-03-02 - Updated through on-line information from The Zach. -Database Manager

Stoplist

Source: Stoplist courtesy of the Casavant Frères Archives Date not recorded

       Winnipeg, Manitoba
       Knox Presbyterian Church

       Casavant Frères Ltée.  Op. 259   1906   3/36

       Courtesy of the Casavant Frères Archives
       St. Hyacinthe, Québec, Canada

       GREAT                            SWELL
  *16' Double Open Diapason  65     16' Lieblich Bourdon    58
    8' Open Diapason (large) 65      8' Open Diapason       58
    8' Open Diapason (small) 65      8' Stopped Diapason    58
    8' Rohrflöte             65      8' Dolce               58
    4' Principal             65      8' Echo Gamba          58
    4' Harmonic Flute        65      8' Voix Celeste  (tc)  46
    2' Fifteenth             58      4' Principal           58
  III  Mixture              195      2' Fifteenth           58
    8' Trumpet               65    III  Dolce Cornet       174
       Super                         8' Horn                58
                                     8' Oboe & Bassoon      58
       CHOIR                         8' Vox Humana          58
    8' Gamba                 58         Tremulant
    8' Melodia               58
    8' Dulciana              58         PEDAL
    4' Suabe Flute           58     16' Open Diapason       30
    2' Piccolo               58     16' Bourdon             30
    8' Clarionet (soft)      58     16' Lieblich Bourdon    30
                                     8' Bass Flute (ext. OD)12
     * 1-12 Stopped                 16' Trombone            30
