Better Pipe Organ Database

Schantz Organ Co. Opus 196 (1954)

First Methodist Church: Sanctuary
312 Third St.
Elyria, OH

Images

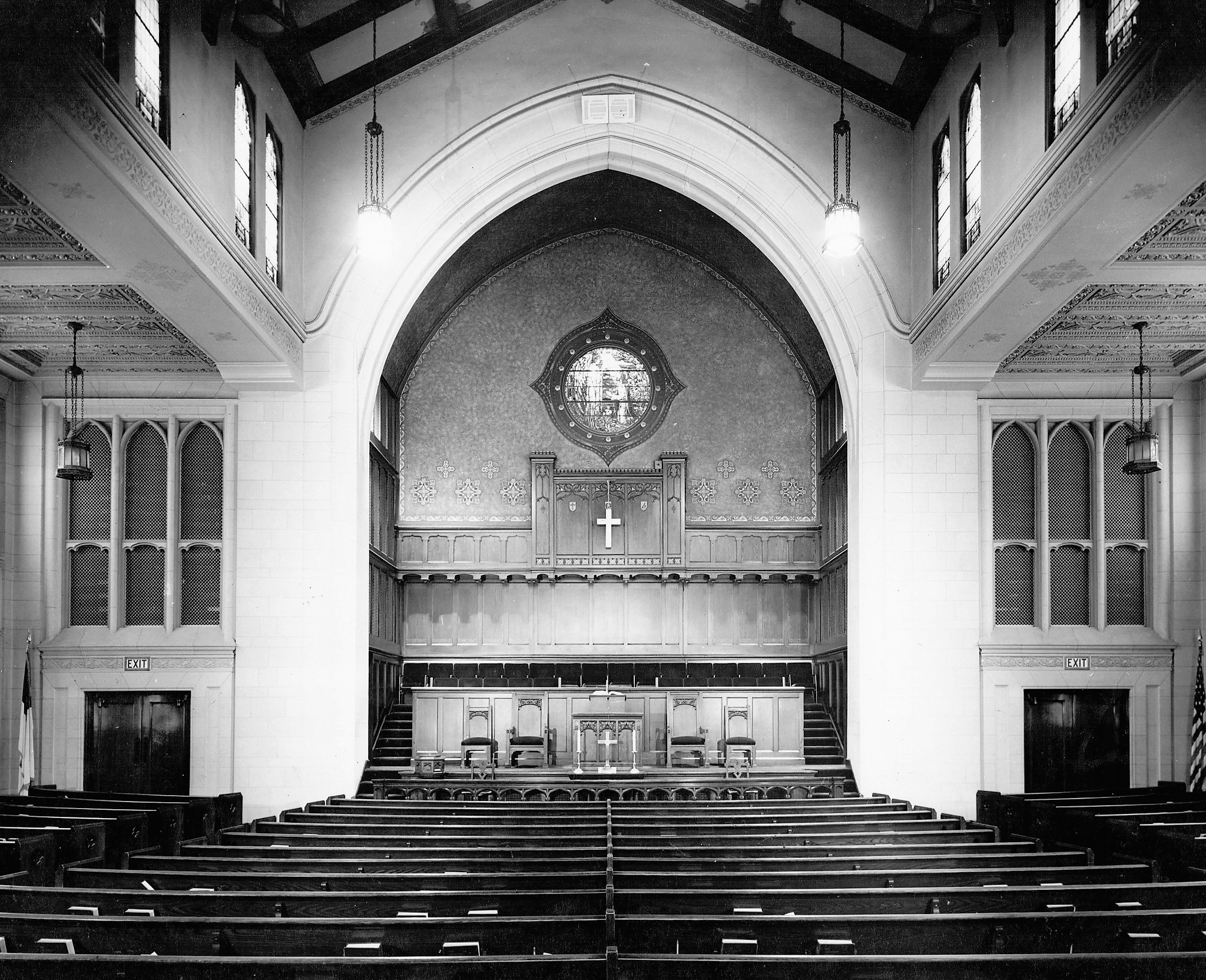

1954 - Church interior (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

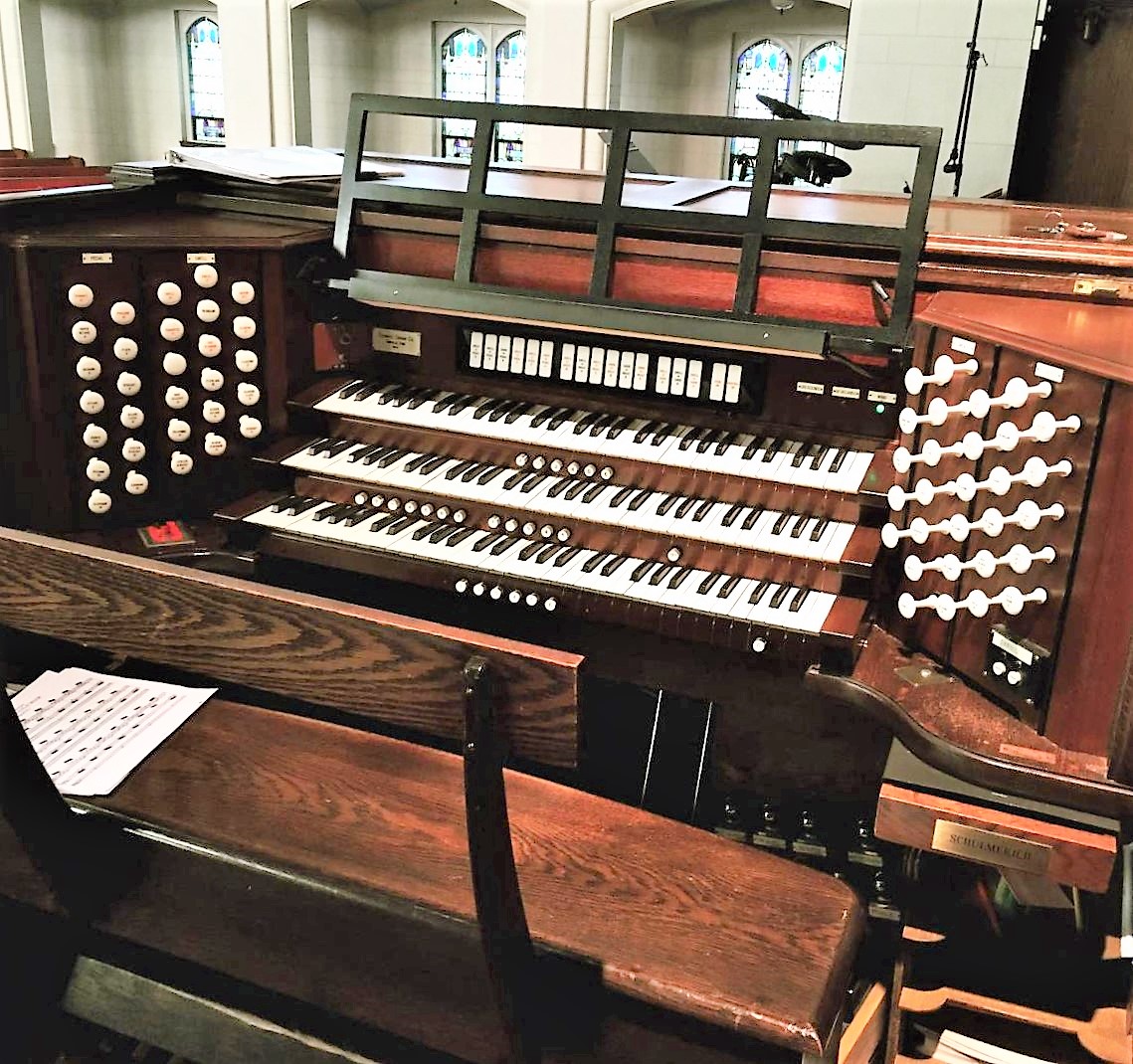

2018-08-11 - Console (Photograph by Evan Collins/Database Manager)

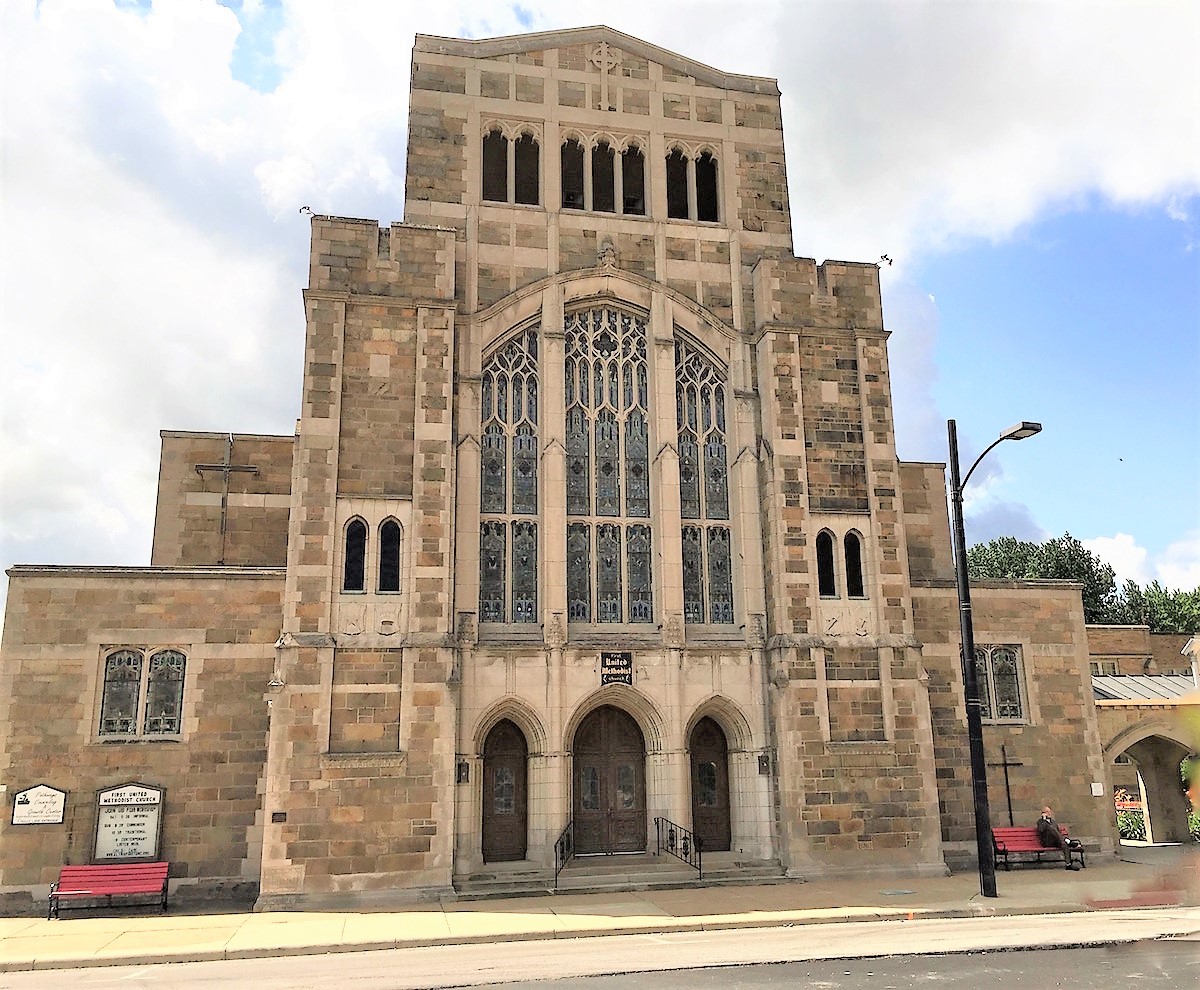

2017-06-26 - Church Exterior (Photograph by Brad Engelland/Database Manager)

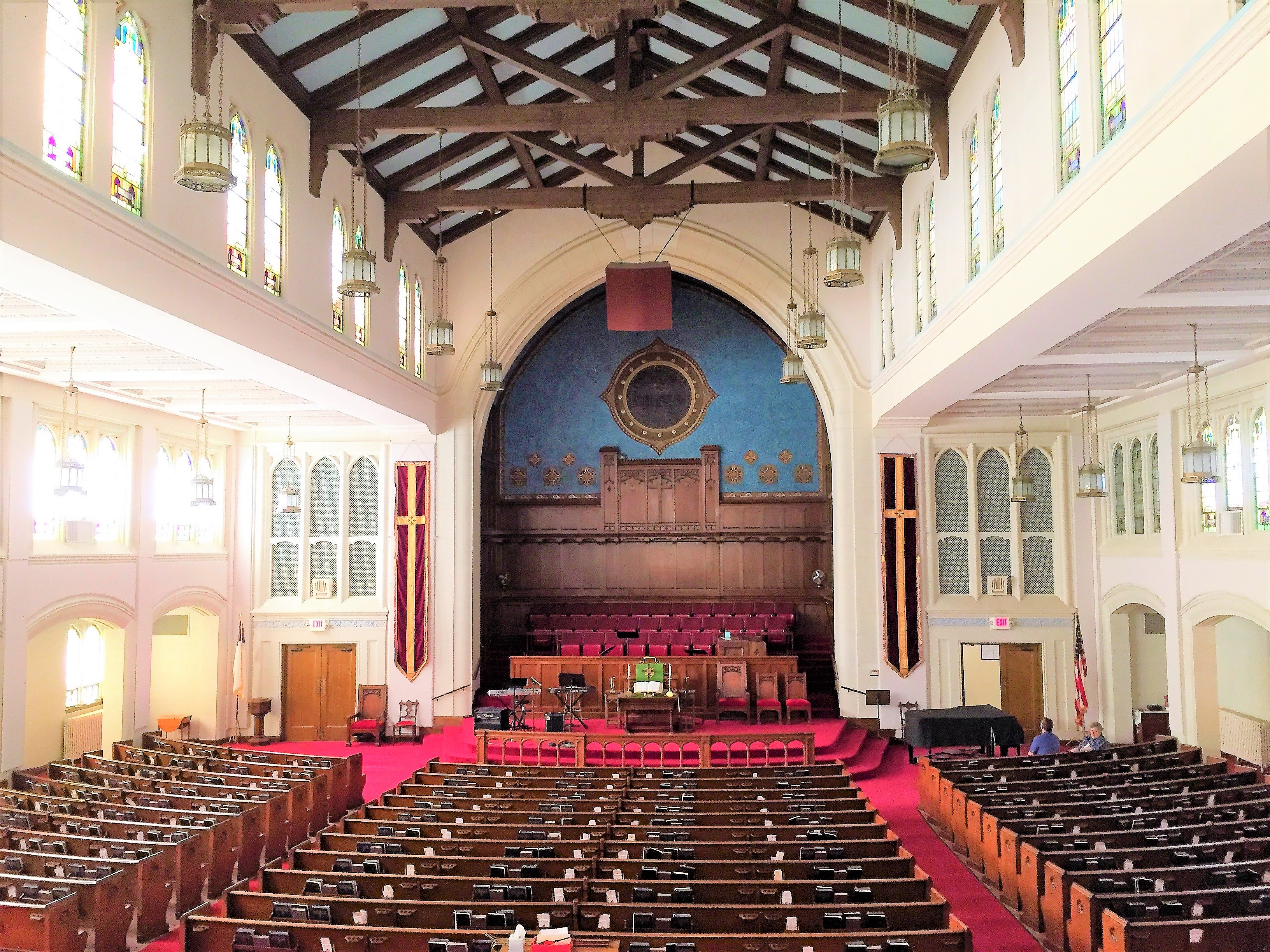

2017-06-26 - Sanctuary and Organ Chambers (Photograph by Brad Engelland/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
3 manuals
26 stops
46 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2011-05-11 - Identified through online information from Jeff Scofield. -Database Manager

Stoplist

Source: Stoplist copied from <i>The Diapason</i> May 1953 Date not recorded

       Elyria, Ohio
       First Methodist Church

       Schantz   Op. 196   1954   3/32
       _______________________________________________

       GREAT                       SWELL

    8' Principal     61        16' Lieblichgedeckt  12
    8' Hohlflöte     61         8' Geigen Diapason  73
    8' Gemshorn      61         8' Gedeckt          73
    4' Octave        61         8' Salicional       73
    4' Flute         12         8' Voix Celeste     61
2 2/3' Quinte        61         4' Geigen Octave    12
    2' Super Octave  61         4' Traverse Flute   73
   IV  Fourniture   244         2' Flautino         12
       Sub                     IV  Plein Jeu       244
       Unison Off               8' Trompette        73
       Super                    8' Cor d'Amour      73
       Chimes                   4' Clarion          12
                                   Tremulant
       CHOIR                       Sub
                                   Unison Off
   16' Dulciana      61            Off
    8' Viola         73
    8' Nachthorn     73            PEDAL
    8' Dulciana      12
    8' Unda Maris    61        16' Diapason         32
    4' Koppelflöte   73        16' Sub Bass         32
    4' Dulciana      12        16' Lieblich Gedeckt SW
2 2/3' Nazard        61        16' Dulciana         CH
2 2/3' Dulciana      --    10 2/3' Quinte           --
    2' Blockflöte    --         8' Octave           32
    2' Dulciana      --         8' Major Flute      12
    8' Cor Anglais   73         8' Gedeckt          SW
       Tremulant                8' Dulciana         CH
       Sub                      4' Super Octave     12
       Unison Off               4' Flute            GT
       Super                   16' Posaune          32
       Harp          49         8' Trumpet          12

       [Received from Jeff Scofield December 11, 2018]
