Highland Baptist Church: Sanctuary
219 Simpson St.
Florence, AL
Images

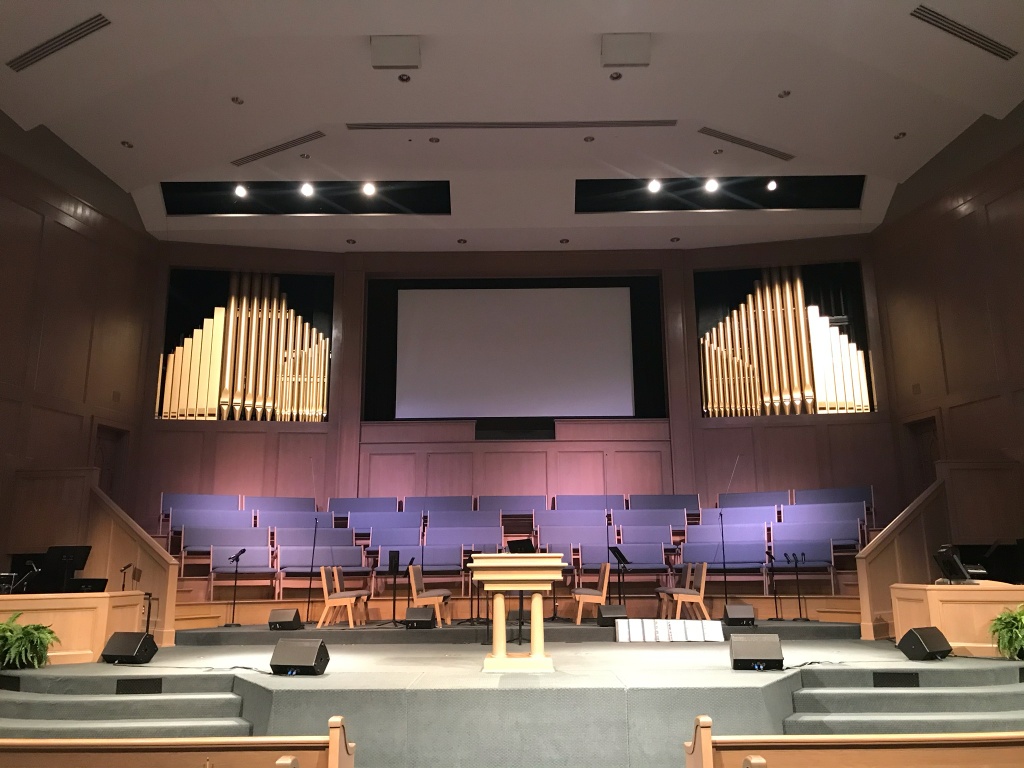

2020-03-02 - Organ chambers with facades (Photograph by Tommy Malcom Quinn/Database Manager)

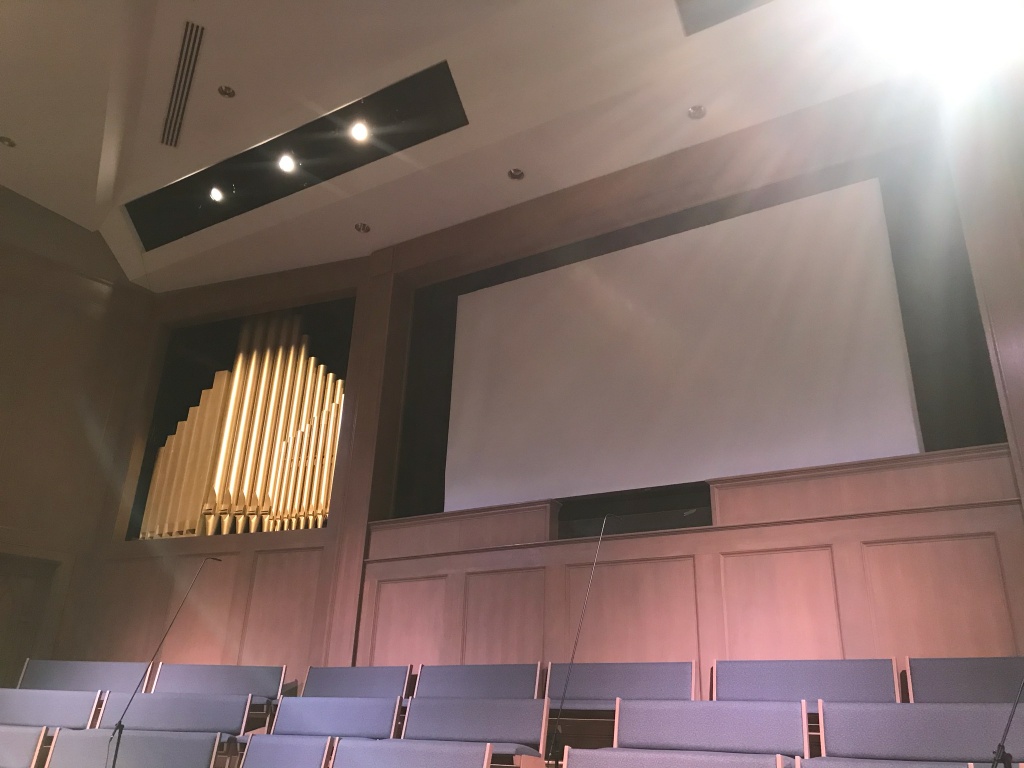

2020-03-02 - Left facade (Photograph by Tommy Malcolm Quinn/Database Manager)

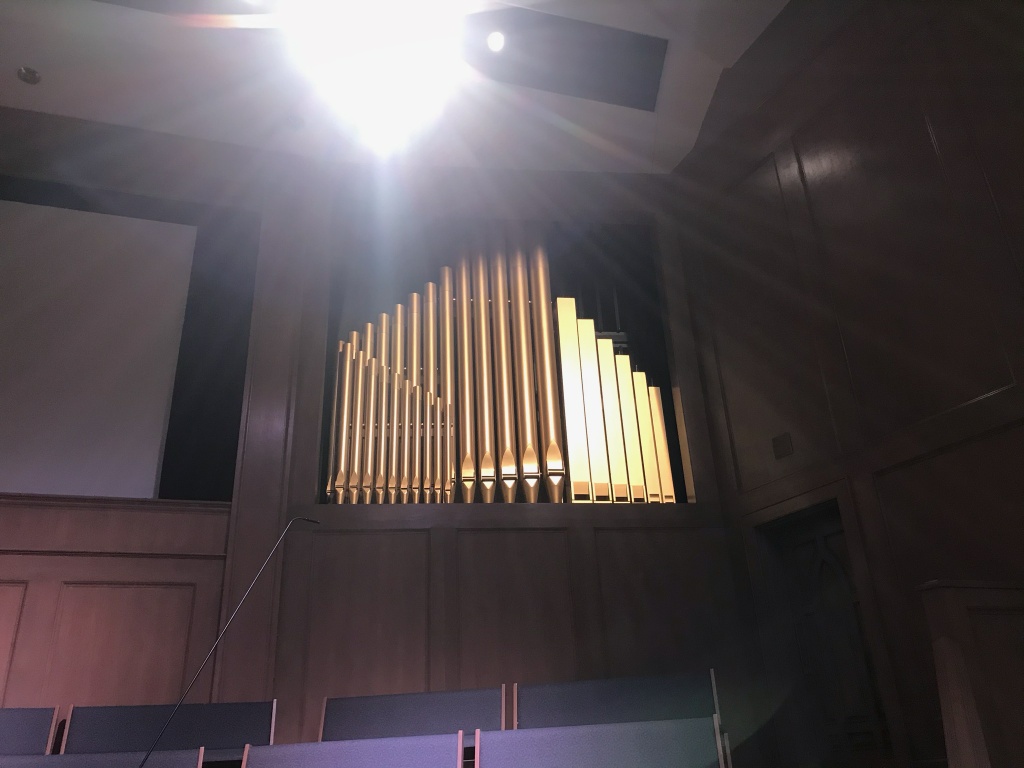

2020-03-02 - Right facade (Photograph by Tommy Malcolm Quinn/Database Manager)

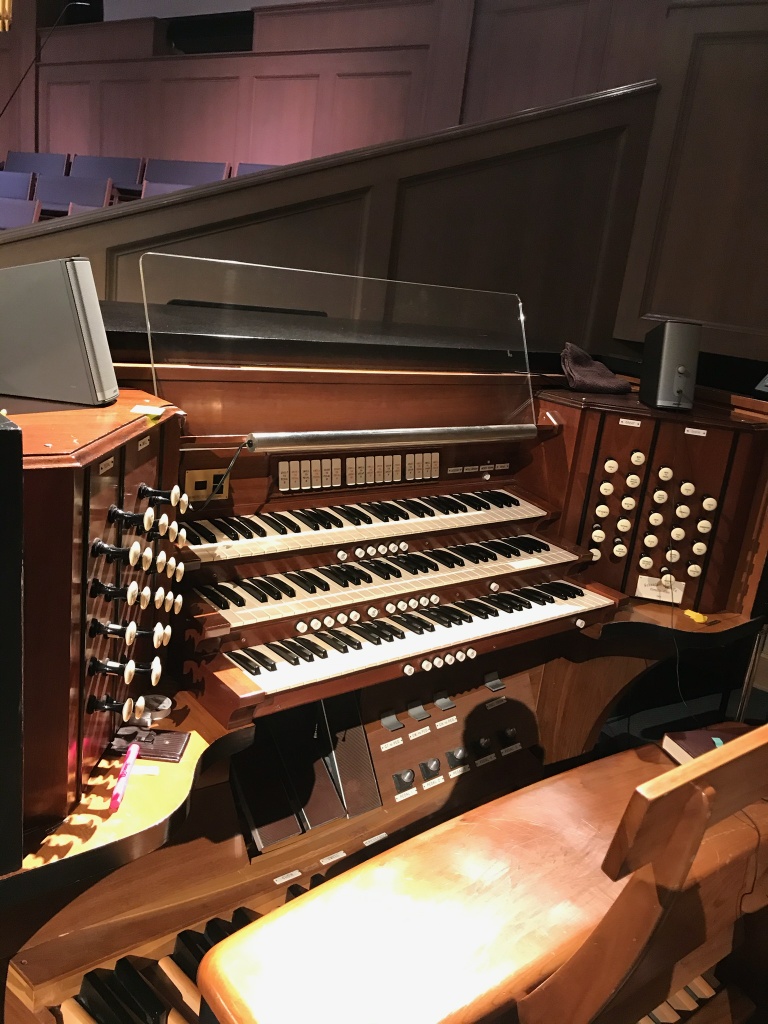

2020-03-02 - Console (Photograph by Tommy Malcolm Quinn/Database Manager)

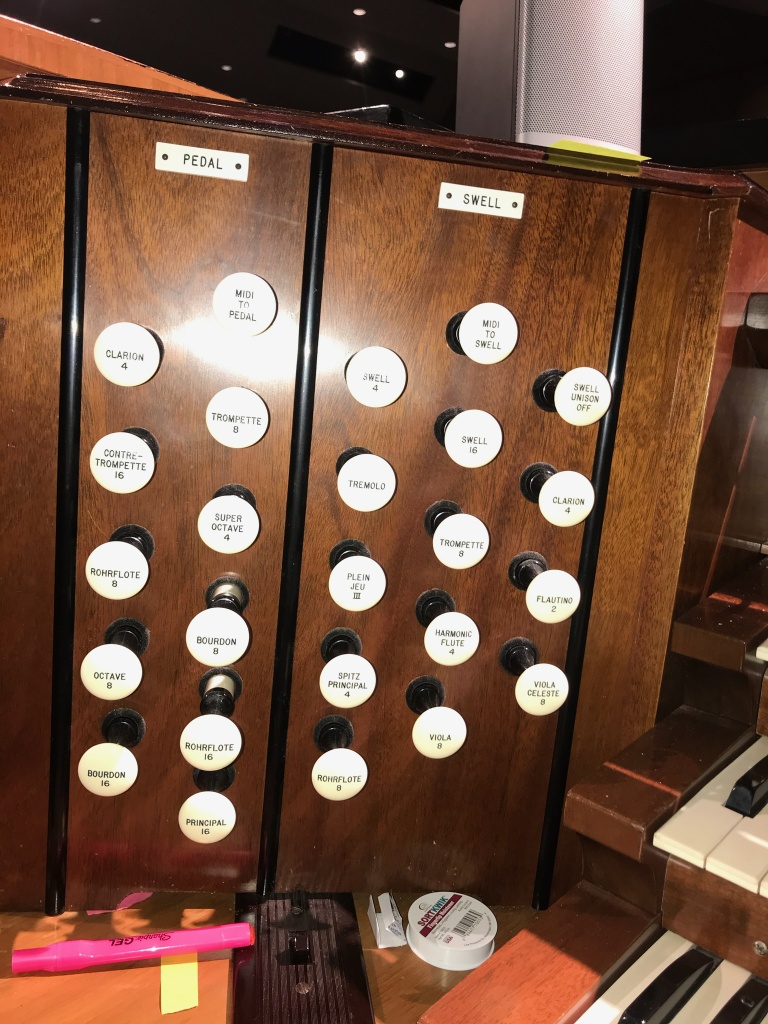

2020-03-02 - Console: right stopjamb (Photograph by Tommy Malcolm Quinn/Database Manager)

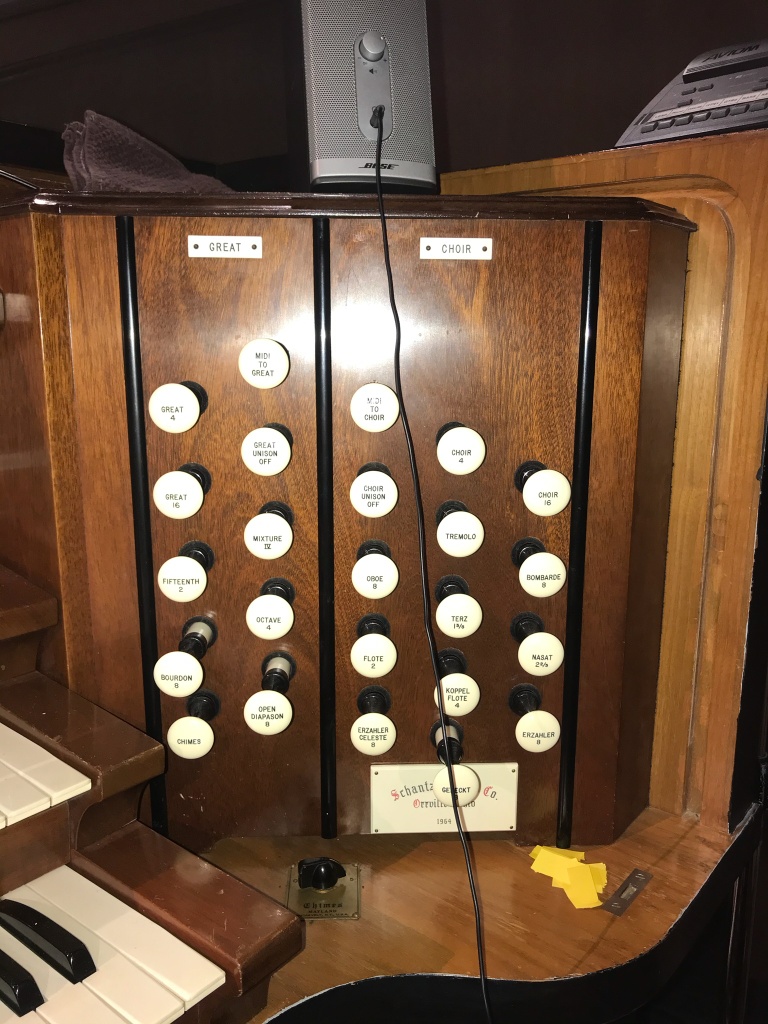

2020-03-02 - Console: left stopjamb (Photograph by Tommy Malcolm Quinn/Database Manager)

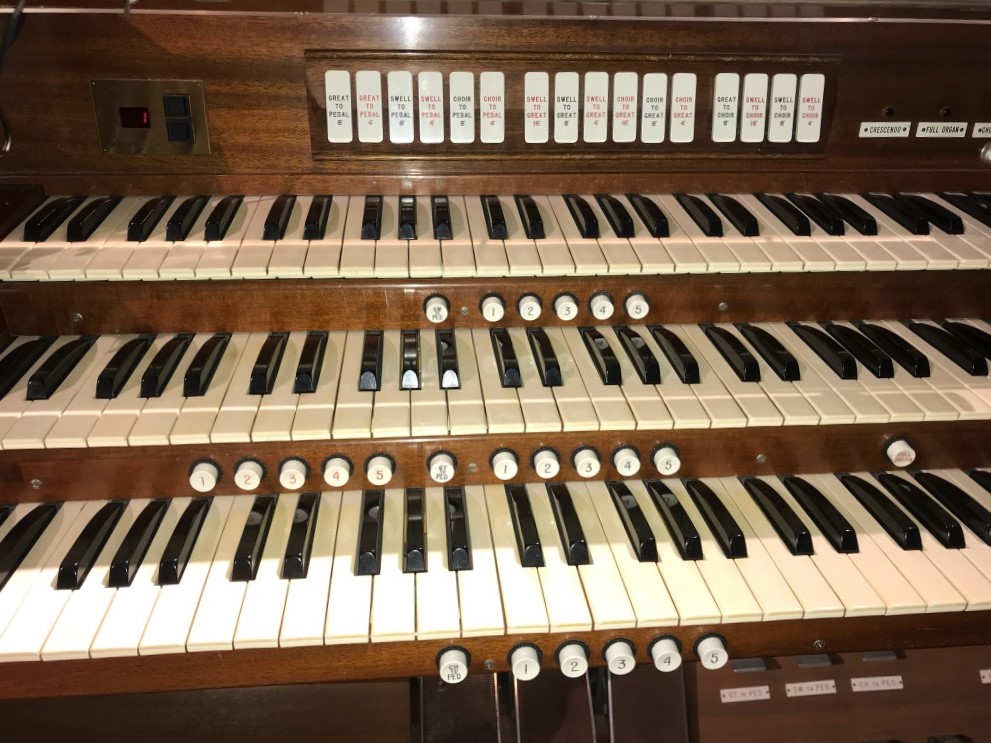

2020-03-02 - Console: Manuals (Photograph by Tommy Malcolm Quinn/Database Manager)

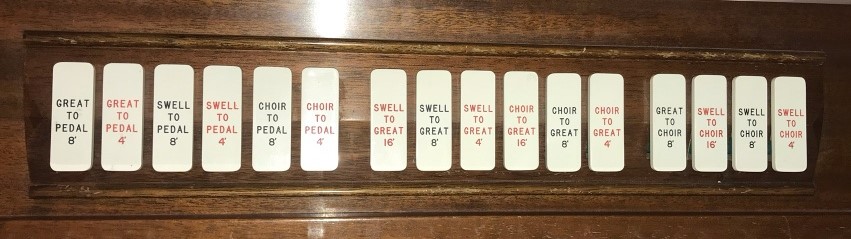

2020-03-02 - Console: couplers (Photograph by Tommy Malcolm Quinn/Database Manager)

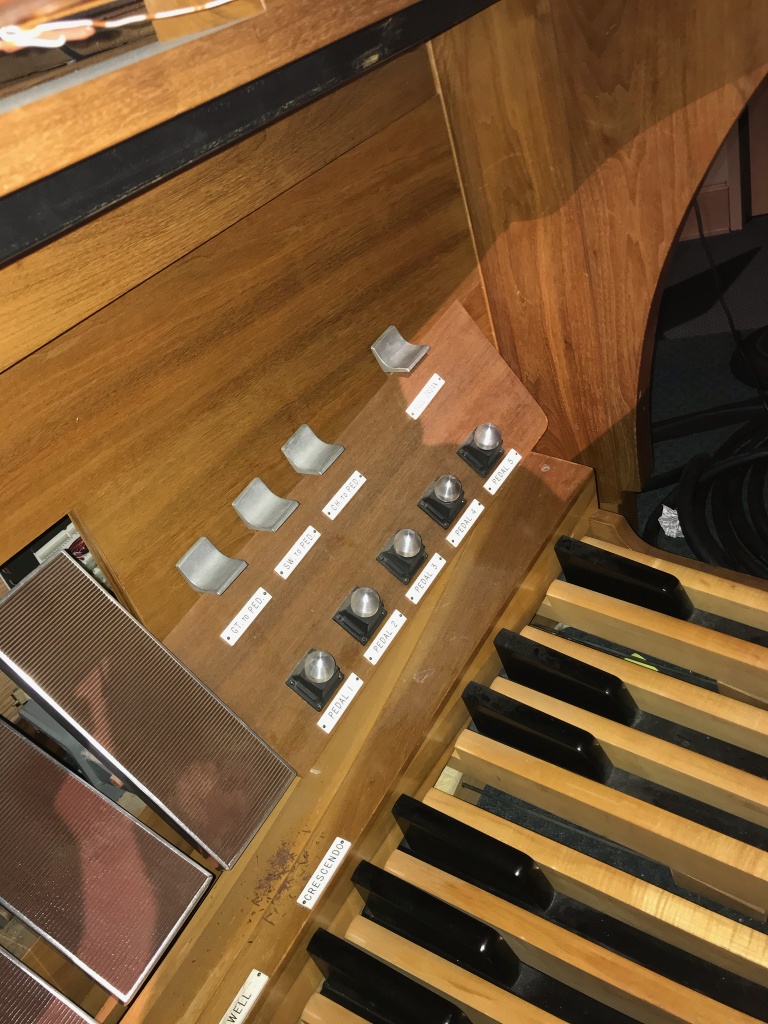

2020-03-02 - Console: pedalboard, pedal movements, and toe studs (Photograph by Tommy Malcolm Quinn/Database Manager)

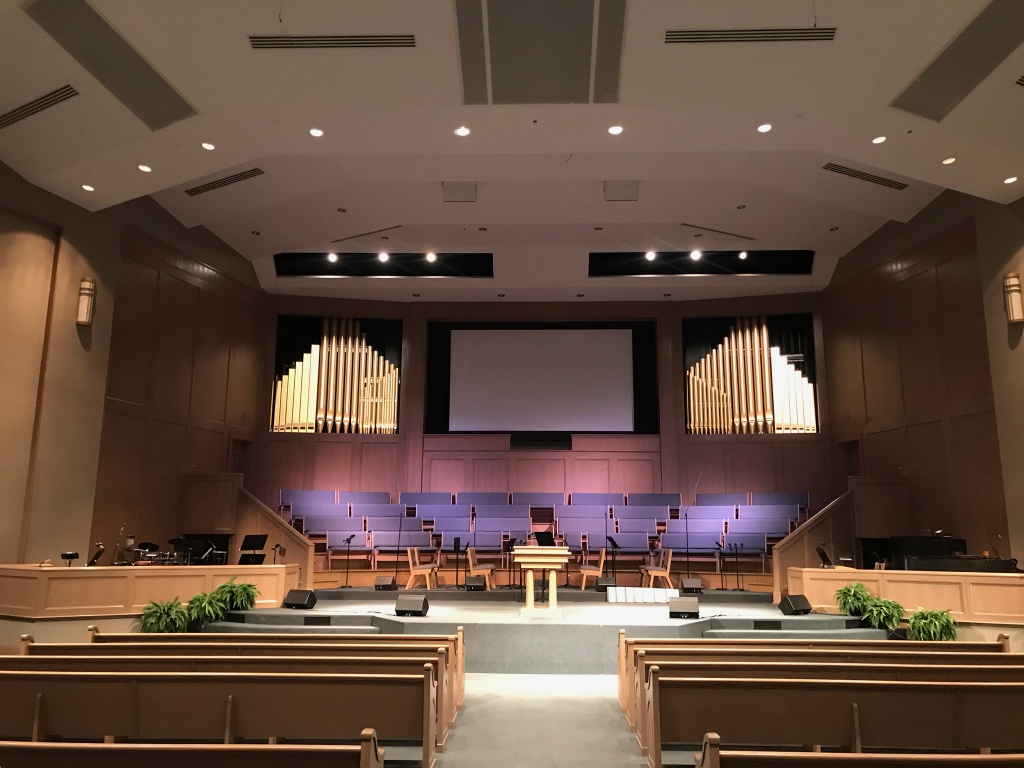

2020-03-02 - Church interior with divided chambers & facades (Photograph by Tommy Malcolm Quinn/Database Manager)
Consoles
Main
- Organ type: Traditional With Roll Top
- Console position: Console in Fixed Position, Center
- 3 manuals
- 21 stops
- 33 registers
- 4 divisions
- Key action Type: Electrical
- Stop action Type: Electrical
- Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
- Manual compass: 61 notes
- Pedal compass: 32 notes
- Pedal Type: Concave Radiating (Meeting AGO Standards)
- Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
- Combination action: Adjustable Combination Pistons
Notes
2011-05-11 - Identified through online information from Jeff Scofield. -- Moved to and re-engineered for new sanctuary in 2003 by Milnar Organ Co., including multiplexing and renovated console. -Database Manager
Stoplist
Stoplist from <i>The Diapason</i> July 1962 Source: Source not recorded Date not recorded
Florence, Alabama
Highland Baptist Church
SCHANTZ ORGAN CO., Opus 591, 1964 - Original Specifications
________________________________________________
<u>GREAT</u> <u>SWELL (Expressive)</u>
8 Open Diapason 61 8 Rohrflote 61
8 Bourdon 61 8 Viola 61
4 Octave 61 8 Viola Celeste (tc) 49
2 Fifteenth 61 4 Spitz Principal 61
IV Mixture 244 4 Harmonic Flute 61
Chimes (Mayland) (21) 2 Flautino 12
III Plein Jeu 183
Great 16 8 Trompette 61
Great Unison Off 4 Clarion 12
Great 4 Tremolo
Swell 16
<u>CHOIR (Expressive)</u> Swell Unison Off
8 Gedeckt 61 Swell 4
8 Erzahler 61
8 Erzahler Celeste (tc) 49
4 Koppel Flote 61 <u>PEDAL</u>
2 2/3 Nasat 61 16 Principal 32
2 Flote 12 16 Bourdon (Gt) 12
1 3/5 Terz 61 16 Rohrflote (Sw) 12
8 Oboe 61 8 Octave 12
Tremolo 8 Bourdon (Gt) –-
8 Bombarde 61 8 Rohrflote (Sw) –-
4 Super Octave 12
Choir 16 16 Contre Trompette (Sw) 12
Choir Unison Off 8 Trompette (Sw) –-
Choir 4 4 Clarion (Sw) –-
<u>COUPLERS</u> <u>FINGER PISTONS</u>
Swell to Pedal 8,4 General 1 - 5
Great to Pedal 8,4 Swell 1 - 5
Choir to Pedal 8,4 Sw to Ped (rev)
MIDI to Pedal Great 1 - 5
Gt to Ped (rev)
Swell to Great 16,8,4 Choir 1 - 5
Choir to Great 16,8,4 Ch to Ped (rev)
MIDI to Great Full Organ (rev)
Set
Swell to Choir 16,8,4 Cancel
Great to Choir 8
MIDI to Choir
<u>TOE STUDS</u>
MIDI to Swell Pedal 1 – 5
<u>PEDAL MOVEMENTS (L-R)</u> <u>TOE SPOONS (L-R)</u>
Choir Expression (bal.) Gt. to Ped. (rev)
Swell Expression (bal.) Sw. to Ped. (rev)
Crescendo (bal.) Ch. to Ped. (rev)
Full Organ (rev)
<u>ACTION</u>: E-P <u>VOICES</u>: 21 <u>STOPS</u>: 34 <u>RANKS</u>: 26 <u>PIPES</u>: 1,629
(inc. chimes)
<u>NOTES</u>
The organ is installed at the front in divided placement in chambers either side of
the baptistery. Gold-painted Principal pipes and the Great/Pedal wooden 16' Bourdon
form the two façades. The console is in fixed position on the right.
The organ has had some type of electronic upgrades based on the availability of MIDI
to all four divisions and some LED displays – but is otherwise unaltered and original.
<u>Sources</u>: Existing OHS Database account; photos from March 2020 by Tommy Malcolm
Quinn
Highland Baptist Church
219 Simpson St.
Florence, AL. 35630
(256) 764-1392 Documented: March 3, 2020
[Received online from Jeff Scofield May 21, 2011]
[Corrected & augmented by James R. Stettner, March 6, 2020]
