Better Pipe Organ Database

Schantz Organ Co. Opus 1008 (1970)

St. Mary's Episcopal Church: Church
18 White Horse Pike
Haddon Heights, NJ

Images

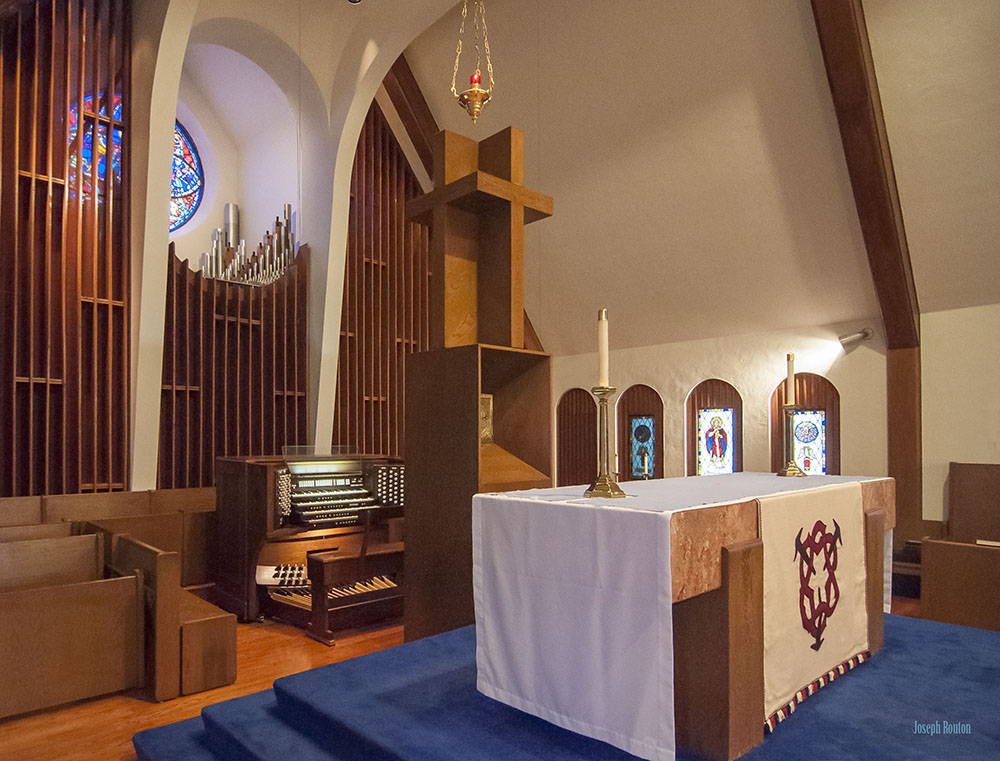

2014-03-10 - Console in Chancel (Photograph by Joe Routon/Database Manager)

2014-03-10 - Chancel (Photograph by Joe Routon/Database Manager)

2014-03-10 - Console (Photograph by Joe Routon/Database Manager)

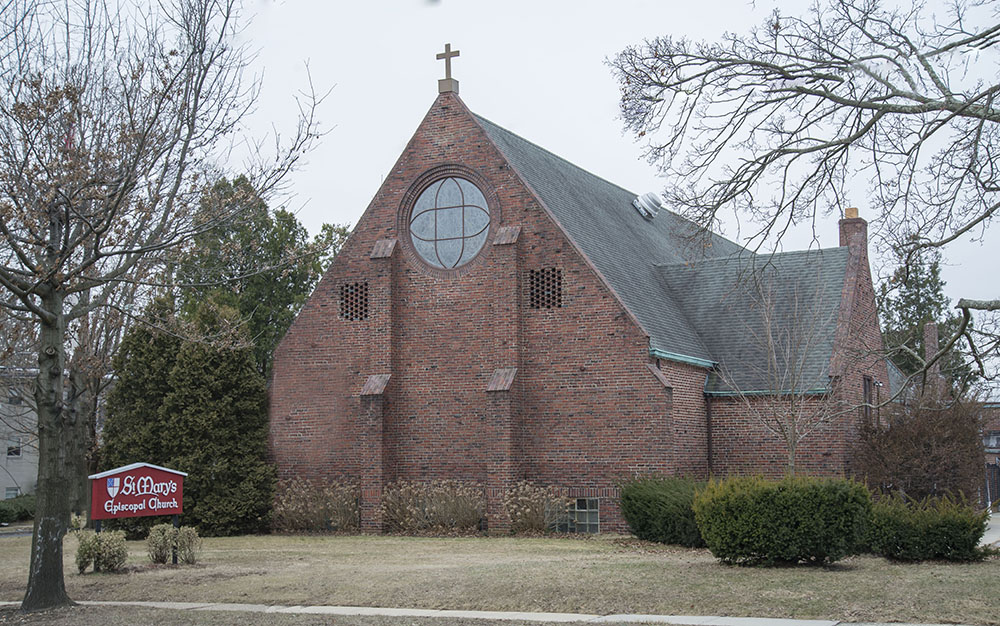

2014-03-10 - Church Exterior (Photograph by Joe Routon/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Center
4 manuals
41 stops
56 registers
5 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2011-05-22 - Identified through online information from Jeff Scofield. -Database Manager

Stoplist

Stoplist from <i>The Diapason</i> October 1970 Source: Source not recorded Date not recorded

       Haddon Heights, New Jersey
       St. Mary's Episcopal Church

       Schantz   Op. 1008   1970   4/52
       ______________________________________________________

       GREAT                              SWELL
    8' Principal            61        16' Flûte à Cheminée 61
    8' Bourdon              61         8' Flûte à Cheminée 12
    4' Octave               61         8' Viole            61
    4' Spitzflöte           61         8' Viole Céleste    54
    2' Super Octave         61         4' Prestant         61
   IV  Mixtur              244         4' Flûte à Bec      61
  III  Scharf              183         2' Doublette        61
    8' Trompette Heroique   CH        IV  Plein Jeu       244
       Chimes                         16' Basson           61
       Cymbelstern                     8' Trompette        61
                                       8' Basson           12
       CHOIR                           4' Clairon          61
    8' Nasonflöte           61            Tremblant
    8' Flute Douce          61
    8' Flute Celeste        49            PEDAL
    4' Koppelflote          61        32' Resultant        --
2 2/3' Nasard               61        16' Principal        32
    2' Flachflöte           61        16' Bourdon          32
1 3/5' Tierce               49        16' Flûte à Cheminée SW
    8' Krummhorn            61         8' Oktav            32
       Tremulant                       8' Bourdon          12
    8' Trompette Heroique   61         8' Flûte à Cheminée SW
    4' Trompette Heroique   --         4' Choralbass       32
                                       4' Bourdon          12
       POSITIV                         2' Choralbass       12
    8' Gedackt              61       VII  Cornet           --
    4' Prinzipal            61       III  Mixtur           96
2 2/3' Nasat                61        16' Bombarde         32
    2' Octav                61        16' Basson           SW
1 3/5' Terz                 61         8' Bombarde         12
1 1/3' Quint                61         8' Krummhorn        CH
    1' Sifflöte             61         4' Bombarde         12
  III  Zymbel              183         4' Basson           SW
    8' Trompette Heroique   CH

      [Received online from Jeff Scofield  May 22, 2011]
