Schantz Organ Co. Opus 2023 (1992)

Mountain View United Methodist Church: Sanctuary
4405 Orebank Rd.
Kingsport, TN

Images

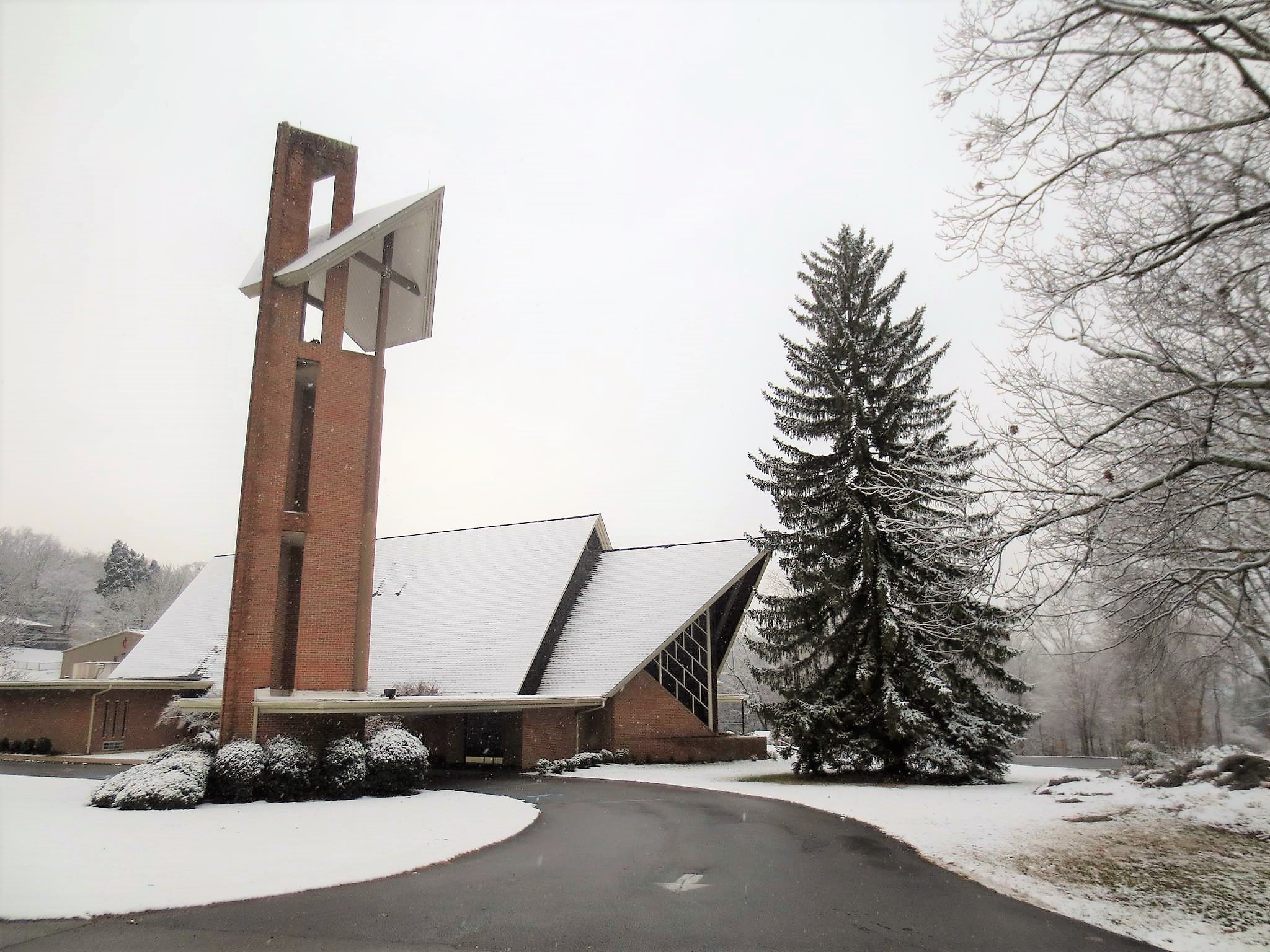

2023-04-18 - Church exterior (Photograph by Church Facebook/Jeff Scofield)

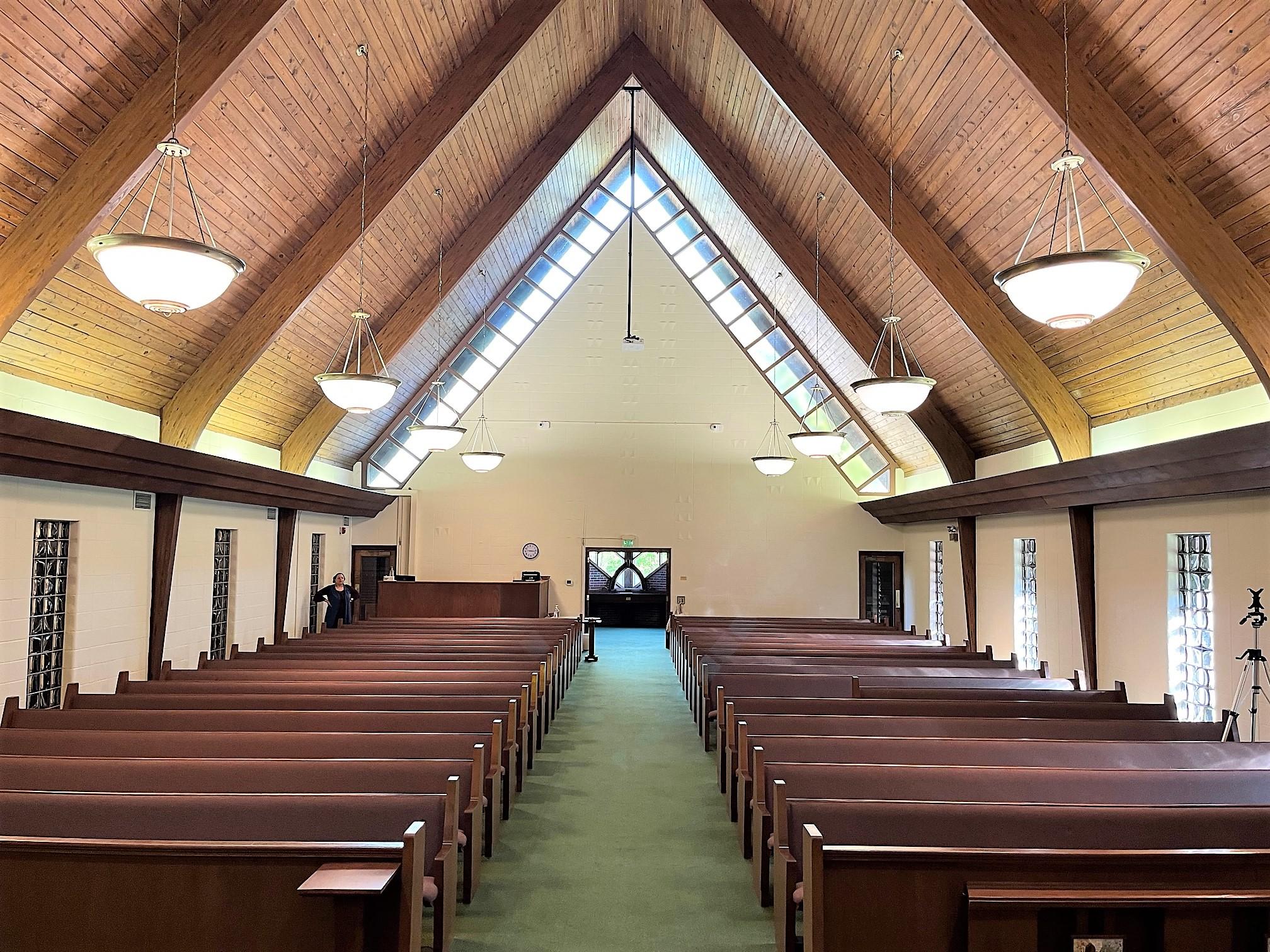

2023-04-18 - Church interior to rear (Photograph by Jeff Scofield/Jeff Scofield)

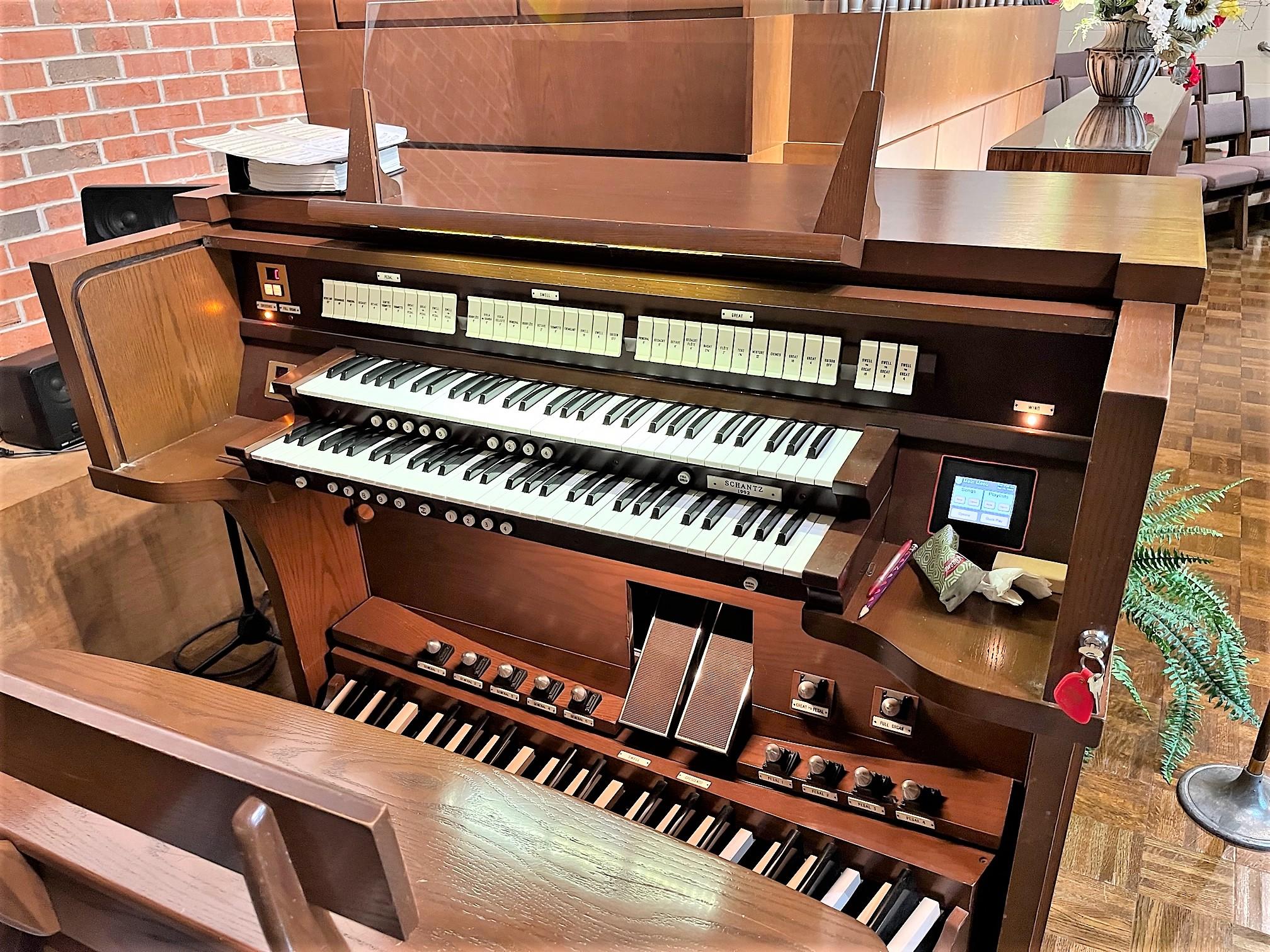

2023-04-18 - Console (Photograph by Jeff Scofield/Jeff Scofield)

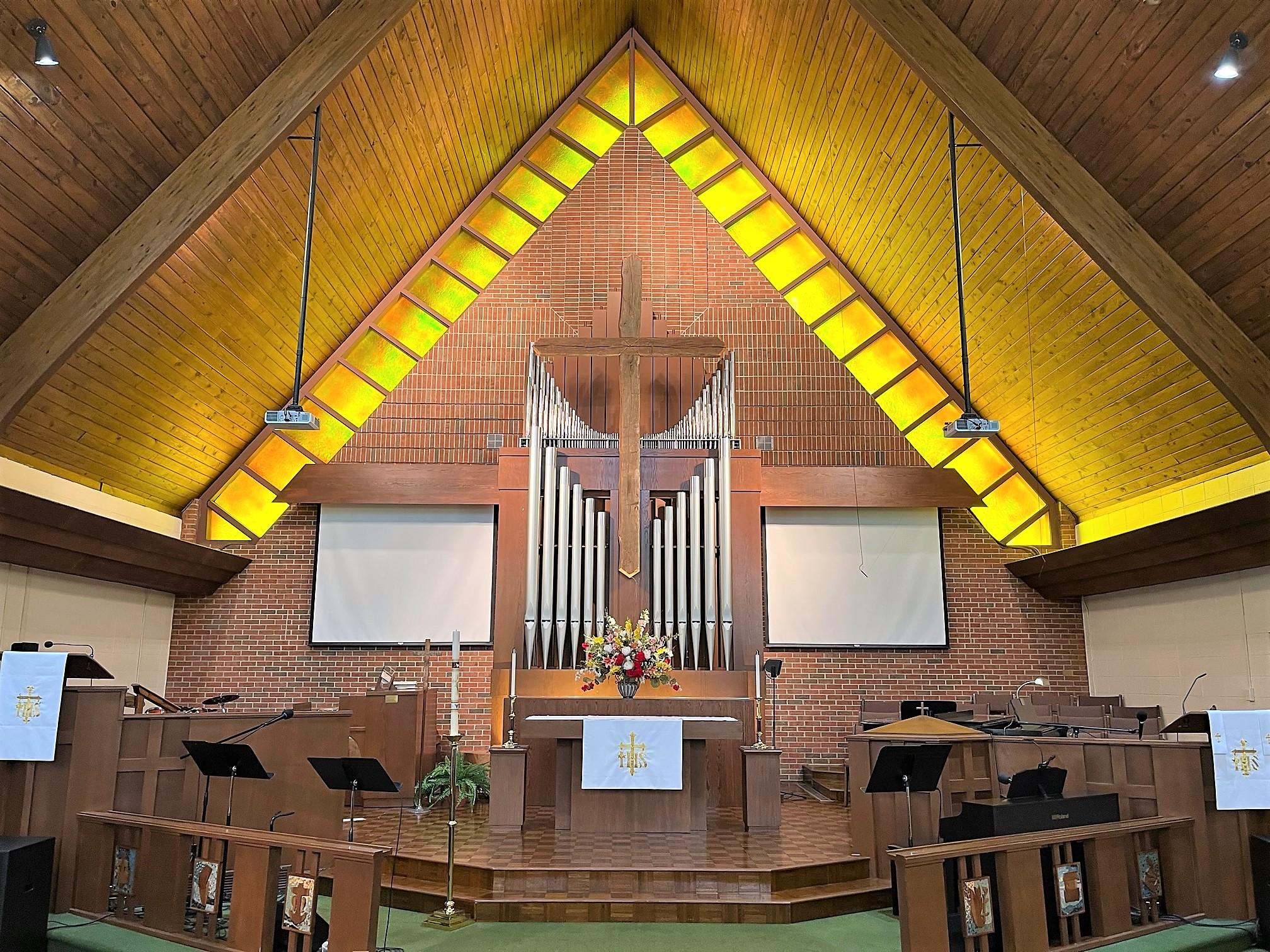

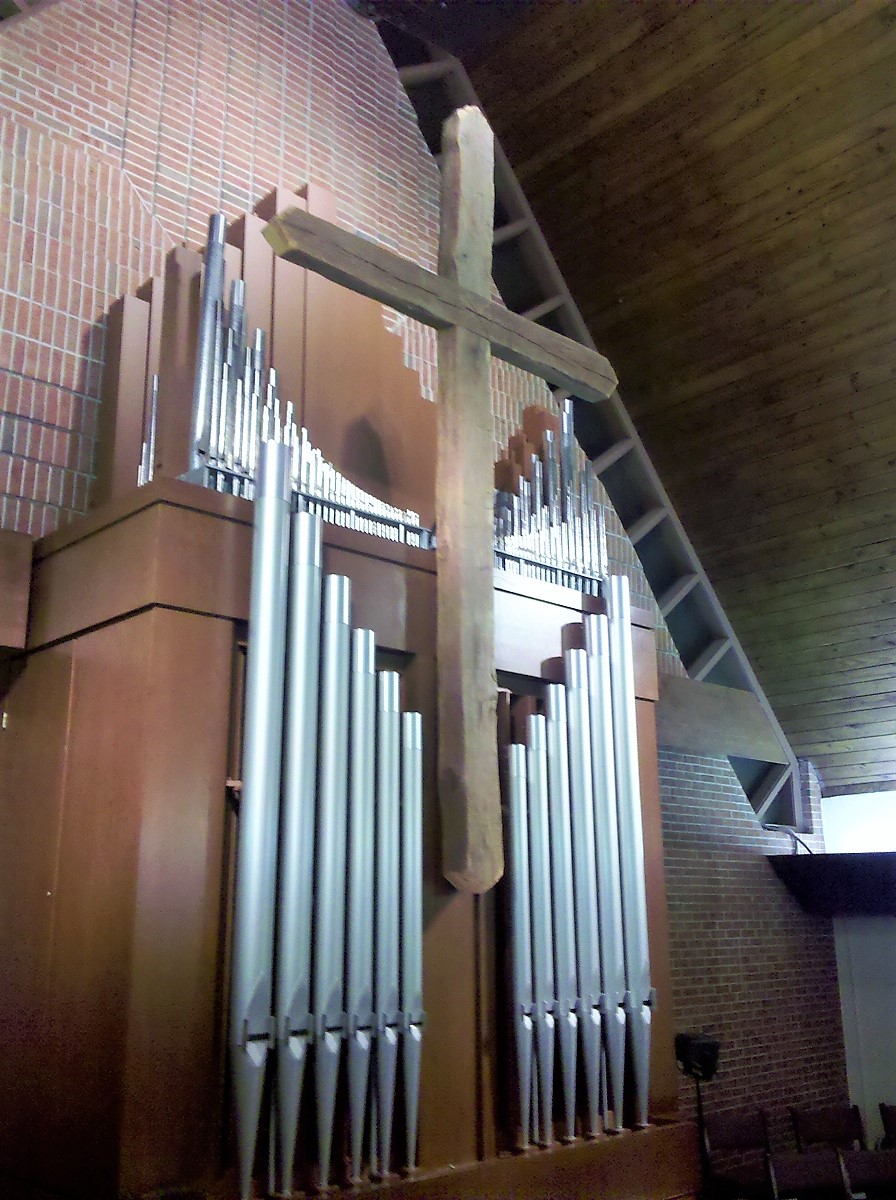

2023-04-18 - Chancel, organ case and exposed pipes (Photograph by Jeff Scofield/Jeff Scofield)

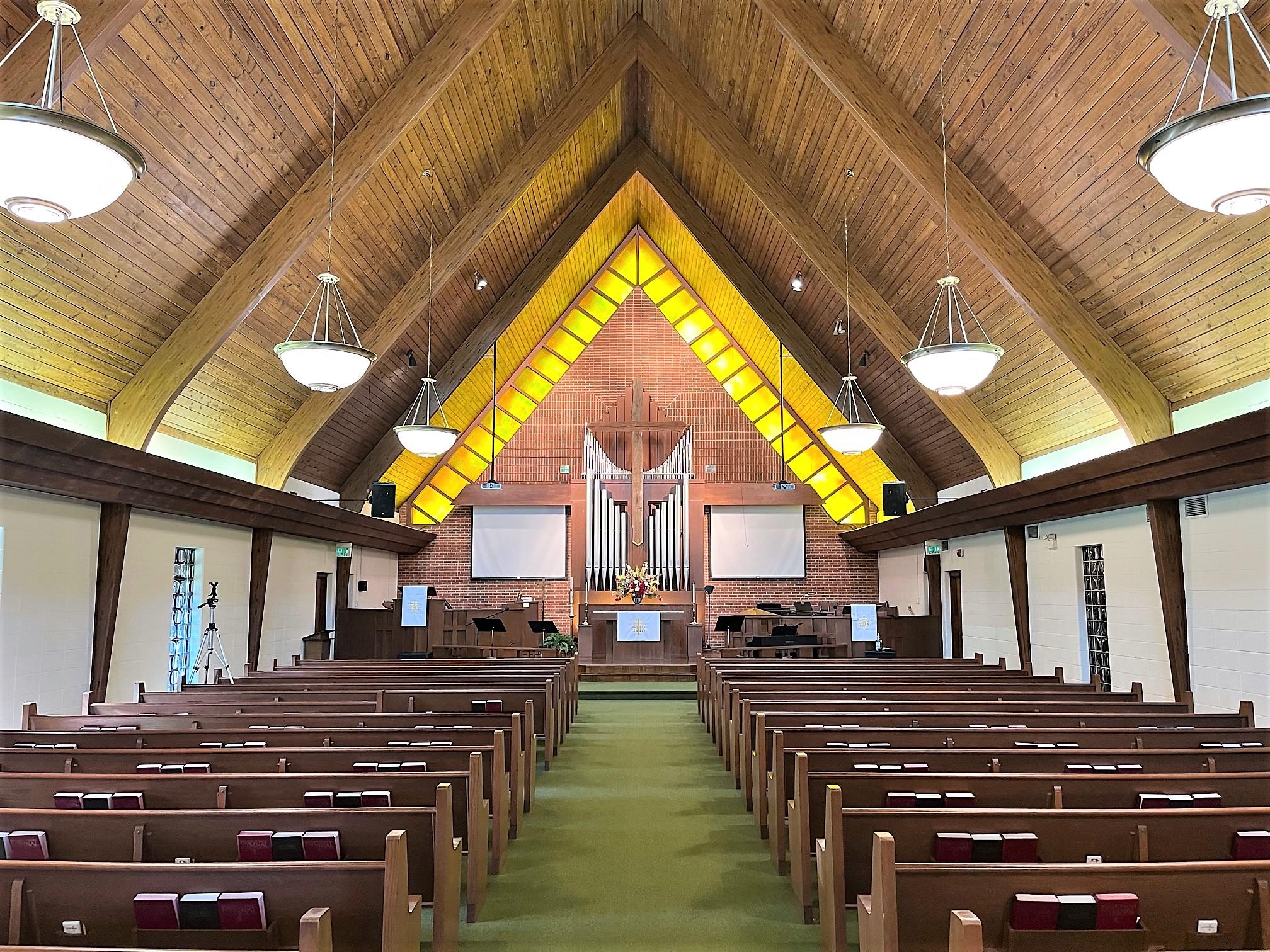

2023-04-18 - Church interior (Photograph by Jeff Scofield/Jeff Scofield)

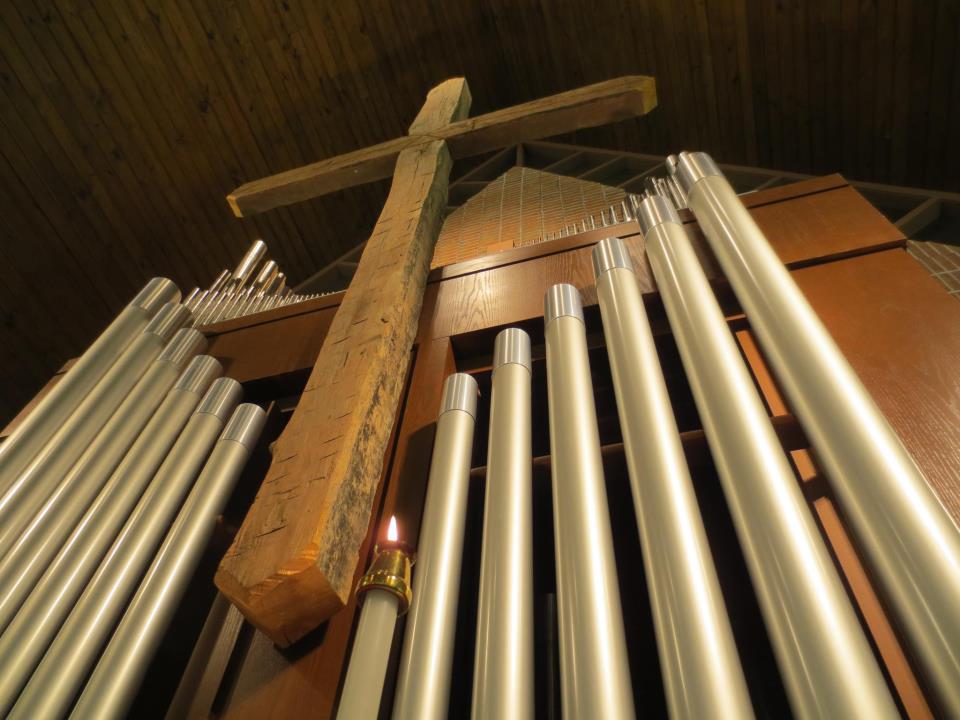

Unknown - Exposed Great pipework (Photograph by Vicki Reeser/Database Manager)

Unknown - Cross mounted on case (Photograph by Eric Reagan/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
2 manuals
8 stops
20 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Tilting/Rocking Tablets Above Top Manual
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-05-24 - Identified through online information from Jeff Scofield. -Database Manager

2013-03-02 - Updated through online information from Eric Reagan. -- A transposer +/-6, 100 level combination action memory, MIDI with record/playback capability and 5 additional thumb pistons were added as part of a control system upgrade completed in 2013. -Database Manager

Stoplist

Stoplist courtesy of Greg Lacey Source: Source not recorded Date not recorded

       Kingsport, Tennessee
       Mountain View United Methodist Church

       Schantz   Op. 2023   1992   2/11
       _________________________________________________________________

       GREAT                SWELL                    PEDAL
    8' Principal   61    8' Rohrfloete     61    32' Resultant        --
    8' Holzgedackt 61    8' Viola da Gamba 61    16' Brummbass        12 GT
    4' Octave      12    8' Viola Celeste  49     8' Principal        GT
    4' Holzgedackt 12    4' Principal      61     8' Holzgedackt      GT
2 2/3' Nasat       pf    4' Rohrfloete     12     4' Octave           GT
    2' Floete      12    2' Octave         12    16' Contre Trompette 12 SW
1 3/5' Terz        pf    8' Trompette      61     8' Trompette        SW
   IV  Mixture    244       Tremulant
       Sub                  Sub
       Unison Off           Unison Off
       Super                Super

      [Received online from Jeff Scofield  May 28, 2011]
