Better Pipe Organ Database

Schantz Organ Co. Opus 1084 (1972)

All Saints Episcopal Church
634 W. Peachtree St. NW
Atlanta, GA

Note: Not extant. Not playable. (in this location)

Images

1990-09-14 - Church exterior (Photograph by Jeff Scofield/Database Manager)

1990-09-14 - Chancel and exposed pipes (Photograph by Jeff Scofield/Database Manager)

1990-09-14 - North chamber and exposed pipes (Photograph by Jeff Scofield/Database Manager)

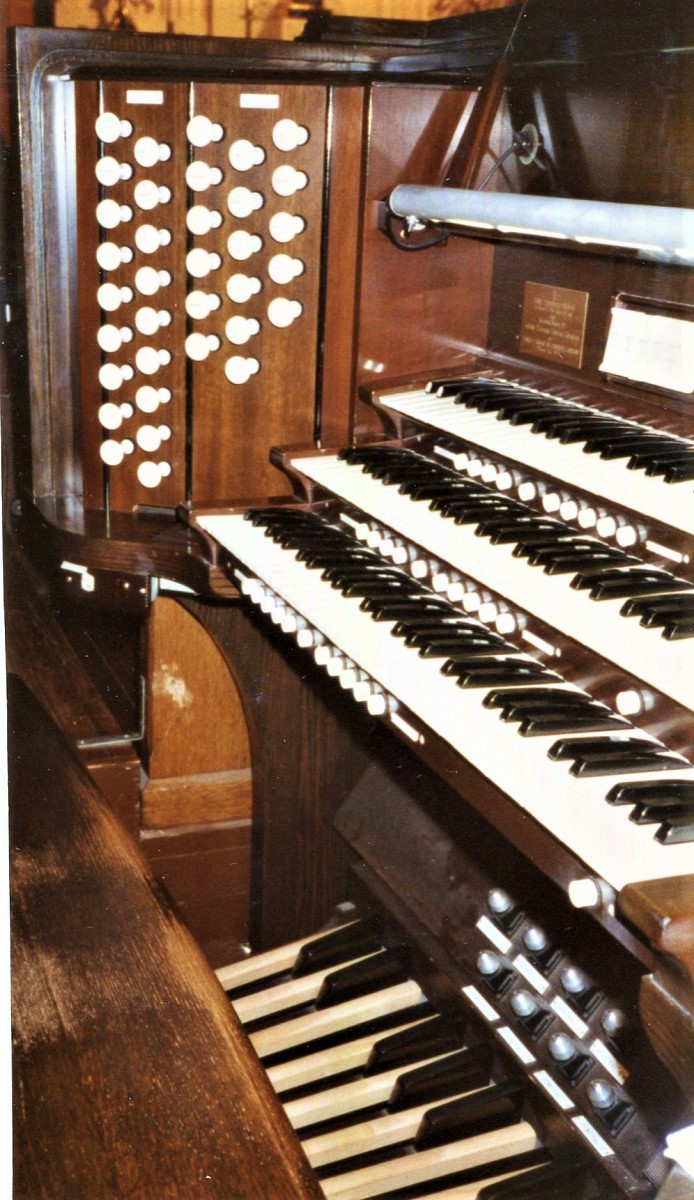

1990-09-14 - Console to right (Photograph by Jeff Scofield/Database Manager)

1990-09-14 - Console to left (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Left
3 manuals
47 stops
32 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-06-07 - Identified through on-line information from Jeff Scofield. -- Replaced in 2003 by 4/87 Buzard and relocated by John Widener & Associates to Christ Episcopal Church, Valdosta, GA. -Database Manager

Stoplist

Stoplist from the console September 14, 1990 Source: Source not recorded Date not recorded

       Atlanta, Georgia
       All Saints' Episcopal Church
       _________________________________________________

       Schantz   Op. 1084   1972   3/41

       GREAT                         POSITIV
    8' Principal        61        8' Gedeckt          61
    8' Bordun           61        4' Koppelflöte      61
    8' Erzähler         61    2 2/3' Nasat            61
    4' Octave           61        2' Principal        61
    4' Flute            61    1 3/5' Terz             61
    2' Super Octave     61    1 1/3' Quinte           61
   IV  Mixture         244        1' Sifflöte         61
    8' Trumpet          61 *     II  Cymbel          122
       Sub                        8' Krummhorn        61
       Unison Off                    Tremulant
       Super                      8' Trumpet          GT
       Chimes
                                     PEDAL
       SWELL                     32' Resultant f      --
   16' Flûte couverte   12       32' Resultant p      --
    8' Flûte à cheminée 61       16' Principal        32
    8' Viole de Gambe   61       16' Brummbass        32
    8' Voix céleste     49       16' Violone          32
    4' Prestant         61       16' Flute Couverte   SW
    4' Flûte harmonique 61        8' Octave           12
    2' Flûte à bec      61        8' Bourdon          12
1 1/3' Larigot          61        8' Viole            12
   IV  Plein Jeu       244        8' Flûte à cheminée SW
   16' Basson           61        4' Super Octave     12
    8' Trompette        61        4' Flöte            12
    8' Basson           12       II  Rauschquinte     64
    4' Hautbois         61       II  Quartane         24
       Tremulant                 16' Posaune          32
       Sub                       16' Basson           SW
       Unison Off                 8' Trompete         12
       Super                      4' Rohrschalmei     32

    *  drawknob located below other stops in the division

      [Received online from Jeff Scofield  June 7, 2011]
