Schantz Organ Co. Opus 1448 (1977)

Images

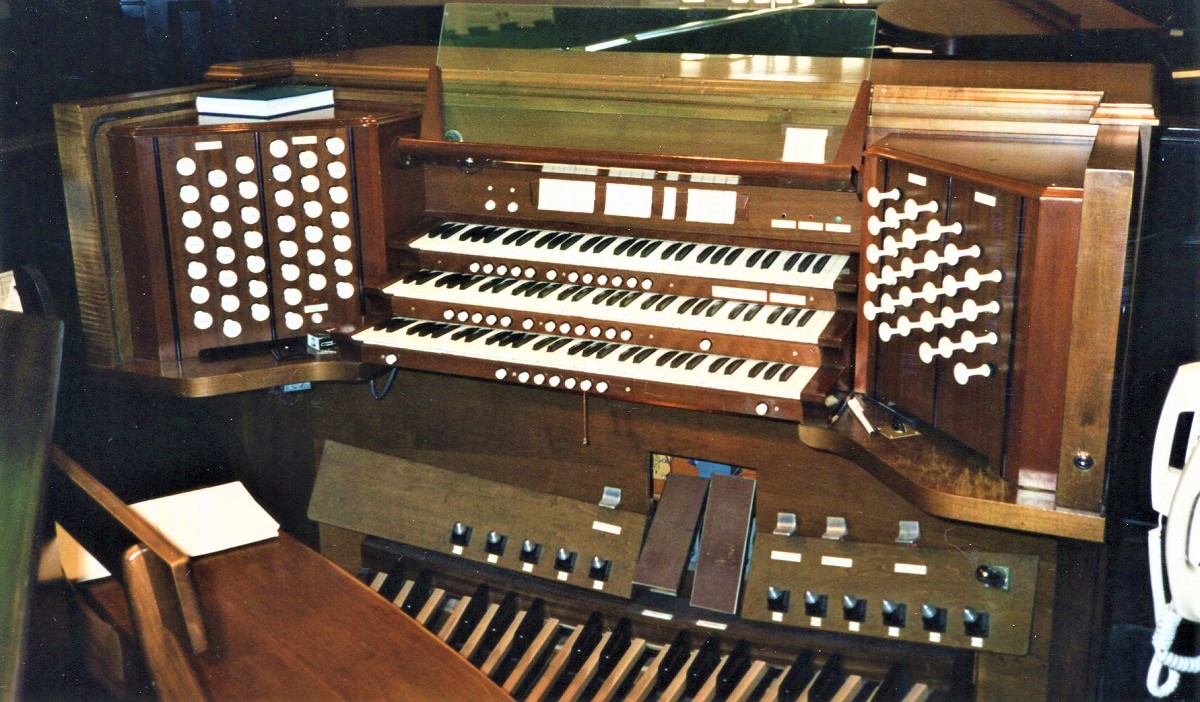

1988-02-16 - Console (Photograph by Jeff Scofield/Database Manager)

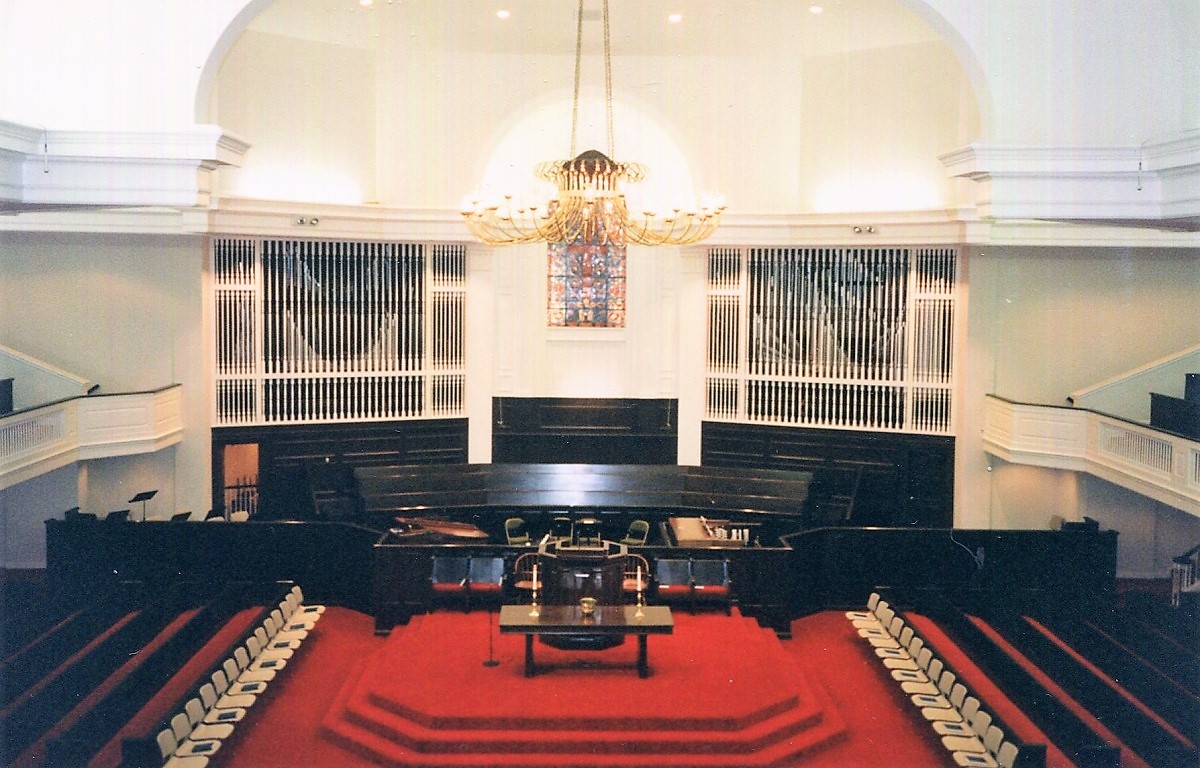

1988-02-16 - Nave (Photograph by Jeff Scofield/Database Manager)

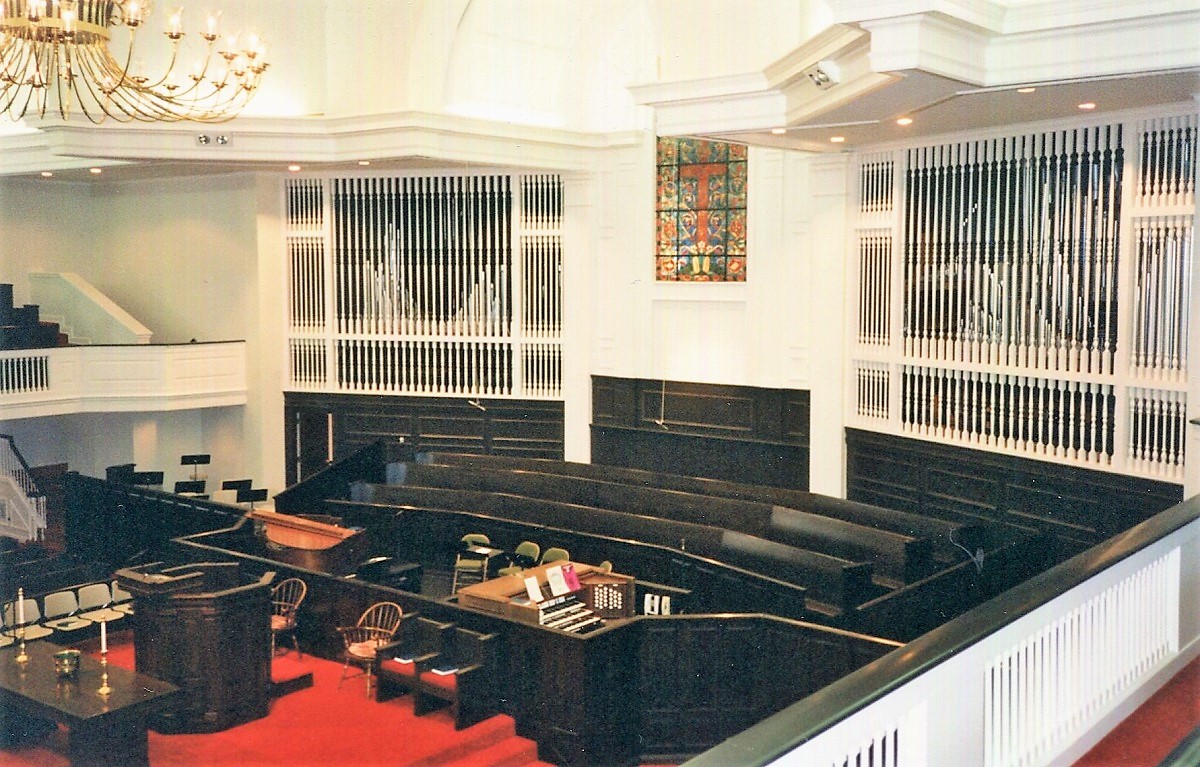

1988-02-16 - Console and chambes (Photograph by Jeff Scofield/Database Manager)

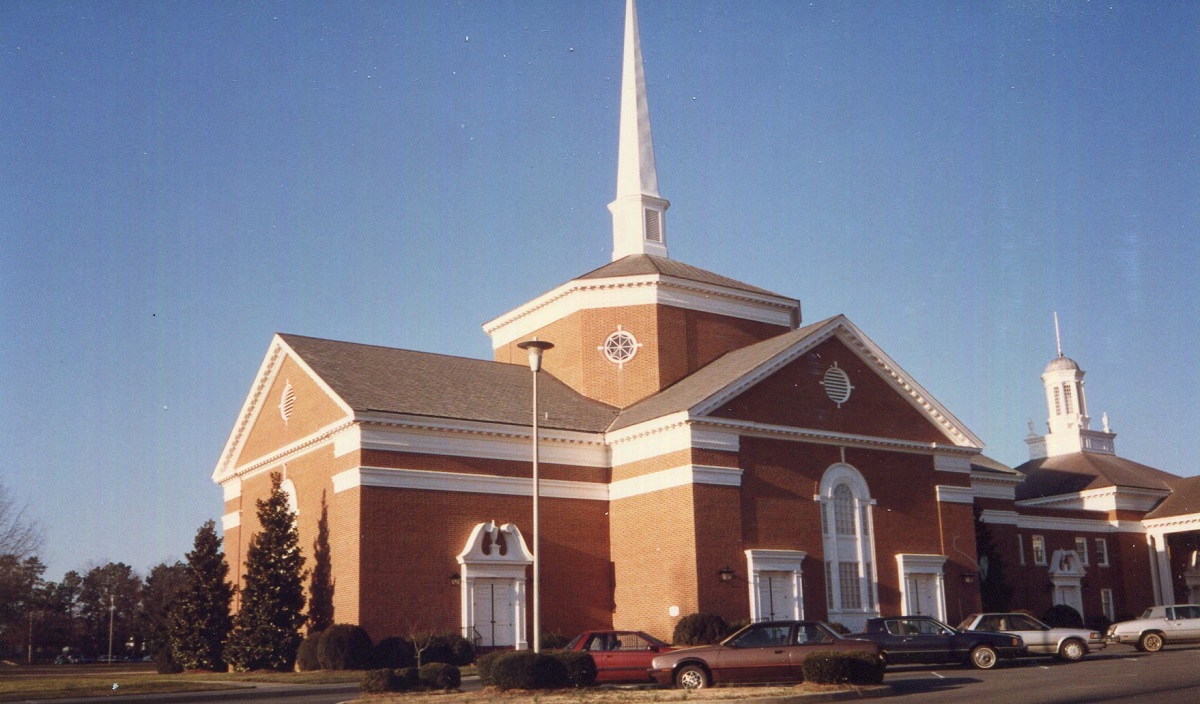

1988-02-16 - Church exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

• Organ type: Traditional With Roll Top
• Console position: Console in Fixed Position, Right
• 3 manuals
• 38 stops
• 53 registers
• 4 divisions
• Key action Type: Electrical
• Stop action Type: Electrical
• Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
• Manual compass: 61 notes
• Pedal compass: 32 notes
• Pedal Type: Concave Radiating (Meeting AGO Standards)
• Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
• Combination action: Remote Pneumatic/Mechanical Capture
• Has combination thumb pistons
• Has coupler toe pistons
• Has tutti thumb pistons
• Has tutti toe pistons

Notes

2011-06-13 - Identified through online information from Jeff Scofield. -Database Manager

2013-03-24 - Updated through online information from Scott Crowell. -- New console by Schlueter in 2004. -Database Manager

Stoplist

Stoplist from the console February 16, 1988 Source: Source not recorded Date not recorded

       Charlotte, North Carolina
       Providence Baptist Church

       Schantz   Op. 1448   1977   3/50
       ________________________________________________

       GREAT                        POSITIV
   16' Pommer                    8' Metallgedackt
    8' Principal                 8' Gemshorn
    8' Rohrflöte                 8' Flauto Dolce
    4' Octave                    8' Flauto Celeste
    4' Holzgedackt               4' Principal
    2' Super Octave              4' Koppelflöte
   IV  Mixture                   2' Octave
    8' Trompete              1 1/3' Quinte
       Unison Off               IV  Scharf
       Chimes                    8' Cromorne
    8' Festival Trumpet PO          Tremulant
                                    Unison Off
       SWELL                     8' Festival Trumpet
   16' Bourdon
    8' Bourdon          12          PEDAL
    8' Gambe                    32' Resultant         w
    8' Voix Celeste             16' Principal
    4' Principal                16' Bourdon
    4' Flute Ouverte            16' Pommer           GT
2 2/3' Nasard                    8' Octave
    2' Quarte de Nasard          8' Bourdon          12
1 3/5' Tierce                    4' Choralbass       12
    V  Plein Jeu                 4' Bourdon          12
   16' Basson                    2' Bourdon          12
    8' Trompette                II  Rauschpfeife
    8' Basson           12      II  Mixture
    8' Voix Humaine             16' Posaune
    4' Clairon                  16' Basson           SW
       Tremblant                 8' Trompete         12
       Vox Tremolo               8' Basson           SW
       Sub                       4' Klarine          12
       Unison Off                4' Basson           SW
       Super                     8' Festival Trumpet PO

      [Received online from Jeff Scofield June 17, 2011]
