Schantz Organ Co. Opus 1455 (1977)

St. Andrew's Lutheran Church
1416 Broad River Rd.
Columbia, SC

Images

1977 - Church interior, organ and exposed pipes (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

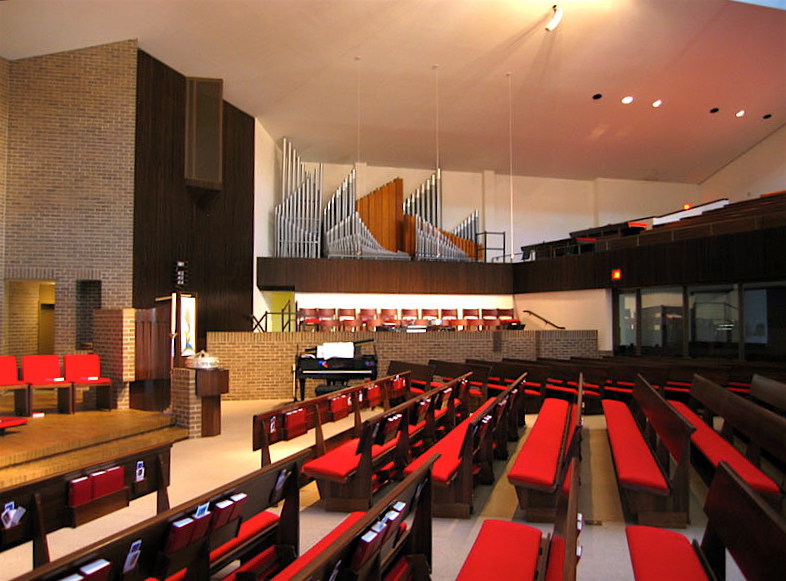

2011-06-21 - Sanctuary Interior and Chancel (Photograph by Jeff Scofield/Database Manager)

2011-06-21 - Sanctuary Interior and Pipe Display (Photograph by Jeff Scofield/Database Manager)

2011-06-21 - Console, Choir Loft, and Pipe Display (Photograph by Jeff Scofield/Database Manager)

2011-06-21 - Console (Photograph by Jeff Scofield/Database Manager)

2011-06-21 - Church Exterior (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
25 stops
27 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Adjustable Combination Pistons
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-06-30 - Identified through online information from Jeff Scofield. -- Located on the right side wall toward the front of the somewhat rectangular-shaped room. -Database Manager

Stoplist

Stoplist courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

     Columbia, South Carolina
     St. Andrew's Lutheran Church

     Schantz   Op. 1455   1977   3/33
     ____________________________________________

     GREAT                         CHOIR
  8' Principal        61        8' Gedackt     61
  8' Bordun           61        4' Koppelflöte 61
  4' Octave           61    2 2/3' Nasat       61
  4' Hohlflöte        61        2' Principal   61
  2' Super Octave     61    1 3/5' Terz        61
 IV  Mixture         244      III  Scharf     183
     Unison Off                 8' Krummhorn   61
     Super                         Tremulant
                                   Sub
     SWELL                         Unison Off
  8' Flute a cheminee 61           Super
  8' Viole de gambe   61           Blank
  8' Viole Celeste    49
  4' Prestant         61           PEDAL
  2' Flute a bec      61       16' Principal   32
III  Plein Jeu       183       16' Gedackt     32
  8' Trompette        61        8' Octave      12
     Tremulant                  8' Gedackt     12
     Sub                        4' Choralbass  32
     Unison Off                II  Mixture     64
     Super                     16' Posaune     32
     Blank                         Blank

[Received online from Jeff Scofield  July 2, 2011]
