Schantz Organ Co. Opus 1887 (1988)

SS. Peter and Paul Greek Orthodox Church
1401 Wagner Road
Glenview, IL

Images

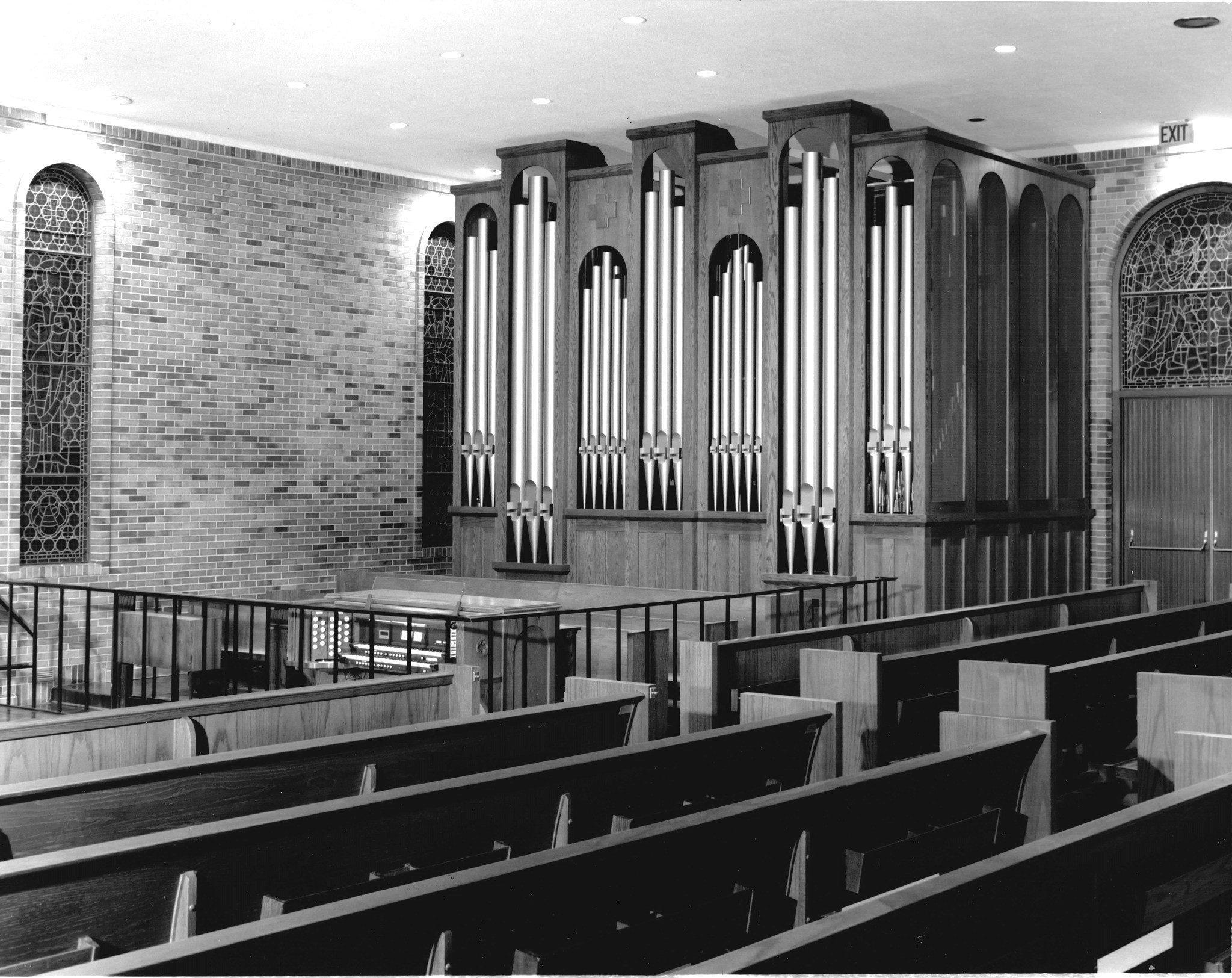

1988 - Choir area, console and organ case (Photograph by Schantz Organ Co., via Facebook, submitted by Jeff Scofield/Jeff Scofield)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
2 manuals
22 stops
28 registers
3 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination action: Adjustable Combination Pistons

Notes

2011-07-11 - Identified through online information from Jeff Scofield. -- The organ and choir are located to the right of the chancel area. -Database Manager

Stoplist

Stoplist copied from factory specifications Source: Source not recorded Date not recorded

Glenview, Illinois
Saints Peter & Paul Greek Orthodox Church

Schantz Organ Company, Opus 1887
Installed 1988
Dedicated September 11, 1988

GREAT                                     SWELL                                        PEDAL ORGAN

8'     Principal     61 pipes       8'     Holzgedackt          61 pipes (W)   16'   Principal     32 pipes
8'     Rohrflote     61 pipes       8'     Viole                61 pipes       16'   Bourdon**     32 pipes (W)
8'     Gemshorn      61 pipes       8'     Viole Celeste t.c.   49 pipes       8'    Octave***     12 pipes
4'     Octave        61 pipes       4'     Principal            61 pipes       8'    Bourdon****   12 pipes (W)
4'     Waldflote     61 pipes       4'     Koppelflote          61 pipes       4'    Choralbass    32 pipes
2'     Super Octave  61 pipes       2 2/3' Nasat                61 pipes       4'    Bourdon#      12 pipes (w)
IVrk   Mixture       244 pipes      2'     Principal*           12 pipes       IIIrk Mixture       96 pipes
8'     Krummhorn     61 pipes (RM)  1 3/5' Terz                 61 pipes       16'   Posaune       32 pipes (RM)
8'     Trompette     (from Swell)   IVrk   Mixture              244 pipes      8'    Posaune##     12 pipes (RM)
                                    8'     Trompette            61 pipes (RM)
                                           Tremulant

(W) = wood pipes; (RM) = reeds, metal pipes; all other pipes are metal pipes
* = (metal, ext. #13); ** = (wood, large scale); *** = (metal, ext. #20); **** = (wood, ext. #21); # = (wood, ext. #23); ## = (reeds, metal, ext. #27)

COUPLERS

Great to Great 16'          Swell to Great 16'         Swell to Swell 16'
Great to Great  8' off      Swell to Great  8'         Swell to Swell  8' off
Great to Great  4'          Swell to Great  4'         Swell to Swell  4' off

Great to Pedal  8'                                     Swell to Pedal  8'
Great to Pedal  4'                                     Swell to Pedal  4'

COMBINATION PISTONS

Five thumb pistons affecting Great stops and couplers.
Five thumb pistons affecting Swell stops and couplers.
Five thumb pistons affecting Pedal stops and couplers, duplicated by toe studs.
Six general thumb pistons affecting all stops and couplers, separate from above, duplicated by toe studs.
Great to Pedal reversible thumb piston, duplicated by toe stud.
Swell to Pedal reversible thumb piston, duplicated by toe stud.
Sforzando piston affecting entire organ, no 16' couplers and toe stud.
General cancel thumb piston cancels Sforzando.

 [Received from Melissa Pappamichiel 2012-03-29.]
