Schantz Organ Co. Opus 757 (1966)

First Baptist Church: Sanctuary
612 College St.
Hapeville, GA

Images

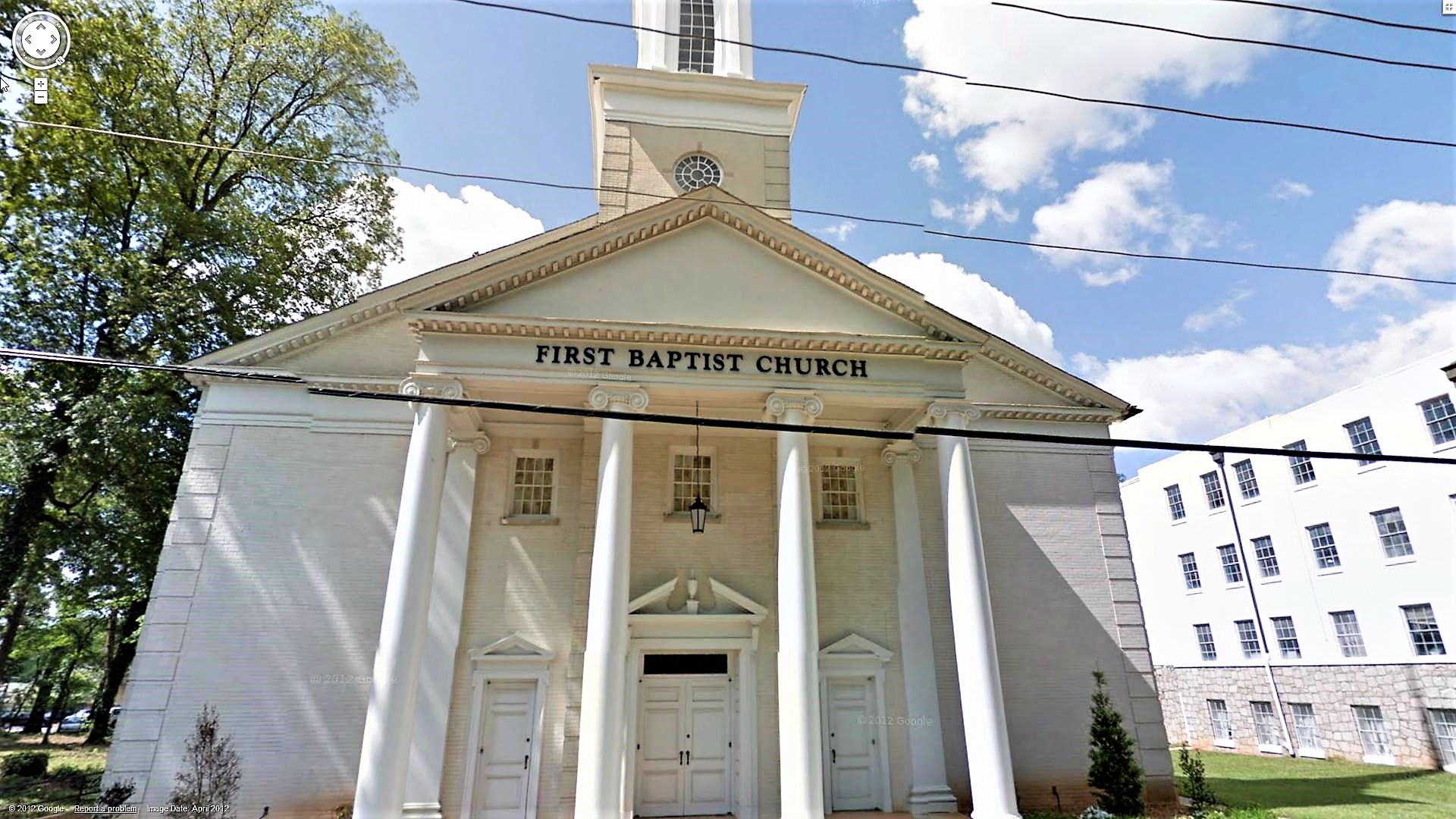

2012-10-25 - Church exterior (Photograph by From church Facebook page, submitted by Jeff Scofield/Jeff Scofield)

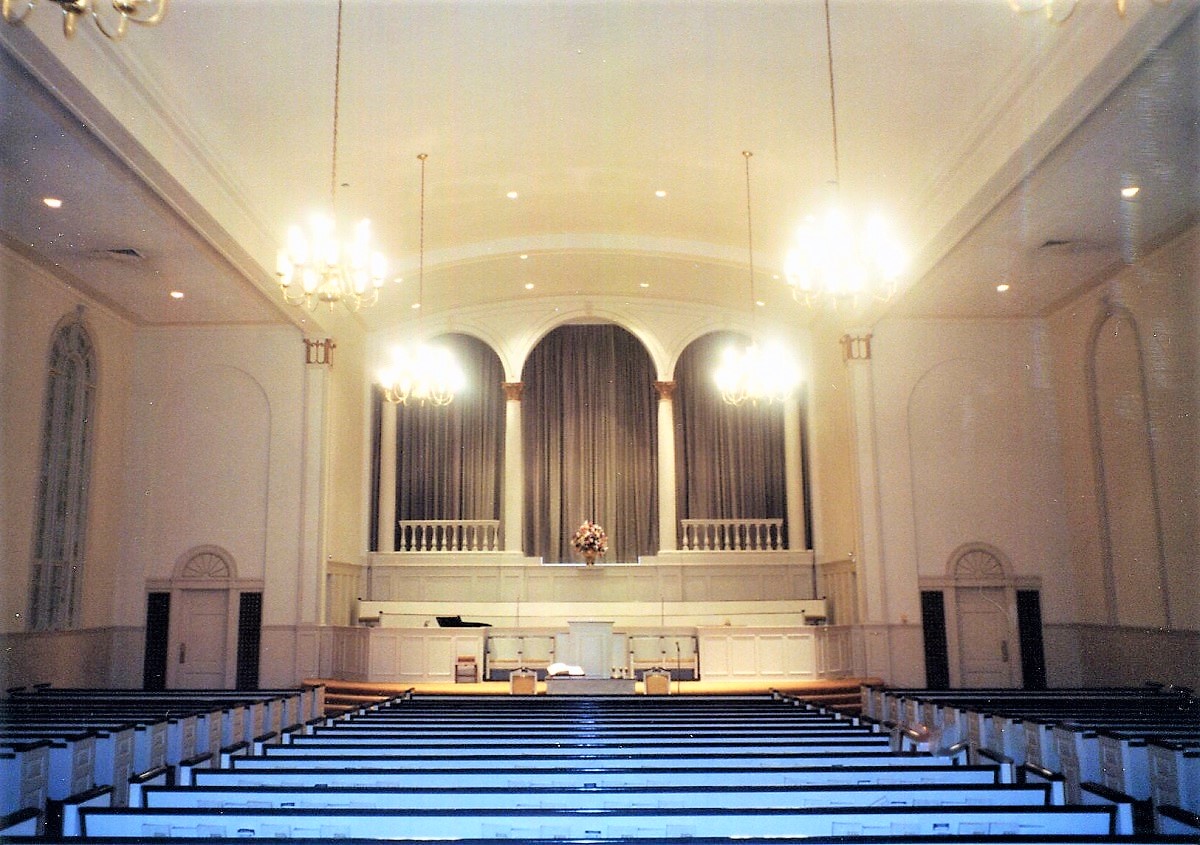

1999-06-28 - Sanctuary interior (Photograph by Jeff Scofield/Database Manager)

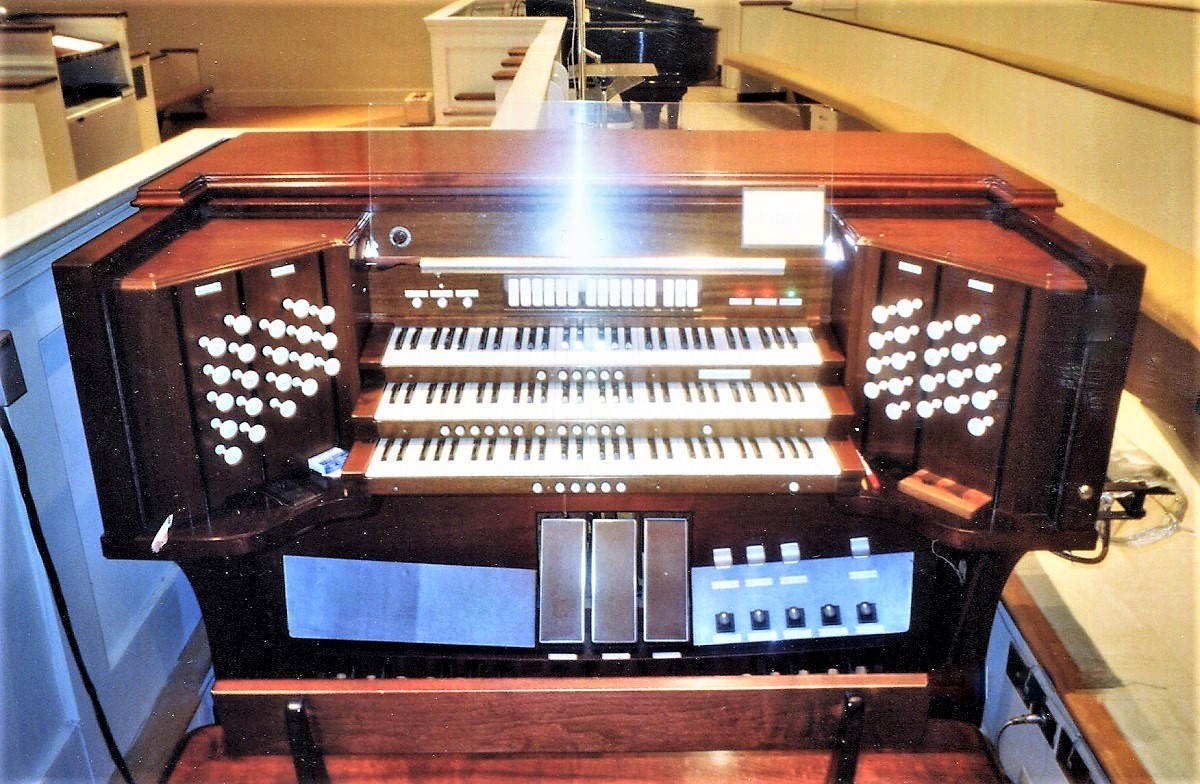

1999-06-28 - Console (Photograph by Jeff Scofield/Database Manager)

Consoles

Main

Organ type: Traditional With Roll Top
Console position: Console in Fixed Position, Right
3 manuals
31 stops
24 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Vertical Rows on Angled Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: 'Hold and Set' Pneumatic/Mechanical
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-07-11 - Identified through on-line information from Jeff Scofield. -- A. E. Schlueter was contracted to install grillwork in front of the chambers in place of 'transparent' curtains, date unknown. -Database Manager

Stoplist

Stoplist copied from the console June 28, 1999 Source: Source not recorded Date not recorded

       Hapeville, Georgia
       First Baptist Church

       Schantz   Op. 757   1966   3/28
       ___________________________________________

       GREAT                     SWELL
    8' Principal     61       8' Rohrflöte      61
    8' Bourdon       61       8' Viola          61
    4' Octave        61       8' Viola Celeste  49
    2' Blockflöte    61       4' Spitzprincipal 61
   IV  Mixture      244       2' Octavin        61
       Sub                  III  Mixture       183
       Unison Off             8' Trompette      61
       Super                     Tremulant
       Chimes                    Sub
                                 Unison Off
       CHOIR                     Super
    8' Nasongedackt  61
    8' Dulciana      61          PEDAL
    8' Unda Maris    49      16' Principal      32
    4' Koppelflöte   61      16' Bourdon        32
2 2/3' Nasat         61      16' Rohrbordun     12 SW
    2' Principal     61       8' Octave         12
1 3/5' Terz          61       8' Bourdon        12
    8' Schalmey      61       8' Rohrflöte      SW
       Tremulant              4' Super Octave   12
       Sub                   16' Posaune        32
       Unison Off             8' Trompete       12
       Super                  4' Klarine        12

[Received online from Jeff Scofield July 12, 2011]
