Better Pipe Organ Database

Schantz Organ Co. Opus 2170 (2001)

Trinity Episcopal Cathedral
100 W. Roosevelt Street
Phoenix, AZ

Note: Not extant. Not playable. (in this location)

Images

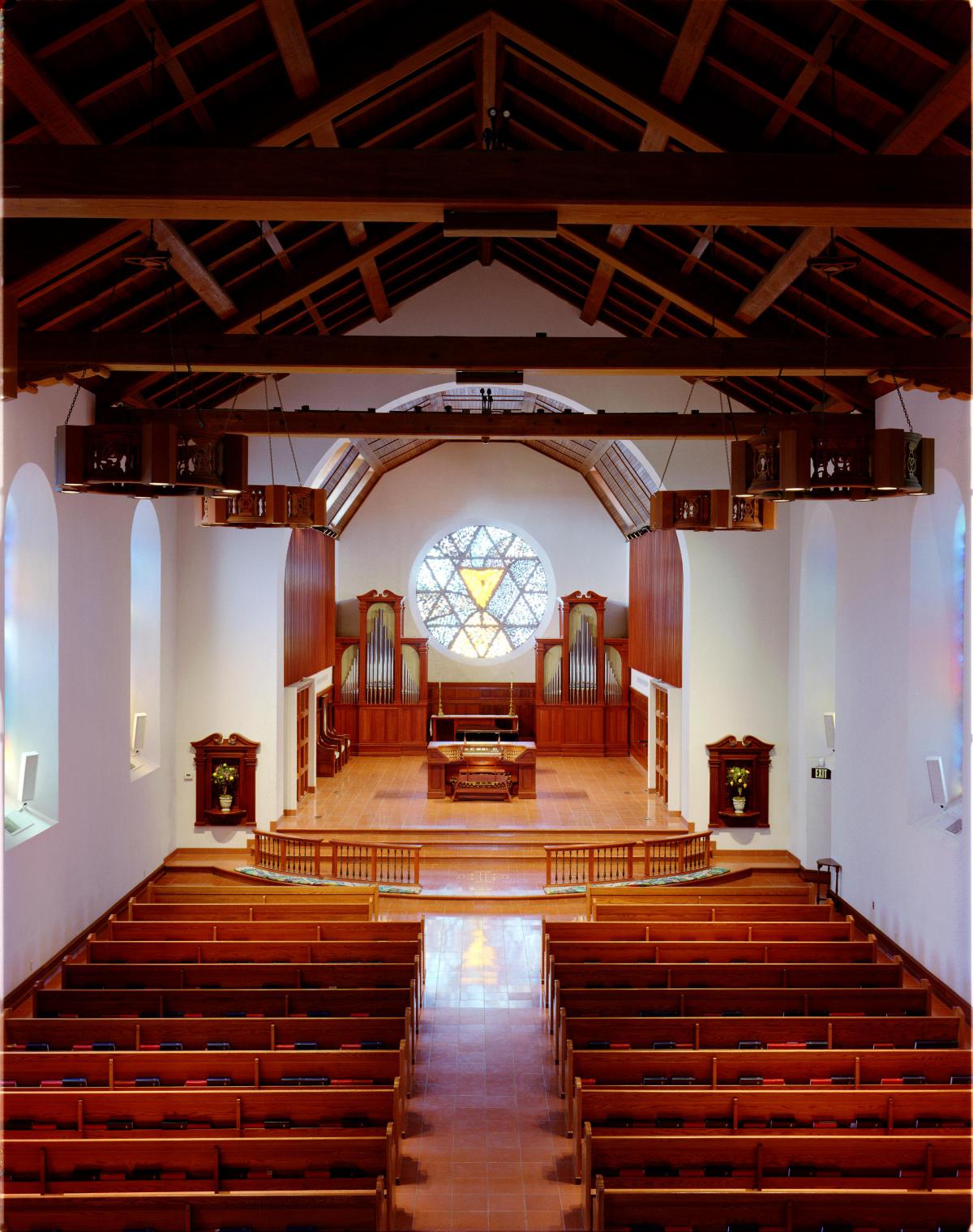

Unknown - Church Interior, Chancel, Console, and Twin Organ Cases ((September 2002) Schantz Organ Company archives; image courtesy of Eric J. Gastier/Database Manager)

Unknown - Chancel, Console, and Twin Organ Cases ((September 2002) Schantz Organ Company archives; image courtesy of Eric J. Gastier/Database Manager)

Consoles

Main

Organ type: Traditional Without Cover
Console position: Movable Console
2 manuals
35 stops
53 registers
4 divisions
Key action Type: Electrical
Stop action Type: Electrical
Stop layout Type: Drawknobs in Horizontal Rows on Curved Jambs
Manual compass: 61 notes
Pedal compass: 32 notes
Pedal Type: Concave Radiating (Meeting AGO Standards)
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Has crescendo
Combination action: Computerized/Digital
Has combination thumb pistons
Has combination toe pistons
Has coupler thumb pistons
Has coupler toe pistons
Has tutti thumb pistons
Has tutti toe pistons

Notes

2011-08-05 - Identified through online information from Jeff Scofield. -- Badly damaged by fire on October 9, 2002, and replaced in 2004 by 4/70 Schantz Op. 2247. -Database Manager

Stoplist

Stoplist courtesy of the Schantz Organ Co. Source: Source not recorded Date not recorded

        Phoenix, Arizona
        Trinity Episcopal Cathedral

        Schantz   Op. 2170   2/47   2001
        _________________________________________________________

        GREAT                             SWELL
    16' Violone              61       16' Rohrgedeckt          61
     8' Principal            61        8' Geigen               61
     8' Violone              12        8' Rohrflöte            12
     8' Bourdon              61        8' Salicional           61
     4' Octave               61        8' Celeste              54
     4' Traversflöte         61        8' Flute Celeste II    110
     2' Super Octave         61        4' Principal            61
    IV  Mixture   1 1/3'    244        4' Nachthorn            61
        Tremulant                  2 2/3' Nazard               61
     8' Trompette-en-Chamade 61        2' Blockflöte           61
        MIDI                       1 3/5' Tierce               61
                                      IV  Plein Jeu           244
        PEDAL                         16' Basson-Hautbois      61
    32' Resultant            --        8' Trompette            61
    16' Principal            32        8' Hautbois             12
    16' Subbass              32        4' Clarinet             61
    16' Violone              GT           Tremulant
    16' Rohrgedeckt          SW           MIDI
10 2/3' Quinte               SW
     8' Octave               12           POSITIV (floating)
     8' Subbass              12        8' Spitzprincipal       61
     8' Violone              GT        8' Holzgedeckt          61
     8' Gedecktbass          SW        8' Flute Celeste II     SW
     4' Choralbass           32        4' Octav                61
     4' Flute                12        4' Koppelflöte          61
   III  Mixture   2 2/3'     96        2' Gemshorn             61
    16' Posaune              32    1 1/3' Larigot              61
    16' Basson-Hautbois      SW       IV  Cymbal              244
     8' Posaune              12        8' Cromorne             pf
     4' Schalmei             32        8' Clarinet             SW
     8' Trompette-en-Chamade GT           Tremulant
        MIDI                              Zimbelstern
                                       8' Trompette-en-Chamade GT
                                          MIDI

       [Received online from Jeff Scofield  August 6, 2011]
